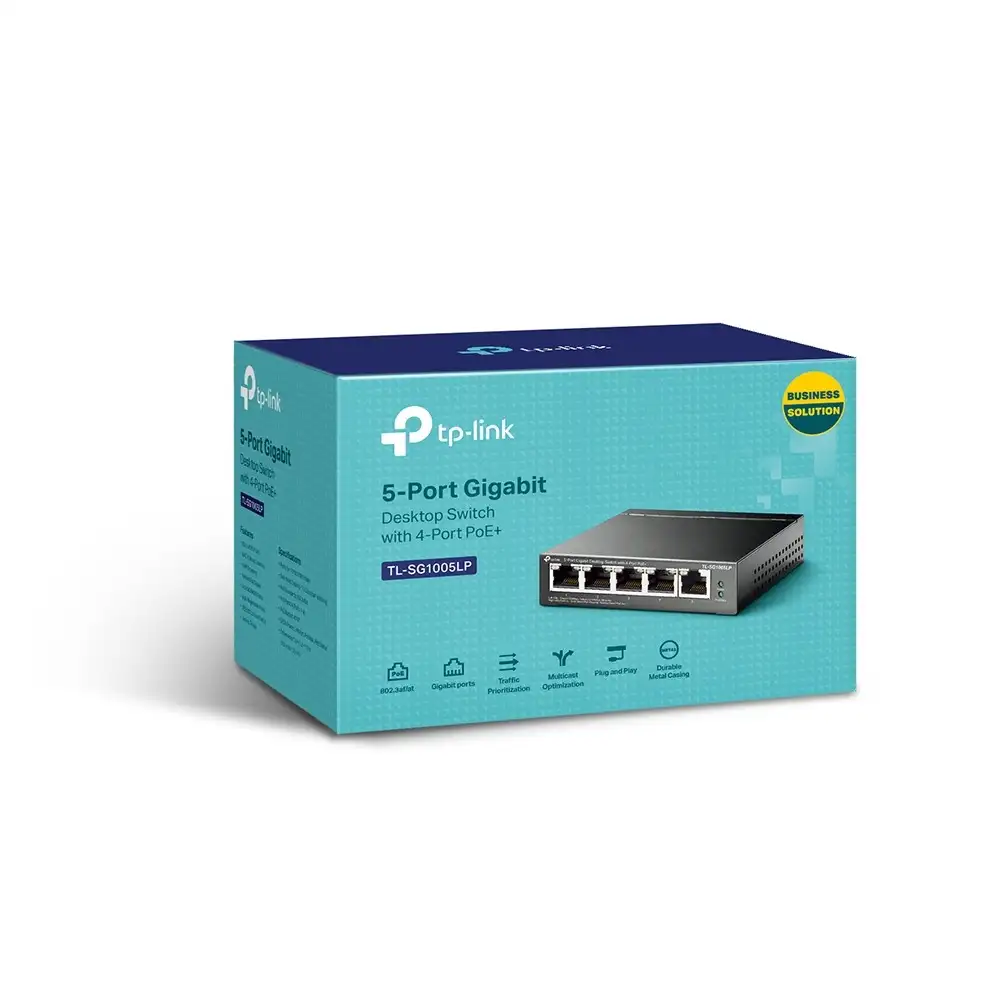

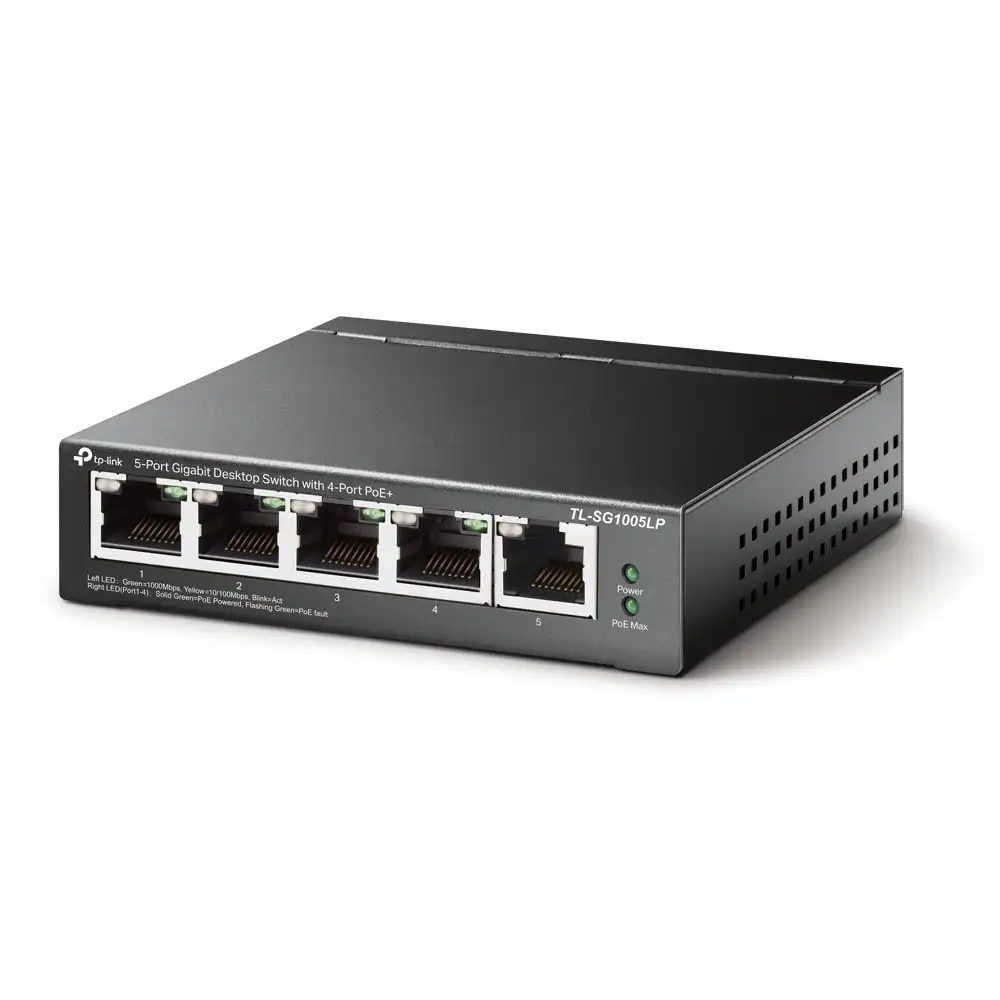

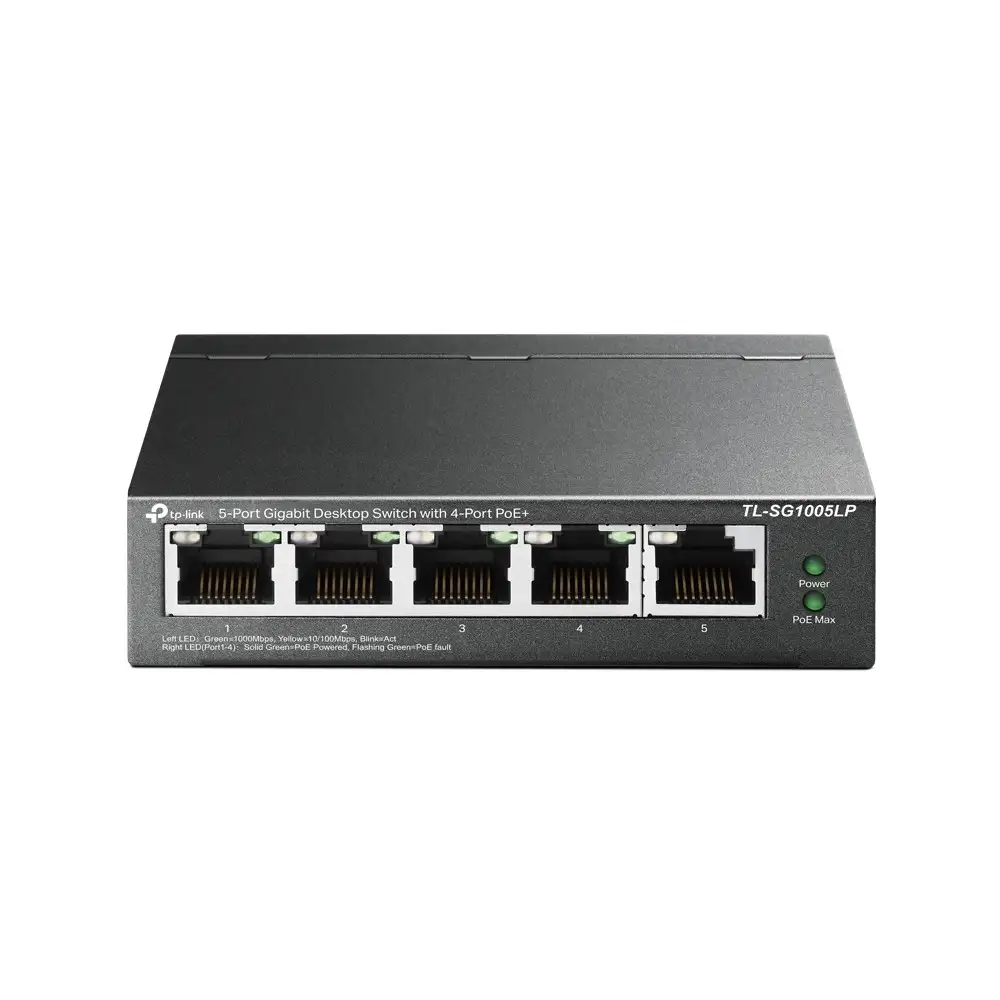

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
| Tootja | TP-LINK |
| Tootekood | TL-SG1005LP |
| EAN | 6935364052720 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/ |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Kaabli maksimaalne pikkus | 100 m |
| Virnastatav | Ei |
| .: Disain :. | |
| LED-indikaatorid | Jah |
| Seinale kinnitatav | Jah |
| Toote värv | Must |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Automaatse MAC-aadressi tuvastamise tugi | Jah |
| IGMP-jälgimine | Jah |
| Võrgustandardid | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Gigabitise Etherneti (vask) portide arv | 5 |
| Etherneti vaskkaablite tehnoloogia | 10BASE-T, 100BASE-TX, 1000BASE-T |
| RJ-45 Etherneti ühenduse pesade arv | 5 |
| RJ-45 Etherneti ühenduse pesade tüüp | Gigabit Ethernet (10/100/1000) |
| Võimsus ja energiatarve | |
| Sisendvool | 0.81 A |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50/60 Hz |
| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50/60 Hz |
| Elektritarbimine (max) | 47,5 W |
| .: Tehnilised andmed :. | |
| Sustainability compliance | Jah |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Püstikmontaaž | Ei |
| Andmeedastus | |
| Hiigelkaadrite | 16000 |
| Edastamise kiirus | 7,44 Mpps |
| Jumbo frames | 16000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 2000 sisestust |
| Lülitusvõime | 10 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| Lüliti tüüp | Mittejuhitav |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | DC/PoE |
| Ethernet LAN-funktsioonid | |
| IEEE 802.3af | Jah |
| IEEE 802.3at | Jah |
| PoE ports | 1 |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 4 |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 40 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Harmonized System (HS) kood | 85176990 |
| Muud funktsioonid | |
| Alalisvoolu sisendpinge | 53.5 V |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 161,98 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| .: Kaal ja mõõtmed :. | |
| Laius | 99,8 mm |
| Laius | 99.8 mm |
| Sügavus | 98 mm |
| Kõrgus | 25 mm |
| Mõõtmed (l x s x k) | 99.8×98×25 mm |
| Sügavus | 98 mm |
| Kõrgus | 25 mm |
| .: Pakendi sisu :. | |
| Tarvikud kaasa arvatud | TL-SG1005LP, Power Adapter, Installation Guide |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Pakendi tüüp | Box |
| Pakendi sügavus | 196 mm |
| Pakendi laius ( mm ) | 131 mm |
| Pakendi kõrgus ( mm ) | 121 mm |
| Pakendi kaal | 730 g |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| Muud andmed | |
| User guide | Jah |
| Rack mounting | Ei |
| Wall mountable | Jah |
| Quality of Service (QoS) support | Jah |
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| IGMP snooping | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Flow control support | Jah |
| DC input voltage | 53.5 V |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Fanless | Jah |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.12 |
| CnCode | 85176200 |
| Units per Shipping Box | 12 |
| Unit Calculated Volume | 0.003959 cubm |
| Product Net Weight | 0.4 kg |
| Unit Calculated Weight | 0.833 kg |
| Summary | TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| MAC address auto-aging supported | Jah |
| MAC address auto-learning supported | Jah |
| LED indicators | Jah |
| Power supply included | Jah |
| 10Base-T / 100Base-TX / 1000Base-T | 5 |
| Auto-negotiation | Jah |
| Certification | FCC, CE, RoHS |
| Desktop/pedestal | Jah |
| Forwarding rate | 7.44 Mpps |
| Heat dissipation | 161.98 BTU/h |
| MAC address table | 2000 entries |
| Maximum cable length | 100 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 730 g |
| Package width | 131 mm |
| Power Source | DC/PoE |
| Primary port count | 5 |
| Stackable | Ei |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Switching method | Store-and-forward |
| Total Power over Ethernet (PoE) budget | 40 W |
