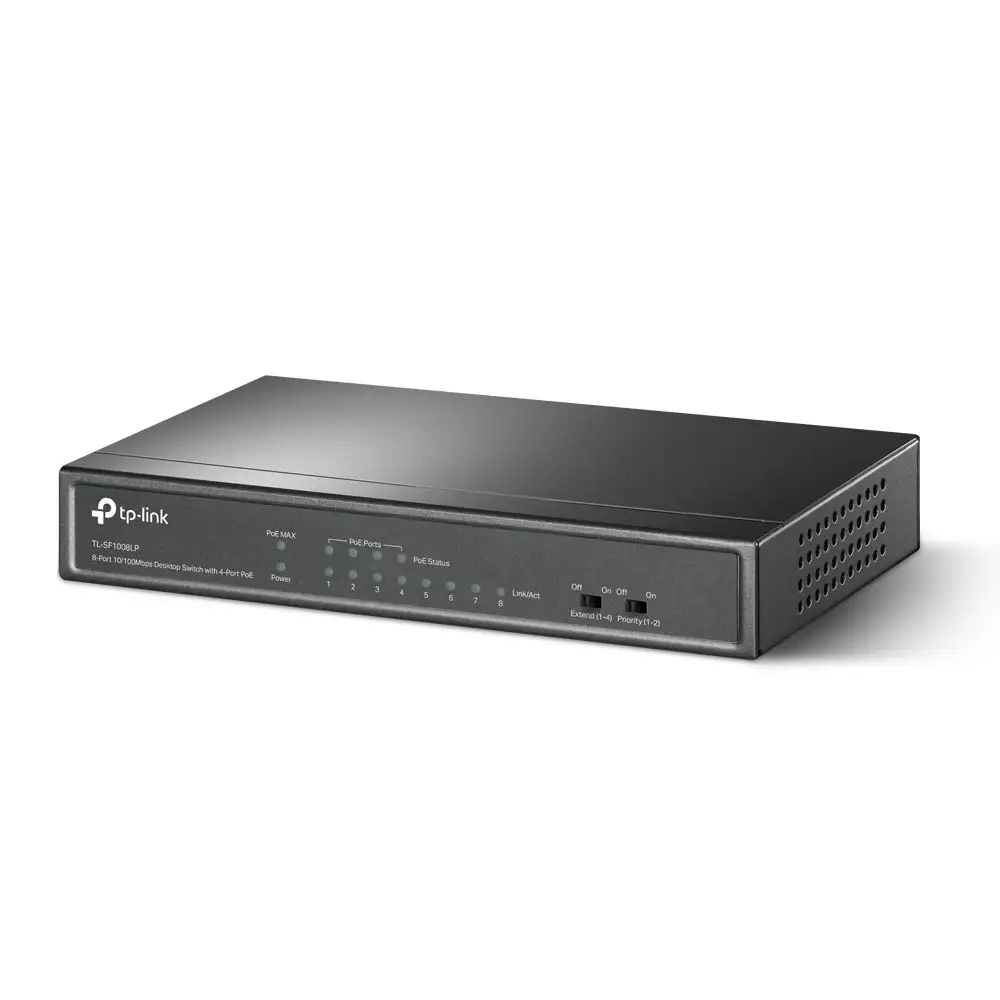

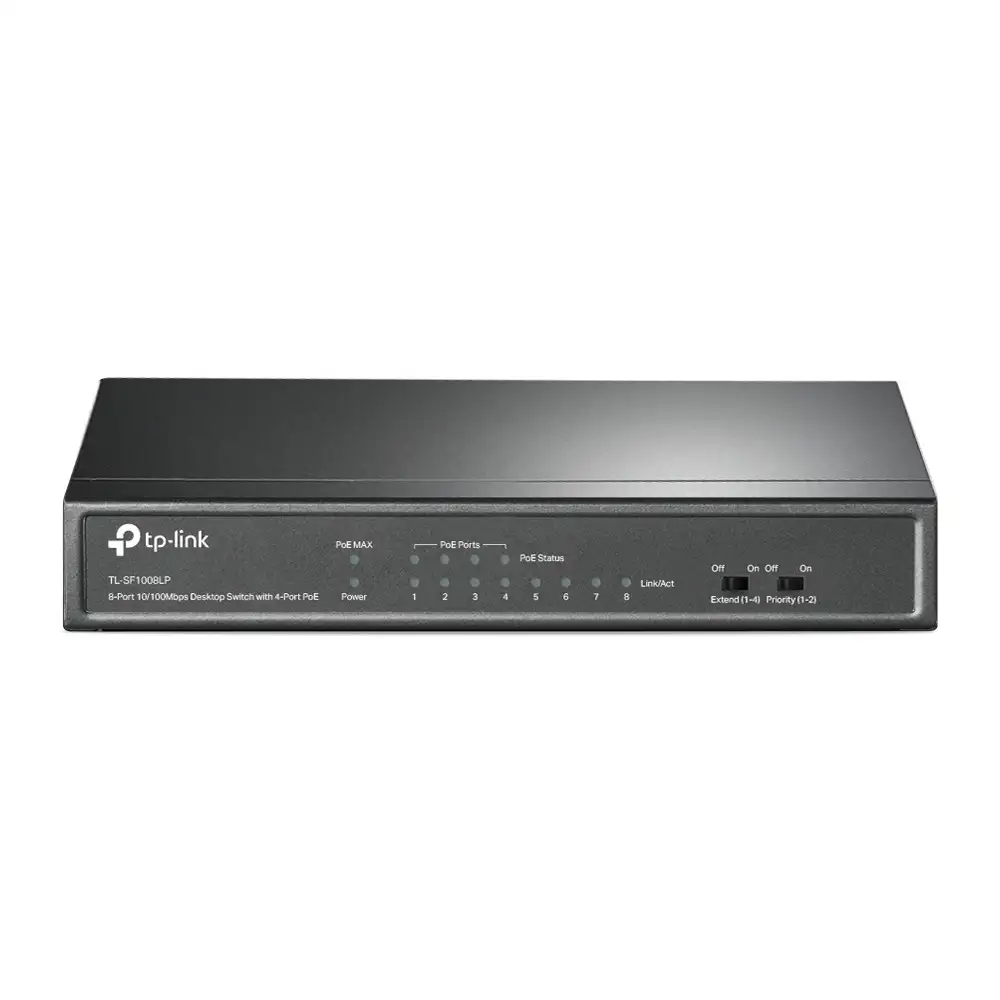

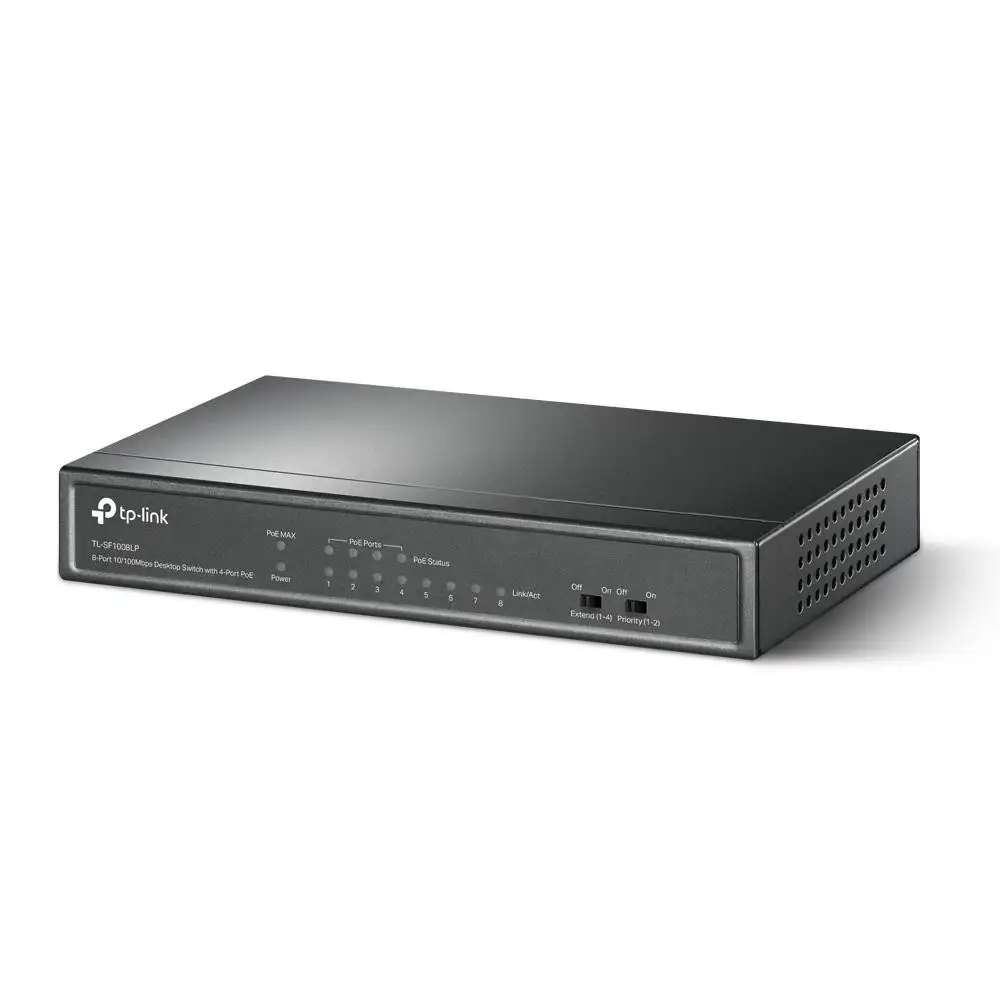

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
| Tootja | TP-LINK |
| Tootekood | TL-SF1008LP |
| EAN | 6935364052768 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/#overview |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Virnastatav | Ei |
| .: Disain :. | |
| Korpuse materjal | Metall |
| LED-indikaatorid | Jah |
| Seinale kinnitatav | Jah |
| Toote värv | Must |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| GARP VLAN Registration Protocol (GVRP) | Jah |
| Half duplex | Jah |
| Pooldupleks | Jah |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Automaatse MAC-aadressi tuvastamise tugi | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3x |
| Täisdupleks | Jah |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Etherneti vaskkaablite tehnoloogia | 10GBASE-T, 100BASE-TX |
| Kiire Etherneti (vask) pesade arv | 8 |
| RJ-45 Etherneti ühenduse pesade arv | 8 |
| RJ-45 Etherneti ühenduse pesade tüüp | Fast Ethernet (10/100) |
| Võimsus ja energiatarve | |
| Sisendvool | 0.81 A |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50 Hz |
| AC-sisendpinge | 220 V |
| AC-sisendsagedus | 50 Hz |
| Elektritarbimine (max) | 47,1 W |
| Turvalisus | |
| DHCP features | DHCPv6 relay |
| DHCP elemendid | DHCPv6 relay |
| .: Võimsus :. | |
| Toitepistmik | Alaldi sisendi pesa |
| Jahutus | |
| Ventilaatorite arv | 0 ventilaator(id) |
| Protokollid | |
| IPv4 & IPv6 features | IPv6 portal |
| IPv4 ja IPv6 elemendid | IPv6 portal |
| Marsruutimisprotokollid | OSPF |
| .: Tehnilised andmed :. | |
| Sustainability compliance | Jah |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Püstikmontaaž | Ei |
| Andmeedastus | |
| Hiigelkaadrite | 2000 |
| Edastamise kiirus | 1,1904 Mpps |
| Jumbo frames | 2000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 2000 sisestust |
| Lülitusvõime | 1,6 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Ei |
| Toiteallikas | DC/PoE |
| Toiteallikas | External |
| Ethernet LAN-funktsioonid | |
| PoE ports | 4 |
| Funktsioonid | |
| Vahelduvvoolu pinge | 220 V |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 4 |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 41 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Harmonized System (HS) kood | 85176990 |
| Muud funktsioonid | |
| Alalisvoolu sisendpinge | 53.5 V |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 160,61 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| .: Kaal ja mõõtmed :. | |
| Laius | 171 mm |
| Laius | 171 mm |
| Sügavus | 98 mm |
| Kõrgus | 27 mm |
| Mõõtmed (l x s x k) | 171 × 98 × 27 mm |
| Sügavus | 98 mm |
| Kõrgus | 27 mm |
| .: Pakendi sisu :. | |
| AC-adapter kaasa arvatud | Jah |
| Tarvikud kaasa arvatud | • TL-SF1008LP • Power Adapter • Installation Guide |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Kaablid kaasa arvatud | AC |
| Pakendi sügavus | 280 mm |
| Pakendi laius ( mm ) | 223 mm |
| Pakendi kõrgus ( mm ) | 68 mm |
| Pakendi kaal | 750 g |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| Muud andmed | |
| User guide | Jah |
| Rack mounting | Ei |
| Wall mountable | Jah |
| Networking standards | IEEE 802.3af/IEEE 802.3x |
| Full duplex | Jah |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power over Ethernet (PoE) ports quantity | 4 |
| Flow control support | Jah |
| DC input voltage | 53.5 V |
| Fast Ethernet (copper) ports quantity | 8 |
| Routing protocols | OSPF |
| Copper ethernet cabling technology | 100BASE-TX/10GBASE-T |
| Fanless | Jah |
| Unit Box Height | 0.226 |
| Unit Box Length | 0.282 |
| Unit Box Width | 0.068 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004334 cubm |
| Product Net Weight | 0.6 kg |
| Unit Calculated Weight | 0.93 kg |
| Summary | TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| MAC address auto-aging supported | Jah |
| MAC address auto-learning supported | Jah |
| LED indicators | Jah |
| Power supply included | Ei |
| 10Base-T / 100Base-TX | 8 |
| Auto-negotiation | Jah |
| Bandwidth | 1.6 Gbit/s |
| Desktop/pedestal | Jah |
| Forwarding rate | 1.1904 Mpps |
| Heat dissipation | 160.61 BTU/h |
| Housing material | Metal |
| MAC address table | 2000 entries |
| Operating relative humidity (H-H) | 10 - 90 % |
| Package depth | 280 mm |
| Package height | 68 mm |
| Package weight | 750 g |
| Package width | 223 mm |
| Power Connector | DC-in jack |
| Power Source | DC/PoE |
| Primary port count | 8 |
| Stackable | Ei |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 1.6 Gbit/s |
| Switching method | Store-and-forward |
| Total Power over Ethernet (PoE) budget | 41 W |
