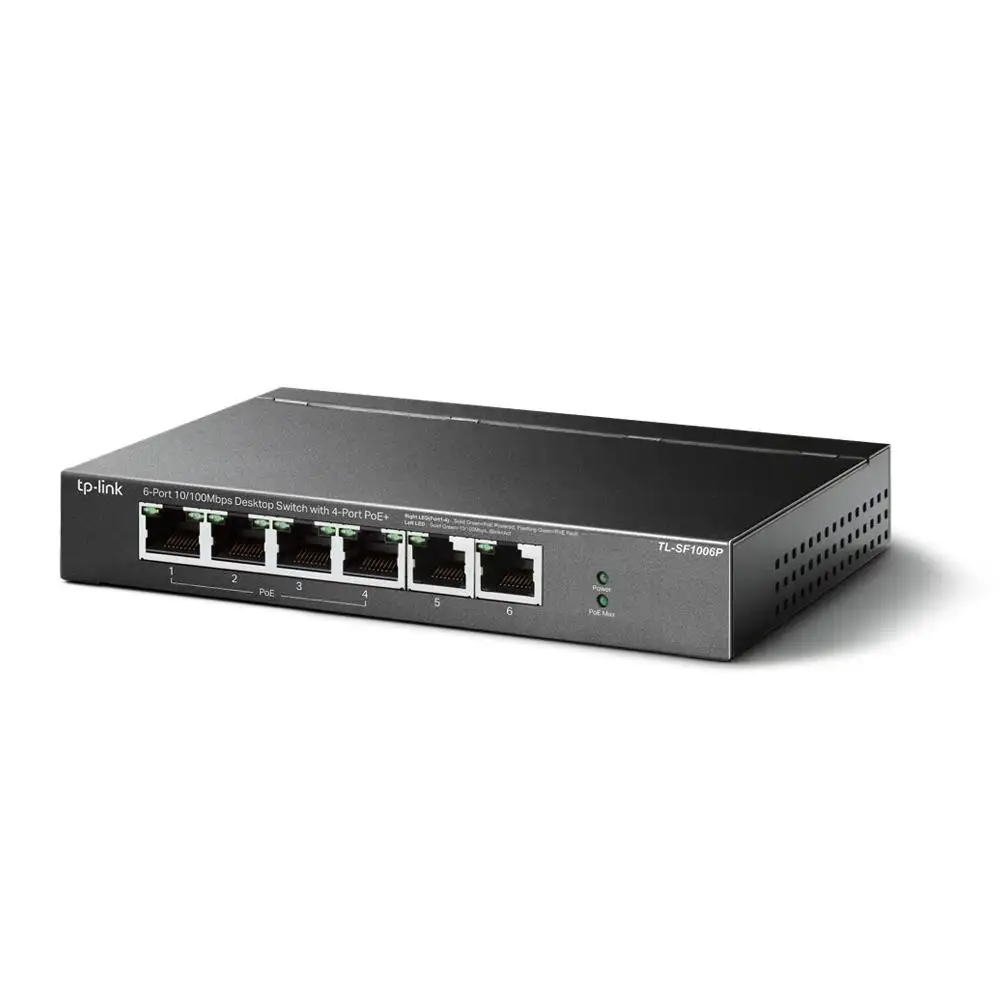

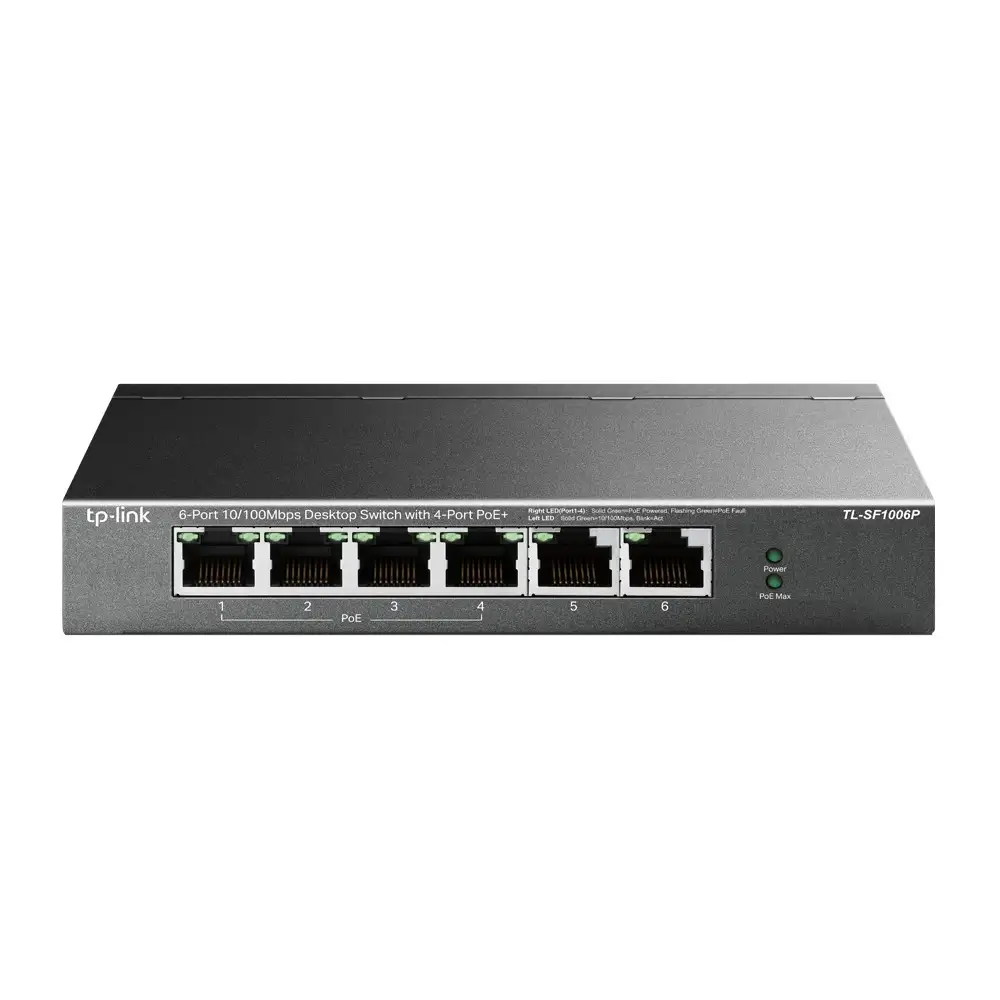

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
| Tootja | TP-LINK |
| Tootekood | TL-SF1006P |
| EAN | 6935364030933 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1006p/#overview |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Virnastatav | Ei |
| .: Disain :. | |
| Korpuse materjal | Metall |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| Half duplex | Jah |
| Pooldupleks | Jah |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Automaatse MAC-aadressi tuvastamise tugi | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3at |
| Täisdupleks | Jah |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Etherneti vaskkaablite tehnoloogia | 10BASE-T, 100BASE-TX, 100BASE-T |
| RJ-45 Etherneti ühenduse pesade arv | 6 |
| RJ-45 Etherneti ühenduse pesade tüüp | Fast Ethernet (10/100) |
| Võimsus ja energiatarve | |
| Sisendvool | 1.31 A |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50 Hz |
| AC-sisendpinge | 220 V |
| AC-sisendsagedus | 50 Hz |
| Elektritarbimine (max) | 74 W |
| .: Tehnilised andmed :. | |
| Sustainability compliance | Jah |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Püstikmontaaž | Ei |
| Andmeedastus | |
| Hiigelkaadrite | 2000 |
| Edastamise kiirus | 0,8928 Mpps |
| Jumbo frames | 2000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 2000 sisestust |
| Lülitusvõime | 1,2 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | DC/PoE |
| Toiteallikas | External |
| Funktsioonid | |
| Vahelduvvoolu pinge | 220 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e |
| Mudeli originaalnimi | TL-SF1006P |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 4 |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 67 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Harmonized System (HS) kood | 85176990 |
| Muud funktsioonid | |
| Alalisvoolu sisendpinge | 53.5 V |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 252,34 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| .: Kaal ja mõõtmed :. | |
| Laius | 158 mm |
| Laius | 158 mm |
| Sügavus | 101 mm |
| Kõrgus | 25 mm |
| Mõõtmed (l x s x k) | 158 x 101 x 25 mm |
| Sügavus | 101 mm |
| Kõrgus | 25 mm |
| .: Pakendi sisu :. | |
| AC-adapter kaasa arvatud | Jah |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Pakendi tüüp | Box |
| Pakendi sügavus | 196 mm |
| Pakendi laius ( mm ) | 131 mm |
| Pakendi kõrgus ( mm ) | 121 mm |
| Pakendi kaal | 870 g |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| Muud andmed | |
| User guide | Jah |
| Rack mounting | Ei |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Full duplex | Jah |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Flow control support | Jah |
| DC input voltage | 53.5 V |
| Copper ethernet cabling technology | 100BASE-T/100BASE-TX/10BASE-T |
| Fanless | Jah |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.135 |
| Units per Shipping Box | 12 |
| Unit Calculated Volume | 0.003959 cubm |
| Product Net Weight | 0.46 kg |
| Unit Calculated Weight | 0.933 kg |
| Summary | TP-Link TL-SF1006P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE) |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| MAC address auto-aging supported | Jah |
| MAC address auto-learning supported | Jah |
| LED indicators | Jah |
| Power supply included | Jah |
| 10Base-T / 100Base-TX | 6 |
| Auto-negotiation | Jah |
| Certification | FCC, CE, RoHS |
| Desktop/pedestal | Jah |
| Forwarding rate | 0.8928 Mpps |
| Heat dissipation | 252.34 BTU/h |
| Housing material | Metal |
| MAC address table | 2000 entries |
| Operating relative humidity (H-H) | 10 - 90 % |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 870 g |
| Package width | 131 mm |
| PoE+ ports | 4 |
| Power Source | DC/PoE |
| Stackable | Ei |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 1.2 Gbit/s |
| Switching method | Store-and-forward |
| Total Power over Ethernet (PoE) budget | 67 W |
