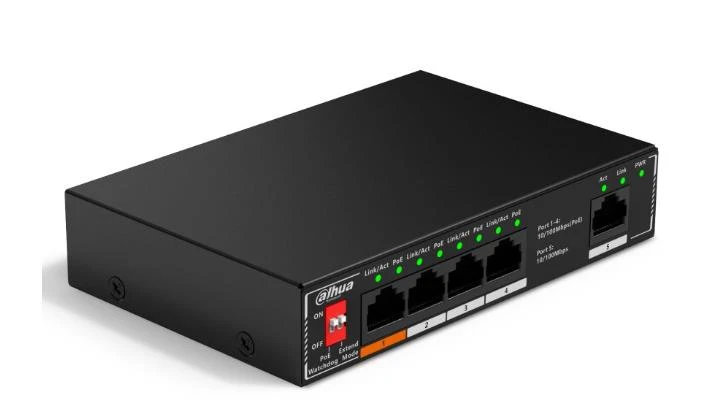

DH-SF1005P is an unmanaged desktop switch with 4 × 10/100 Mbps PoE Ports. It provides 4 × 10/100 Mbps Ethernet ports and 1 × 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On and Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility.
Reduce cable loss and promote loading capacity.
| Tootja | DAHUA |
| Tootekood | SF1005P |
| EAN | 6923172571427 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SF1005P |
| Võimsus ja energiatarve | |
| Power over Ethernet (PoE) | Jah |
| Ethernet LAN-funktsioonid | |
| 10/100M | 1/4 |
| IEEE 802.3 | Jah |
| IEEE 802.3u | Jah |
| IEEE 802.3x | Jah |
| PoE ports | 4 |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | -10 - 55 °C |
| .: Kaal ja mõõtmed :. | |
| Netokaal | 0.3 kg |
| Brutokaal | 0.5 kg |
| Laius | 130 mm |
| Sügavus | 85 mm |
| Kõrgus | 26 mm |
| Mõõtmed (l x s x k) | 130 mm × 85 mm × 26 mm |
| Toote kaal | 300 g |
| .: Pakendi andmed :. | |
| Pakendi maht | 0.000732 cubm |
| Muud andmed | |
| Full duplex | Jah |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power over Ethernet (PoE) ports quantity | 4 |
| Flow control support | Jah |
| DC input voltage | 48 - 57 V |
| Fast Ethernet (copper) ports quantity | 5 |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| PoE power budget | 60 Watts |
| Unit Box Height | 0.08 |
| Rack mounting | Ei |
| Wall mountable | Jah |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Switch layer | L2 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.24 |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.005785 cubm |
| Product Net Weight | 0.3 kg |
| Unit Calculated Weight | 1 kg |
| Summary | Dahua Technology PoE SF1005P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable |
| Product colour | Black |
| Uplink ports quantity | 1 |
| Cable types supported | Cat5e/Cat6 |
| 10G support | Ei |
| LED indicators | Jah |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Forwarding rate | 0.744 Mpps |
| Operating relative humidity (H-H) | 5 - 95 % |
| Packet buffer memory | 0.125 MB |
| Power Source | DC/PoE |
| Primary port count | 5 |
| Switch type | Unmanaged |
| Switching capacity | 1.8 Gbit/s |
| Total Power over Ethernet (PoE) budget | 60 W |
