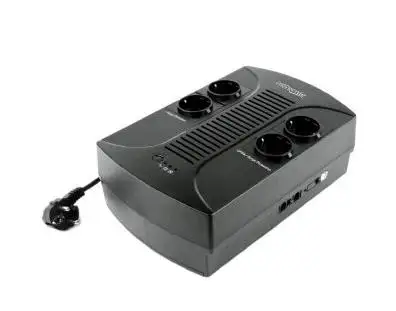

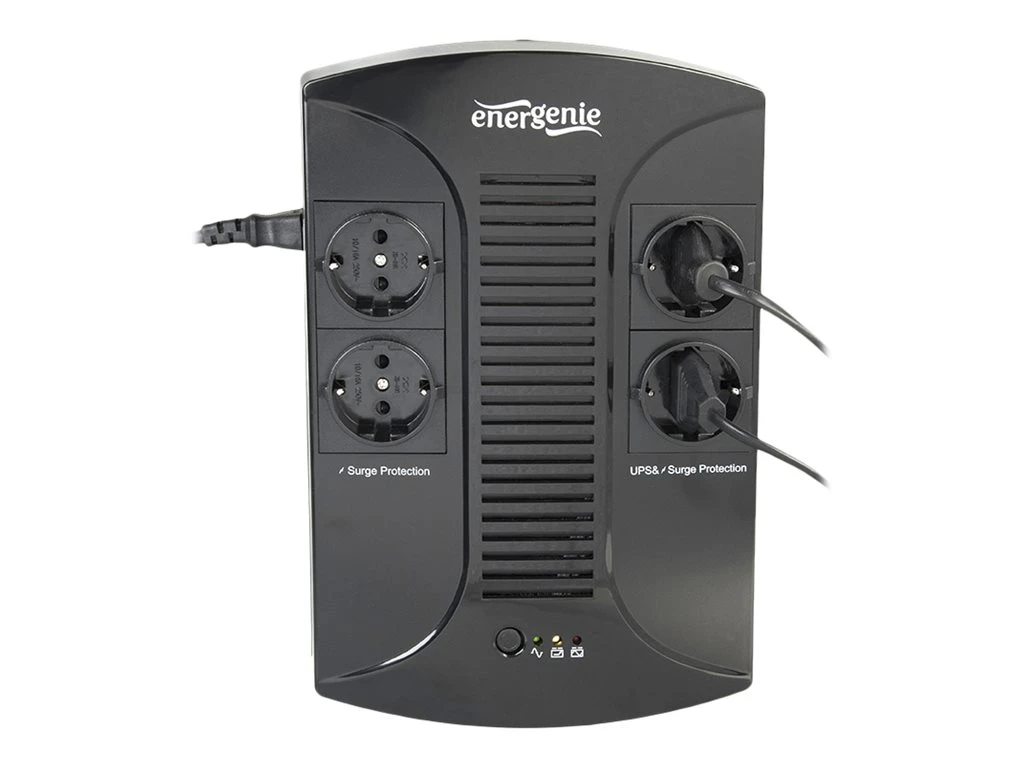

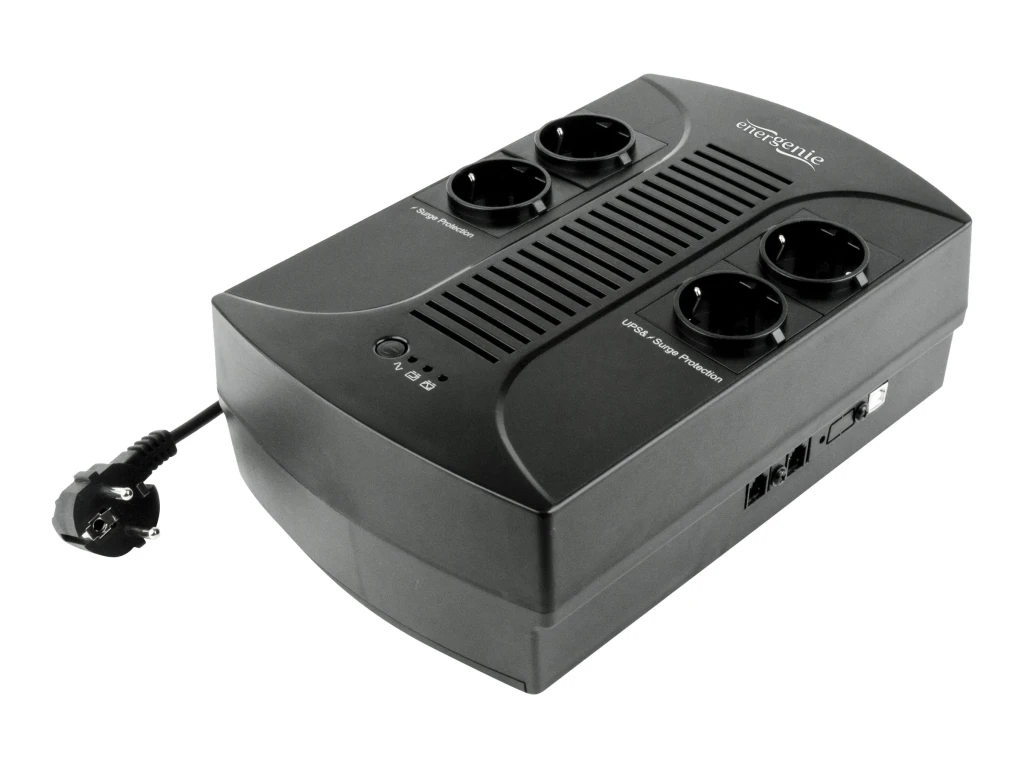

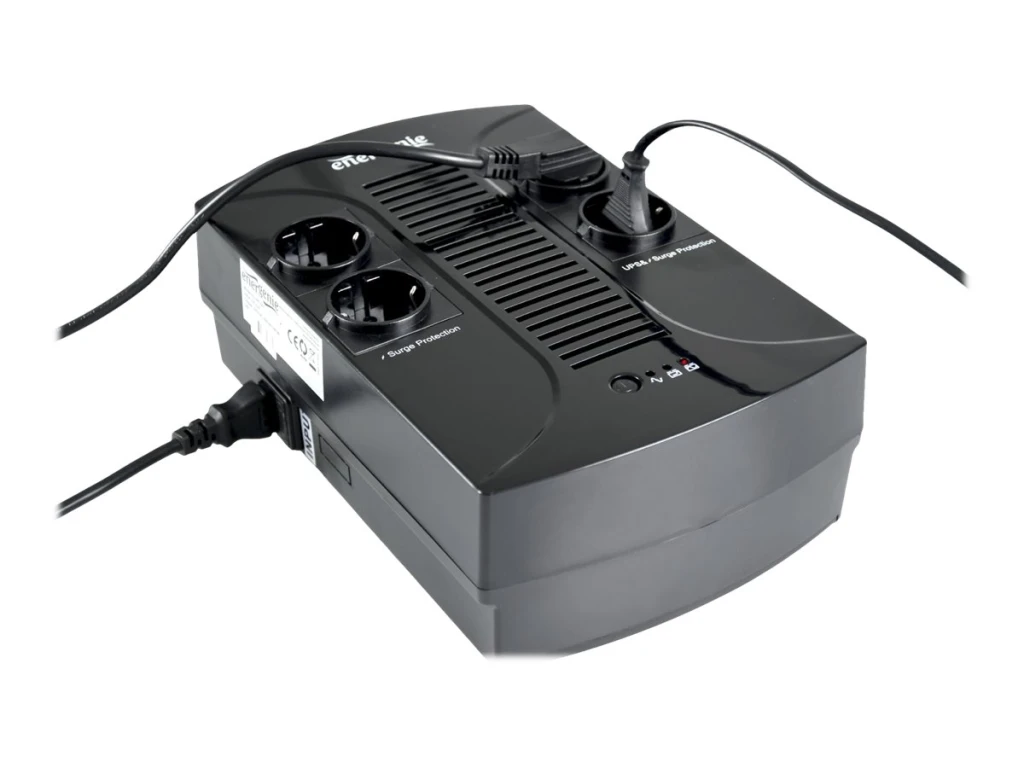

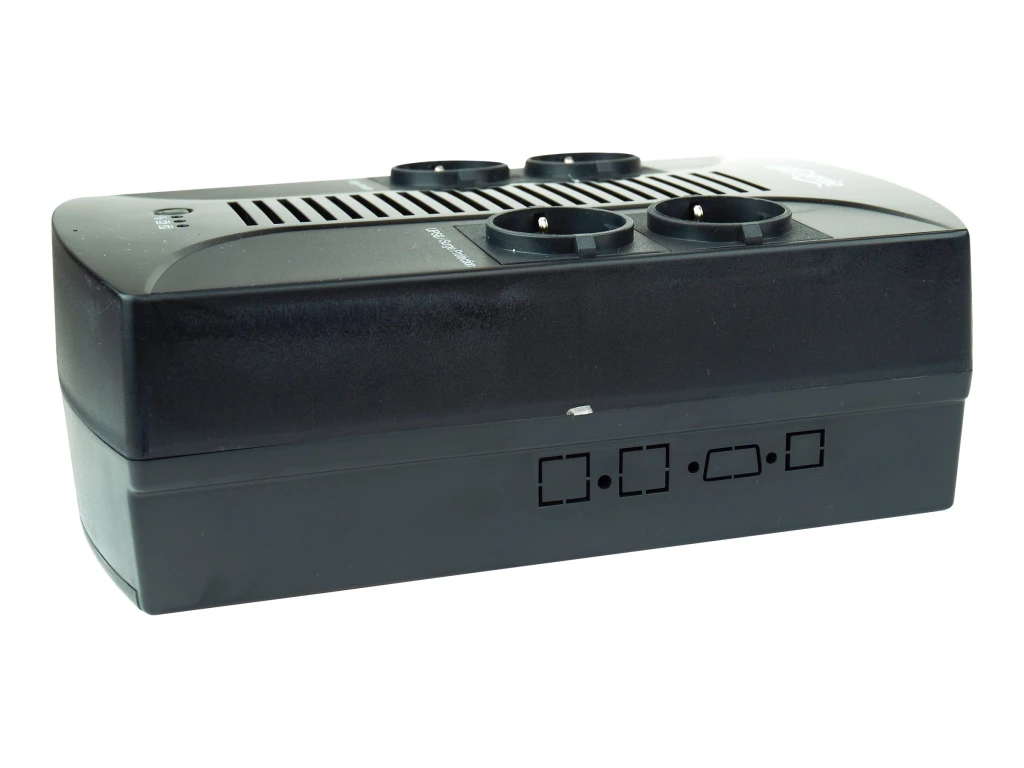

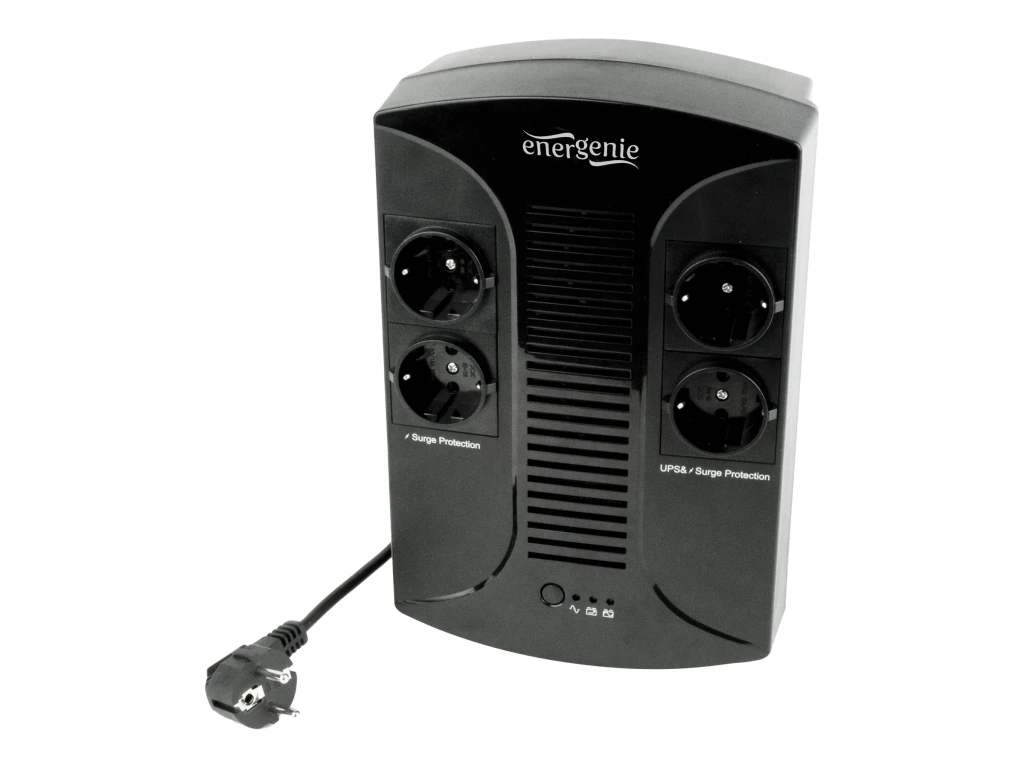

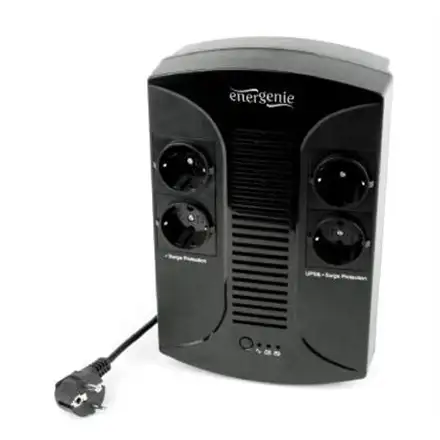

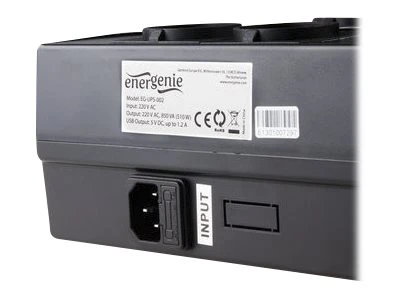

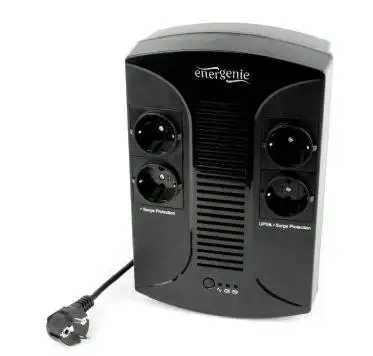

EnerGenie | UPS with AVR | 650 VA | 220 V

.: Üldised omadused :.

Müratase

45 dB

.: Disain :.

Kujutegur

Kompaktne

.: Aku & Toiteallikas :.

Aku mahutavus

7 Ah

Akuelementide arv

Accumulator

Akutehnoloogia

Sealed Lead Acid (VR

Võimsus ja energiatarve

Sisseehitatud aku

Jah

Väljundvõimsus

390 W

Andmekandja/Kõvaketas

Maht

650 VA

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

20 - 90 %

.: Pakendi andmed :.

Pakenditaara kaal

0.92 kg

Pakendi maht

0.01 m³

Kogus pakendi kohta

3 tk

Pakendi sügavus

145.00 mm

Pakendi laius ( mm )

240.00 mm

Pakendi kõrgus ( mm )

335.00 mm

Tehnilised andmed

Plastic (No PET)

920 g

Number of phases

1

AC outlets quantity

4

AC outlet types

Tüüp F (Schuko)

WEEE maks

Jah

WEE klassifikatsioon

CL109:5:2017-04-01

Composition of battery

CL127:KT:2016-12-09

Classification of battery

CL126:PE:2016-12-09

TI weight (kg)

3.30 kg

Tare weight master carton

3.18 kg

Gross depth master carton

350.00 mm

Paper/Pasteboard

920 g

Gross width master carton

450 mm

Net weight master carton

12 kg

Gross height master carton

260.00 mm

Mudeli number

UPS with AVR

Number of batteries supported

1

Battery recharge time

12 h

Battery voltage

12 V

Certification

-CE

Input operation voltage (max)

220 V

Output operation voltage (max)

220 V

Output power capacity

650 VA

Power supply input frequency

50/60 Hz

Response Time

10 ms

Special features

* Uninterruptable 650 VA power supply with modified sine wave output * Automatic AC voltage regulation (AVR) * Intelligent surge-, overload- and short-circuit protection * Audible and visual alarms * LED status indication * Intelligent battery management with overcharge and over-discharge protection * Wall mountable

Typical backup time at full load

10 min

Typical backup time at half load

30 min

Tehnilised andmed

Brutokaal

4.92 kg

Laius

280 cm

Sügavus

185 cm

Kõrgus

95 cm

Toote kaal

4500 g
