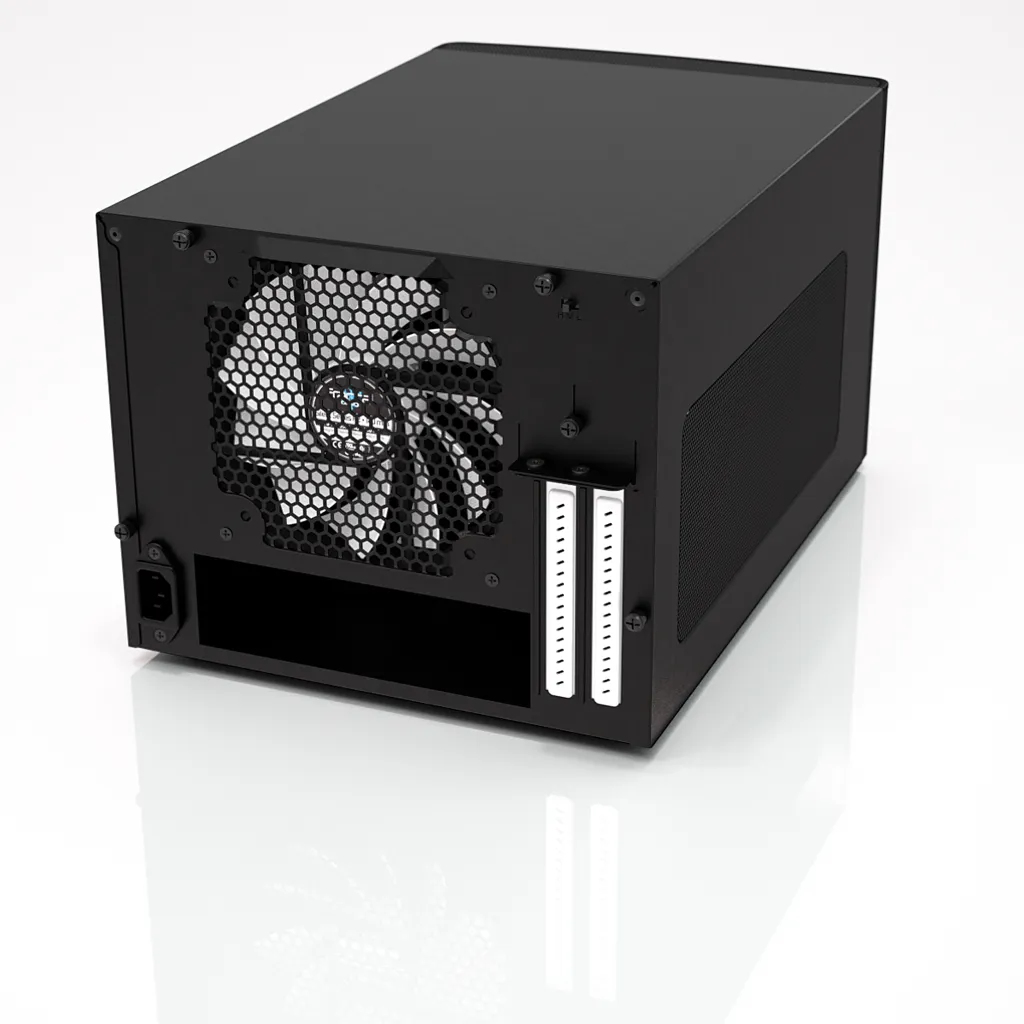

Fractal Design | NODE 304 | 2 - USB 3.0 (Internal 3.0 to 2.0 adapter included)1 - 3.5mm audio in (microphone)1 - 3.5mm audio out (headphone)Power button with LEDHDD LED | Black

.: Üldised andmed :.

Tootja

Fractal Design

Seadme tüüp

PC

.: Üldised omadused :.

Sobilik

Kodu/kontor

.: Disain :.

3,5" lahtrite arv

6

Aknaga

Ei

CPU jahuti maksimaalne kõrgus

16,5 cm

Emaplaadi toetatud kujutegurid

Mini-DTX, Mini-ITX

Graafikakaardi maksimaalne pikkus

31 cm

Jahutuse tüüp

2 - Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) – included1 - Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) – includedRemovable air filters for front fans and PSUFan filter for graphics card1 - fan controller for all 3 fans included

Laienduspesade arv

2

LED-indikaatorid

HDD

Mahutavus

19,5 l

Toiteploki maksimaalne pikkus

16 cm

Tolmuvastane filter

Jah

Toote värv

Must

Tüüp

PC

.: Mälu :.

Toetatud kõvakettasuurused

2.5,3.5"

.: Pesad & liidesed :.

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

2

Audiosisend

Jah

Audioväljund

Jah

USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk

2

Jahutus

Installitud tagaventilaatorid

1x 140 mm

Installitud esiventilaatorid

2x 92 mm

Maksimaalne esiventilaatorite arv

2

Toetatud esiventilaatorite läbimõõt

80,92 mm

Maksimaalne tagaventilaatorite arv

1

Toetatud tagaventilaatorite läbimõõt

120 mm

.: Tehnilised andmed :.

Garantii

24

Toide

Toiteploki asukoht

Põhi

Kaasas toiteplokk

Ei

Toetatud elektritoite tarne vormi faktorid

ATX

Muud funktsioonid

Muud funktsioonid

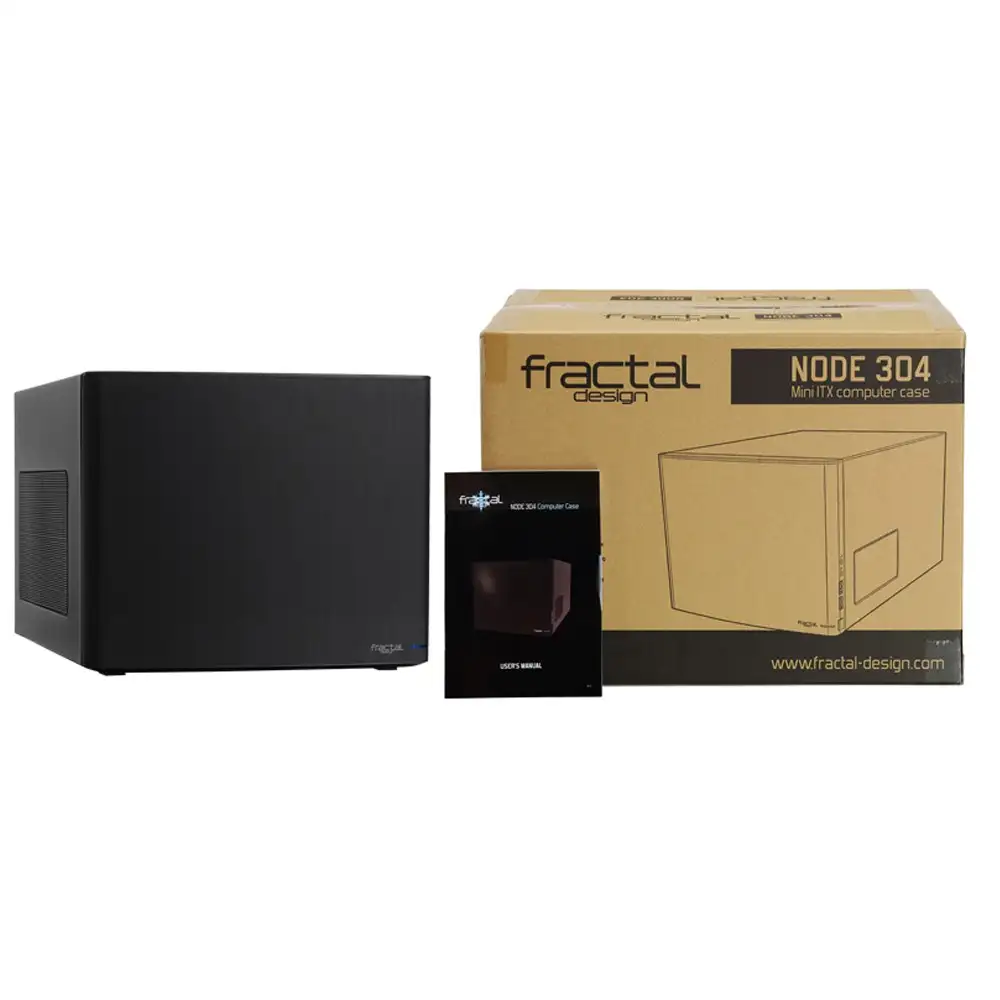

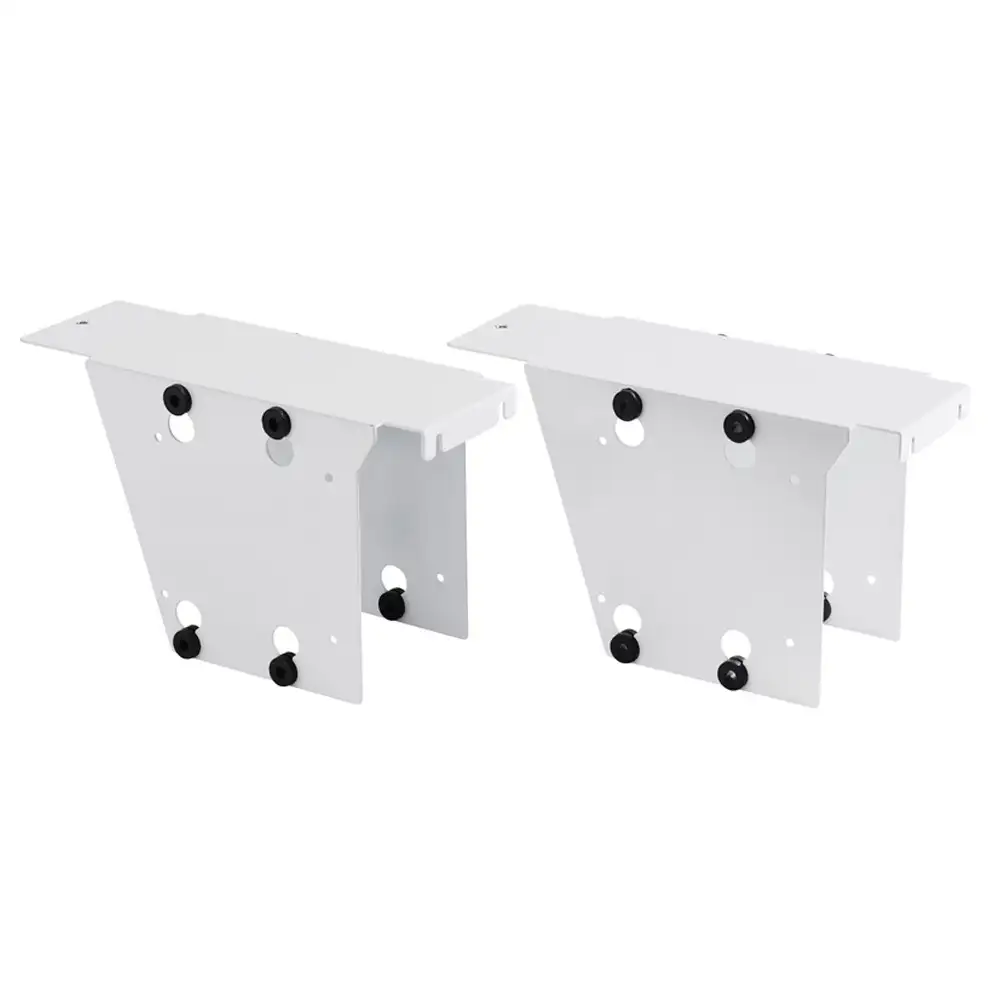

Compact, modular interiorMinimalistic design with an elegant aluminum front panelUnique new modular mounting system that accommodates up to 6 hard drivesAccommodates tower CPU coolers and single-fan water cooling systemsFiltered air intakes ensure a dust-free environment for internal componentsThree Silent Series R2 hydraulic bearing fans includedExcellent cooling for all componentsAccommodates ATX power suppliesFan controller for all fans includedUSB 3.0 for fast file transfers, Package:Node 304 computer caseUser manualAccessory box

.: Pakendi sisu :.

Juhend

Jah

.: Pakendi andmed :.

Pakenditaara kaal

0.70 kg

Pakendi maht

0.04552275 m³

Kasutusjuhend

Jah

Kogus pakendi kohta

1 pc(s)

Pakendi sügavus

290.00 mm

Pakendi laius ( mm )

285 mm

Pakendi kõrgus ( mm )

335 mm

Pakendi kaal

6,1 kg

Pakendi pikkus ( mm )

450 mm

Tehnilised andmed

Net weight master carton

5.00 kg

WEEE maks

Ei

Tare weight master carton

1.00 kg

Gross depth master carton

385.00 mm

Gross width master carton

182.00 mm

Gross height master carton

425.00 mm

Plastic (No PET)

27.00 g

Maximum PSU length

16 cm

Side fans diameters supported

120,140 mm

Maximum side fans

1

Suitable for

Home/Office

Power supply location

Bottom

Üldised näitajad

Package:Node 304 computer caseUser manualAccessory box

Mudeli number

NODE 304

Front fans installed

2x 92 mm

Maximum front fans

2

Maximum graphics card length

31 cm

Number of 3.5" bays

6

Power LED

Jah

Power supply included

Ei

Rear fans installed

1x 140 mm

Side window

Ei

Supported motherboard form factors

Mini-DTX, Mini-ITX

Audio Input

Jah

Audio Output

Jah

Expansion slots

Mini ITX, DTX motherboard compatibility2 expansion slots6 – supports either 3.5" or 2.5" HHD / SSDATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm)Graphics cards, up to 310mm in length, when 2 HDD brackets are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm)Tower CPU coolers, up to 165 mm tall

Front fans diameters supported

80,92 mm

Maximum CPU cooler height

16.5 cm

Panel Type

2 - USB 3.0 (Internal 3.0 to 2.0 adapter included)1 - 3.5mm audio in (microphone)1 - 3.5mm audio out (headphone)Power button with LEDHDD LED

Supported hard disk drive sizes

2.5,3.5 mm

Tehnilised andmed

Netokaal

4.336

Brutokaal

5.90 kg

Laius

250 mm

Sügavus

374 mm

Kõrgus

210 mm

Toote kaal

4.9 oz

Mõõdud (l x s x k)

(W x H x D): 250 x 210 x 374 mm mm
