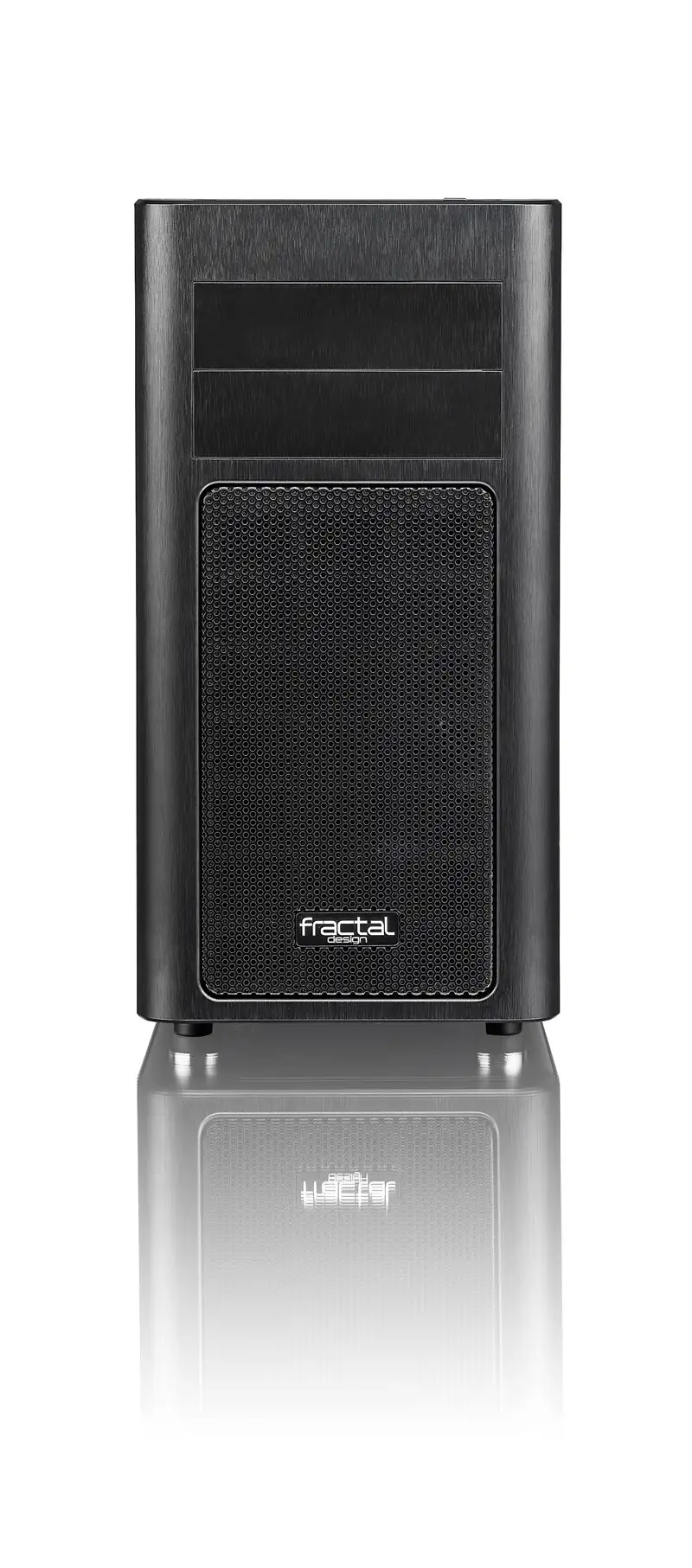

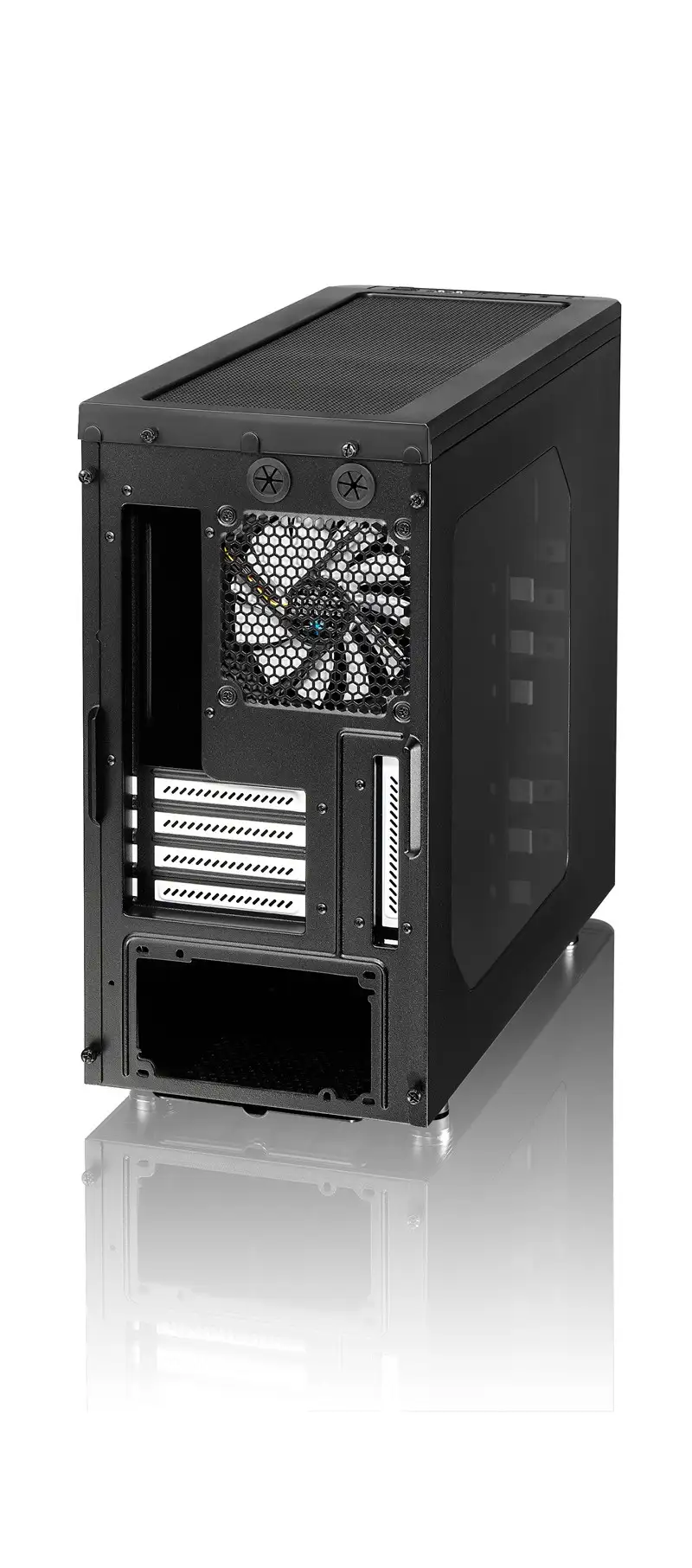

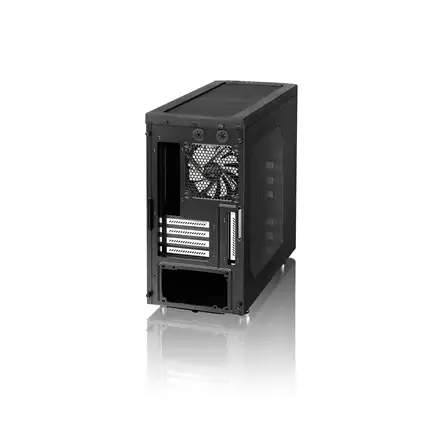

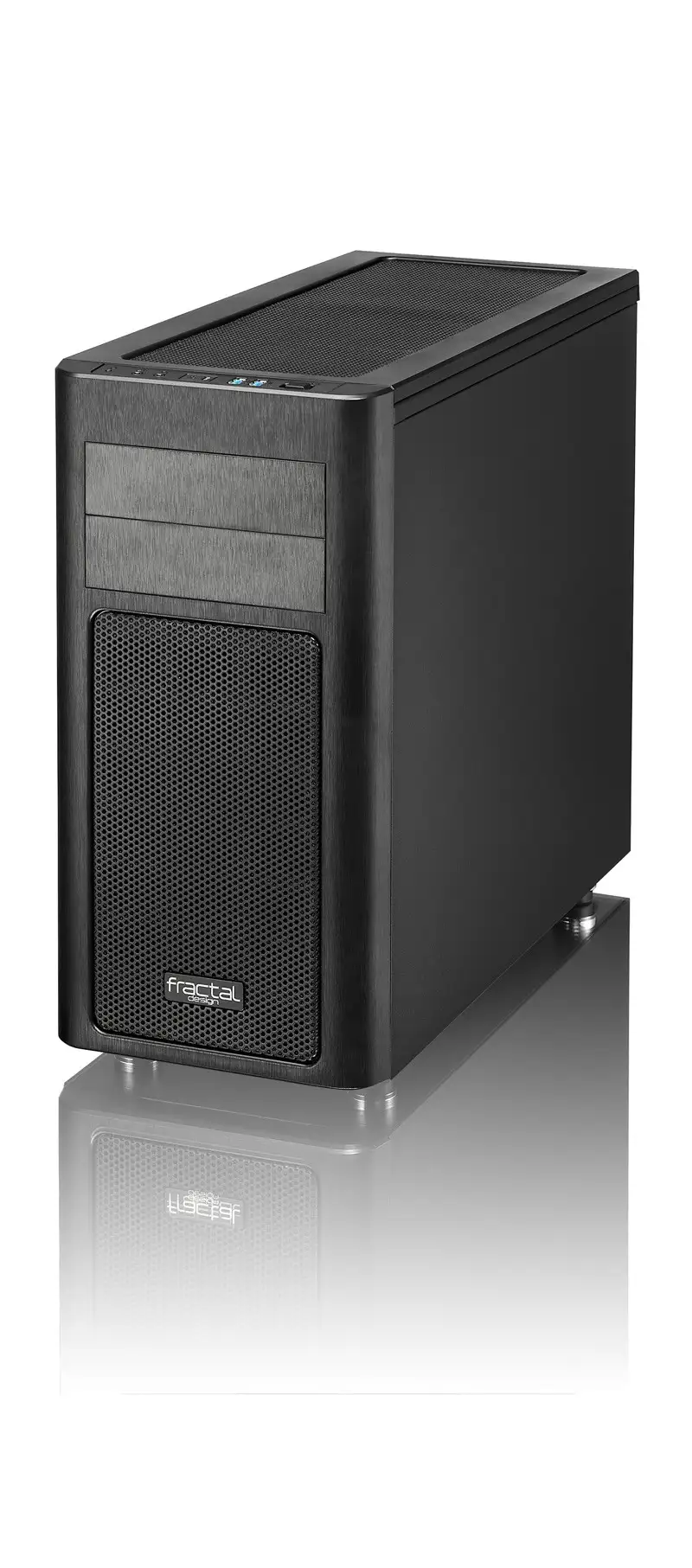

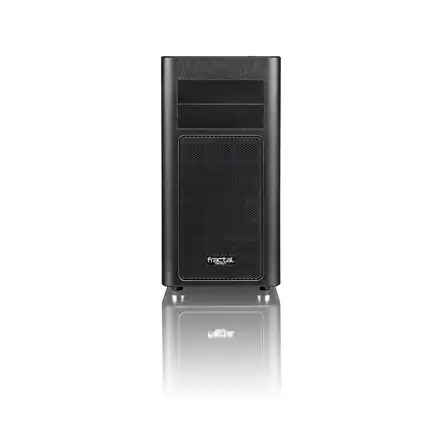

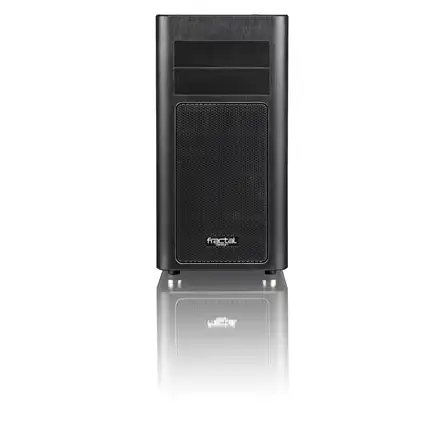

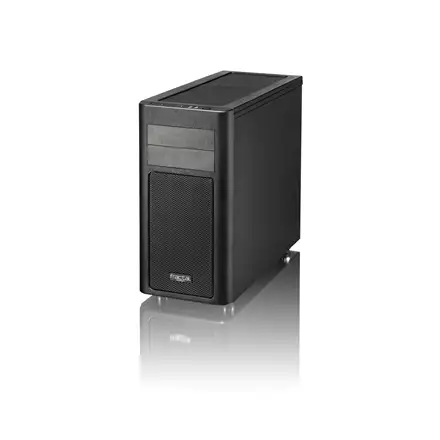

Fractal Design Arc Mini R2 Side window, Black, Micro ATX, Power supply included No

.: Üldised andmed :.

Seadme tüüp

PC

.: Disain :.

2,5" salvede arv

2

3,5" lahtrite arv

6

5,25" lahtrite arv

2

Aknaga

Jah

CPU jahuti maksimaalne kõrgus

16,5 cm

Emaplaadi toetatud kujutegurid

Micro-ATX,Mini-ITX

Graafikakaardi maksimaalne pikkus

26 cm

Jahutuse tüüp

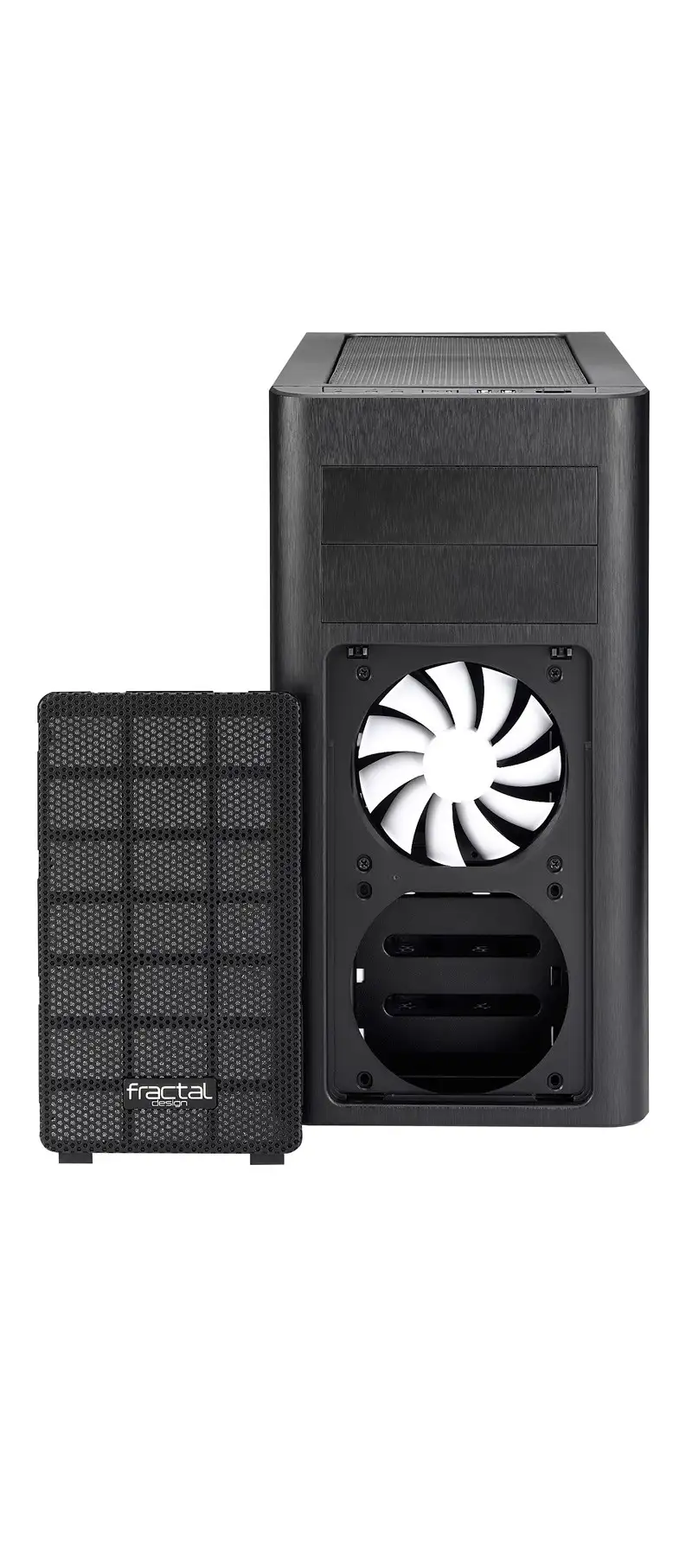

Front: 2 - 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)Rear: 1 - 120mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)Top: 2 - 120/140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) 1 - 120mm fan (not included)Bottom: 1 - 120mm fan (not included)Fan controller: 1 - integrated fan controller for up to 3 fans (included)Water cooling compatibility:Front – 240mm radiator (thick and slim) when HDD cages are removed, radiator cannot exceed 275mm in total length with the ODD bay in place.Top – 240mm or 360mm radiators (thick and slim); the use of 360mm radiators requires removal of the ODD cage.Bottom – 120mm radiatorsRear – 120 and 140mm radiators

Kujutegur

Miditorn

Laienduspesade arv

5

Sisseehitatud kõlar(id)

Ei

Toiteploki maksimaalne pikkus

17 cm

Toote värv

Must

Tüüp

PC

.: Mälu :.

Toetatud kõvakettasuurused

2.5,3.5"

.: Pesad & liidesed :.

Audiosisend

Jah

Audioväljund

Jah

Liides

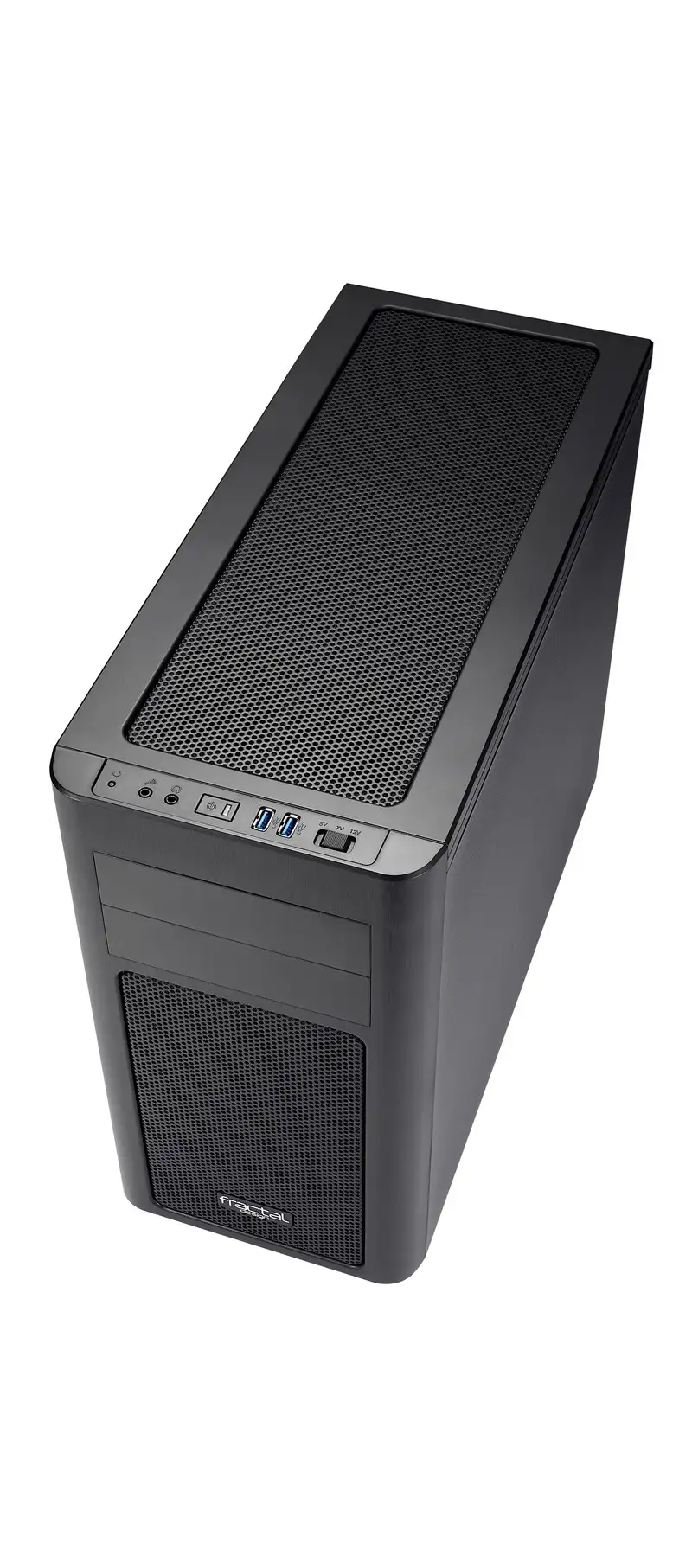

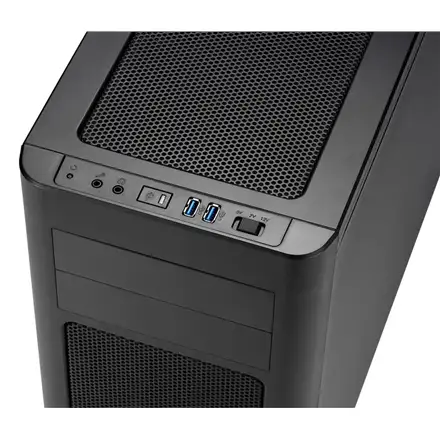

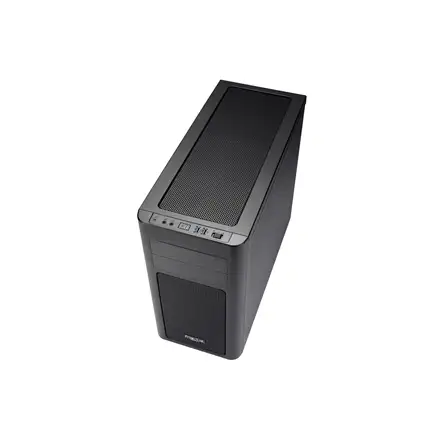

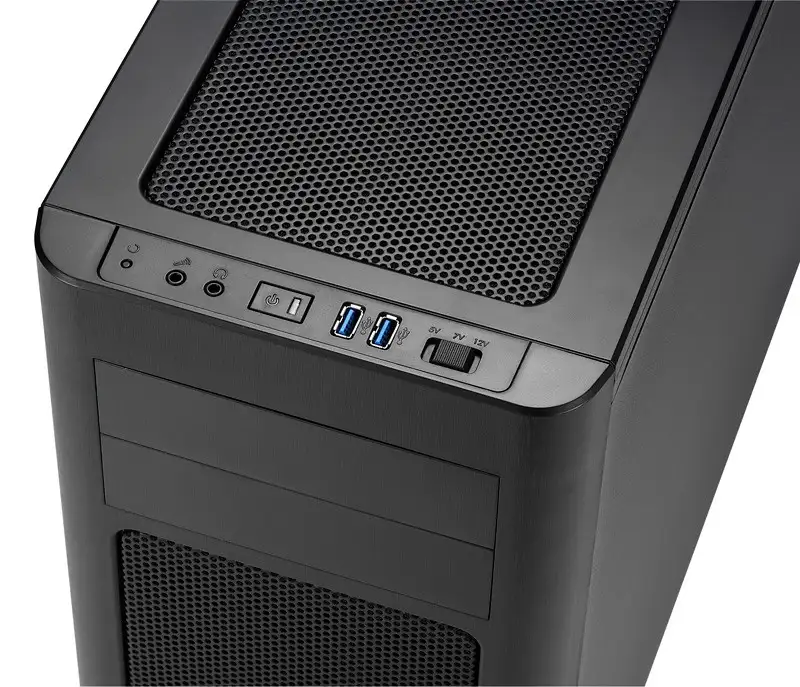

2 - USB 3.0Audio in/outPower button with LED (blue)HDD activity LED (red)Reset buttonFan controller

USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk

2

Jahutus

Installitud ülemised ventilaatorid

1x 140 mm

Installitud tagaventilaatorid

1x 120 mm

Maksimaalne ülemiste ventilaatorite arv

3

Toetatud ülemiste ventilaatorite läbimõõt

120,140 mm

Maksimaalne alumiste ventilaatorite arv

1

Toetatud alumiste ventilaatorite läbimõõt

120 mm

Installitud esiventilaatorid

1x 120 mm

Maksimaalne esiventilaatorite arv

2

Toetatud esiventilaatorite läbimõõt

120 mm

Maksimaalne tagaventilaatorite arv

1

.: Tehnilised andmed :.

Garantii

24 kuu(s)

Toide

Kaasas toiteplokk

Ei

.: Pakendi andmed :.

Pakendi laius

28 cm

Pakendi kõrgus

47.5 cm

Pakenditaara kaal

1.60 kg

Pakendi maht

0.08 m³

Kogus pakendi kohta

1 tk

Pakendi sügavus

56.5 cm

Pakendi laius ( mm )

280 mm

Pakendi kõrgus ( mm )

475 mm

Pakendi kaal

10 kg

Pakendi pikkus ( mm )

565 mm

Tehnilised andmed

Top fans installed

1x 140 mm

Maximum bottom fans

1

Number of 5.25" bays

2

Maximum PSU length

17 cm

WEEE maks

Ei

Tare weight master carton

1.00 kg

Gross depth master carton

385.00 mm

Gross width master carton

182.00 mm

Gross height master carton

425.00 mm

Net weight master carton

5.00 kg

Plastic (No PET)

27.00 g

Üldised näitajad

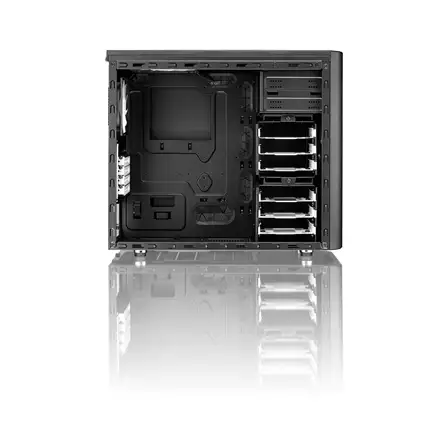

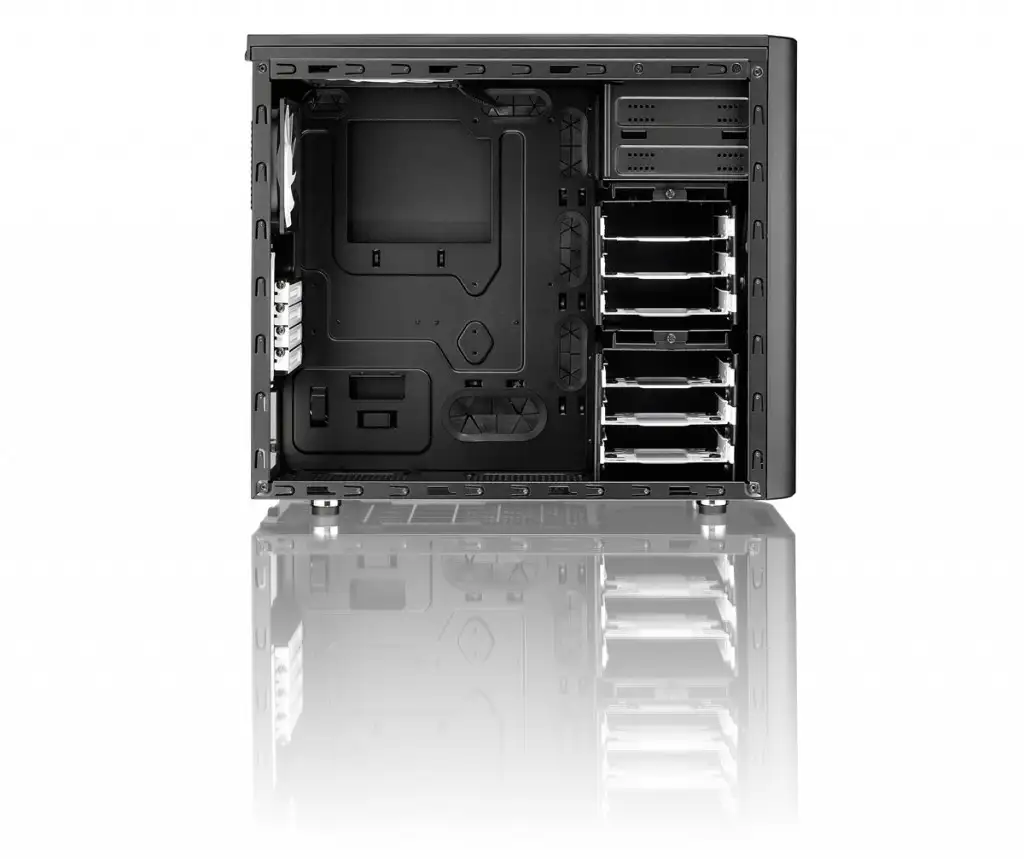

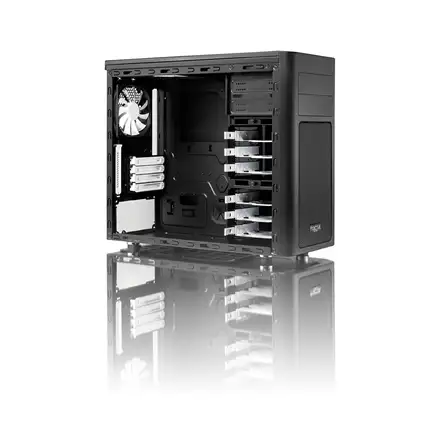

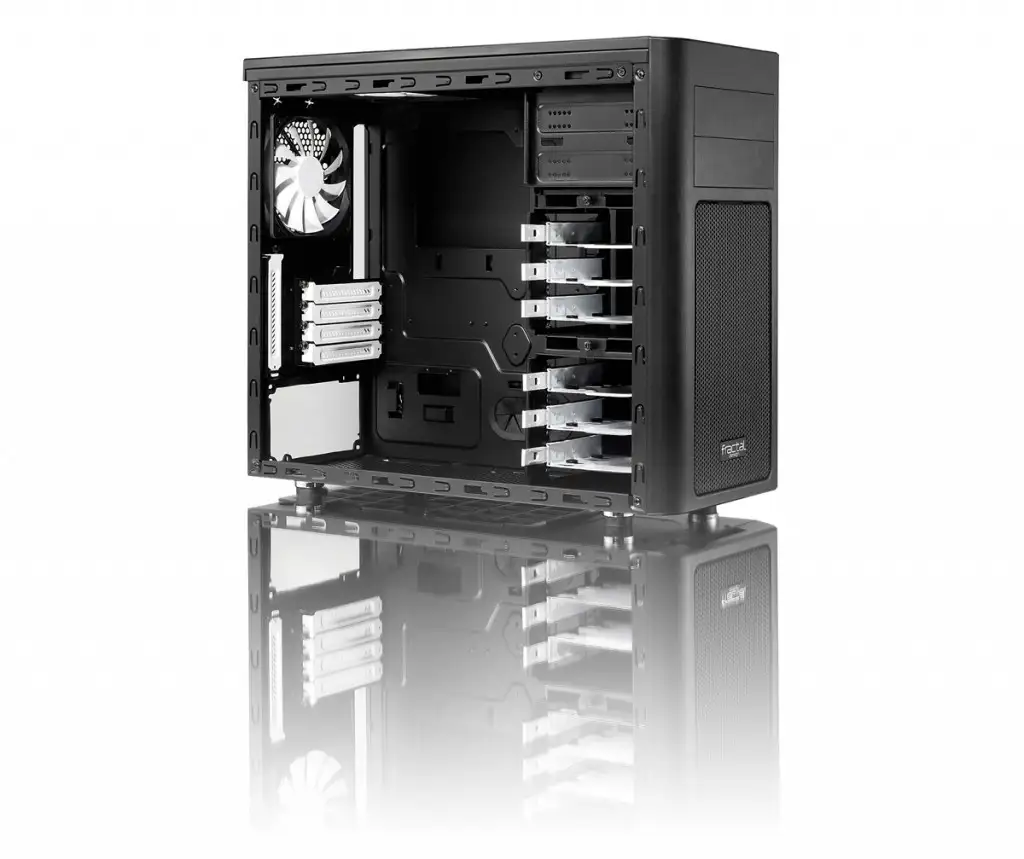

Micro ATX, Mini ITX motherboard compatibility2 - 5.25" bays6 - 3.5" HDD trays - all compatible with SSDs2 - 2.5" dedicated SSD positions behind the mothboard plate4 + 1 expansion slots7 - Fan positions (3 Silent Series R2 fans included)Filtered fan slots in front, top and bottomCPU coolers up to 165 mm tallPSU compatibility: ATX PSUs up to 170 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 220 mm deep) can be usedGraphics card compatibility: Graphics cards up to 260mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 400mm in length may be installed20 mm of space for cable routing behind the motherboard plateThick rubber grommets on all holes on the motherboard plateWindow side panel included

Box contents

Arc Mini R2 computer caseAccessory boxUser manual

Built-in speaker(s)

Ei

Värv

Must

Mudeli number

Arc Mini R2

.: Pakendi sisu :.

Arc Mini R2 computer case Accessory box User manual

Front fans installed

1x 120 mm

Maximum front fans

2

Maximum graphics card length

26 cm

Maximum rear fans

1

Maximum top fans

3

Number of 2.5" bays

2

Number of 3.5" bays

6

Power supply included

Ei

Rear fans installed

1x 120 mm

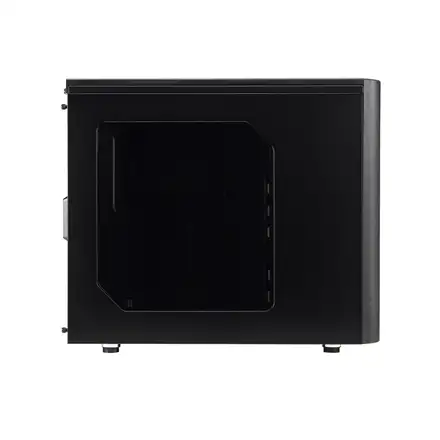

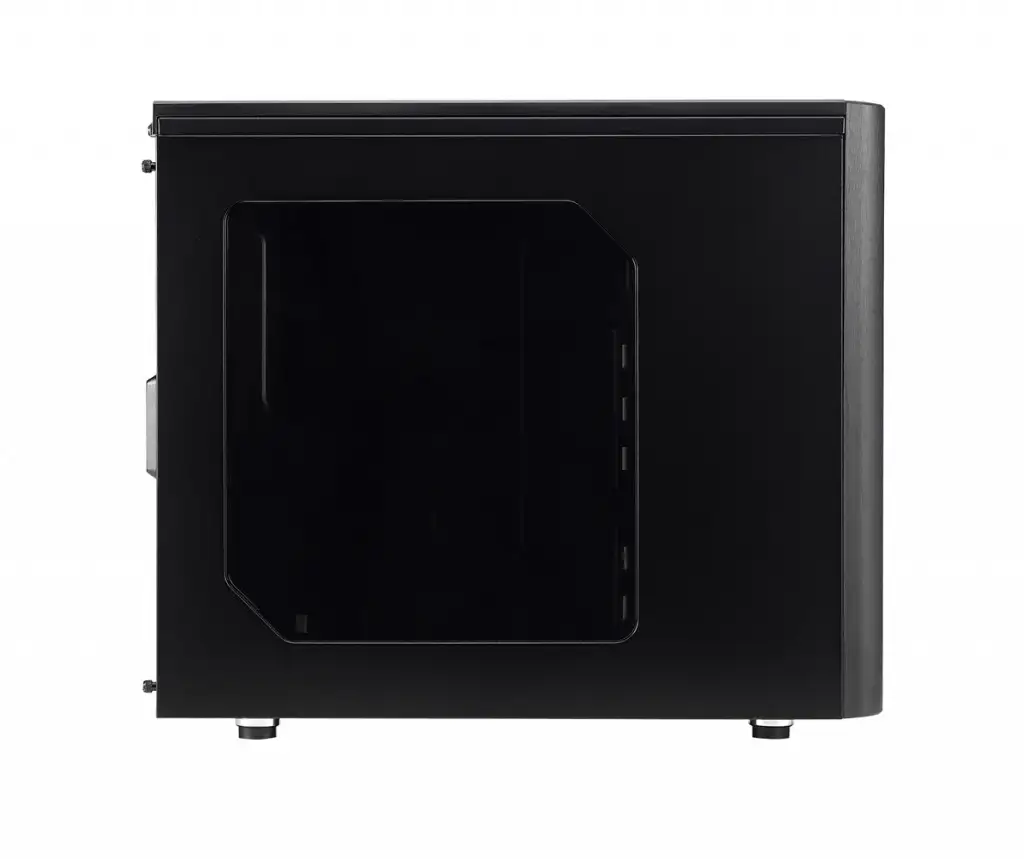

Side window

Jah

Supported motherboard form factors

Micro-ATX, Mini-ITX

Audio Input

Jah

Audio Output

Jah

Bottom fans diameters supported

120 mm

Cooling System

Front: 2 - 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed) Rear: 1 - 120mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed) Top: 2 - 120/140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) 1 - 120mm fan (not included) Bottom: 1 - 120mm fan (not included) Fan controller: 1 - integrated fan controller for up to 3 fans (included) Water cooling compatibility: Front – 240mm radiator (thick and slim) when HDD cages are removed, radiator cannot exceed 275mm in total length with the ODD bay in place. Top – 240mm or 360mm radiators (thick and slim); the use of 360mm radiators requires removal of the ODD cage. Bottom – 120mm radiators Rear – 120 and 140mm radiators

Front fans diameters supported

120 mm

Maximum CPU cooler height

16.5 cm

Supported hard disk drive sizes

2.5,3.5 "

Top fans diameters supported

120,140 mm

Tehnilised andmed

Netokaal

8.00 kg

Brutokaal

9.60 kg

Laius

21 cm

Sügavus

484 mm

Kõrgus

405 mm

Mõõtmed (l x s x k)

210 x 405 x 484mm

Toote kaal

9 kg

Mõõdud (l x s x k)

210 x 405 x 484mm mm
