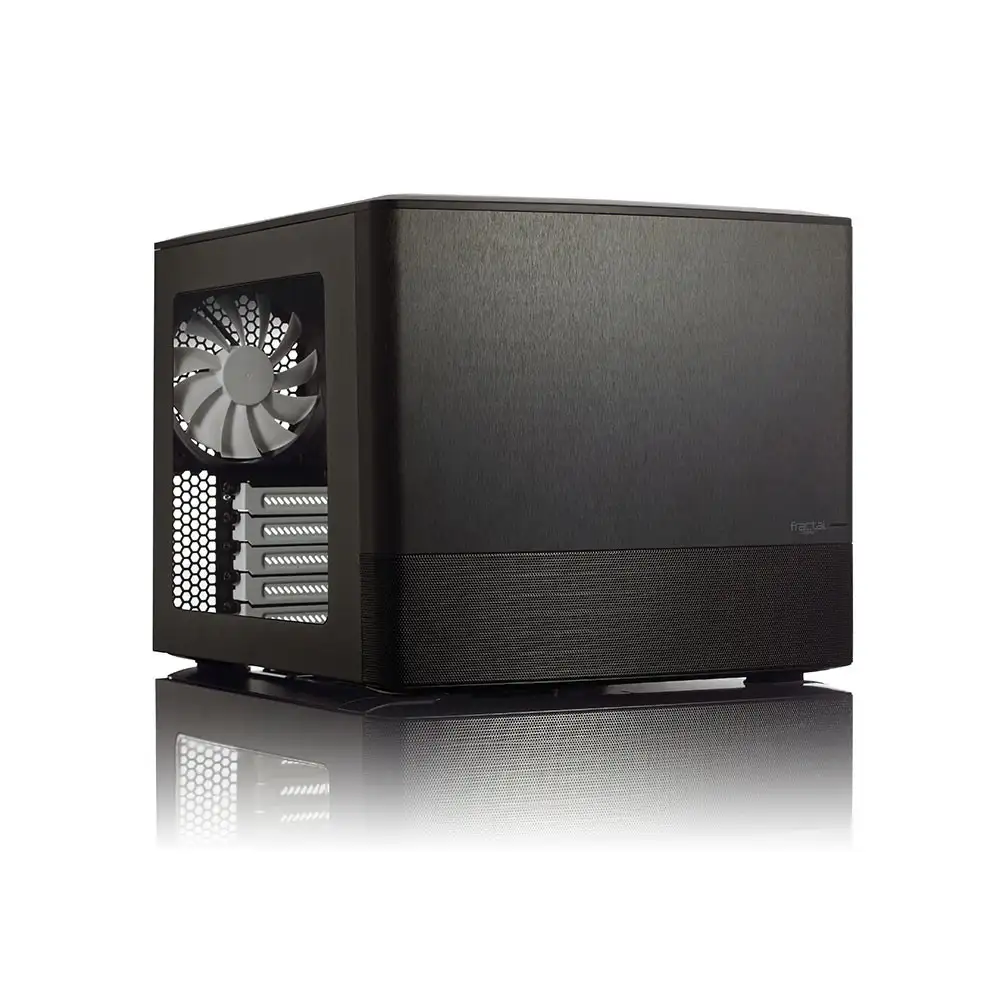

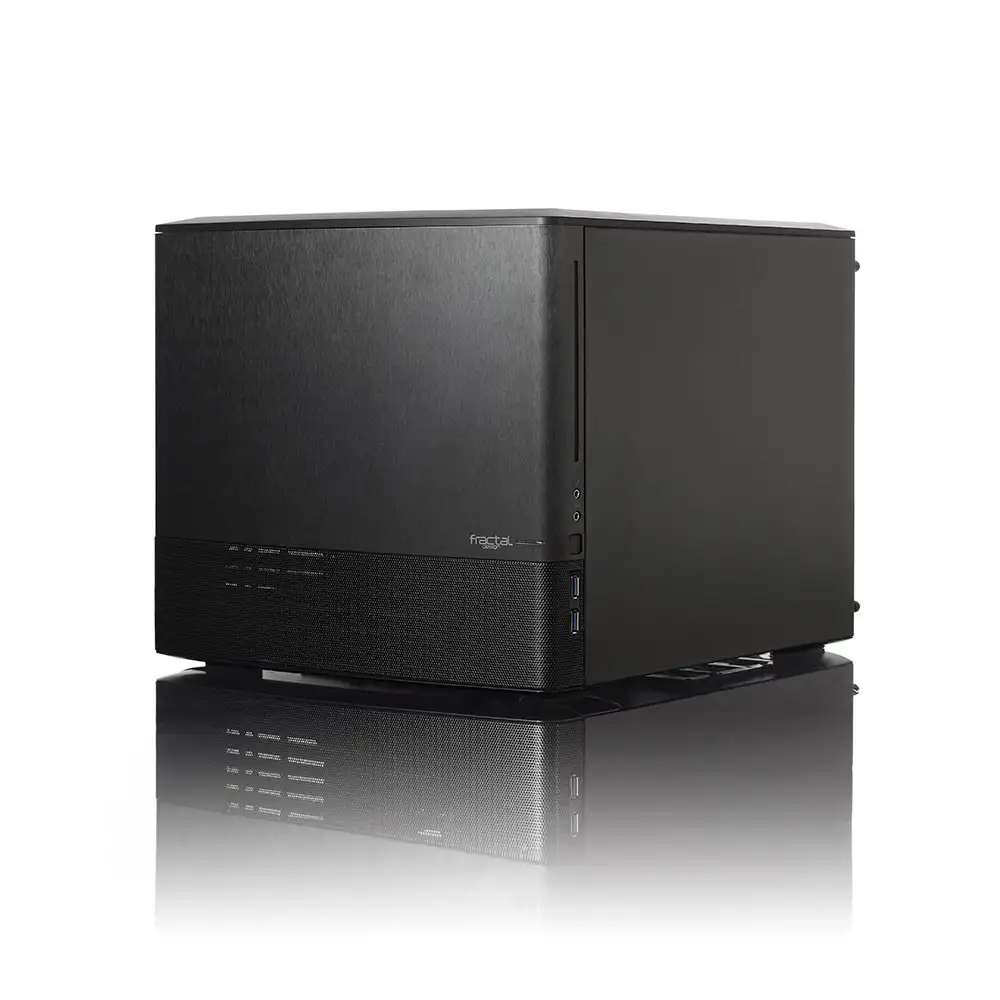

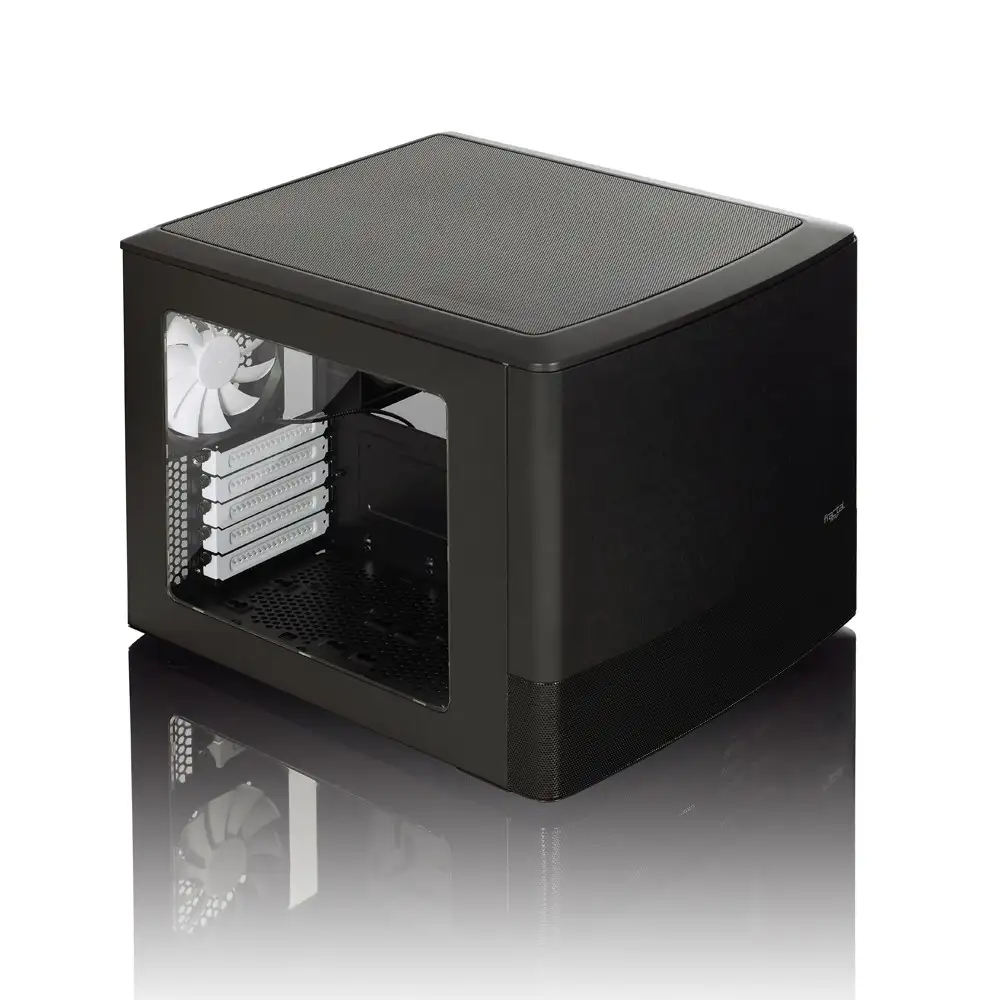

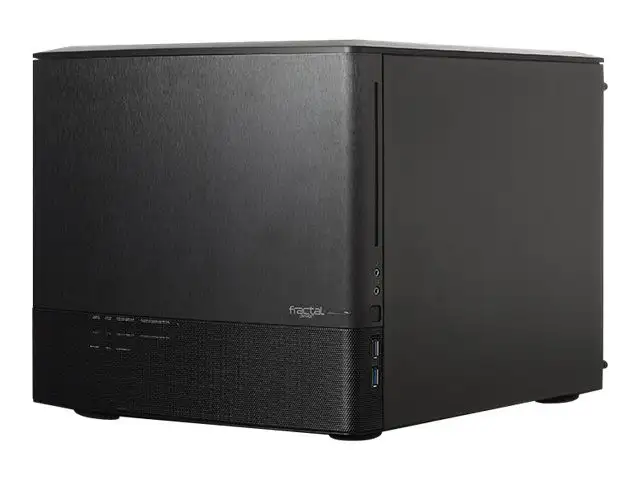

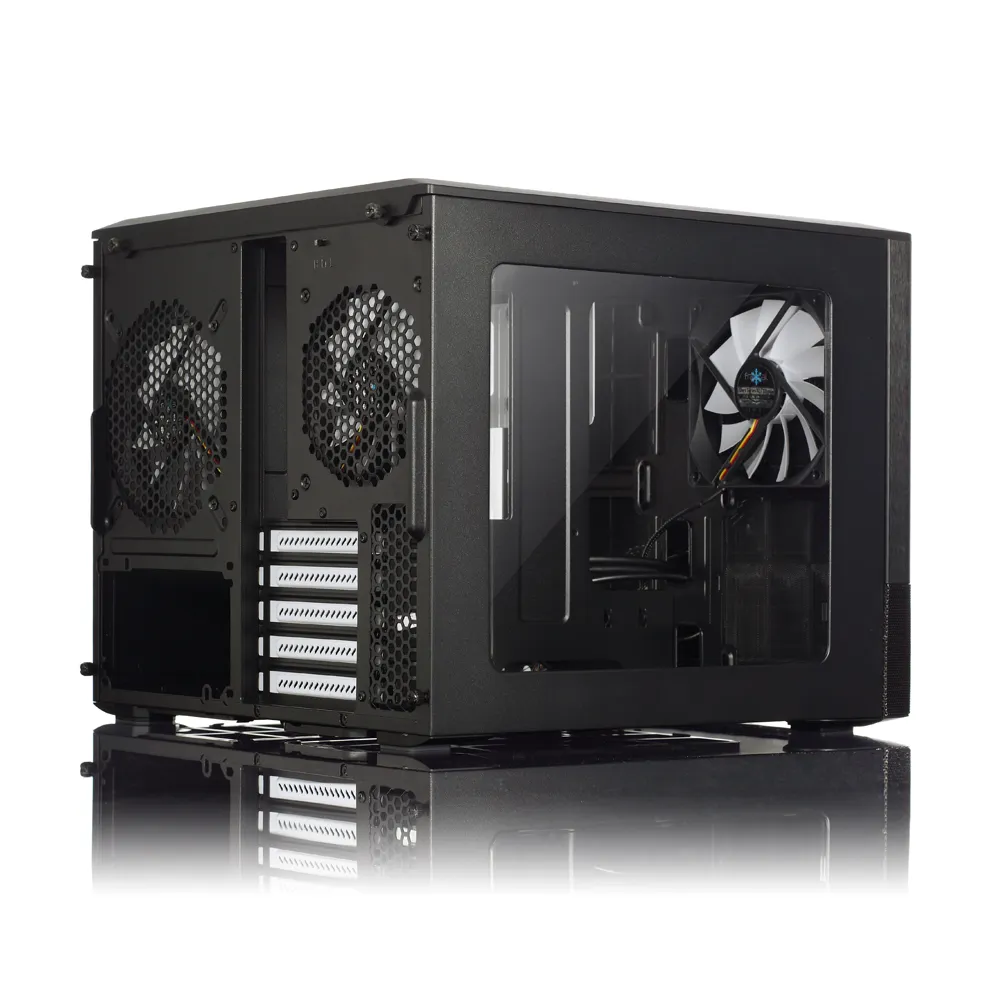

Fractal Design | NODE 804 | Side window | 2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white) | Micro ATX | Black

.: Üldised andmed :.

Tootja

Fractal Design

Seadme tüüp

PC

.: Disain :.

2,5" salvede arv

2

3,5" lahtrite arv

10

Aknaga

Jah

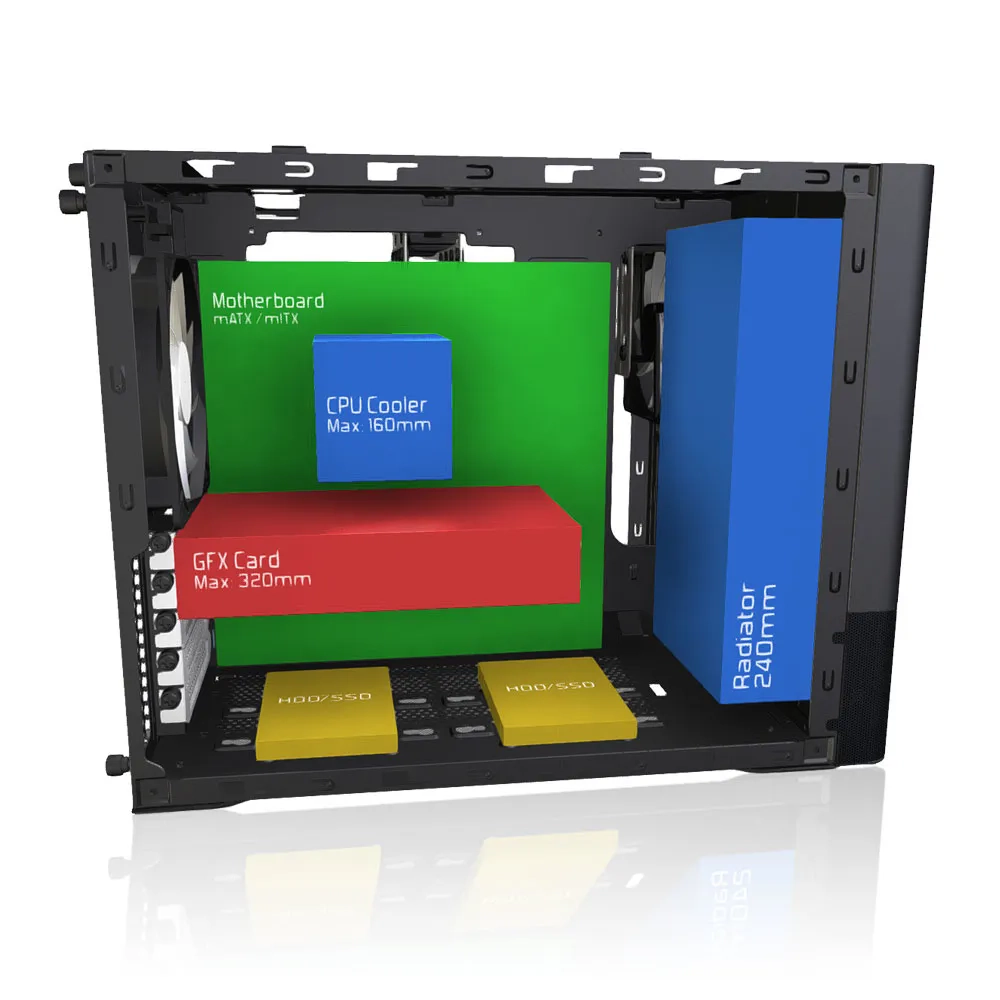

CPU jahuti maksimaalne kõrgus

16 cm

Emaplaadi toetatud kujutegurid

Mikro ATX, Mini-ATX

Graafikakaardi maksimaalne pikkus

32 cm

Jahutuse tüüp

Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Top: 4 - 120x140mm fans (not included)Fan controller: 1 - Integrated fan controller for up to 3 fans (included)WATER COOLING COMPATIBILITY:Front (right chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed.Front (left chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it.Top (right chamber) - 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness.Top (left chamber) - 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall.

Kujutegur

Mikro ATX

Laienduspesade arv

5 expansion slots

LED-indikaatorid

HDD, Power

Toiteploki maksimaalne pikkus

26 cm

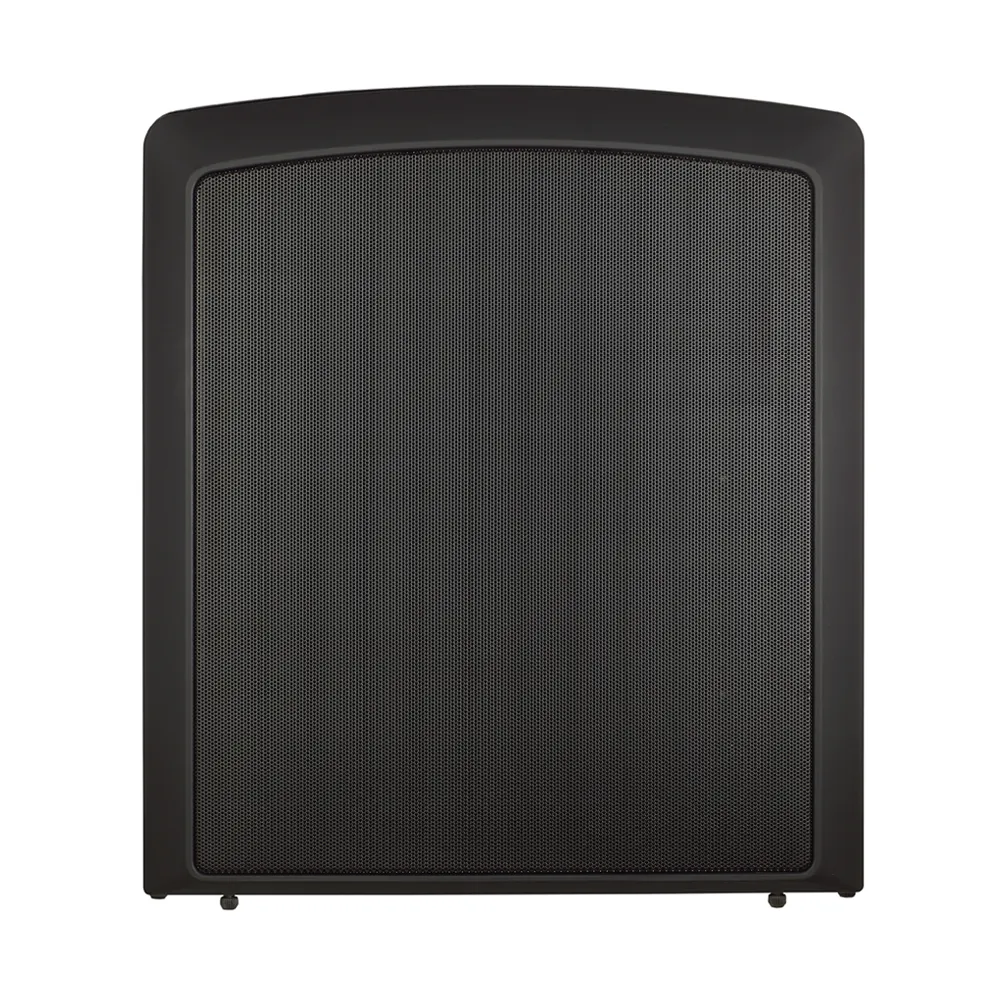

Tolmuvastane filter

Jah

Toote värv

Must

Tüüp

PC

.: Mälu :.

Toetatud kõvakettasuurused

2.5,3.5"

.: Pesad & liidesed :.

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

2

Audiosisend

Jah

Audioväljund

Jah

USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk

2

Jahutus

Installitud tagaventilaatorid

2x 120 mm

Maksimaalne ülemiste ventilaatorite arv

4

Toetatud ülemiste ventilaatorite läbimõõt

120,140 mm

Vedelikjahutus

Jah

Toetatud eesmise radiaatori ventilaatori suurused

240 mm

Installitud esiventilaatorid

1x 120 mm

Maksimaalne esiventilaatorite arv

4

Toetatud ülemise radiaatori ventilaatori suurused

240,280 mm

Toetatud esiventilaatorite läbimõõt

120 mm

Maksimaalne tagaventilaatorite arv

2

Toetatud tagaventilaatorite läbimõõt

120,140 mm

.: Tehnilised andmed :.

Garantii

24

Toide

Kaasas toiteplokk

Ei

Ergonoomika

Juhtmehaldus

Jah

.: Pakendi andmed :.

Pakendi laius

37 cm

Pakendi kõrgus

46.8 cm

Pakenditaara kaal

1.16 kg

Pakendi maht

0.07 m³

Kogus pakendi kohta

1 tk

Pakendi sügavus

41.2 cm

Pakendi laius ( mm )

370 mm

Pakendi kõrgus ( mm )

468 mm

Pakendi kaal

7.7 kg

Pakendi pikkus ( mm )

412 mm

Tehnilised andmed

Liquid cooling capability

Jah

WEEE maks

Ei

Plastic (No PET)

27.00 g

Mudeli number

NODE 804

Front fans installed

1x 120 mm

Maximum front fans

4

Maximum rear fans

2

Maximum top fans

4

Number of 2.5" bays

2

Number of 3.5" bays

8

Power supply included

Ei

Rear fans installed

2x 120 mm

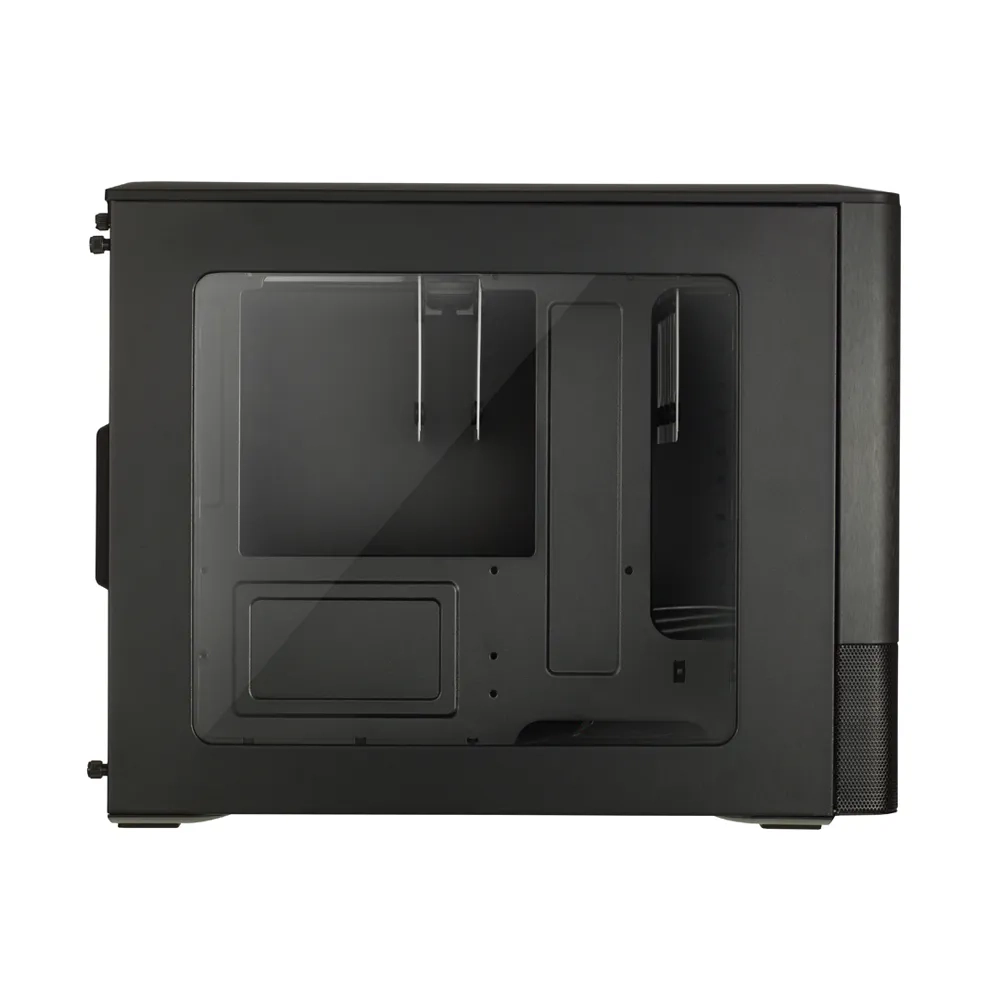

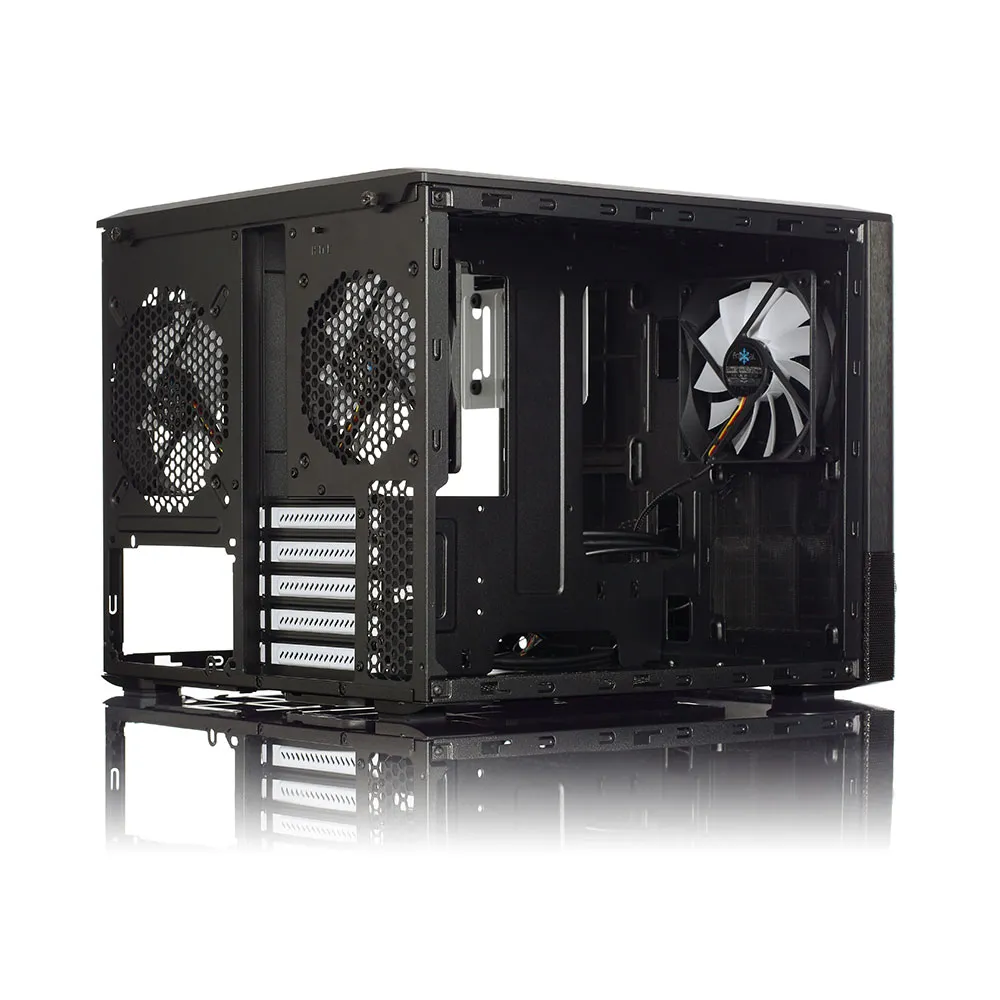

Side window

Jah

Supported motherboard form factors

Micro-ATX, Mini-ATX

Audio Input

Jah

Audio Output

Jah

Cooling System

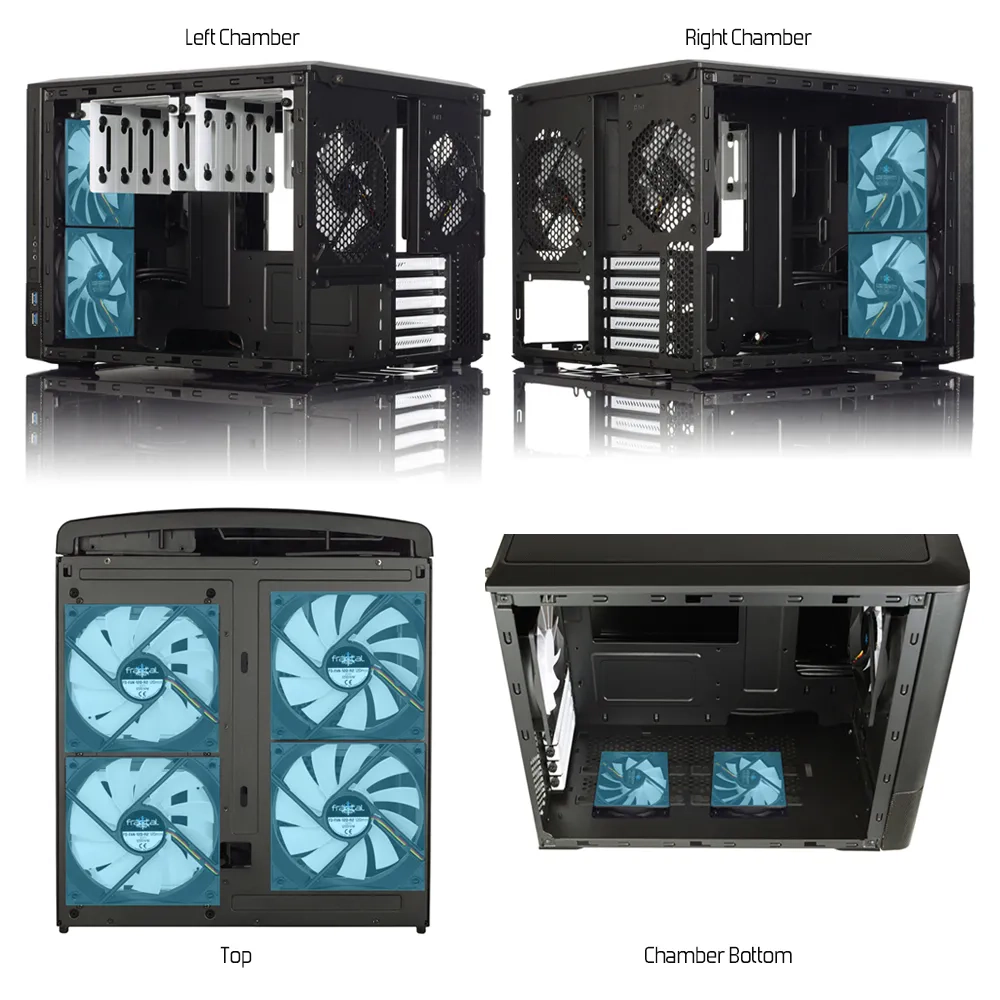

Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Top: 4 - 120x140mm fans (not included) Fan controller: 1 - Integrated fan controller for up to 3 fans (included) WATER COOLING COMPATIBILITY: Front (right chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Front (left chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it. Top (right chamber) - 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness. Top (left chamber) - 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall.

Drive bays

8 - 3.5″ HDD positions2 - 2.5″ dedicated SSD unit positions2 - Extra positions for either 3,5″ or 2,5″ drives "

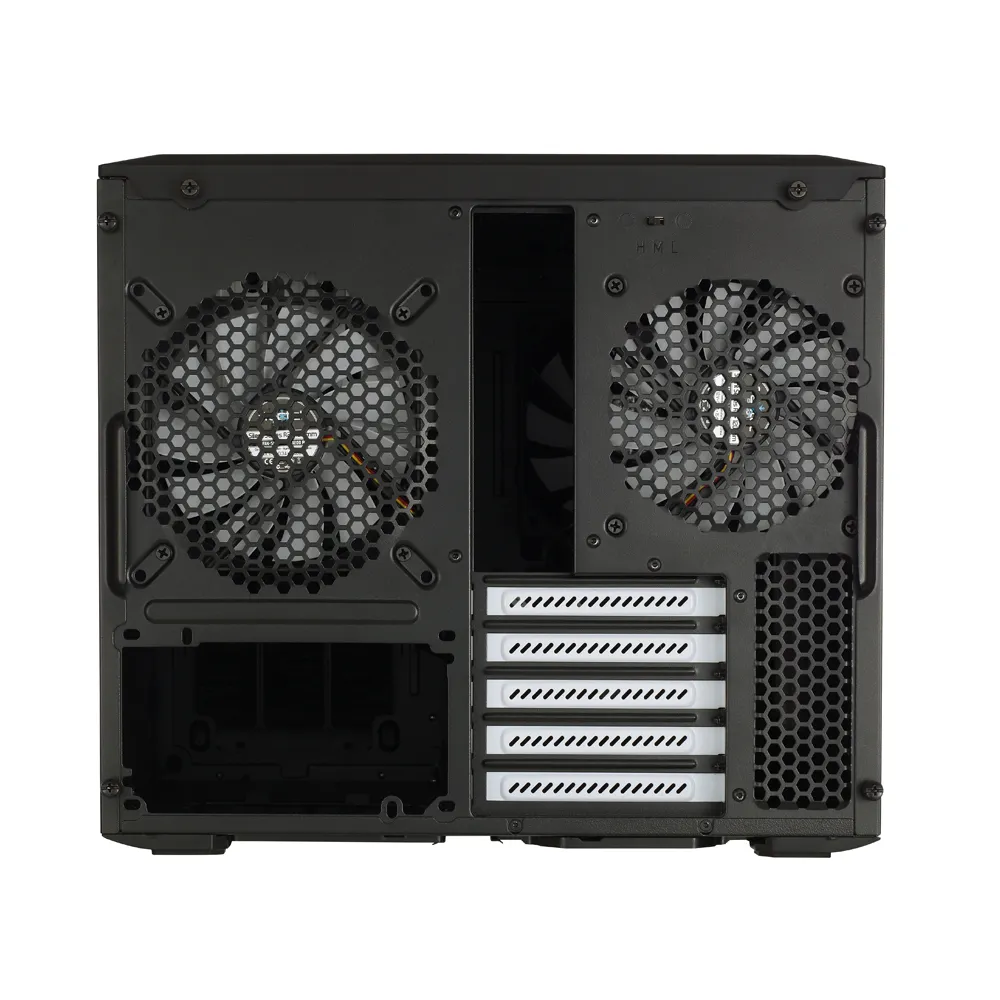

Expansion slots

5 expansion slots

Front fans diameters supported

120 mm

I/O Panel

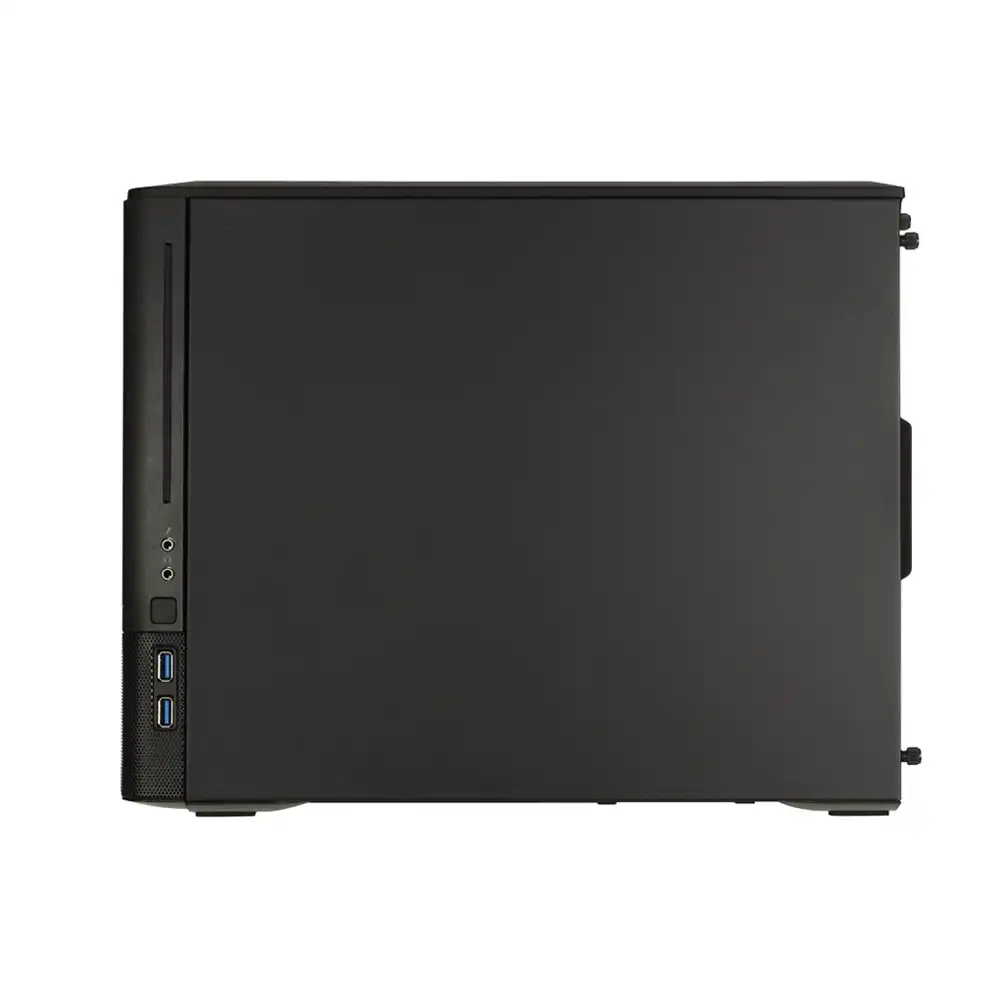

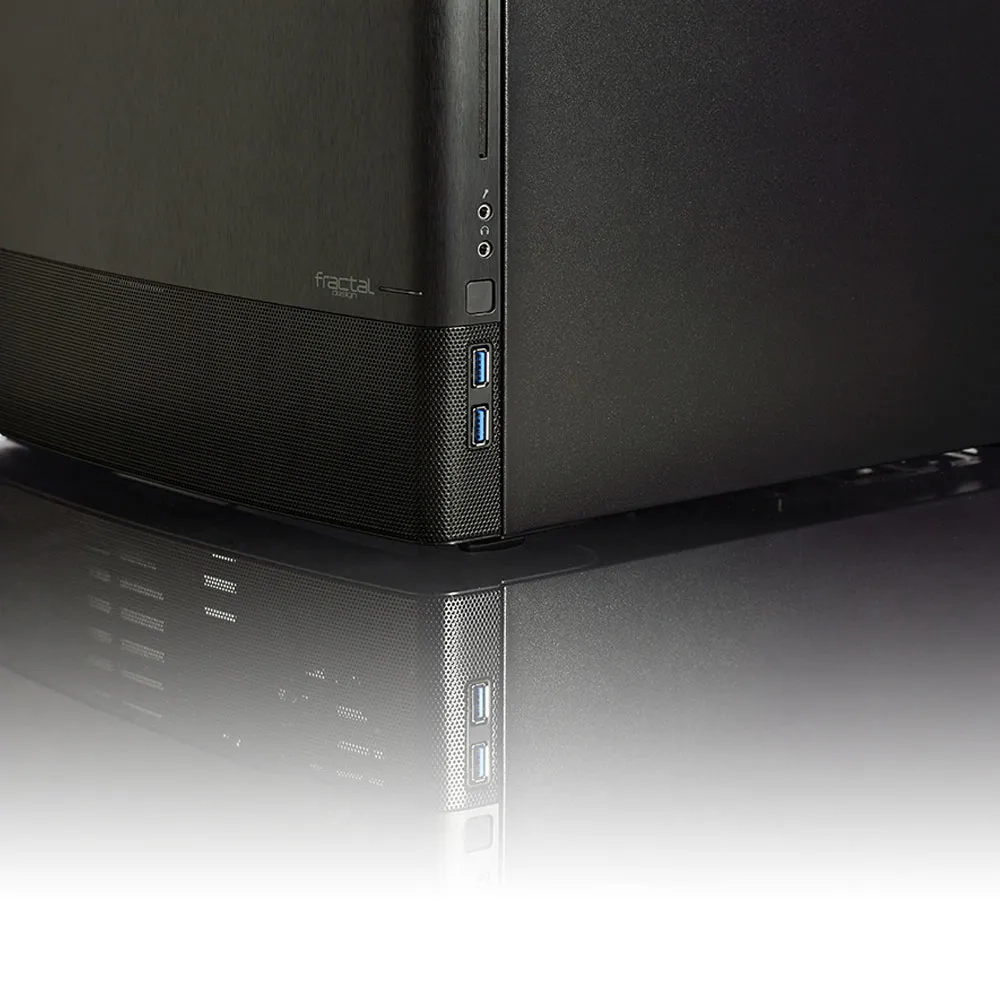

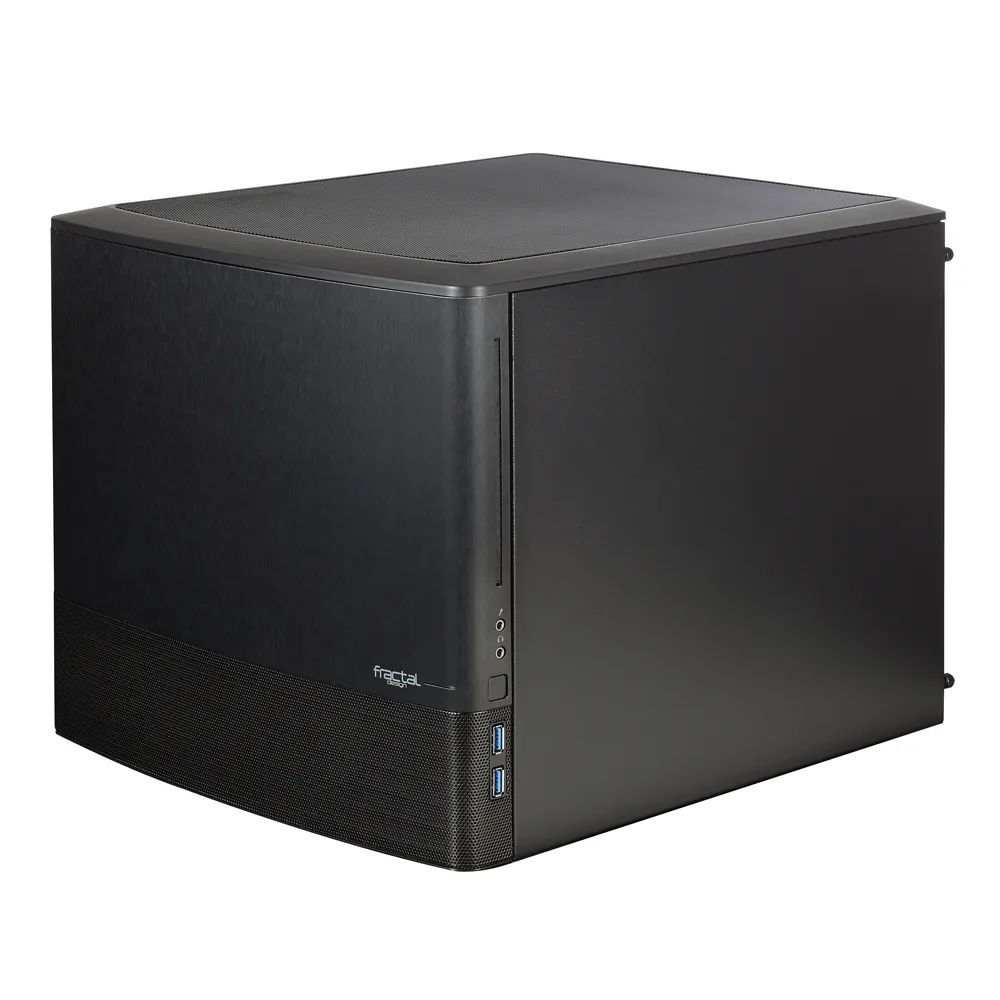

2 - USB 3.0 Audio in/out Power button with LED (white) HDD activity LED (white)

Panel Type

2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white)

Rear fans diameters supported

120,140 mm

Supported hard disk drive sizes

2.5,3.5 mm

Top fans diameters supported

120,140 mm

Tehnilised andmed

Juhend

Jah

Tehnilised andmed

Netokaal

5.786 kg

Brutokaal

7.16 kg

Laius

344 mm

Sügavus

389 mm

Kõrgus

307 mm

Mõõtmed (l x s x k)

344 x 307 x 389 mm

Toote kaal

6 oz

Mõõdud (l x s x k)

344 x 307 x 389 mm mm
