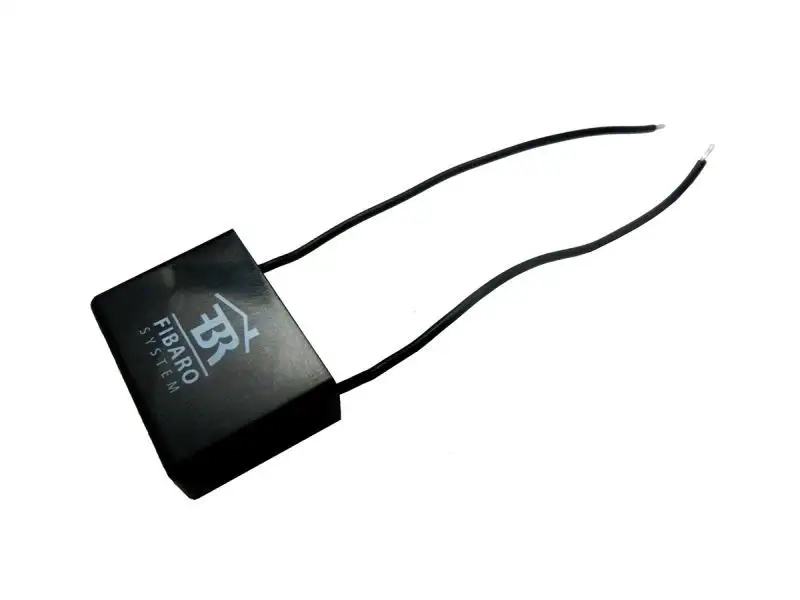

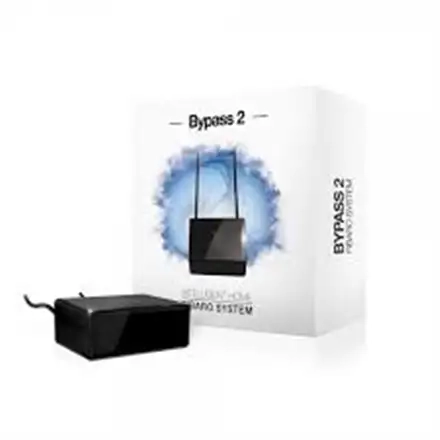

Fibaro | Dimmer Bypass 2 | Z-Wave | Black

.: Üldised andmed :.

Tootja

Fibaro

Seadme tüüp

Actors

.: Disain :.

Toote värv

Must

Võimsus ja energiatarve

Sisseehitatud aku

Ei

.: Tehnilised andmed :.

Garantii

24

Muud funktsioonid

Muud funktsioonid

Fibaro Bypass 2 is a device complementary to Fibaro Dimmer 2. Its installation makes possible to dim light sources with minimum power consumption, such as e.g. single 0.5 Watt LED. Please note it is possible to dim only light sources clearly marked as dimmable.

Toetatud võrguprotokollid

Z-Wave

Ühilduvus

Dimmer 2

.: Pakendi andmed :.

Pakenditaara kaal

0.02 kg

Pakendi maht

0.00 m³

Kogus pakendi kohta

1,00 tk

Pakendi sügavus

65.00 mm

Pakendi laius ( mm )

65.00 mm

Pakendi kõrgus ( mm )

23.00 mm

Tehnilised andmed

Technical features

Power source: 100-240V~ 50/60Hz, • Operating temperature: 0-35oC, • Power consumption: < 1.4W, • To be mounted in standard wall switch boxes Ø  50 mm, • Outside dimmensions (L x W x H) - 31mm x 21.6mm x 13mm.

Paper/Pasteboard

35.00 g

WEEE maks

Ei

Power requirements

100-240 V~ 50/60 Hz

Supported network protocols

Z-Wave

Üldised näitajad

Fibaro Bypass 2 is a device complementary to Fibaro Dimmer 2. Its installation makes possible to dim light sources with minimum power consumption, such as e.g. single 0.5 Watt LED. Please note it is possible to dim only light sources clearly marked as dimmable.

Värv

Must

Mudeli number

Dimmer Bypass 2

Connectivity Technology

Juhtmega

Frequency

50 Hz

Voltage

230 V

Tehnilised andmed

Netokaal

0.011 kg

Brutokaal

0.04 kg

Mõõtmed (l x s x k)

Body: 20 x 20 x 10 mm, Lead length: 90 mm
