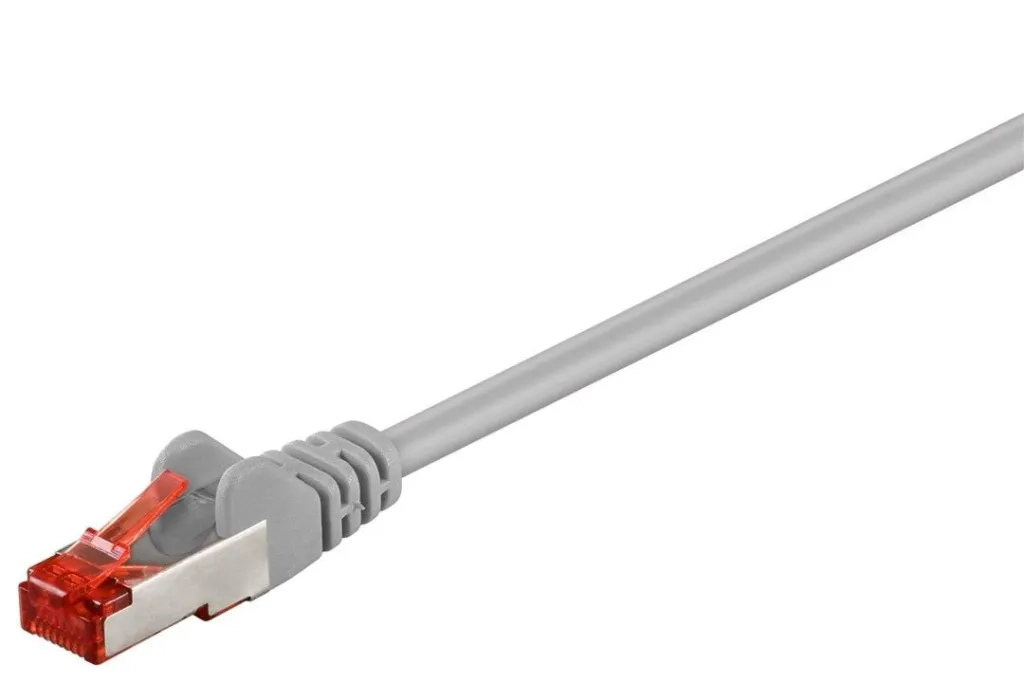

Goobay | CAT 6 patch cable S/FTP (PiMF) | 93568

.: Üldised andmed :.

Tootja

Goobay

Seadme tüüp

Cat 6, S/FTP

.: Disain :.

Tooteseeria

CAT 6 patch cable S/FTP (PiMF)

Tüüp

Cat 6, S/FTP

.: Pesad & liidesed :.

Kaabli pikkus

0.5

Võimsus ja energiatarve

Sisseehitatud aku

Ei

Muud funktsioonid

Muud funktsioonid

CCA double shielded LAN/network cable to connect network components with 2 x RJ45 connectors with 3µ gold plated PINs pairs screening: PIMF (pairs in metal foil) + outer shield: braiding with length indication on the slimline strain relief with latch protection pair-sequence acc. to EIA/TIA 568B suitable for Gigabit (10/100/1000 Mbit) Technical specifications Connections Connection, type RJ45 male (8P8C) Connection 2, type RJ45 male (8P8C) Connection, shielding yes Latch protection both sides Cable Cable type round cable Specification CAT 6 Shielding class S/FTP (PiMF) AWG 27/7 (stranded) Cable sheath diameter (approx.) 5.9 mm Inner conductor material CCA (copper-clad aluminium) Material cable sheath PVC Cable length 0.5 m Number of shieldings 2 x Type 1, shielding foil (alu) PiMF Type 2, shielding braid (alu) overall shield Kink protection both sides Signal transmission max. bandwidth 250 MHz

.: Pakendi andmed :.

Pakenditaara kaal

0.01 kg

Pakendi maht

0.00 m³

Kogus pakendi kohta

1,00 tk

Pakendi sügavus

100.00 mm

Pakendi laius ( mm )

90.00 mm

Pakendi kõrgus ( mm )

25.00 mm

Tehnilised andmed

PET

1.00 g

Paper/Pasteboard

53.00 g

WEEE maks

Ei

Üldised näitajad

CCA double shielded LAN/network cable to connect network components with 2 x RJ45 connectors with 3µ gold plated PINs pairs screening: PIMF (pairs in metal foil) + outer shield: braiding with length indication on the slimline strain relief with latch protection pair-sequence acc. to EIA/TIA 568B suitable for Gigabit (10/100/1000 Mbit) Technical specifications Connections Connection, type RJ45 male (8P8C) Connection 2, type RJ45 male (8P8C) Connection, shielding yes Latch protection both sides Cable Cable type round cable Specification CAT 6 Shielding class S/FTP (PiMF) AWG 27/7 (stranded) Cable sheath diameter (approx.) 5.9 mm Inner conductor material CCA (copper-clad aluminium) Material cable sheath PVC Cable length 0.5 m Number of shieldings 2 x Type 1, shielding foil (alu) PiMF Type 2, shielding braid (alu) overall shield Kink protection both sides Signal transmission max. bandwidth 250 MHz

Mudeli number

93568

Tehnilised andmed

Netokaal

0.01 kg

Brutokaal

0.02 kg
