What This Product Does

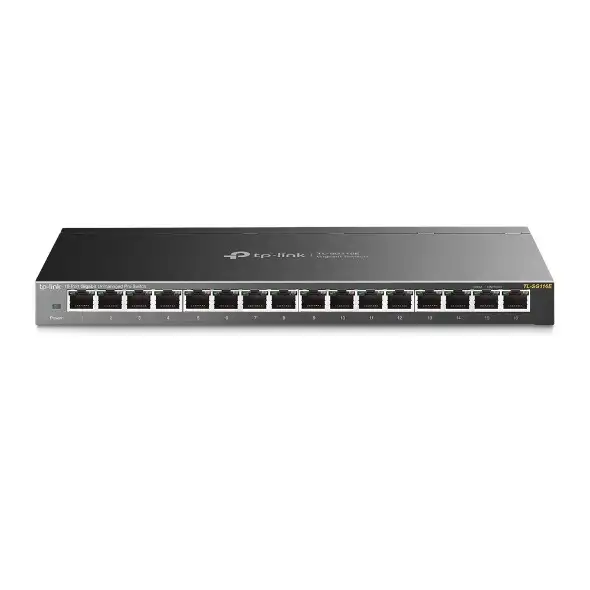

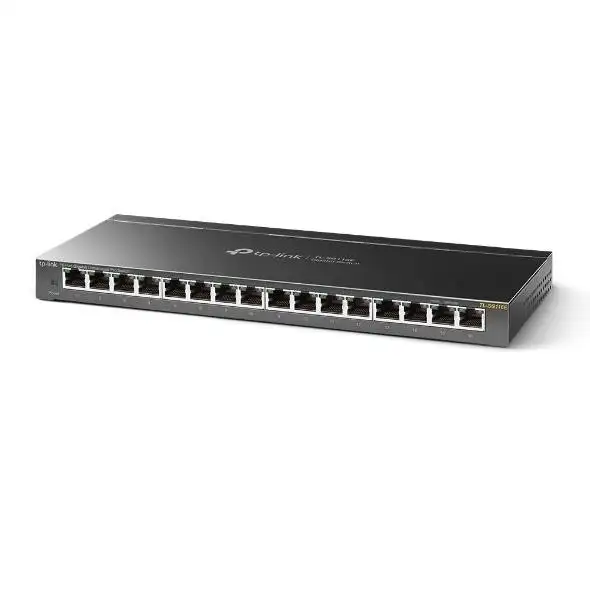

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Additional Software Features
TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
- 16 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
.: Üldised andmed :.
- Tootja koduleht
- https://www.tp-link.com/us/products/details/cat-5711_TL-SG116E.html
.: Üldised omadused :.
- Automaatne ühildumine
- Jah
- Isehäälestuv
- Jah
- Paketi puhvermälu
- 4,1 MB
.: Disain :.
- Toote värv
- Black
- Korpuse materjal
- Metall
- LED-indikaatorid
- Jah
- Seinale kinnitatav
- Jah
- Toote värv
- Must
- LED-indikaatorid
- Jah
.: Võrgustumine :.
- Virtuaalse LANi elemendid
- Tagged VLAN, Protocol-based VLAN
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u
- VLAN-i tugi
- Jah
- Kaablipikkuse tuvastus
- Jah
- Linkide koondamine
- Jah
- Kiiruse piiramine
- Jah
- Levindamise tormi kontroll
- Jah
- IGMP-jälgimine
- Jah
- Pordipeegeldus
- Jah
- Võrgustandardid
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Täisdupleks
- Jah
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- 10G-tugi
- Ei
- VLAN-i tugi
- Jah
.: Pesad & liidesed :.
- Gigabitise Etherneti (vask) portide arv
- 16
- Etherneti vaskkaablite tehnoloogia
- 10BASE-T, 100BASE-TX, 1000BASE-T
- RJ-45 Etherneti ühenduse pesade arv
- 16
- RJ-45 Etherneti ühenduse pesade tüüp
- Gigabit Ethernet (10/100/1000)
Võimsus ja energiatarve
- Sisendpinge
- 12 V
- Sisendvool
- 1 A
- Power over Ethernet (PoE)
- Ei
- AC-sisendpinge
- 220 V
- AC-sisendsagedus
- 50 Hz
- Elektritarbimine (max)
- 9,19 W
Turvalisus
- Tsükli kaitse
- Jah
.: Tehnilised andmed :.
- Kummijalad
- Jah
- Püstikmontaaž
- Ei
Andmeedastus
- Hiigelkaadrite
- 10000
- Edastamise kiirus
- 23,81 Mpps
- Jumbo frames
- 10000
- Ladusta-ja-edasta
- Jah
- VLAN-ide arv
- 32
- Ootejärjekordade arv
- 4
- MAC-aadresside tabel
- 8000 sisestust
- Lülitusvõime
- 32 Gbit/s
- Hiigelkaadrite tugi
- Jah
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Lüliti kiht
- L2
- Lüliti tüüp
- Mittejuhitav
- Teenusekvaliteedi (QoS) tugi
- Jah
Toide
- Kaasas toiteplokk
- Jah
- Toiteallikas
- DC (alalisvool)
Ethernet LAN-funktsioonid
- IEEE 802.1p
- Jah
- IEEE 802.1Q
- Jah
- IEEE 802.3ab
- Jah
- IEEE 802.3i
- Jah
- IEEE 802.3u
- Jah
- IEEE 802.3x
- Jah
Funktsioonid
- Virtual LAN features
- Protocol-based VLAN/Tagged VLAN
- Toetatud kaablitüübid
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Mudeli originaalnimi
- 16-Port Gigabit Unmanaged Pro Switch
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet tugi
- Ei
Logistika andmed
- Kogus transpordikasti kohta
- 10
- Harmonized System (HS) kood
- 85176990
Muud funktsioonid
- Alalisvoolu sisendpinge
- 9 V
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Soojuse hajumine
- 31,68 BTU/h
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- AC-adapter kaasa arvatud
- Jah
- Tarvikud kaasa arvatud
- Power Cord, Installation Guide, Rubber Feet
- Kiirstardi juhend
- Jah
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Kaablid kaasa arvatud
- AC
- Pakendi sügavus
- 412 mm
- Pakendi laius ( mm )
- 170 mm
- Pakendi kõrgus ( mm )
- 70 mm
- Pakendi kaal
- 1,36 kg
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.006046 cubm
- Transpordipakendi kaal
- 14.3 kg
- Transpordipakendi kõrgus
- 38 cm
- Transpordipakendi laius
- 37 cm
- Transpordipakendi sügavus
- 43 cm
- Pakendi pikkus ( mm )
- 170 mm
◁ SERTIFIKAADID ▷
- Sertifikaat
- FCC, CE, RoHS
Tehnilised andmed
- Rack mounting
- Ei
- Gigabit Ethernet (copper) ports quantity
- 16
- Full duplex
- Jah
- Switch layer
- L2
- Store-and-forward
- Jah
- Jumbo frames support
- Jah
- Port mirroring
- Jah
- Broadcast storm control
- Jah
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Number of VLANs
- 32
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Rubber feet
- Jah
- Link aggregation
- Jah
- Rate limiting
- Jah
- Number of queues
- 4
- Unit Box Height
- 0.17
- Unit Box Length
- 0.415
- Unit Box Width
- 0.07
- Unit Calculated Volume
- 0.006046 cubm
- Product Net Weight
- 1.3 kg
- Unit Calculated Weight
- 1.43 kg
- Summary
- TP-Link 16-Port Gigabit Unmanaged Pro Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Harmonized System (HS) code
- 85176990
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Loop protection
- Jah
- Cable length detection
- Jah
- Plug and Play
- Jah
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 16
- Auto-negotiation
- Jah
- Certification
- FCC, CE, RoHS
- Desktop/pedestal
- Jah
- Forwarding rate
- 23.81 Mpps
- Heat dissipation
- 31.68 BTU/h
- Housing material
- Metal
- MAC address table
- 8000 entries
- Package depth
- 412 mm
- Package height
- 70 mm
- Package weight
- 1360 g
- Package width
- 170 mm
- Packet buffer memory
- 4.1 MB
- Power Source
- DC
- Primary port count
- 16
- Storage relative humidity (H-H)
- 5 - 90 %
- Switch type
- Unmanaged
- Switching capacity
- 32 Gbit/s
- Switching method
- Store-and-forward
Tehnilised andmed
- Laius
- 286 mm
- Netokaal
- 1.3 kg
- Brutokaal
- 1.43 kg
- Laius
- 286 mm
- Sügavus
- 111.7 mm
- Kõrgus
- 25.4 mm
- Mõõtmed (l x s x k)
- 286 x 111.7 x 25.4 mm
- Sügavus
- 111,7 mm
- Kõrgus
- 25,4 mm
