Switch|MIKROTIK|Type L3|Rack|24x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xRJ45|CRS328-24P-4S+RM
456.99€
AC
AC
470.29€
E1
E1
529.51€
AL1
AL1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 15.80 €. Taotle järelmaksu ostukorvis.

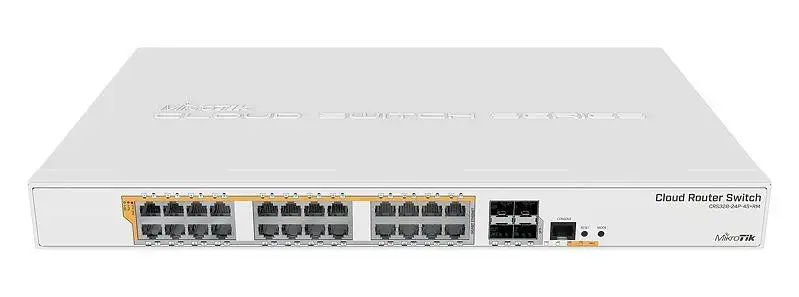

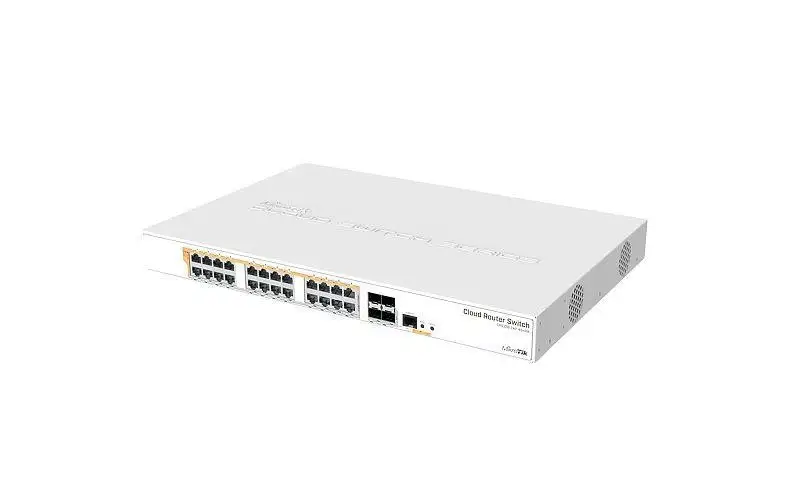

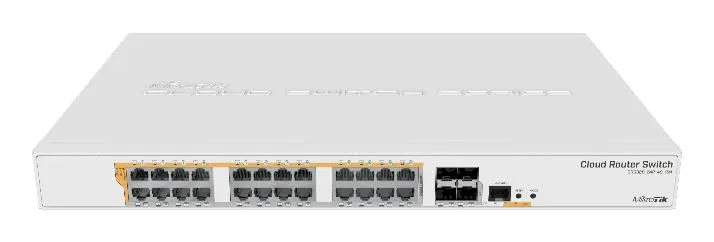

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
- CPU temperature monitor
- Current Monitor
- PCB temperature monitor
- Voltage Monitor
- Mode button
Tootja
MikroTik
Tootekood
CRS328-24P-4S+RM
EAN
4752224002228
Google link
lisainfo
Garantiiaeg
12 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://mikrotik.com/product/crs328_24p_4s_rm
.: Üldised omadused :.
- Välkmälu
- 16 MB
.: Disain :.
- Kujutegur
- 1U
- LED-indikaatorid
- Jah
- Toote värv
- White
.: Protsessor :.
- Protsessori sagedus
- 800 MHz
- Sisseehitatud protsessor
- Jah
.: Mälu :.
- Paigaldatud operatiivmälu
- 512 MB
.: Võrgustumine :.
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1Q/IEEE 802.3ad
- VLAN-i tugi
- Jah
.: Pesad & liidesed :.
- Ethernet LAN (RJ-45) pordid
- 1
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
Jahutus
- Ventilaatorite arv
- 2 fan(s)
Andmeedastus
- Jumbo frames
- 10218
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
Toide
- Toiteallikas
- AC
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet (PoE) type supported
- Passive PoE/PoE+
- Internet elektrivõrgu kaudu (PoE) pinge vahemik
- 26 V
Logistika andmed
- Kogus transpordikasti kohta
- 2
Töötingimused
- Kasutamistemperatuur (T-T)
- -20 - 60 °C
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.02876 cubm
- Transpordipakendi kaal
- 4.8 kg
- Transpordipakendi kõrgus
- 12.5 cm
- Transpordipakendi laius
- 39 cm
- Transpordipakendi sügavus
- 59 cm
- Kaablid kaasa arvatud
- AC
Tehnilised andmed
- Rack mount kit
- Jah
- Rack mounting
- Jah
- System event log
- Jah
- Switch layer
- L2/L3
- Jumbo frames support
- Jah
- Access Control List (ACL)
- Jah
- Port mirroring
- Jah
- Broadcast storm control
- Jah
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE) ports quantity
- 24
- Console port
- RJ-45
- Number of VLANs
- 4000
- Processor manufacturer
- ARM
- Link aggregation
- Jah
- Auto-sensing
- Jah
- Management protocols
- SNMP
- SFP+ module slots quantity
- 4
- Unit Box Height
- 0.125
- Unit Box Length
- 0.59
- Unit Box Width
- 0.39
- CnKood
- 85176200
- Üksuse kalkuleeritud maht
- 0.03088 cubm
- Units per Pallet
- 88
- Summary
- Mikrotik CRS328-24P-4S+RM. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
- Harmonized System (HS) code
- 85176990
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 24
- Forwarding rate
- 95.2 Mpps
- MAC address table
- 16000 entries
- Mean time between failures (MTBF)
- 200000 h
- Power over Ethernet (PoE) power per port
- 30 W
- Primary port count
- 24
- Rack
- Jah
- SFP+
- 4
- Switch type
- Managed
- Switching capacity
- 128 Gbit/s
- Throughput
- 64000 Mpps
- Total Power over Ethernet (PoE) budget
- 450 W
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 5.28 kg
- Netokaal
- 1.4 kg
- Brutokaal
- 4.8 kg
- Laius
- 443 mm
- Sügavus
- 300 mm
- Kõrgus
- 44 mm
- Mõõtmed (l x s x k)
- 443 x 305 x 44 mm
