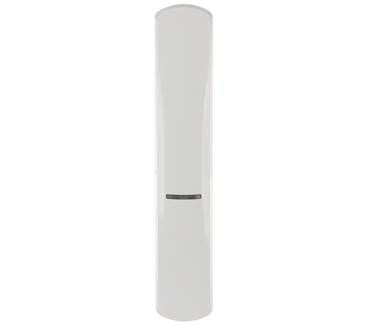

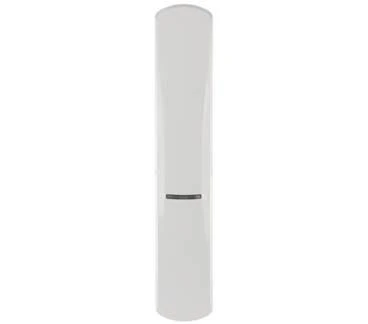

ABAX 2 wireless system controller
ACU-280 provides two-way, encrypted (AES standard) communication in the 868 MHz band - all radio transmissions between components of the ABAX 2 system are acknowledged. It works together with the INTEGRA, INTEGRA Plus and VERSA control panels, enabling wireless devices to be added to the alarm system. Because of its small size, it requires little space for installation.
The device meets the high EN 50131 requirements for Grade 2.
An advantage of the controller is its excellent transmission range, which can be up to 1600 m in the open area, depending on the device working with the controller and their operating conditions. Such good communication parameters are obtained thanks to the use of a modern radio system.
The controller can be programmed from the control panel, a keypad, or the DLOADX program. For advanced diagnostics of the wireless system operation, the ABAX 2 Soft program is used. Configuration, as well as firmware upgrade and testing of enrolled wireless devices are carried out by radio, without having to demount them.
compliance with the EN 50131 Grade 2 requirements
two-way radio communication in the 868 MHz band - 4 channels
range up to 1600 m in the open area
support for up to 48 wireless system devices
support for wireless keypads: INT-KWRL2 - up to 4, VERSA-KWRL2 - up to 6
support for up to 248 APT-200 wireless keyfobs
works together with the INTEGRA, INTEGRA Plus and VERSA control panels - connection to the communication bus
programming controller settings via:
control panel service menu or DLOADX program - when working with the INTEGRA, INTEGRA Plus or VERSA control panels
firmware update without demounting of the controller
remote configuration and updating of devices registered to the controller
compact sizes
easy installation in the OPU-4 P enclosure using the HOLDER A2 mount
tamper protection
power supply: 12 V DC
| Tootja | SATEL |
| Tootekood | ACU-280 |
| EAN | 5905033336087 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | www.satel.pl/en/product/10096/ACU-280,ABAX-2-wireless-system-controller |
| .: Kaal ja mõõtmed :. | |
| Netokaal | 0.048 kg |
| Brutokaal | 0.08 kg |
| Mõõtmed (l x s x k) | 24 x 135 x 29 mm |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.0002686 cubm |
| Transpordipakendi kaal | 0.08 kg |
| Transpordipakendi kõrgus | 3.9 cm |
| Transpordipakendi laius | 4.2 cm |
| Transpordipakendi sügavus | 16.4 cm |
| Muud andmed | |
| Unit Calculated Weight | 0.08 kg |
| Product Net Weight | 0.048 kg |
| Unit Calculated Volume | 0.0002686 cubm |
| Units per Shipping Box | 1 |
| CnCode | 85311030 |
| Unit Box Width | 0.042 |
| Unit Box Height | 0.039 |
| Unit Box Length | 0.164 |
