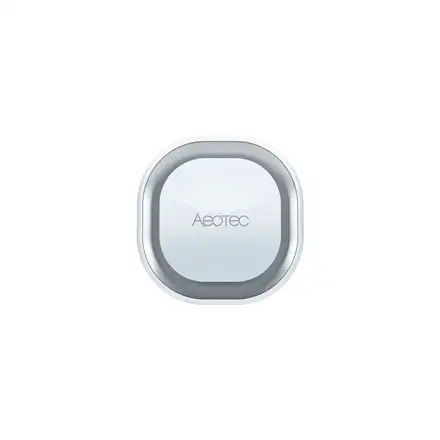

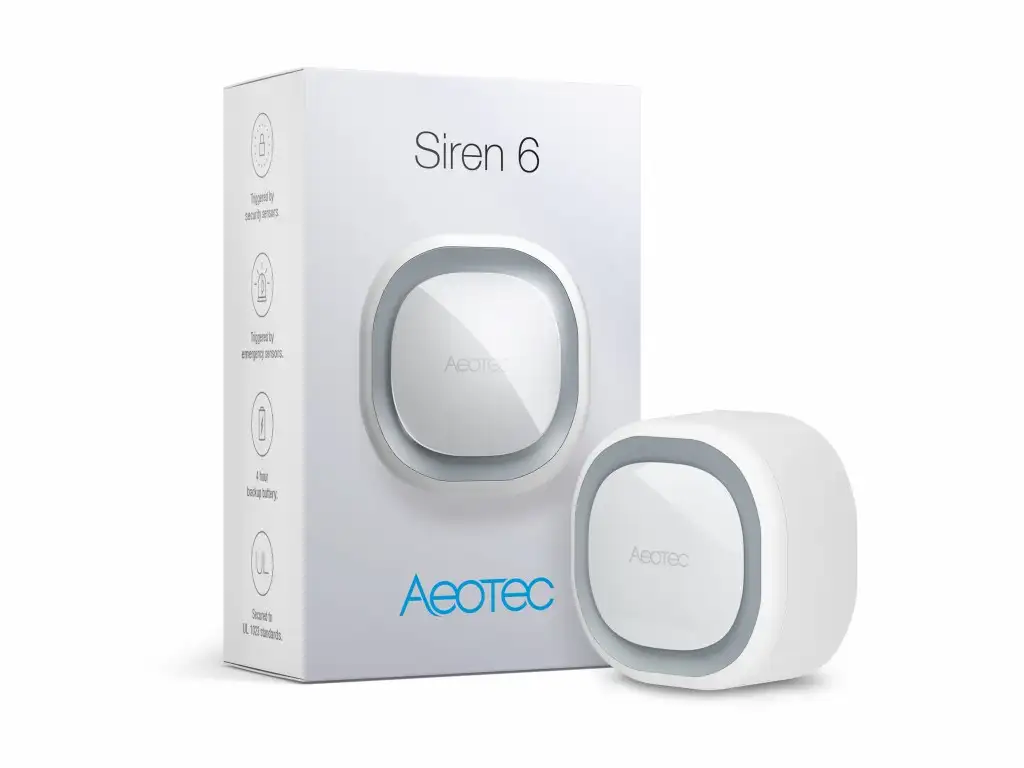

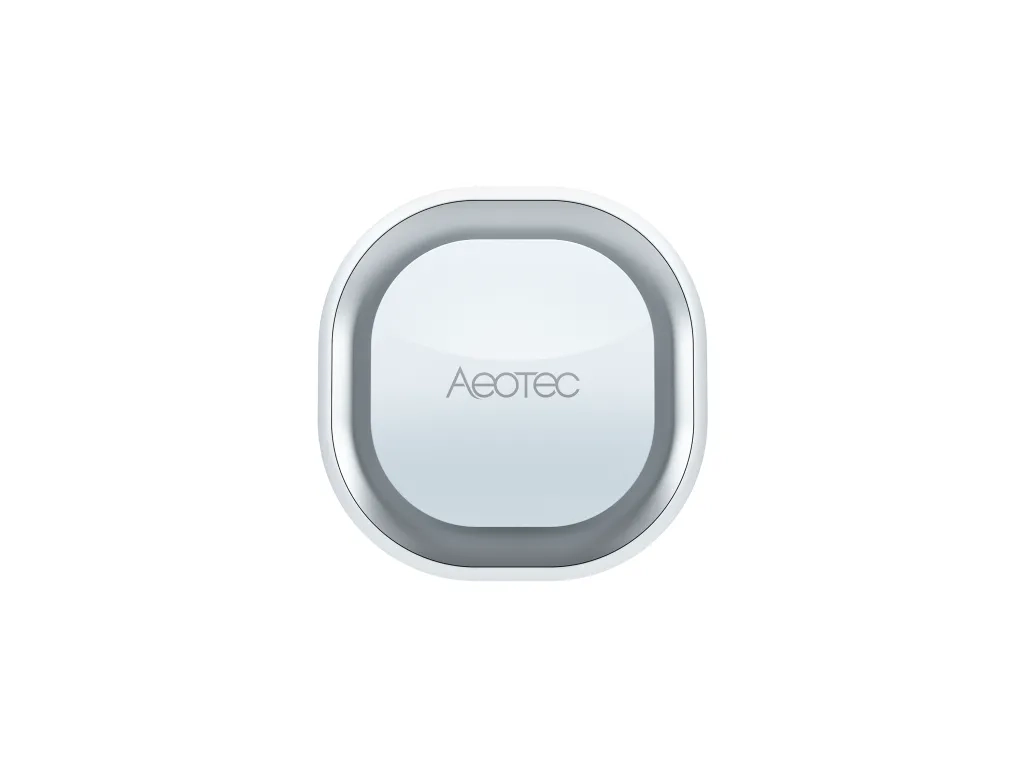

AEOTEC | Siren 6 | Z-Wave Plus

.: Üldised andmed :.

Tootja

AEOTEC

.: Aku & Toiteallikas :.

Akuelementide arv

Aku

Võimsus ja energiatarve

Sisseehitatud aku

Jah

Muud funktsioonid

Muud funktsioonid

Siren with acoustic and visual alarm. Can also be used as a doorbell. 30 preconfigured signal tones. Up to 110 db. Power supply: 230V. Battery operation: 1x PT502035 (400mAh) (only for bridging). Safety standard S2. Wireless technology: Z-Wave Plus.

Toetatud võrguprotokollid

Z-Wave Plus

.: Pakendi andmed :.

Pakenditaara kaal

0.08 kg

Pakendi maht

0.00 m³

Kogus pakendi kohta

1,00 tk

Pakendi sügavus

54.00 mm

Pakendi laius ( mm )

105.00 mm

Pakendi kõrgus ( mm )

165.00 mm

Tehnilised andmed

Paper/Pasteboard

75.00 g

TI weight (kg)

0.022 kg

Classification of battery

CL126:NE:2016-12-09

Composition of battery

CL127:KT:2016-12-09

WEE klassifikatsioon

CL109:5:2017-04-01

Technical features

Dimensions: 76 x 76 x 38.5 mm. Wireless Technology: Z-Wave, 433.92 FSK. Weight: 100g. Repeater: Yes. Beaming: Yes. Z-Wave Plus: Yes. Z-Wave Security: S0, S2 unauthenticated, and S2 Authenticated. Z-Wave Hardware: ZM5101. Z-Wave Library Type: Enhanced 232 Slave. Z-Wave Device Type: Sound Switch. Z-Wave Role Type: Always On Slave. Smart Start Compatible: No. Input Voltage: Adapter: 5V/2A; Battery: 3.7V. Backup Battery: PT502035; 400mAh; Not Detachable; Rechargable via power adapter; 4 Hours total use. Storage: 16M. Sensors: Vibration. Max Supported Tones: 30. Max Supported Buttons: 3. Max Standby Power: 0.7W. Max Volume: 105dB from 5cm. Operating humidity: 8% to 80%. Operating temperature: 0°C to 40°C. Operating Distance: 30m indoor; 150m outdoor.

Supported network protocols

Z-Wave Plus

WEEE maks

Jah

Üldised näitajad

Siren with acoustic and visual alarm. Can also be used as a doorbell. 30 preconfigured signal tones. Up to 110 db. Power supply: 230V. Battery operation: 1x PT502035 (400mAh) (only for bridging). Safety standard S2. Wireless technology: Z-Wave Plus.

Mudeli number

Siren 6

Tehnilised andmed

Netokaal

0.157 kg

Brutokaal

0.175 kg
