Power Supply|GIGABYTE|550 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MTBF 100000 hours|P550B
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Reliable Flat Cable
P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

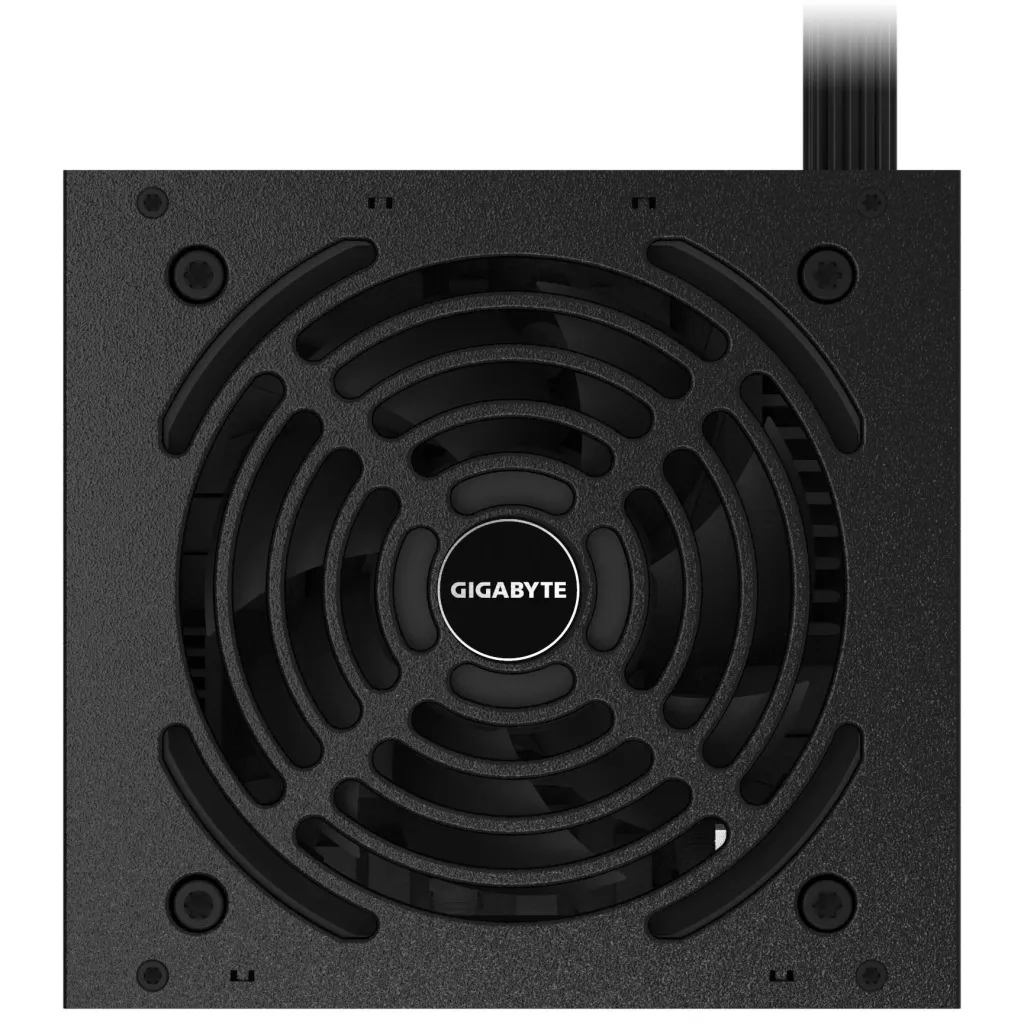

120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
.: Üldised andmed :.
- Tootja koduleht
- https://www.gigabyte.com/Power-Supply/GP-P550B/sp#sp
.: Disain :.
- Toote värv
- Black
- Jahutuse tüüp
- Active
- Toote värv
- Black
- Keskmine tõrkeintervall (MTBF)
- 100000 hours
.: Toimimine :.
- Power supply unit (PSU) form factor
- ATX
.: Pesad & liidesed :.
- CPU power cable length
- 600 mm
Võimsus ja energiatarve
- Sisendvool
- 8 - 4 A
- Sisendsagedus
- 50 - 60 Hz
- PFC (Võimsusteguri korrigeerimine) tüüp
- Active
Jahutus
- Ventilaatorite arv
- 1 fan(s)
Ergonoomika
- On/off nupp
- Jah
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
- Mudeli originaalnimi
- P550B
Logistika andmed
- Kogus transpordikasti kohta
- 10
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.008447 cubm
- Transpordipakendi kaal
- 21.9 kg
- Transpordipakendi kõrgus
- 25.5 cm
- Transpordipakendi laius
- 53 cm
- Transpordipakendi sügavus
- 62.5 cm
Tehnilised andmed
- Unit Calculated Volume
- 0.008447 cubm
- Bearing technology
- HDB
- Fan location
- Top
- ATX version
- 2.31
- Hold time
- 16 ms
- Unit Box Height
- 0.12
- Unit Box Length
- 0.26
- Unit Box Width
- 0.21
- CnCode
- 85044095
- Unit Calculated Weight
- 2.19 kg
- Summary
- GIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
- Harmonized System (HS) code
- 84733020
- Motherboard power cable length
- 550 mm
- Peripheral (Molex) power cable length
- 500 mm
- SATA power cable length
- 500 mm
- PCI Express power cable length
- 550 mm
- ATX power connector (20+4 pin)
- Jah
- CPU power connector (4+4 pin)
- Jah
- Floppy disk drive connector
- Jah
- Floppy drive power connector
- 1
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express connector
- Jah
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 3
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Purpose
- PC
- 80 PLUS Certification
- 80 PLUS Bronze
- Cabling Type
- Non-Modular
- Combined power (+12V)
- 522 W
- Combined power (+3.3V)
- 108 W
- Combined power (+5V)
- 108 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Cooling System
- 12cm fan
- Efficiency
- 85 %
- Fan Diameter
- 120 mm
- Max output current (+12V)
- 43.5 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 15 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Mean time between failures (MTBF)
- 100000 h
- Power factor
- 0.9
- PSU
- ATX 2.31
- PSU Output Power
- 550 Watts
- Total power
- 550 W
Tehnilised andmed
- Netokaal
- 1.9 kg
- Netokaal
- 1.9 kg
- Brutokaal
- 2.19 kg
- Laius
- 150 mm
- Sügavus
- 140 mm
- Kõrgus
- 86 mm
- Mõõtmed (l x s x k)
- 150 x 140 x 86 mm
