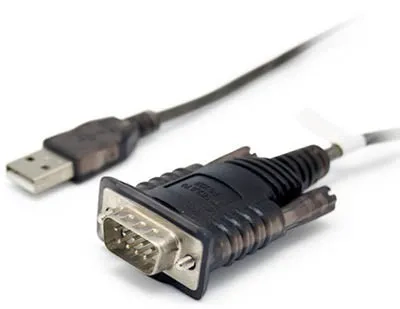

Adapter USB do Serial ; Y-108

Muud näitajad

Üldised näitajad

Single chip USB to asynchronous serial data transfer Protocol USB entirely controlled by one chipset UART interface support for 7 or 8 data bits, 1 or 2 stop bits and bits of odd / even / mark / space / lack of parity Fully hardware or software (X-On / X-Off) negotiation signal. Data transfer rate of  300 baud to 1 Megabaud (232) 256-byte receive buffer 128 and a byte buffer, a forward both forming a buffer in order to increase the data throughput Drivers FTDI's royalty-free VCP and D2XX Built-in support for trade events and conditions interrupt lines The new chipset USB FTDIChip-ID New configurable CBUS pins I / O Signals transmission and reception for LEDs New timing of the output signals of 48MHz, 24MHz, 12MHz, and 6MHz clock output signal. Options for external MCU or FPGA. buffers transmit and receive FIFO for high throughput Adjustable time interval receive buffer Options synchronous and asynchronous bit bang mode signals goals RD # and WR # New option CBUS mode bit bang Integrated internal EEPROM 1024 Bit for storing configuration USB VID, PID, serial number and description of the device and CBUS I / O. The device is programmed with a unique serial USB Supports pause and resume for USB Supports configuration of USB power bus, its own power supply Integrated 3.3V level converter for USB I / O Integrated level converter on UART and CBUS for 5V - 1.8V Real output CMOS 5V / 3.3V / 2.8V / 1.8V and input TTL Option High I / O pin output drive Integrated USB resistors Integrated circuit power-on-reset Fully integrated clock - no external oscillator or resonator Fully integrated AVCC supply filtering - No external RC filter and separate pins AVCC Option inversion signal UART USB bulk transmission mode Power supply 3.3V to 5.25V Galvanic isolation of inputs / outputs. Low current Low bandwidth consumption USB Compatible with the host controller UHCI / OHCI / EHCI Compatible with USB 2.0 Operating temperature range -40 ° C to 85 ° C Complies with the RoHS directive

Toetatud Windows operatsioonisüsteemid

Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows 2000 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (version 4.2 and higher)

Tarvikud kaasa arvatud

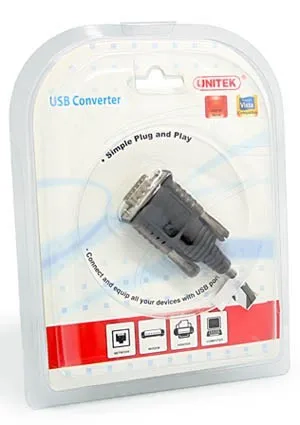

- Y-108 converter- CD plate

Technical specifications
