NET ROUTER 1000M 16PORT/CCR2004-16G-2S+ MIKROTIK
405.52€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 15.68 €. Taotle järelmaksu ostukorvis.
Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

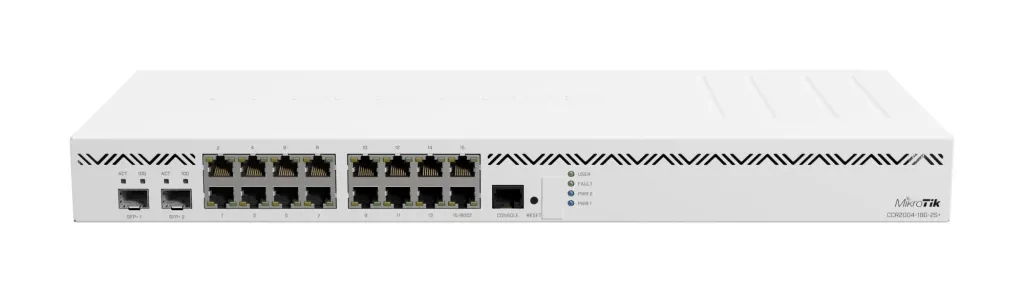

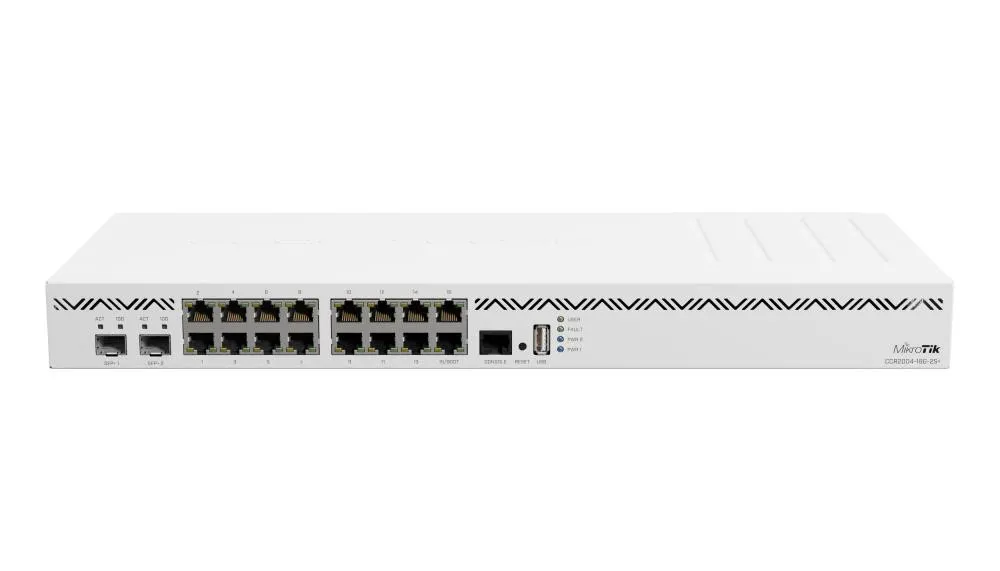

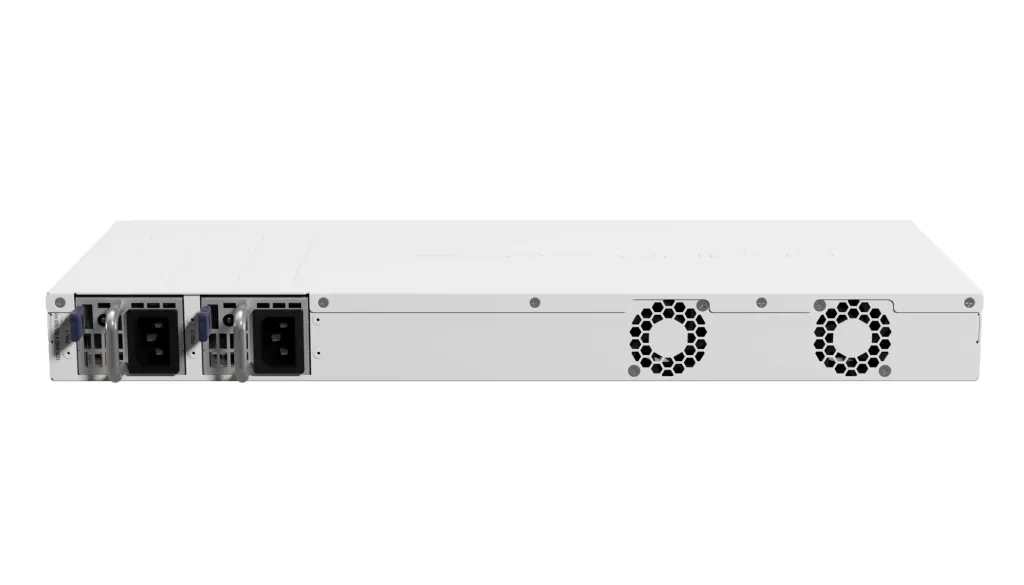

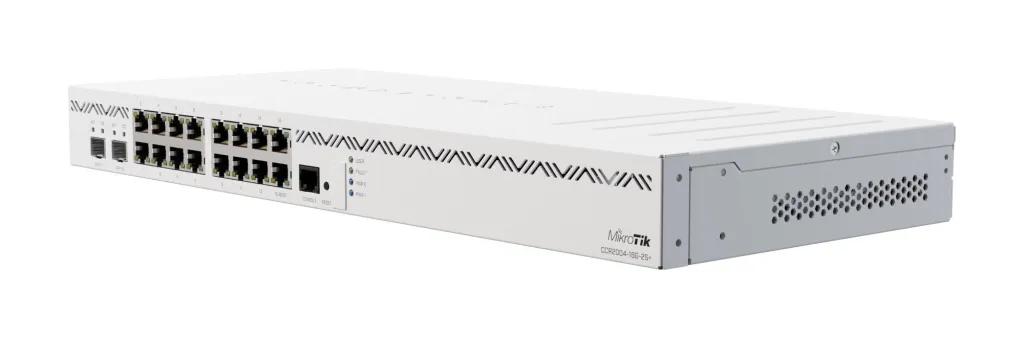

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.
The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Tootja
MikroTik
Tootekood
CCR2004-16G-2S+
EAN
4752224007704
Google link
lisainfo
Garantiiaeg
12 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://mikrotik.com/product/ccr2004_16g_2s_#fndtn-specifications
- Seadme tüüp
- Ruuter
.: Üldised omadused :.
- Välkmälu
- 128 MB
.: Disain :.
- Kokkuvõte
- Mikrotik CCR2004-16G-2S+. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Processor manufacturer: Annapurna Labs, Processor frequency: 1700 MHz, Flash memory: 128 MB. Product colour: White, Rack capacity: 1U. Power consumption (typical): 48 W, Power source type: AC, AC input voltage: 100 - 240 V
- Toote värv
- Valge
.: Protsessor :.
- Protsessori sagedus
- 1700 MHz
- Sisseehitatud protsessor
- Jah
.: Mälu :.
- Paigaldatud operatiivmälu
- 4096 MB
- Mälumaht
- 128MB
- Sisemälu
- 4GB
.: Võrgustumine :.
- Ethernet LAN-i andmeedastuskiirused
- 10/100/1000 Mbit/s
.: Pesad & liidesed :.
- USB 3.0
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- Vahelduvvool
Võimsus ja energiatarve
- Sisendvool
- 0.9 A
- Sisendsagedus
- 50 - 60 Hz
- Võimsustarve (tüüpiline)
- 48 W
.: Tehnilised andmed :.
- Vastavussertifikaadid
- RoHS
- Sisemälu tüüp
- DDR4
Toide
- Toitenõuded
- 100-240 V
- Voolutarve
- 48 W
Ethernet LAN-funktsioonid
- 10/100/1000M
- 16
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
Logistika andmed
- Kogus transpordikasti kohta
- 5
Töötingimused
- Kasutamistemperatuur (T-T)
- -20 - 60 °C
WAN-ühendus
- Ethernet WAN
- Jah
- DSL WAN
- Ei
- SIM kaardi ava
- Ei
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.007496 cubm
- Transpordipakendi kaal
- 2.63 kg
- Transpordipakendi kõrgus
- 5.5 cm
- Transpordipakendi laius
- 29 cm
- Transpordipakendi sügavus
- 47 cm
Tehnilised andmed
- CnKood
- 85176200
- Rack mounting
- Jah
- Cabling technology
- 10/100/1000alus-T(X)
- Full duplex
- Jah
- SFP module slots quantity
- 2
- Temperature monitoring
- Jah
- Rack capacity
- 1U
- Processor manufacturer
- Annapurna Labs
- SPF+
- 2
- Unit Box Height
- 0.06
- Unit Box Length
- 0.475
- Unit Box Width
- 0.29
- Harmonized System (HS) code
- 85176990
- 3G/4G USB modem compatibility
- Ei
- Voltage monitoring
- Jah
- Üksuse kalkuleeritud maht
- 0.009864 cubm
- Mudeli number
- CCR2004-16G-2S+
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 16
- Certification
- CE, EAC, ROHS
- Mean time between failures (MTBF)
- 200000 h
- Operating temperature range
- -20°C kuni +60°C
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 2.82 kg
- Netokaal
- 2 kg
- Brutokaal
- 2.63 kg
- Laius
- 443 mm
- Sügavus
- 44 mm
- Kõrgus
- 210 mm
- Mõõtmed (l x s x k)
- 443 x 210 x 44 mm
