System Overview

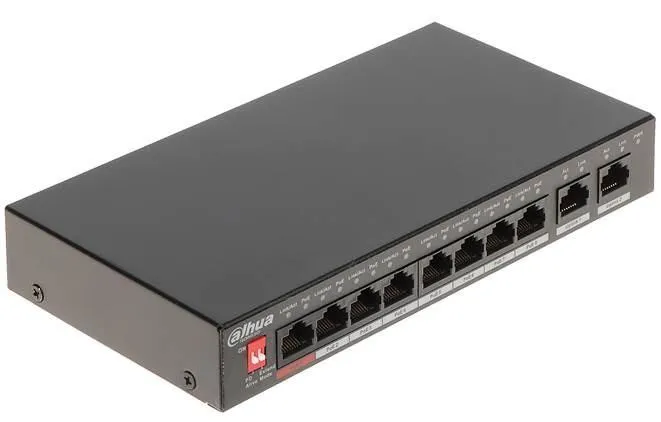

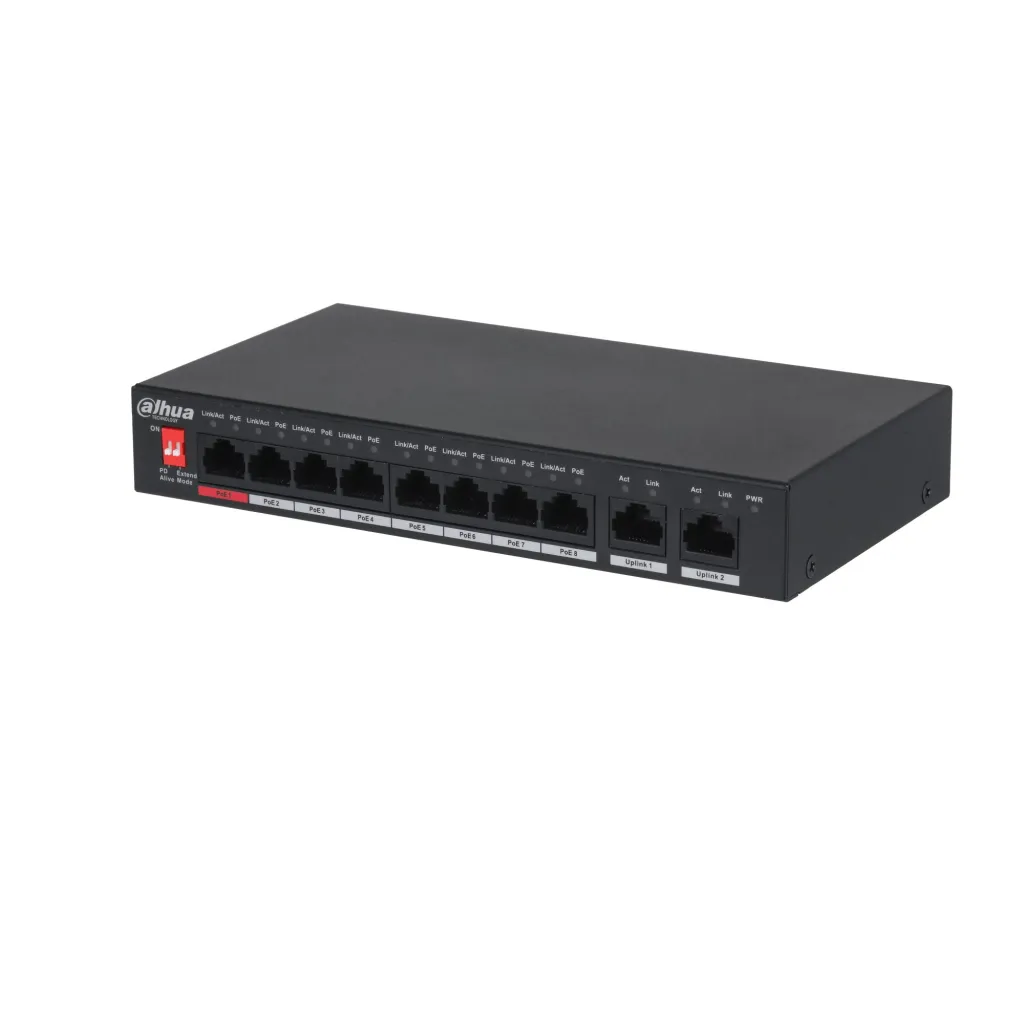

DH-PFS3010-8ET-96 is an unmanaged Desktop Switch with 8 × 10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.
BT 90W
The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W.
PoE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply, to enhance frontend and rear-end compatibility. Reduce cable loss and promote loading capacity.
Scene
The device is applicable for use in different scenarios, including home, office, server farm, and small mall.
| Tootja | DAHUA |
| Tootekood | DH-PFS3010-8ET-96-V2 |
| EAN | 6923172507556 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.dahuasecurity.com/products/productDetail/15591 |
| .: Disain :. | |
| Toote värv | Black |
| .: Võrgustumine :. | |
| Võrgustandardid | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3by/IEEE 802.3u/IEEE 802.3x |
| Ethernet LAN-i andmeedastuskiirused | 10,100,1000 Mbit/s |
| Võimsus ja energiatarve | |
| Power over Ethernet (PoE) | Jah |
| Võimsustarve (tüüpiline) | 90 W |
| Ethernet LAN-funktsioonid | |
| PoE ports | 8 |
| Funktsioonid | |
| Mudeli originaalnimi | PFS3010-8ET-96-V2 |
| Logistika andmed | |
| Kogus transpordikasti kohta | 1 |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | -10 - 55 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 5 - 95 % |
| Hoiustamistemperatuur (T-T) | -20 - 70 °C |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.002643 cubm |
| Transpordipakendi kaal | 1.249 kg |
| Transpordipakendi kõrgus | 24.2 cm |
| Transpordipakendi laius | 6.5 cm |
| Transpordipakendi sügavus | 16.8 cm |
| DC input voltage | 48 - 57 V |
| Product Net Weight | 0.5 kg |
| Unit Calculated Weight | 1.25 kg |
| Summary | Dahua Technology PoE PFS3010-8ET-96-V2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE) |
| Unit Box Width | 0.065 |
| Unit Box Length | 0.168 |
| Unit Box Height | 0.242 |
| PoE power budget | 96 Watts |
| Fast Ethernet (copper) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| 10G support | Ei |
| CnCode | 85176200 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Unit Calculated Volume | 0.002643 cubm |
| Desktop/pedestal | Jah |
| Forwarding rate | 4.17 Mpps |
| MAC address table | 8000 entries |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 1320 g |
| Package width | 190 mm |
| Packet buffer memory | 4 MB |
| Power Source | DC |
| Primary port count | 8 |
| Storage relative humidity (H-H) | 5 - 95 % |
| Switch type | Unmanaged |
| Switching capacity | 5.6 Gbit/s |
| Total Power over Ethernet (PoE) budget | 96 W |
| Netokaal | 0.5 kg |
| Brutokaal | 1.25 kg |
| Mõõtmed (l x s x k) | 190 × 100 × 30mm |
| Toote kaal | 500 g |
