Tulen ise kaubale järele
NET ROUTER IOT GATEWAY/RB924I-2ND-BT5&BG77 MIKROTIK
81.16€
86.89€
E1
86.89€
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.

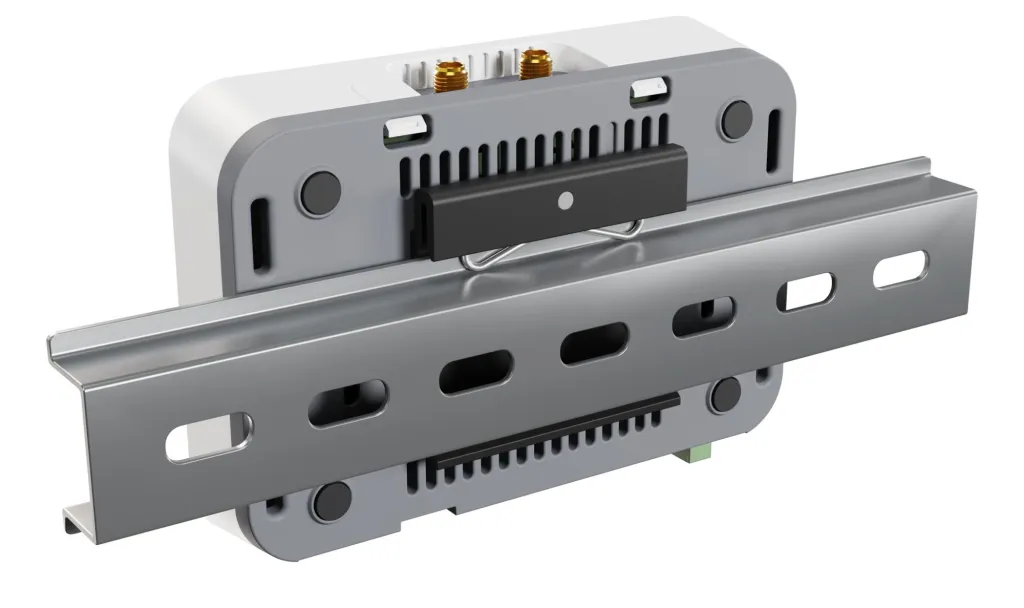

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
Tootja
MikroTik
Tootekood
RB924I-2ND-BT5&BG77
EAN
4752224007131
Google link
lisainfo
Garantiiaeg
12 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://mikrotik.com/product/knot#fndtn-specifications
- Seadme tüüp
- Gateway
.: Üldised omadused :.
- Välkmälu
- 16 MB
.: Disain :.
- Kokkuvõte
- Mikrotik RB924I-2ND-BT5&BG77. Product colour: White, Mounting type: DIN-rail, International Protection (IP) code: IP20. Antenna gain level (max): 1.5 dBi. Processor model: QCA9531, Processor frequency: 650 MHz, Internal memory: 64 MB. Ethernet LAN data rates: 10,100 Mbit/s, Forwarding rate: 300 Mpps, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at. SIM card type: NanoSIM, Serial interface type: RS-485
- Toote värv
- Valge
.: Protsessor :.
- Protsessori sagedus
- 650 MHz
- Protsessori mudel
- QCA9531
- Sisseehitatud protsessor
- Jah
- Protsessori seeria
- QCA9531
.: Mälu :.
- Paigaldatud operatiivmälu
- 64 MB
- Sisemälu
- 16MB
.: Võrgustumine :.
- SIM-kaardi tüüp
- NanoSIM
- WiFi
- Jah
- WiFi-standardid
- 802.11b/802.11g/Wi-Fi 4 (802.11n)
- Võrgustandardid
- IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.2
- Ethernet LAN-i andmeedastuskiirused
- 10/100 Mbit/s
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
- Võimsustarve (tüüpiline)
- 18 W
Juhtmevaba LAN-i omadused
- WLAN edastuskiirus (max)
- 300 Mbit/s
Toide
- Toitenõuded
- PoE-IN, DC jack, MicroUSB
- Voolutarve
- 5 W
Logistika andmed
- Kogus transpordikasti kohta
- 1
.: Toetatud operatsioonisüsteemid :.
- Muud toetatud operatsioonisüsteemid
- RouterOS
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 70 °C
WAN-ühendus
- SIM kaardi ava
- Jah
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.001293 cubm
- Transpordipakendi kaal
- 0.44 kg
- Transpordipakendi kõrgus
- 5 cm
- Transpordipakendi laius
- 11 cm
- Transpordipakendi sügavus
- 23.5 cm
Tehnilised andmed
- Harmonized System (HS) code
- 85176990
- Unit Box Width
- 0.11
- Unit Box Length
- 0.24
- CnKood
- 85176200
- Unit Box Height
- 0.05
- Üksuse kalkuleeritud maht
- 0.00132 cubm
- Top Wi-Fi standard
- Wi-Fi 4 (802.11n)
- Serial interface type
- RS-485
- Cabling technology
- 10/100alus-T(X)
- Number of processors installed
- 1
- Rahvusvaheline Kaitsekood ( IP )
- IP20
- Mudeli number
- KNOT // RB924i-2nD-BT5&BG77
- Ethernet LAN (RJ-45) ports
- 2
- Micro-USB 2.0 ports quantity
- 1
- Mounting type
- DIN-rail
- Wi-Fi band
- Single-band (2.4 GHz)
- Wireless connection
- Jah
- 10Base-T / 100Base-TX
- 2
- Antenna gain level (max)
- 1.5 dBi
- Certification
- CE, FCC, IC, EAC, ROHS
- Forwarding rate
- 300 Mpps
- Operating temperature range
- -40°C to 70°C
- USB 2.0
- 1
- WLAN data transfer rates supported
- 300 Mbit/s
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 0.44 kg
- Netokaal
- 0.35 kg
- Brutokaal
- 0.44 kg
- Laius
- 122 mm
- Sügavus
- 87 mm
- Kõrgus
- 26 mm
- Mõõtmed (l x s x k)
- 122 x 87 x 26 mm
