Switch|DAHUA|PoE ports 8|PFS3211-8GT-120-V2
Toode on hetkel läbimüüdud!
Kuvame toote info vaid informatiivsel eesmärgil

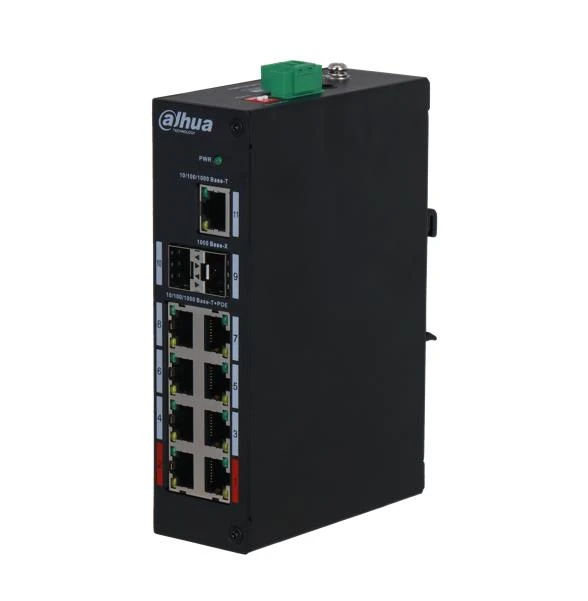

DH-PFS3211-8GT-120 is an unmanaged Hardened PoE Switch with 8 × 10/100/1000 Mbps PoE Ports. It provides 8 × 10/100/1000 Mbps Ethernet ports , 2 × 1000 Mbps uplink SFPs and 1 ×10/100/1000 Mbps Ethernet uplink ports . The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 120W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
BT 90W
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
8-pin Assignment PoE Power Supply
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
The device is applicable for use in different scenarios, including home,
office, server farm, and small mall.
- Intelligent PoE
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- BT 90W
- All-giga ports
- Wide working temperature
- Anti-theft Lock Hole
Tootja
DAHUA
Tootekood
PFS3211-8GT-120-V2
EAN
6923172525482
Google link
lisainfo
Garantiiaeg
36 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/PFS3211-8GT-120%28only-for-project%29
.: Disain :.
- Kujutegur
- Desktop/Wall-Mounting
- LED-indikaatorid
- Jah
- Toote värv
- Must
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
- Ethernet LAN-i andmeedastuskiirused
- 10,100,1000 Mbit/s
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
Toide
- Toiteallikas
- Alalisvool
Ethernet LAN-funktsioonid
- PoE ports
- 8
Logistika andmed
- Kogus transpordikasti kohta
- 8
Töötingimused
- Kasutamistemperatuur (T-T)
- -30 - 65 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 5 - 95 %
Valgusjuhe
- Switching optical modules type
- Gigabit Ethernet
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.005184 cubm
- Transpordipakendi kaal
- 1.483 kg
- Transpordipakendi kõrgus
- 8 cm
- Transpordipakendi laius
- 24 cm
- Transpordipakendi sügavus
- 27 cm
Tehnilised andmed
- Üksuse kalkuleeritud maht
- 0.005569 cubm
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- Ei
- Gigabit Ethernet (copper) ports quantity
- 9
- Wall mountable
- Jah
- Rack mounting
- Ei
- Power over Ethernet (PoE) ports quantity
- 8
- Flow control support
- Jah
- DC input voltage
- 48 - 57 V
- Unit Box Height
- 0.08
- Unit Box Length
- 0.27
- Unit Box Width
- 0.24
- CnKood
- 85176200
- Power consumption note
- Idling: 5 W
- Cable types supported
- Cat5e/Cat6
- Installed SFP modules quantity
- 2
- Power protection features
- Overdischarge
- Forwarding rate
- 16.37 Mpps
- Packet buffer memory
- 1.75 MB
- Power Management
- Jah
- Power over Ethernet (PoE) power per port
- 90 W
- Stackable
- Ei
- Switch type
- Unmanaged
- Switching capacity
- 33 Gbit/s
- Switching method
- Store-and-forward
- Total Power over Ethernet (PoE) budget
- 120 W
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 1.63 kg
- Netokaal
- 0.67 kg
- Brutokaal
- 1.48 kg
- Laius
- 150 mm
- Sügavus
- 100 mm
- Kõrgus
- 42 mm
- Mõõtmed (l x s x k)
- 150mm × 110mm × 42mm
- Toote kaal
- 670 g
