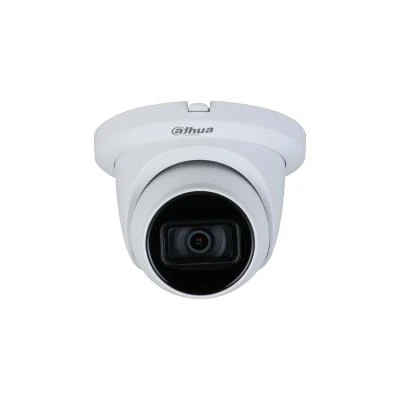

CAMERA HDCVI 2MP IR EYEBALL/HAC-HDW1231TMQ-A-0280B DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HDW1231TMQ-A

Seadme tüüp

CCTV security camera

.: Disain :.

Kokkuvõte

Dahua Technology Lite HAC-HDW1231TMQ-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 82.8 m, Observe distance: 33.1 m, Recognize distance: 16.6 m

Kujutegur

Dome

Toote värv

Valge

.: Audio :.

Sisseehitatud mikrofon

Sisseehitatud

.: Kaamera :.

Valge tasakaalustus

Automaatne/Manuaalne

.: Võrgustumine :.

WiFi

Ei

Ethernet LAN

Ei

Bluetooth

Ei

.: Pesad & liidesed :.

Ühenduvustehnoloogia

Juhtmega

.: Aku & Toiteallikas :.

Toiteallika tüüp

Alalisvool

Pildisensor

Progressiivne skaneerimine

Jah

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12V ±30% DC

Voolutarve

5.1 Watts

Ergonoomika

Pöördenurga ulatus

360 °

Funktsioonid

Sensori tüüp

CMOS

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 60 °C

Kasutamistemperatuur (T-T)

-40 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.002835 cubm

Transpordipakendi kaal

0.62 kg

Transpordipakendi kõrgus

13.5 cm

Transpordipakendi laius

14 cm

Transpordipakendi sügavus

15 cm

Pakendi kaal

620 g

Tehnilised andmed

Placement supported

Indoor & outdoor

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Number of illumination LEDs

2

LED type

IR

Unit Box Height

0.135

Unit Box Length

0.15

Unit Box Width

0.14

CnKood

85258900

Üksuse kalkuleeritud maht

0.002835 cubm

Tilt angle range

0 - 90 °

Adjustment shutter speed

Automaatne/Manuaalne

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Smart IR

Jah

Mirror

Jah

Number of lenses

1

Detect distance

82.8 m

Focal length range

2.8 - 3.6 - 6 mm

Identify distance

8.3 m

Observe distance

33.1 m

Recognize distance

16.6 m

Audio input channels

1.0 channels

BNC output ports

1

Rahvusvaheline Kaitsekood ( IP )

IP67

Analog signal format system

PAL

Camera shutter type

Elektrooniline

DC output voltage

12

Maximum aperture number

1.6

Mounting type

Ceiling/wall

Noise reduction

Jah

Supported video modes

1080p/720p

Built-in HDD

Ei

Camera design

Eyeball

Camera shutter speed

PAL: 1/25 s-1/100,000 s/PAL: 1/25 s-1/100,000 s s

Certification

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Diameter

121.9 mm

Effective pixels

1920(H)×1080(V)

Electronic Shutter Speed

PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s

Environment

Välitingimustesse

Frame Rate

30 fps

Housing material

Metall/Plastik

IR Illumination

Jah

Lens Mount

M12

Min. Illumination

0.02 Lux

Minimum Illumination

0.002 lx

Net camera resolution

2 - 4MP

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Night vision distance

60 m

Optical sensor size

1/2.8 "

Pan range

0 - 360 °

Pixel Resolution

2 Mega Pixel

Power Options

12V

Resolution

2 Mega Pixel

Sensor size

1/2.8" CMOS

Signal-to-Noise Ratio (SNR)

65 dB

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

2 MP

Tehnilised andmed

Üksuse kalkuleeritud kaal

0.62 kg

Netokaal

0.17 kg

Brutokaal

0.62 kg

Kõrgus

99.1 mm

Toote kaal

420 g
