ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
* Specifications vary by models.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with one click.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
COOLING
Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Storage
Dual M.2 slots (up to 32 Gbps)
Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
Connectivity
PCIe® 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

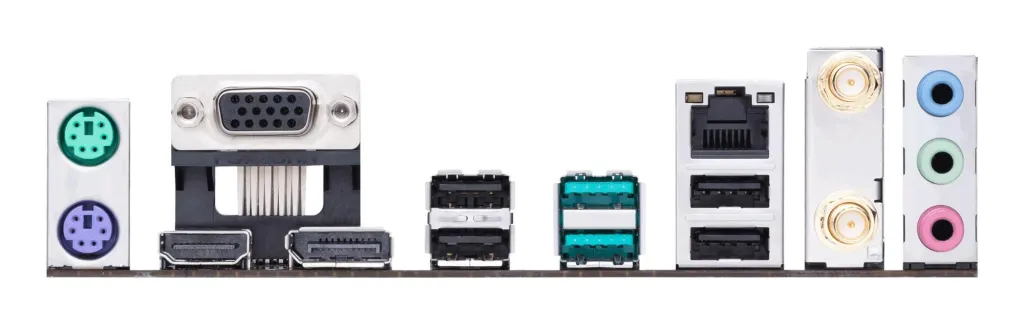

USB 3.2 Gen 2 ports
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.
Wi-Fi 5
PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
*Actual speed varies, and depends on networking conditions.
Intel® 1 Gb Ethernet
Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Personalization
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 Headers
Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
DIY Friendly
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
| Tootja | ASUS |
| Tootekood | PRIMEH610M-AWIFID4 |
| EAN | 4711081758211 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 211 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel H610 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR4 |
| Taktsagedus | 2133/2400/2666/2800/2933/3000/3200 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 64 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Jah |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.0 |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 1 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |
| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 2 |
| VGA (D-Sub) portide arv | 1 |
| HDMI-portide arv | 1 |
| Audioväljund | 1 |
| Audio sisend | 2 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | 4 |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.01 kg |
| Netokaal | 0.44 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.003935 cubm |
| Muud näitajad | |
| DisplayPort version | 1.4 |
| Number of displays supported | 3 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium®/Intel® Pentium® Gold |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| Drivers included | Jah |
| Supported storage drive types | HDD & SSD |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Maximum number of SMP processors | 1 |
| Supported storage drive interfaces | M.2,SATA |
| Processor manufacturer | Intel |
| RGB LED pin header | Jah |
| USB 3.2 | 2 |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| CnCode | 84733020 |
| ECC сompatibility | Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004824 cubm |
| Product Net Weight | 0.44 kg |
| Unit Calculated Weight | 1.11 kg |
| Summary | ASUS PRIME H610M-A WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Harmonized System (HS) code | 84733020 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Jah |
| Component for | PC |
| Tootja koduleht | https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-A-WIFI-D4/ |
| Transpordipakendi kaal | 1.01 kg |
| Transpordipakendi kõrgus | 5.5 cm |
| Transpordipakendi laius | 26.5 cm |
| Transpordipakendi sügavus | 27 cm |
| Kõrgus | 58 mm |
| Toote kaal | 815 g |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel H610 |
| Unbuffered memory | Jah |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 128 Mbit |
| DisplayPort | 1 |
| Mudel | PRIME H610M-A WIFI D4 |
| Number of memory slots | 2 |
| Processor Socket | LGA 1700 |
| RF-Out | 2 |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200 MHz |
| USB 2.0 connectors | 2 |
