Switch|DAHUA|Type L2|Desktop/pedestal|Rack|1x10Base-T / 100Base-TX / 1000Base-T|PoE ports 8|96 Watts|DH-PFS3009-8ET1GT-96-V2
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

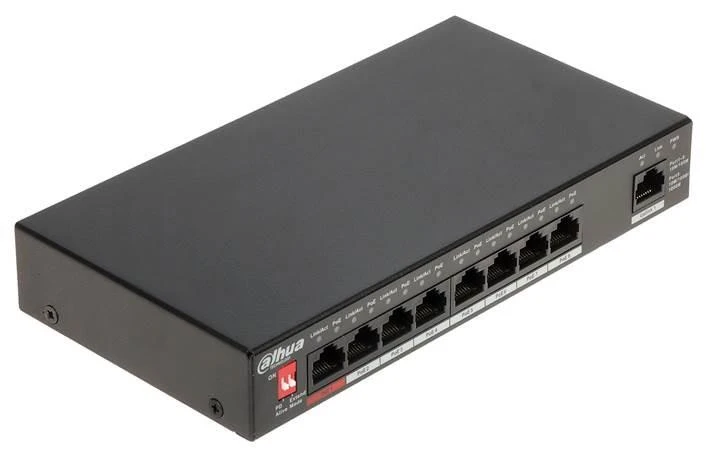

DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.
- Layer two commercial switch
- > Supports PoE power management
- > Supports wall-mount installation
- > Supports anti-theft lock hole
- > MAC auto learning and aging, MAC address capacity is 2K
- > Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- > RJ45 port supports 10/100 Mbps self-adaptation
- > Supports 250 meters long distance PoE transmission
- > Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/productDetail/12971
.: Disain :.
- Toote värv
- Black
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3af/IEEE 802.3at
- Auto MDI/MDI-X
- Jah
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
Ethernet LAN-funktsioonid
- IEEE 802.3
- Jah
- IEEE 802.3ab
- Jah
- IEEE 802.3u
- Jah
- IEEE 802.3x
- Jah
- PoE ports
- 8
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Kasutamistemperatuur (T-T)
- -10 - 55 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.005184 cubm
- Transpordipakendi kaal
- 1.253 kg
- Transpordipakendi kõrgus
- 24 cm
- Transpordipakendi laius
- 8 cm
- Transpordipakendi sügavus
- 27 cm
Tehnilised andmed
- PoE power budget
- 96 Watts
- Rack mounting
- Ei
- Switch layer
- L2
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Power over Ethernet (PoE) ports quantity
- 8
- Flow control support
- Jah
- DC input voltage
- 48 - 57 V
- Unit Box Height
- 0.24
- Unit Box Length
- 0.27
- CnCode
- 85176200
- Unit Box Width
- 0.08
- Unit Calculated Volume
- 0.005184 cubm
- Unit Calculated Weight
- 1.25 kg
- MAC address auto-learning supported
- Jah
- MAC address auto-aging supported
- Jah
- Summary
- Dahua Technology PFS3009-8ET-96. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
- 10Base-T / 100Base-TX / 1000Base-T
- 1
- Desktop/pedestal
- Jah
- Forwarding rate
- 1.34 Mpps
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.768 MB
- Primary port count
- 9
- Rack
- Jah
- Stackable
- Ei
- Switch type
- Unmanaged
- Switching capacity
- 1.8 Gbit/s
- Total Power over Ethernet (PoE) budget
- 96 W
Tehnilised andmed
- Netokaal
- 0.47 kg
- Netokaal
- 0.47 kg
- Brutokaal
- 1.25 kg
- Laius
- 190 mm
- Sügavus
- 100 mm
- Kõrgus
- 30 mm
- Mõõtmed (l x s x k)
- 190 mm × 100 mm × 30 mm
- Toote kaal
- 480 g
