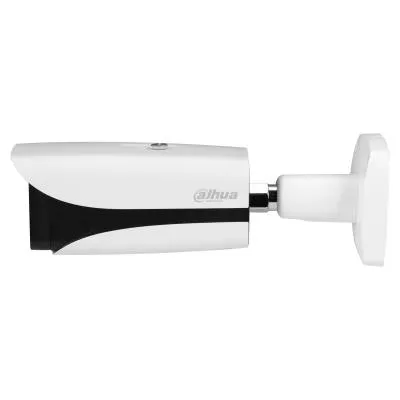

NET CAMERA 4MP IR BULLET/IPC-HFW5442E-ZE-2712-S3 DAHUA

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HFW5442E-ZE=S3

.: Üldised omadused :.

Audioväljundi kanalid

1.0 channels

.: Disain :.

Toote värv

White

Kujutegur

Bullet

.: Mälu :.

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

Paigaldatud operatiivmälu

1024 MB

.: Audio :.

Toetatud audioformaadid

AAC

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Lens viewing angle, vertical

62 - 27 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3af

WiFi

Ei

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

Audioväljund

1

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

.: Salvestusruum :.

ROM capacity

4000 MB

Pildisensor

Progressiivne skaneerimine

Jah

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Veebipõhine haldus

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

137 - 54 °

Lens viewing angle, horizontal

115 - 47 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12 VDC/PoE (802.3af)/ePoE

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

10 - 95 %

Hoiustamistemperatuur (T-T)

5 - 40 °C

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.00777 cubm

Transpordipakendi kaal

1.595 kg

Transpordipakendi kõrgus

14 cm

Transpordipakendi laius

15 cm

Transpordipakendi sügavus

37 cm

Pakendi kaal

1660 g

Tehnilised andmed

Placement supported

Indoor & outdoor

Supported network protocols

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Alarm input/output

Jah

Video motion detection

Jah

Number of illumination LEDs

4

LED type

IR

Supports card capacities up to

512GB

Unit Box Height

0.14

Unit Box Length

0.37

Unit Box Width

0.15

CnCode

85258900

Unit Calculated Volume

0.00777 cubm

Unit Calculated Weight

1.59 kg

Summary

Dahua Technology Pro DH-IPC-HFW5442EP-ZE-2712-S3. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 115 - 47°, Lens viewing angle, vertical: 62 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Focal length range: 2.7 - 12 mm, Detect distance (wide): 57.5 m, Detect distance (tele): 130.8 m

Tilt angle range

0 - 90 °

Adjustment shutter speed

Auto/Manual

Number of effective pixels (H x V)

2688 x 1520 pixels

IK code

IK10

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Mirror

Jah

Number of sensors

1

Region of Interest (ROI) encoding

Jah

Focal length range

2.7 - 12 mm

Streaming method

Multicast/Unicast

Dynamic range

140 dB

Number of Privacy masking areas

8

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio input channels

1.0 channels

Power consumption (Power over Ethernet (PoE))

10.9 W

Alarm input channels

2

Alarm output channels

1

Gain control type

Auto/Manual

Detect distance (tele)

130.8 m

Detect distance (wide)

57.5 m

Identify distance (tele)

13.1 m

Identify distance (wide)

5.8 m

Observe distance (tele)

52.3 m

Observe distance (wide)

23 m

Recognize distance (tele)

26.2 m

Recognize distance (wide)

52.3 m

Camera shutter type

Electronic

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.8

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling/wall

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+/M-JPEG

Alarm In

2

Alarm Out

1

Bit rate

32- 8192Kbps, 19- 8192Kbps

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

1.5 m

Connectivity Technology

Wired

Environment

Outdoor

Focal Length

2.7-12 mm

Frame Rate

30 fps

Housing material

Metal/Plastic

Image stabilizer

Jah

IR Illumination

Jah

Maximum memory card size

256 GB

Network Camera Type

Outdoor

Night vision distance

60 m

Number of users

20 user(s)

Operating temperature range

–30 °C to +60 °C

Optical sensor size

1/1.8 "

Pan range

0 - 360 °

Pixel Resolution

4 Mega Pixel

Power Options

12V/PoE

Resolution

4 Mega Pixel

Sensor size

1/1.8" CMOS

Storage relative humidity (H-H)

10 - 95 %

Total megapixels

4 MP

Video streaming

Jah

Tehnilised andmed

Netokaal

1.12 kg

Netokaal

1.12 kg

Brutokaal

1.59 kg

Laius

95 mm

Sügavus

95 mm

Mõõtmed (l x s x k)

273.2 mm × 95.0 mm × 95.0 mm

Toote kaal

1120 g

Pikkus

273.2 mm
