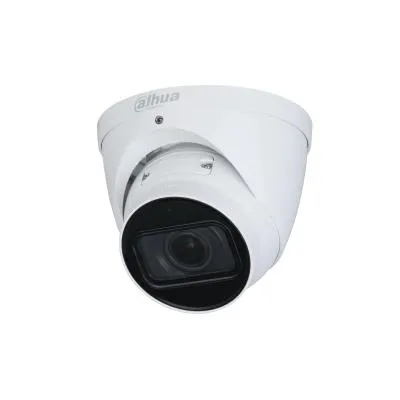

NET CAMERA 4MP IR EYEBALL/IPC-HDW5442T-ZE-2712-S3 DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 18.94 €. Taotle järelmaksu ostukorvis.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly im-prove the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, com-plying with the standards of IP67 and IK10 (Supported by some select models).
Face Attributes
With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements
ePoE
Dahua ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
- 4MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688 × 1520) @30 fps, 2MP(1920 × 1080) @60 fps
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting
- Supports max. 256 G Micro SD card, built-in Mic
- 12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
- IP67 protection
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/4MP/IPC-HDW5442T-ZE
.: Disain :.
- Toote värv
- White
- Toote värv
- White
.: Mälu :.
- Integreeritud kaardilugeja
- Jah
- Ühilduvad mälukaardid
- MicroSD (TransFlash)
- Paigaldatud operatiivmälu
- 1024 MB
.: Audio :.
- Toetatud audioformaadid
- AAC/G.726
- Sisseehitatud mikrofon
- Built-in
.: Kaamera :.
- Valge tasakaalustus
- Auto/Custom modes/Lamp/Manual/Natural/Outdoor
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.1x/IEEE 802.3af
- Ethernet LAN
- Jah
.: Pesad & liidesed :.
- Audioväljund
- 1
- Ethernet LAN (RJ-45) pordid
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC,PoE
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 7.5 W
Turvalisus
- Turvaalgoritmid
- HTTPS/SNMP
.: Salvestusruum :.
- ROM capacity
- 128 MB
Pildisensor
- Progressiivne skaneerimine
- Jah
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
Öövaatluse funktsioon
- Öönägemine
- Jah
Toide
- Voolutarve
- 3.5 Watts
Ergonoomika
- Pöördenurga ulatus
- 360 °
Logistika andmed
- Kogus transpordikasti kohta
- 20
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -30 - 60 °C
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.003584 cubm
- Transpordipakendi kaal
- 0.943 kg
- Transpordipakendi kõrgus
- 16 cm
- Transpordipakendi laius
- 14 cm
- Transpordipakendi sügavus
- 16 cm
- Pakendi kaal
- 910 g
Tehnilised andmed
- Placement supported
- Indoor & outdoor
- Supported network protocols
- IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
- Number of cameras
- 1
- Active tampering alarm
- Jah
- Wide Dynamic Range (WDR)
- Jah
- Video motion detection
- Jah
- LED type
- IR
- HTTPS encryption
- Jah
- Supports card capacities up to
- 512GB
- Unit Box Height
- 0.16
- Unit Box Length
- 0.16
- Unit Box Width
- 0.14
- Unit Calculated Volume
- 0.004274 cubm
- Unit Calculated Weight
- 0.99 kg
- Summary
- Dahua Technology WizMind IPC-HDW5442T-ZE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Protection features: Dust resistant, Water resistant. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Tilt angle range: 0 - 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 58 m, Detect distance (tele): 131 m
- Tilt angle range
- 0 - 78 °
- Adjustment shutter speed
- Auto/Manual
- Back Light Compensation (BLC)
- Jah
- Highlight Compensation (HLC)
- Jah
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Jah
- Mirror
- Jah
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Face detection/Heat map/Intrusion/Missing object/People counting/Tripwire
- Human and vehicle targets classification
- Jah
- Behavior analysis
- Intrusion detection
- Region of Interest (ROI) encoding
- Jah
- Focal length range
- 2.7 - 12 mm
- Streaming method
- Multicast
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Gain control type
- Auto/Manual
- Fog proof
- Jah
- Audio detection
- Jah
- Detect distance (tele)
- 131 m
- Detect distance (wide)
- 58 m
- Identify distance (tele)
- 13 m
- Identify distance (wide)
- 6 m
- Observe distance (tele)
- 52 m
- Observe distance (wide)
- 23 m
- Recognize distance (tele)
- 26 m
- Recognize distance (wide)
- 12 m
- People counting function
- Jah
- Digital watermark
- Jah
- User access level
- User
- Day/night mode
- Jah
- DC output voltage
- 12
- Ethernet interface type
- Fast Ethernet
- Maximum aperture number
- 1.8
- Mounting type
- Ceiling/Wall/Pole
- Noise reduction
- Jah
- Protection features
- Dust resistant/Water resistant
- Sensor type
- CMOS
- Supported video modes
- 1080p/720p
- Video compression formats
- H.264/H.264+/H.265/H.265+/M-JPEG
- Video formats supported
- H.264/H.264+/H.265/H.265+/M-JPEG
- Built-in microphone
- Jah
- Camera design
- Eyeball
- Camera shutter speed
- 1/3 - 1/100000 s
- Certification
- CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
- Closest focusing distance
- 1.2 m
- Connectivity Technology
- Wired
- Diameter
- 122 mm
- Environment
- Outdoor
- Focal Length
- 2.7 mm–12 mm
- Frame Rate
- 60 fps
- Image stabilizer
- Jah
- IR Illumination
- Jah
- Maximum memory card size
- 256 GB
- MicroSD Card Slot
- 1
- Min. Illumination
- 0.0004 Lux
- Minimum Illumination
- 0.003 lx
- Network Camera Type
- Fixed/Outdoor
- Night vision distance
- 40 m
- Number of users
- 20 user(s)
- Operating temperature range
- –30 °C to +60 °C
- Optical sensor size
- 1/1.8 "
- Pan range
- 0 - 360 °
- Pixel Resolution
- 4 Mega Pixel
- Power Options
- 12V/PoE
- Resolution
- 4 Mega Pixel
- Sensor size
- 1/1.8" CMOS
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Total megapixels
- 4 MP
- Video streaming
- Jah
- Voice Codecs
- AAC/G.711a/G.711Mu/G.723/G.726
Tehnilised andmed
- Netokaal
- 0.7 kg
- Netokaal
- 0.7 kg
- Brutokaal
- 0.943 kg
- Kõrgus
- 108.3 mm
- Mõõtmed (l x s x k)
- 108.3 mm × 122 mm
- Toote kaal
- 740 g
