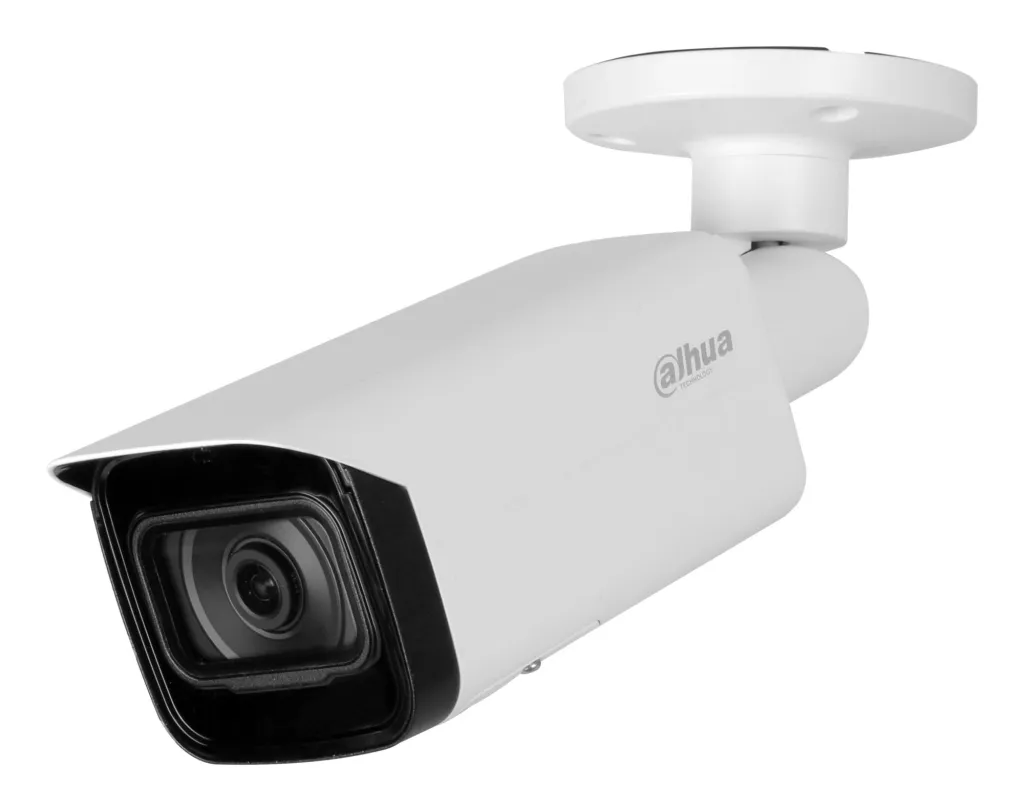

NET CAMERA 8MP IR BULLET/HFW5842T-ASE-0360B-S3 DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/8MP/IPC-HFW5842T-ASE=S3

Mudel

IPC-HFW5842T-ASE-0360B-S3

Seadme tüüp

IP security camera

.: Disain :.

Kokkuvõte

Dahua Technology WizMind IPC-HFW5842T-ASE-0360B-S3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 87°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 98 m, Observe distance: 39.2 m, Recognize distance: 19.6 m

Kujutegur

Bullet

Toote värv

Valge

.: Mälu :.

RAM capacity

2048 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Sisseehitatud mikrofon

Sisseehitatud

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.723/G.726/PCM

.: Kaamera :.

Lens viewing angle, vertical

49 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

.: Võrgustumine :.

WiFi

Ei

Võrgustandardid

IEEE 802.1x/IEEE 802.3af

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

4.1 W

.: Salvestusruum :.

ROM capacity

4096 MB

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Vastavussertifikaadid

CE/Federal Communications Commission (FCC)/UL

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

99 °

Lens viewing angle, horizontal

87 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

ePoE / PoE / 12VDC

Voolutarve

9.8 Watts

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

10

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 60 °C

Kasutamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.00396 cubm

Transpordipakendi kaal

1.23 kg

Transpordipakendi kõrgus

11 cm

Transpordipakendi laius

12 cm

Transpordipakendi sügavus

30 cm

Kasutusjuhend

Jah

Pakendi kaal

1080 g

Tehnilised andmed

Placement supported

Välitingimustesse

Supported network protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Number of cameras

1

IP address filtering

Jah

Wide Dynamic Range (WDR)

Jah

Alarm input/output

Jah

Video motion detection

Jah

Number of illumination LEDs

4

LED type

IR

Supports card capacities up to

256GB

Unit Box Height

0.11

Unit Box Length

0.3

Unit Box Width

0.12

Üksuse kalkuleeritud maht

0.005038 cubm

Tilt angle range

0 - 90 °

IK code

IK10

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Mirror

Jah

Number of sensors

1

Human and vehicle targets classification

Jah

Region of Interest (ROI) encoding

Jah

Detect distance

98 m

Identify distance

9.8 m

Observe distance

39.2 m

Recognize distance

19.6 m

Streaming method

Multicast

Dynamic range

120 dB

Number of Privacy masking areas

8

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network access storage (NAS)

Jah

Fixed focus

Jah

Alarm input channels

1

Alarm output channels

1

Gain control type

Automaatne

Rahvusvaheline Kaitsekood ( IP )

IP67

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Kiire Ethernet

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mobile operating systems supported

Android/iOS

Mounting type

Pole clamp

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Video recording

Jah

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

2.3 m

Connectivity Technology

Juhtmega

Electronic Shutter Speed

ePoE / PoE / 12VDC

Environment

Välitingimustesse

Fixed focal length

3.6 mm

Focal Length

3.6 mm

Frame Rate

30 fps

Housing material

Metall

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

1000 GB

MicroSD Card Slot

1

Minimum Illumination

0.0004 lx

Network Camera Type

Fixed/Outdoor

Night vision distance

80 m

Operating temperature range

-40°C~+60°C

Optical sensor size

1/1.8 "

Pan range

0 - 360 °

Pixel Resolution

8 Mega Pixel

Power Options

12V/PoE

Resolution

8 Mega Pixel

Sensor size

1/2.8” CMOS

Storage relative humidity (H-H)

10 - 95 %

Total megapixels

8 MP

Video streaming

Jah

Tehnilised andmed

Üksuse kalkuleeritud kaal

1.3 kg

Pikkus

244.1 mm

Netokaal

0.82 kg

Brutokaal

1.23 kg

Laius

79 mm

Kõrgus

75.9 mm

Toote kaal

820 g
