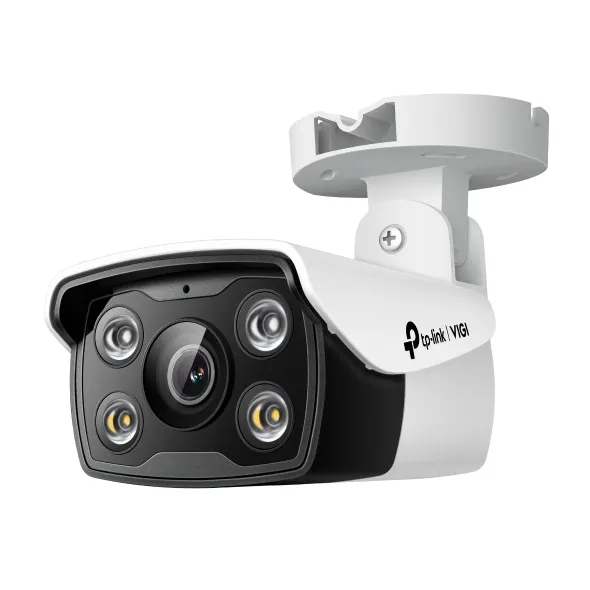

TP-Link VIGI C340 Kuul (kuju) IP süsteemiga turvakaamera Hoonesisene & hooneväline 2560 x 1440 pikslit Lagi/sein

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c340/

.: Üldised omadused :.

Audioväljundi kanalid

1.0 channels

.: Disain :.

Toote värv

Black/White

Kujutegur

Bullet

Toote värv

White

LED-indikaatorid

Jah

.: Mälu :.

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Lens viewing angle, vertical

43 °

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3af/IEEE 802.3at

Web browser

Jah

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

3.4 W

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Sustainability compliance

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

93 °

Lens viewing angle, horizontal

79 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)

Voolutarve

7.5 Watts

Ergonoomika

Lähtestusnupp

Jah

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi sisu :.

Paigalduskomplekt

Jah

Tarvikud kaasa arvatud

Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories (Screws, Drywall Anchors, Hex Key)

.: Pakendi andmed :.

Kasutusjuhend

Jah

Pakendi tüüp

Box

Max kogus transpordipakendis

1

Pakendi maht

0.00286 cubm

Transpordipakendi kaal

0.461 kg

Transpordipakendi kõrgus

10 cm

Transpordipakendi laius

13 cm

Transpordipakendi sügavus

22 cm

Pakendi sügavus

218 mm

Pakendi kõrgus

103 mm

Pakendi kaal

420 g

Pakendi laius

128 mm

Tehnilised andmed

Password protection

Jah

Placement supported

Outdoor

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Number of cameras

1

IP address filtering

Jah

Image quality adjustment

Brightness/Contrast/Mirror/Saturation

Live view

Jah

Sample rate

8 kHz

Video motion detection

Jah

Number of illumination LEDs

2

LED type

IR

HTTPS encryption

Jah

Infra-red wavelength

850 nm

Supports card capacities up to

256GB

Unit Box Height

0.1

Unit Box Length

0.22

Unit Box Width

0.13

CnCode

85258900

Unit Calculated Volume

0.00286 cubm

Unit Calculated Weight

0.42 kg

Summary

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Tilt angle range

-90 - 90 °

Back Light Compensation (BLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Highlight Compensation (HLC)

Jah

Privacy masking

Jah

Smart IR

Jah

Digital Wide Dynamic Range (DWDR) (panoramic camera)

Jah

Number of sensors

1

Number of lenses

1

Number of simultaneous live view channels

3 channels

Region of Interest (ROI) encoding

Jah

Detect distance

80 m

Identify distance

8 m

Observe distance

33 m

Recognize distance

16 m

Number of Privacy masking areas

4

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio input channels

1.0 channels

Bit rate range

64 - 4000 Kbit/s

Network access storage (NAS)

Jah

Built-in speaker(s)

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mounting type

Ceiling/Wall/Pole

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+

Video formats supported

H.264/H.264+/H.265/H.265+

Audio system

2-way

Bit rate

256 Kbps - 4 Mbps

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/10000 s

Connectivity Technology

Wired

Environment

Outdoor

Fixed focal length

4 mm

Focal Length

4mm

Frame Rate

30 fps

Housing material

Plastic

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

256 GB

MicroSD Card Slot

1

Minimum Illumination

0.005 lx

Network Camera Type

Outdoor

Night vision distance

30 m

Operating temperature range

-30–60 °C

Optical sensor size

1/3 "

Pan range

-90 - 90 °

Pixel Resolution

4 Mega Pixel

Power Options

12V/PoE

Resolution

4 Mega Pixel

Sensor size

1/3” Progressive Scan CMOS

Signal-to-Noise Ratio (SNR)

52 dB

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

4 MP

Video streaming

Jah

Tehnilised andmed

Netokaal

0.195 kg

Brutokaal

0.461 kg

Laius

78 mm

Sügavus

70 mm

Kõrgus

174 mm

Mõõtmed (l x s x k)

78 × 70 × 174 mm

Toote kaal

195 g
