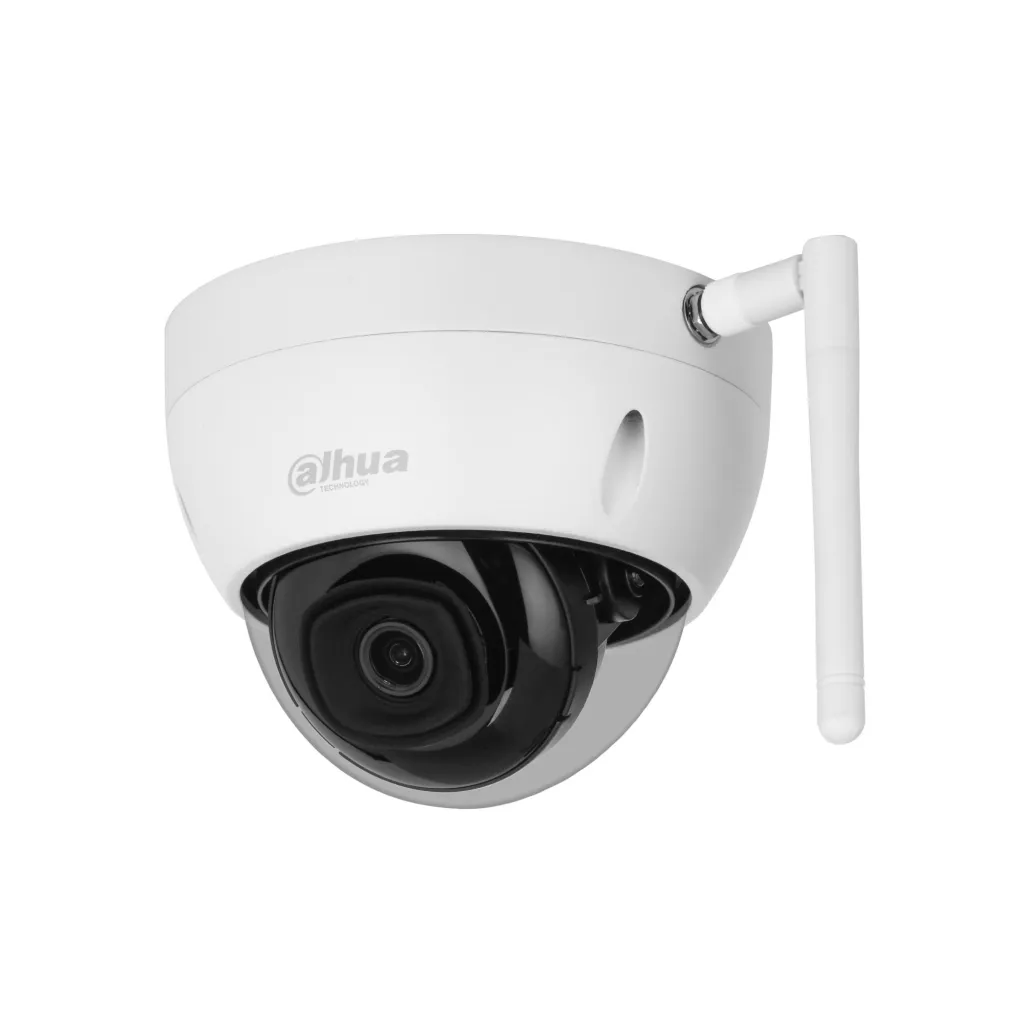

NET CAMERA 2MP IR DOME WIFI/IPC-HDBW1230DE-SW-0280B DAHUA

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HDBW1230DE-SW

.: Üldised omadused :.

Välkmälu

64 MB

.: Disain :.

Toote värv

White

Kujutegur

Dome

.: Mälu :.

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Kaamera :.

Lens viewing angle, vertical

53 °

Valge tasakaalustus

Custom modes/Manual/Natural/Outdoor/Street lamp

.: Võrgustumine :.

Web browser

Jah

WiFi

Jah

WiFi-standardid

802.11b/802.11g/Wi-Fi 4 (802.11n)

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

2 W

Turvalisus

Turvaalgoritmid

HTTPS

.: Salvestusruum :.

ROM capacity

16 MB

Antenn

Antennide arv

1

Antenni tüüp

External

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Compliance certificates

CE/Federal Communications Commission (FCC)

Juhtimisfunktsioonid

Veebipõhine haldus

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

120 °

Lens viewing angle, horizontal

100 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Voolutarve

4.9 Watts

Ergonoomika

Pöördenurga ulatus

355 °

Funktsioonid

Uuendatav tarkvara

Jah

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)

Töötingimused

Kasutamistemperatuur (T-T)

-40 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

Hoiustamistemperatuur (T-T)

-30 - 60 °C

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.002719 cubm

Transpordipakendi kaal

0.646 kg

Transpordipakendi kõrgus

14.5 cm

Transpordipakendi laius

12.5 cm

Transpordipakendi sügavus

15 cm

Pakendi kaal

592 g

Tehnilised andmed

Placement supported

Outdoor

Supported network protocols

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Live view

Jah

Motion sensor

Jah

Channel bandwidth

36 MHz

Video motion detection

Jah

Number of illumination LEDs

3

LED type

IR

HTTPS encryption

Jah

Supports card capacities up to

256GB

Unit Box Height

0.145

Unit Box Length

0.15

Unit Box Width

0.125

CnCode

85258900

Unit Calculated Volume

0.002719 cubm

Unit Calculated Weight

0.646 kg

Summary

Dahua Technology Consumer DH-IPC-HDBW1230DEP-SW-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0025 lx, Field of view (FOV) angle: 120°, Angle of rotation: 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 46.9 m, Observe distance: 18.8 m, Recognize distance: 9.4 m

Tilt angle range

0 - 75 °

Smartphone/tablet remote support

Jah

Adjustment shutter speed

Auto/Manual

IK code

IK10

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Smart IR

Jah

Number of sensors

1

Number of lenses

1

Region of Interest (ROI) encoding

Jah

Detect distance

46.9 m

Focal length range

2.8 mm

Identify distance

4.7 m

Observe distance

18.8 m

Recognize distance

9.4 m

Dynamic range

56 dB

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Fixed focus

Jah

Flip & mirror

Jah

Gain control type

Auto

Camera shutter type

Electronic

DC output voltage

12

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Management software

Smart PSS; DSS; DMSS

Maximum aperture number

2

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling

Noise reduction

Jah

Sensor type

CMOS

Supported video modes

1080p/720p/960p

Video compression formats

H.264/H.264B/H.264H/H.265

Video formats supported

H.264/H.264B/H.265

Video recording

Jah

Zoom capability

Ei

Bit rate

9 - 4096

Built-in HDD

Ei

Camera design

Dome

Camera shutter speed

1/3 s-1/100,000 s s

Connectivity Technology

Wired & Wireless

Diameter

110.7 mm

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Environment

Outdoor

Field of view (FOV) angle

120 °

Focal Length

2.8 mm

Frame Rate

30 fps

Housing material

Metal

IR Illumination

Jah

Lens diameter

2.8 mm

Lens Mount

M12

Luminous flux

0.0025 lm

Maximum memory card size

256 GB

Min. Illumination

0.0025 Lux

Minimum Illumination

0.0025 lx

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Number of users

6 user(s)

Operating temperature range

-40°C~+60°C

Optical sensor size

1/2.8 "

Pan range

0 - 355 °

Pixel Resolution

2 Mega Pixel

Power Options

12V

Resolution

2 Mega Pixel

Sensor size

1/3”

Signal-to-Noise Ratio (SNR)

56 dB

Total megapixels

2 MP

Video streaming

Jah

Wi-Fi data rate (max)

2400 Mbit/s

Tehnilised andmed

Netokaal

0.414 kg

Netokaal

0.414 kg

Brutokaal

0.646 kg

Kõrgus

88.7 mm

Mõõtmed (l x s x k)

Φ110.7 mm × 88.7 mm

Toote kaal

414 g
