Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
| Tootja | ASROCK |
| Tootekood | B650M-HDV/M.2 |
| EAN | 4710483942693 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 226 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B650 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 6400 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 64 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC897 |
| Audioväljundi kanalid | 7.1 channels |
| Sisseehitatud mikrofon | 1 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 1 |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

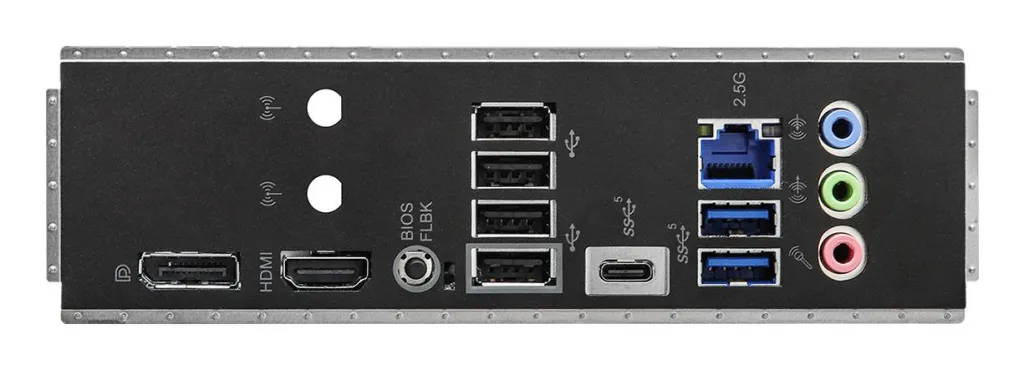

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| Audioväljund | 1 |
| Audio sisend | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | 4 |
| Ethernet LAN (RJ-45) pordid | 1 |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.21 kg |
| Netokaal | 1.1 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.004514 cubm |
| Muud näitajad | |
| Supported storage drive types | HDD & SSD |
| Unit Calculated Volume | 0.00529 cubm |
| ECC сompatibility | Non-ECC |
| CnCode | 84733020 |
| Unit Box Width | 0.26 |
| Unit Box Length | 0.28 |
| Unit Box Height | 0.06 |
| PCI-Express 4.0 1x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 16x | 2 |
| USB 3.2 | 2 |
| Processor manufacturer | AMD |
| Supported storage drive interfaces | M.2,SATA III |
| Thunderbolt headers | 1 |
| Units per Shipping Box | 10 |
| Line-in | Jah |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| CPU fan connector | Jah |
| Front panel audio connector | Jah |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset family | AMD |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Jah |
| ATX Power connector (24-pin) | Jah |
| BIOS type | EFI AMI |
| DisplayPort version | 1.4 |
| Compatible processor series | AMD Ryzen™ 7 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Product Net Weight | 1.1 kg |
| Unit Calculated Weight | 1.33 kg |
| Summary | Asrock B650M-HDV/M.2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Component for | PC |
| Tootja koduleht | https://www.asrock.com/mb/AMD/B650M-HDVM.2/ |
| Transpordipakendi kaal | 1.21 kg |
| Transpordipakendi kõrgus | 6.2 cm |
| Transpordipakendi laius | 26 cm |
| Transpordipakendi sügavus | 28 cm |
| Tarvikud kaasa arvatud | - 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B650 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| LAN controller | Realtek RTL8125-BG |
| Mudel | B650M-HDV/M.2 |
| Number of memory slots | 2 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| USB 2.0 connectors | 2 |
| USB-C | 1 |
