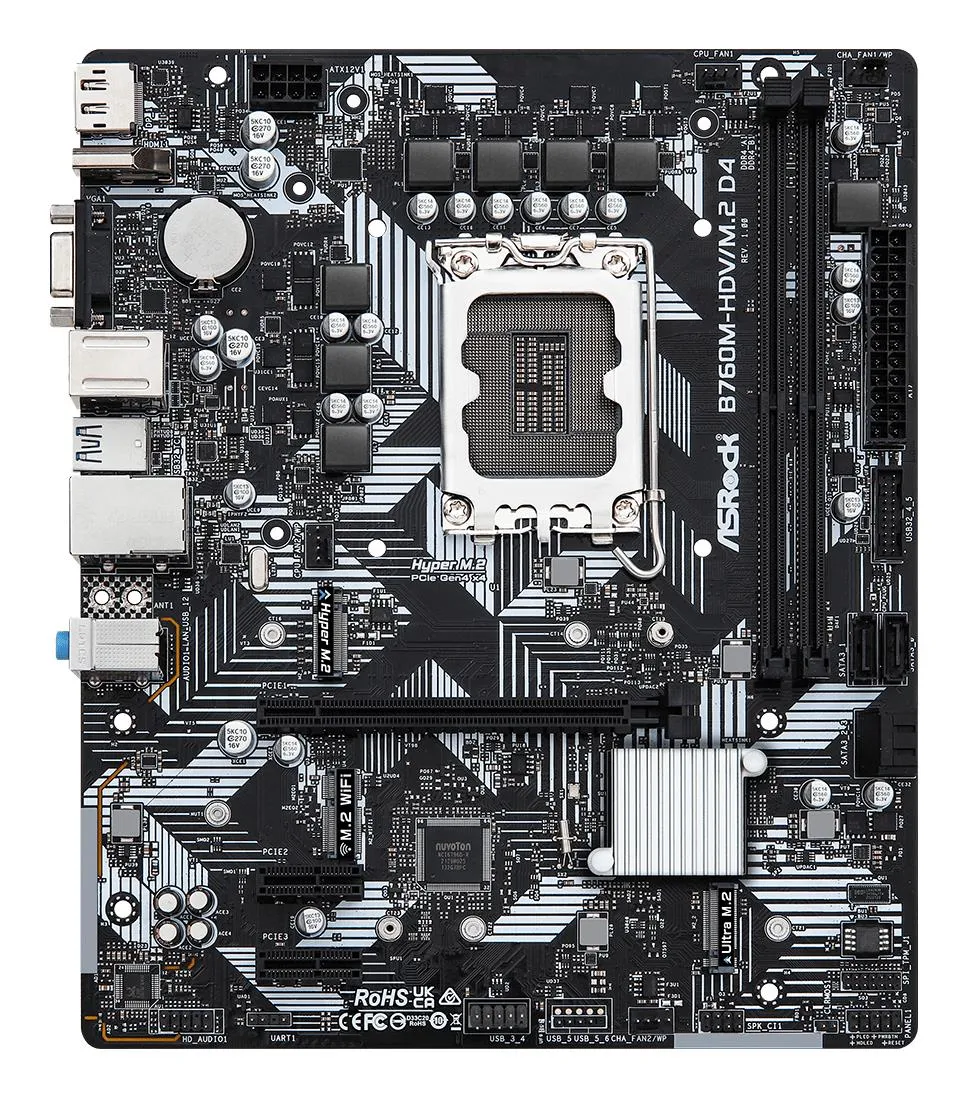

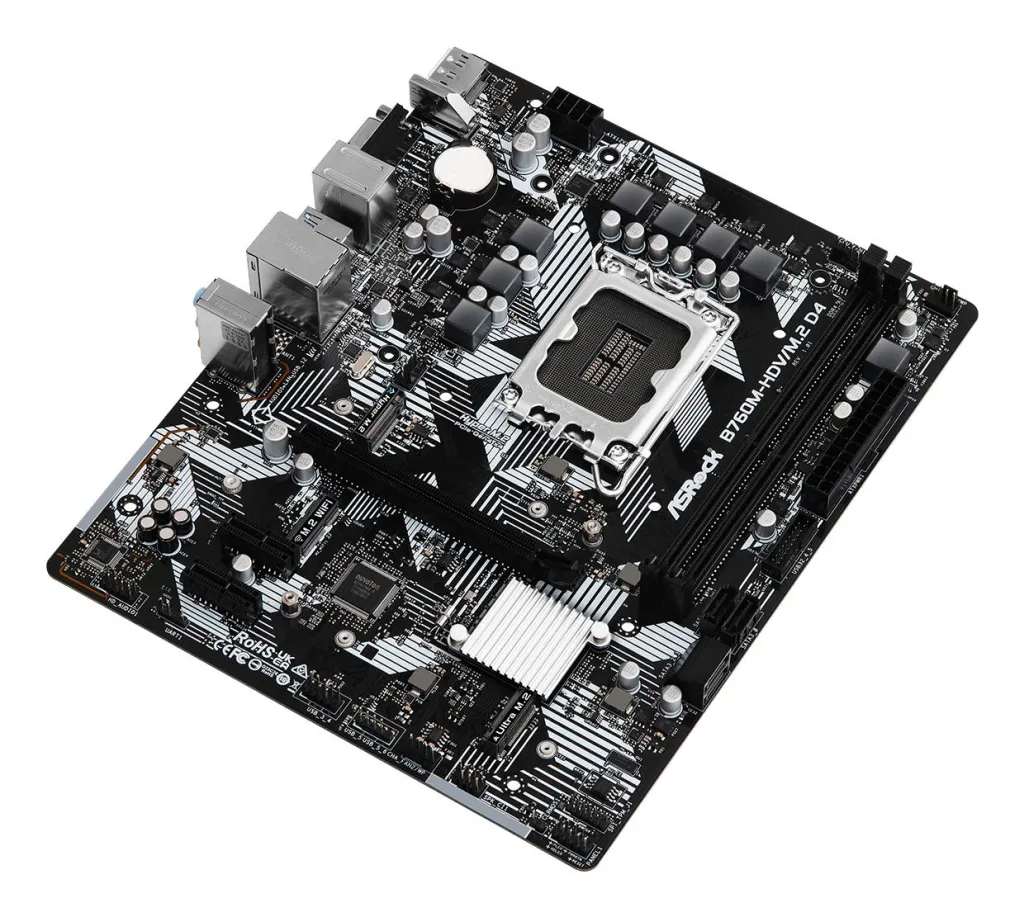

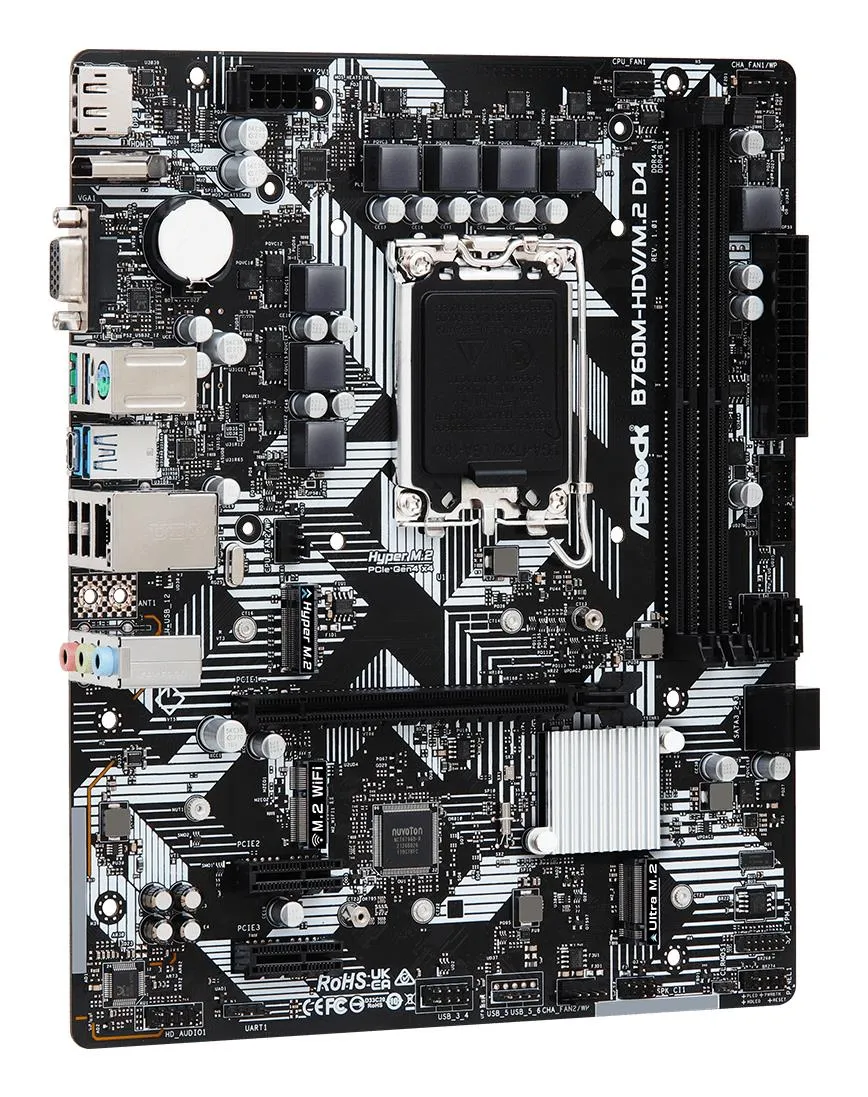

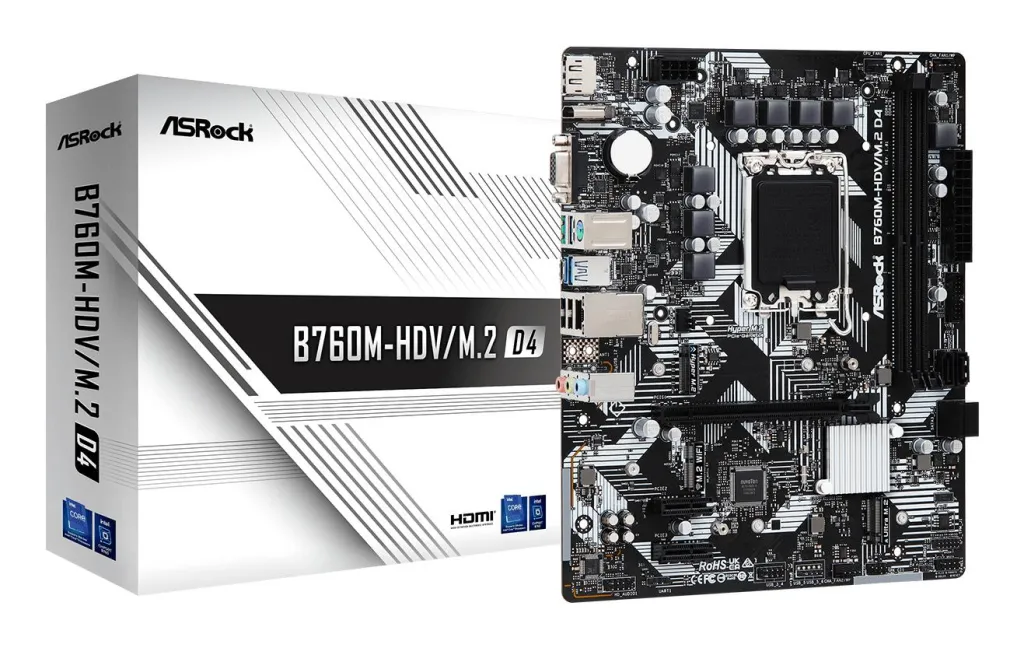

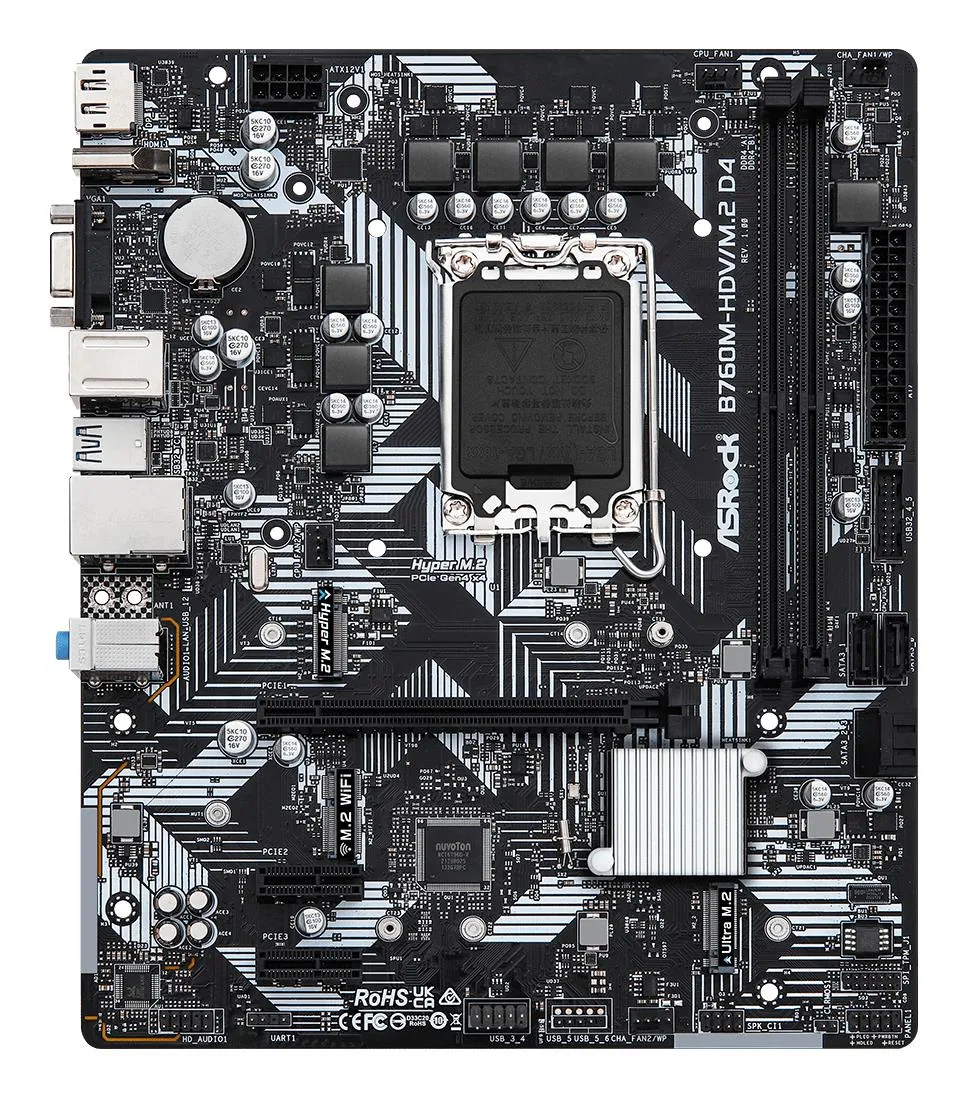

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760M-HDV/M.2D4
81.78€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 244 mm
- Sügavus
- 201 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel B760 Express
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 5333 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 2
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

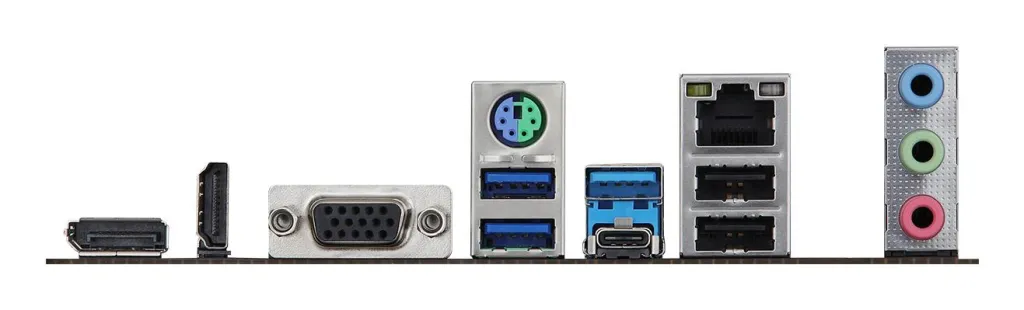

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.76 kg
- Netokaal
- 0.65 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.004066 cubm
Muud näitajad
- Number of M.2 (M) slots
- 1
- ECC сompatibility
- Non-ECC
- CnKood
- 84733020
- Unit Box Width
- 0.242
- Unit Box Length
- 0.28
- Unit Box Height
- 0.06
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 16x
- 1
- USB 3.2
- Jah
- Processor manufacturer
- Intel
- Supported storage drive interfaces
- M.2,SATA III
- Maximum number of SMP processors
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- Line-in
- Jah
- Kokkuvõte
- Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- Parallel processing technology support
- Ei ole toetatud
- Number of SATA III connectors
- 4
- CPU fan connector
- Jah
- Memory channels
- Dual-channel
- Supported memory types
- DDR4-SDRAM
- DisplayPort versioon
- 1.4
- Compatible processor series
- Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Chassis intrusion connector
- Jah
- Üksuse kalkuleeritud maht
- 0.004066 cubm
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Üksuse kalkuleeritud kaal
- 0.76 kg
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Front panel connector
- Jah
- Tootja koduleht
- https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification
- Mudel
- B760M-HDV/M.2 D4
- Component for
- PC
- Transpordipakendi kaal
- 0.76 kg
- Transpordipakendi kõrgus
- 6 cm
- Transpordipakendi laius
- 24.2 cm
- Transpordipakendi sügavus
- 28 cm
- Kogus transpordikasti kohta
- 1
- HDCP
- Jah
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- Intel B760
- RAID support
- Jah
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 Education x64/Windows 11 x64
- BIOS memory size
- 128 Mbit
- Certification
-
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required) - DisplayPort
- 1
- LAN controller
- Realtek RTL8111H
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 3200/4400/5333 MHz
- USB 2.0 connectors
- 3
- USB-C
- 1
