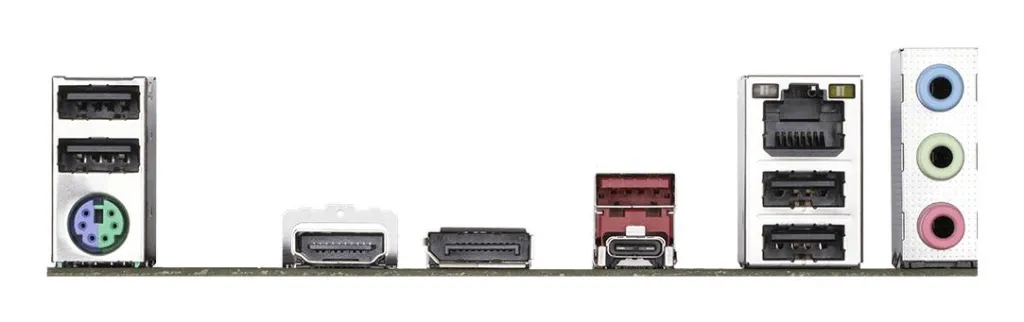

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760DS3HDDR4

Muud näitajad

DisplayPort versioon

1.2

PCI Express x16 slots

5

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Supported processor sockets

LGA 1700

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Ei ole toetatud

Clear CMOS jumper

Jah

ACPI version

5.0

Number of M.2 (M) slots

2

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/4GB/8GB

Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III

Processor manufacturer

Intel

Serial port headers

1

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

USB 3.2

Jah

PCI-Express 4.0 16x

1

Supported memory clock speed (max)

5333 MHz

Unit Box Height

0.085

Unit Box Length

0.34

Unit Box Width

0.275

CnKood

84733020

Garantiiaeg

3 aasta(s)

ECC сompatibility

ECC & Non-ECC

Üksuse kalkuleeritud maht

0.009752 cubm

Üksuse kalkuleeritud kaal

1.41 kg

Products per shipping (inner) case

1 tk

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Total number of SATA connectors

4

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Front panel connector

Jah

Lithium weight per battery

0.07 g

Kokkuvõte

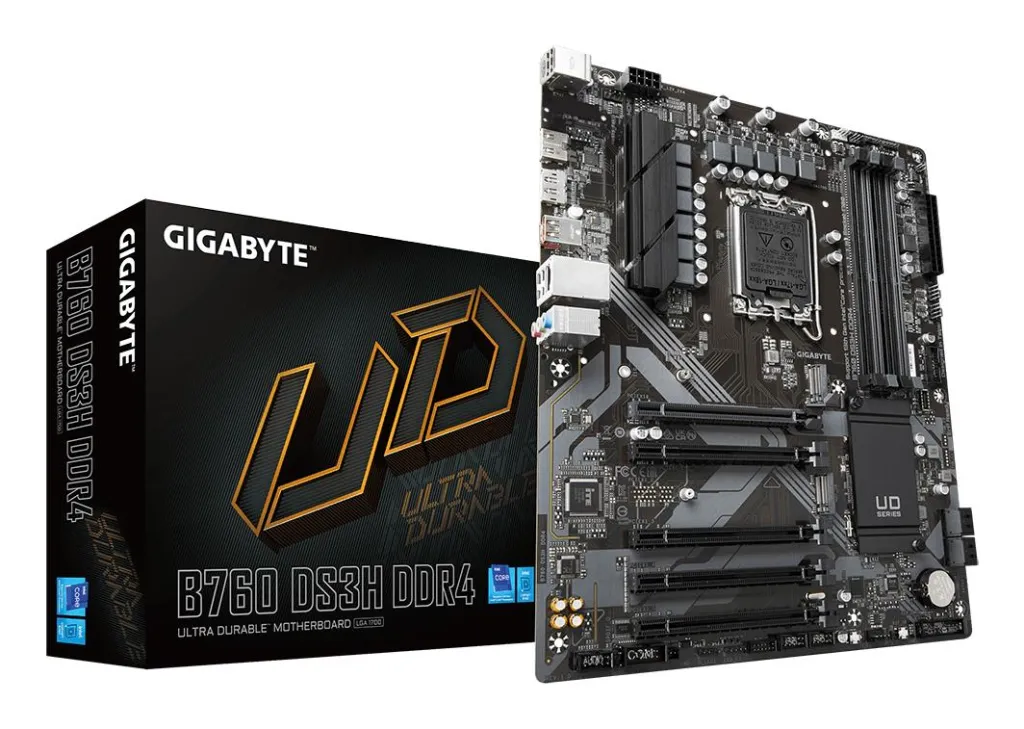

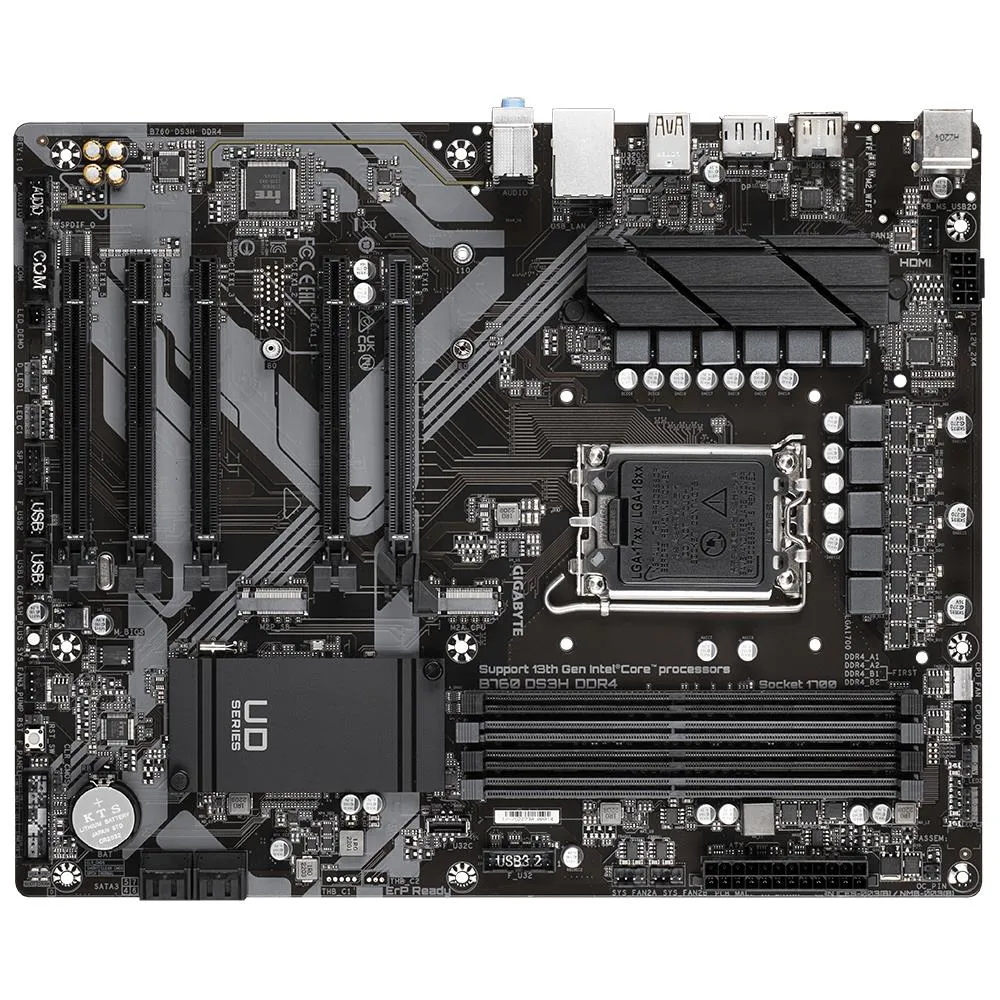

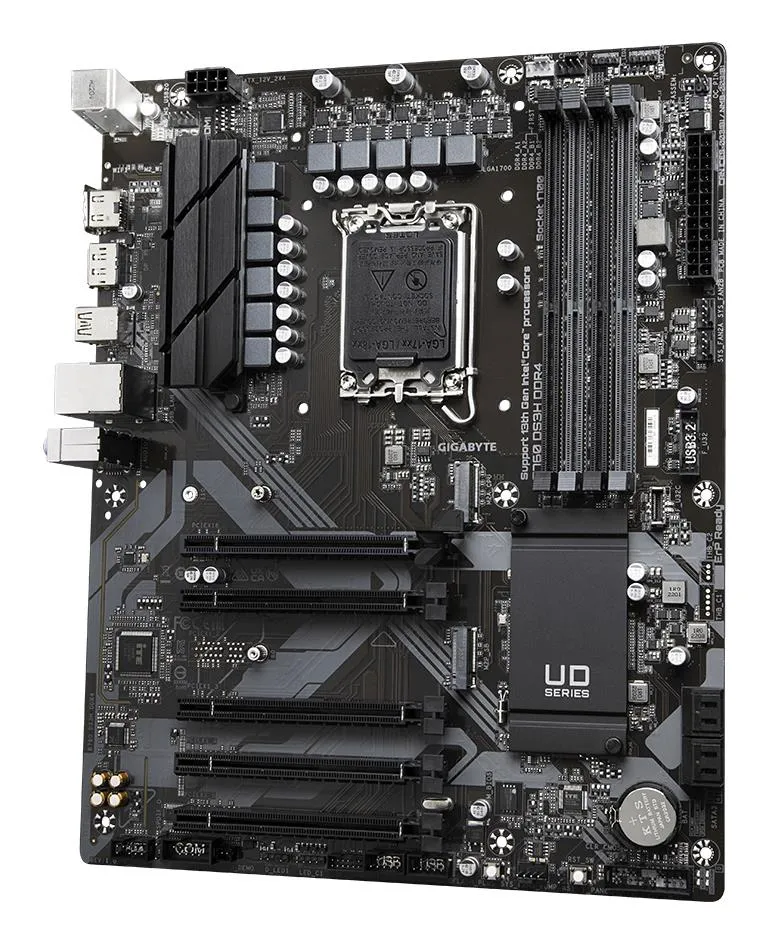

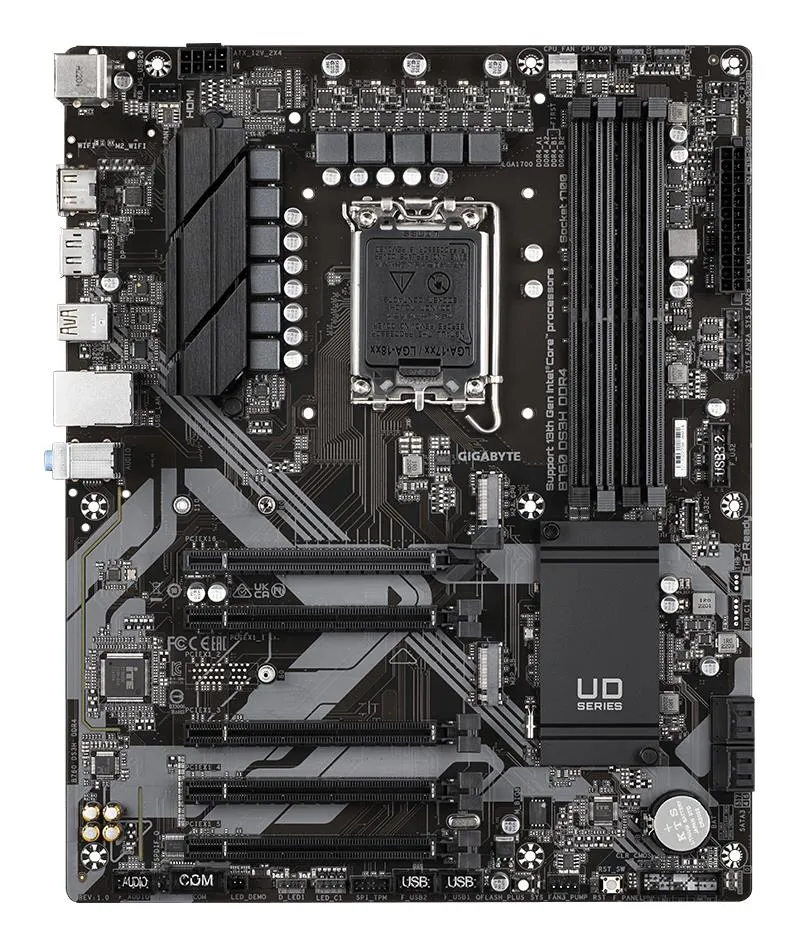

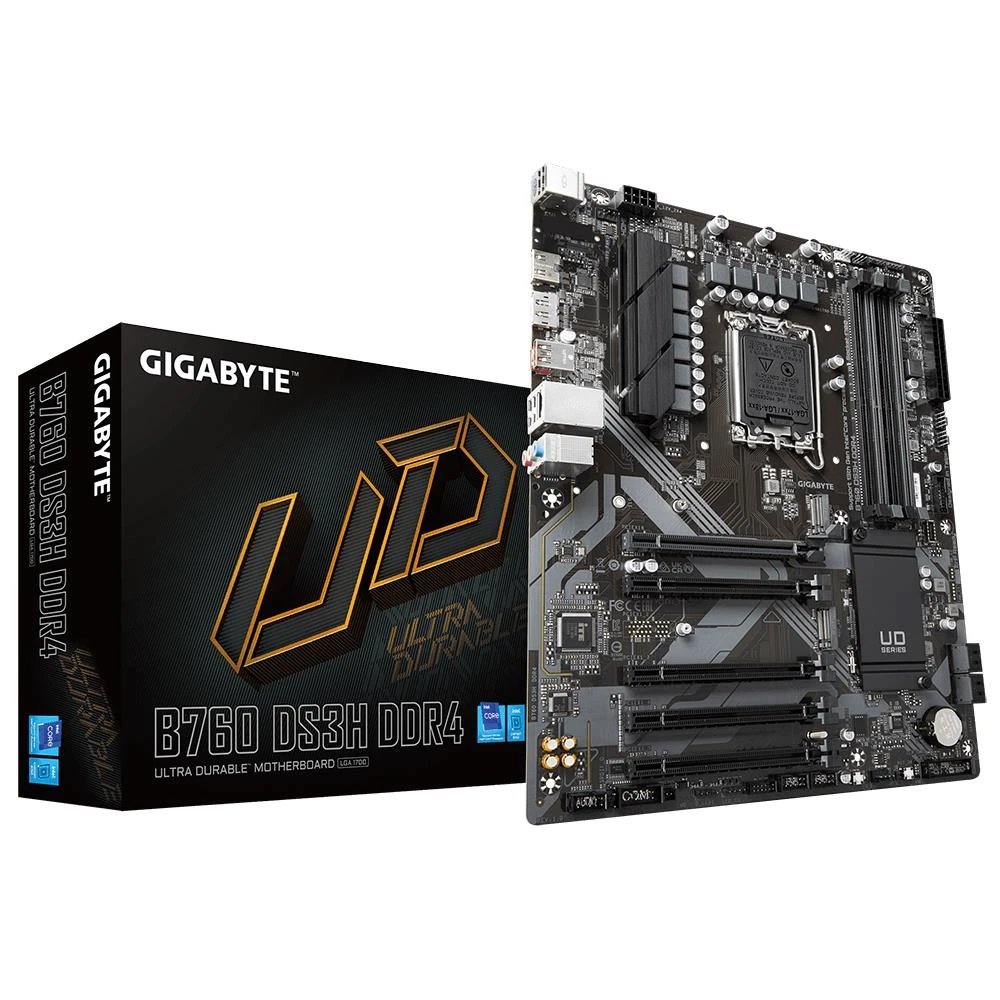

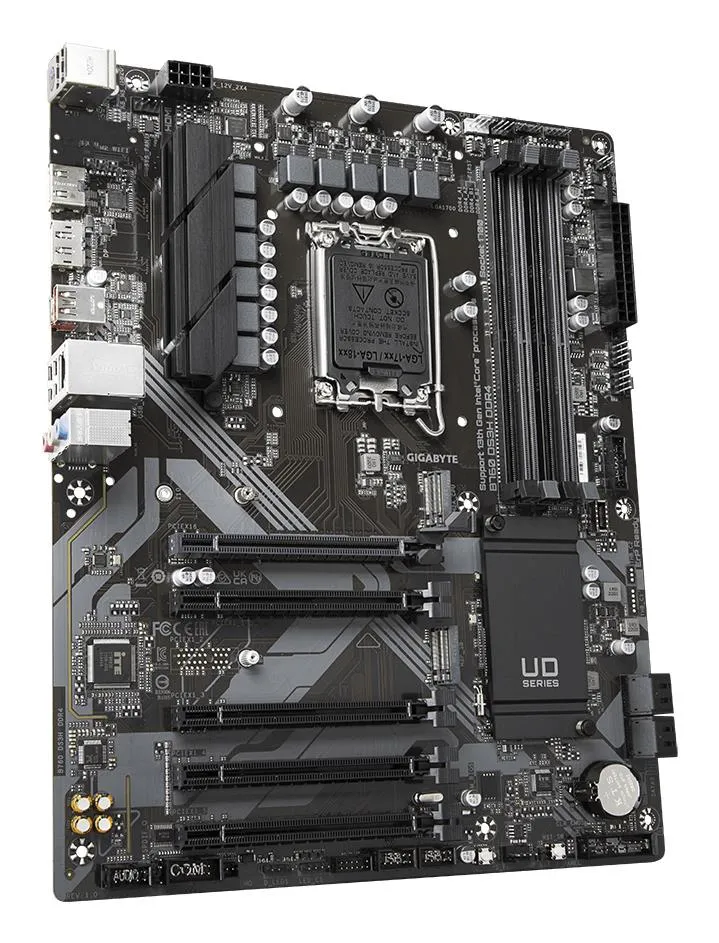

GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Tootja koduleht

https://www.gigabyte.com

HDMI versioon

2.0

Mudel

B760 DS3H DDR4

Pakendi laius

335 mm

Pakendi kõrgus

80 mm

Kaasas tarkvara

Norton Internet Security

Component for

PC

Transpordipakendi kaal

1.196 kg

Transpordipakendi kõrgus

8.5 cm

Transpordipakendi laius

27.5 cm

Transpordipakendi sügavus

34 cm

Kogus transpordikasti kohta

8

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Pakendi sügavus

270 mm

Maksimaalne resolutsioon

4096 x 2304 pixels

Pakendi kaal

1311 g

HDCP

Jah

Kõrgus

35 mm

DirectX version

12.0

DisplayPorts quantity

1

Ethernet interface type

Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Headphone outputs

3

Päritoluriik

China

Microphone in

Jah

Motherboard chipset

Intel B760 Express

RAID support

Jah

Unbuffered memory

Jah

USB connector type

USB tüüp-/USB tüüp-C

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

DisplayPort

1

Maximum internal memory supported by processor

128 GB

Number of memory slots

4

Processor Socket

LGA 1700

Raid Levels

0/1/10/5

Supported memory clock speeds

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz

USB 2.0 connectors

2

USB-C

1
