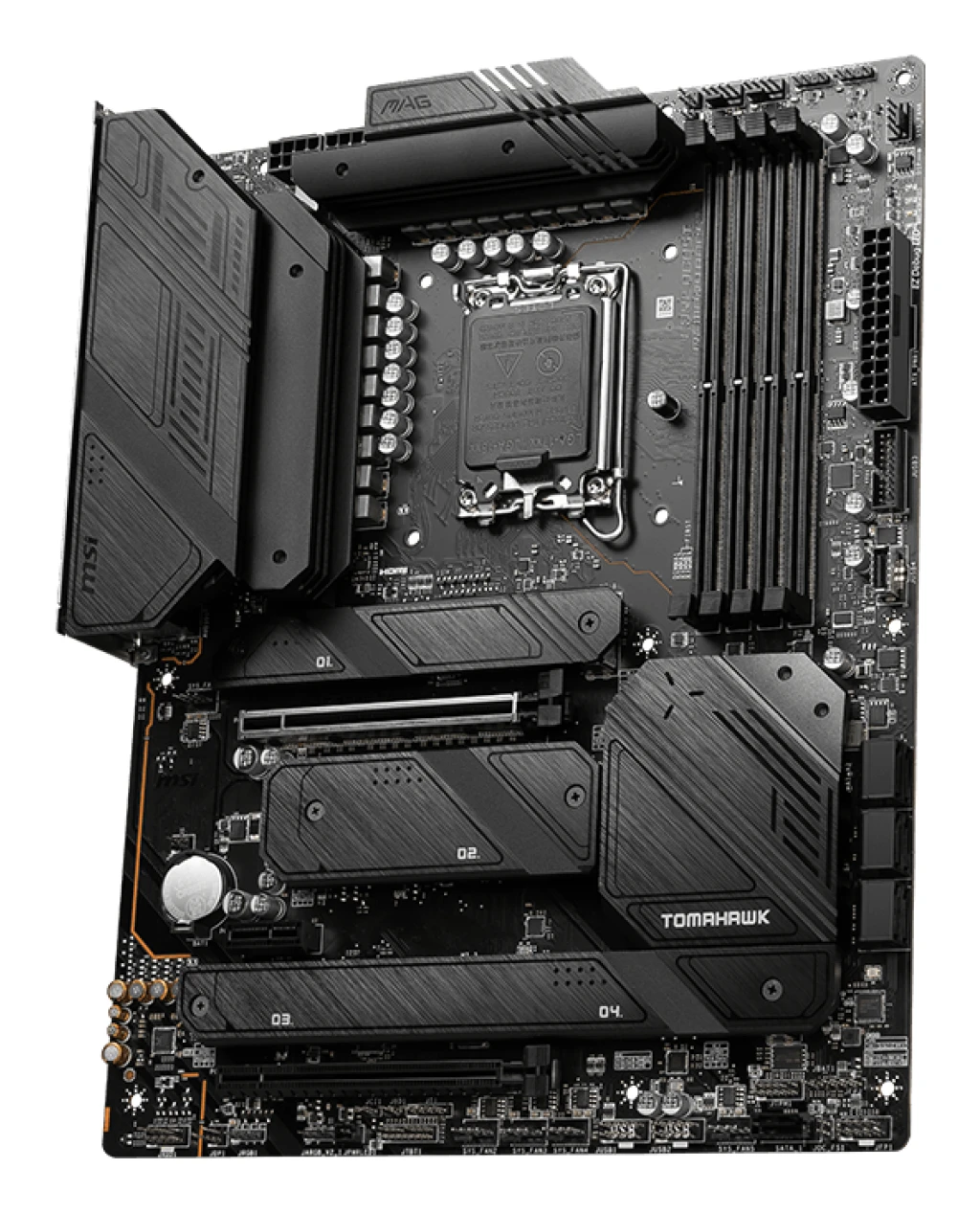

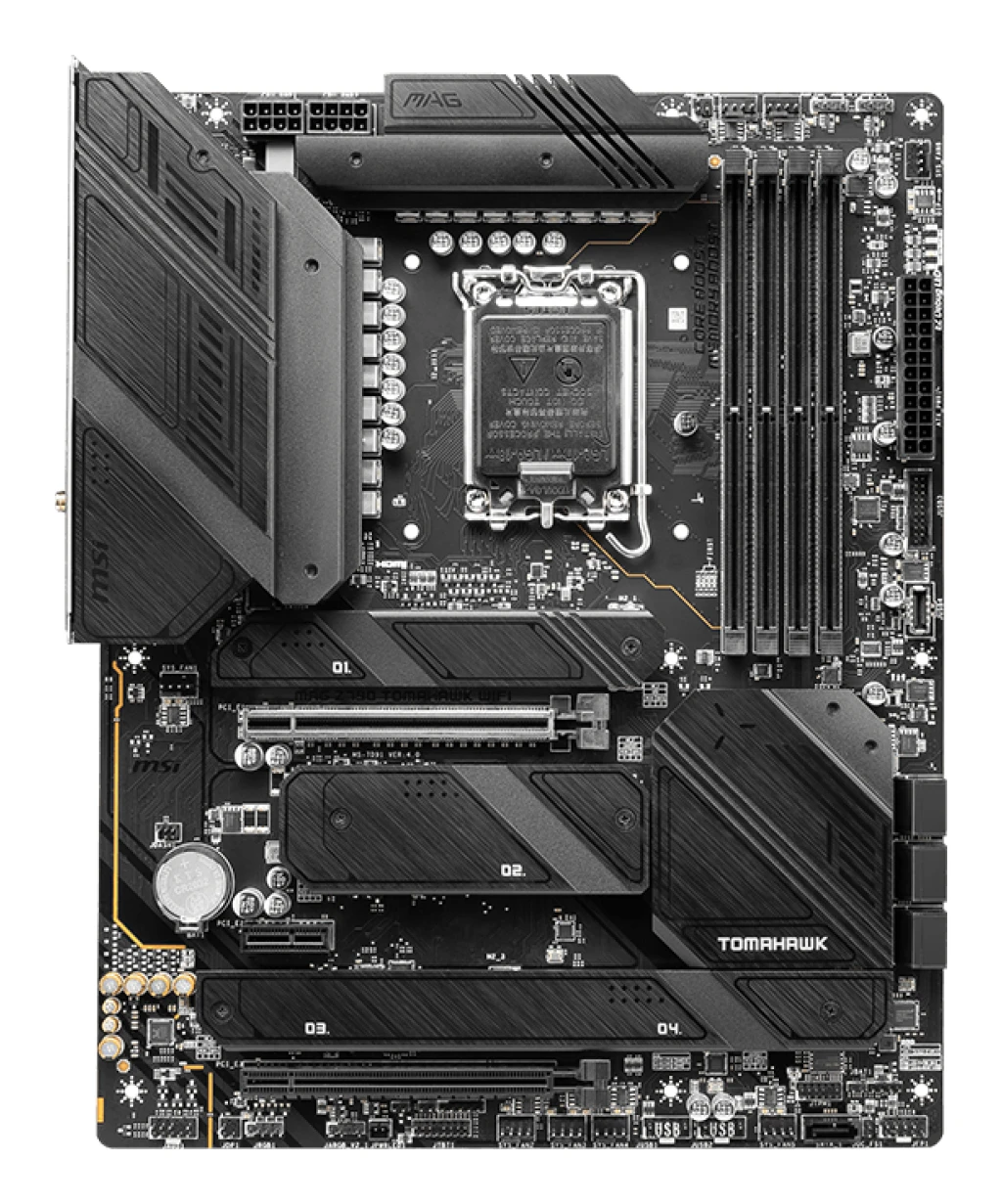

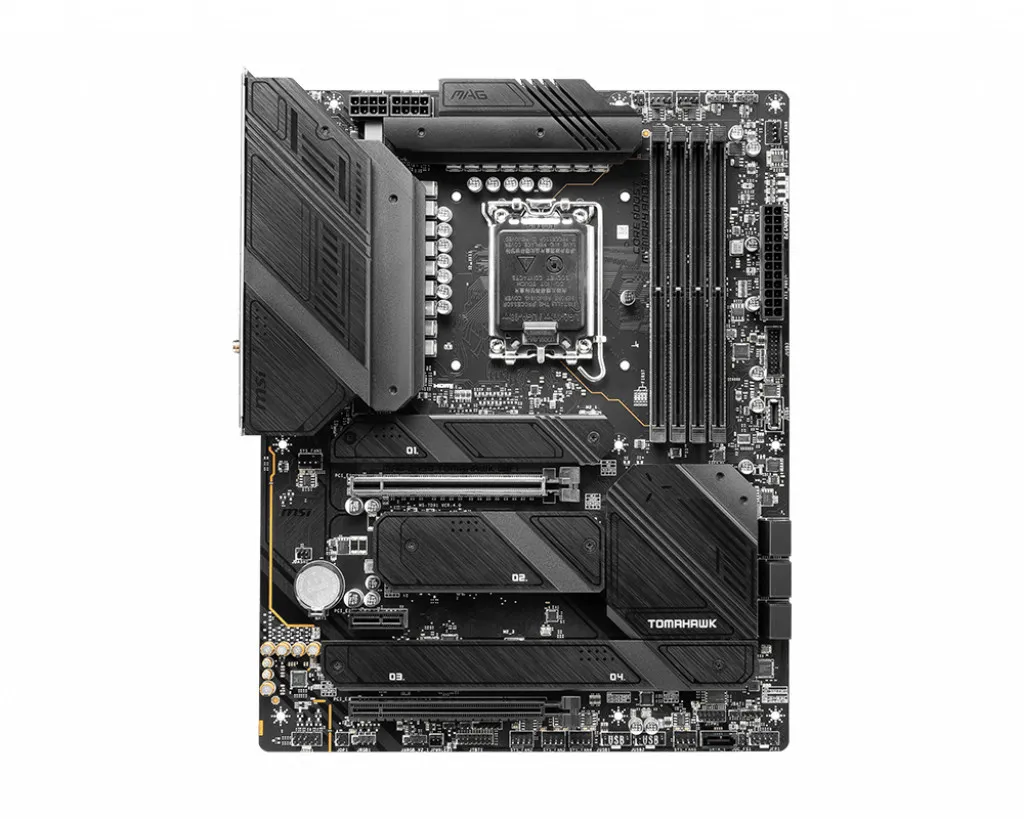

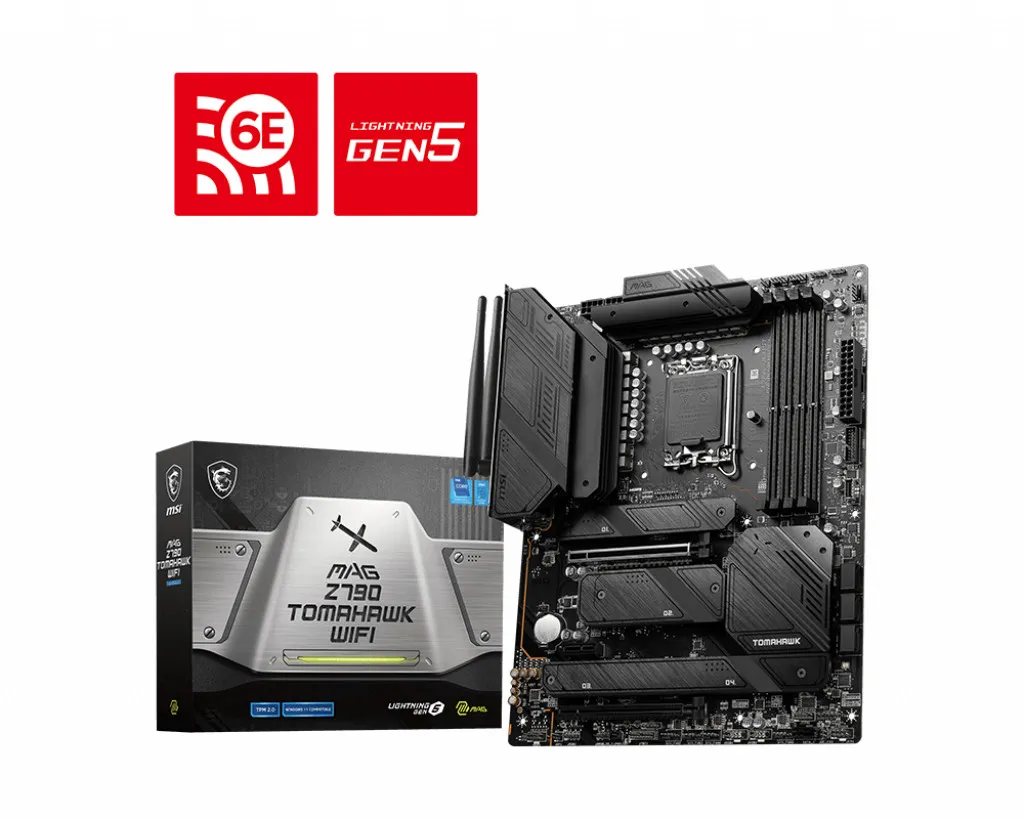

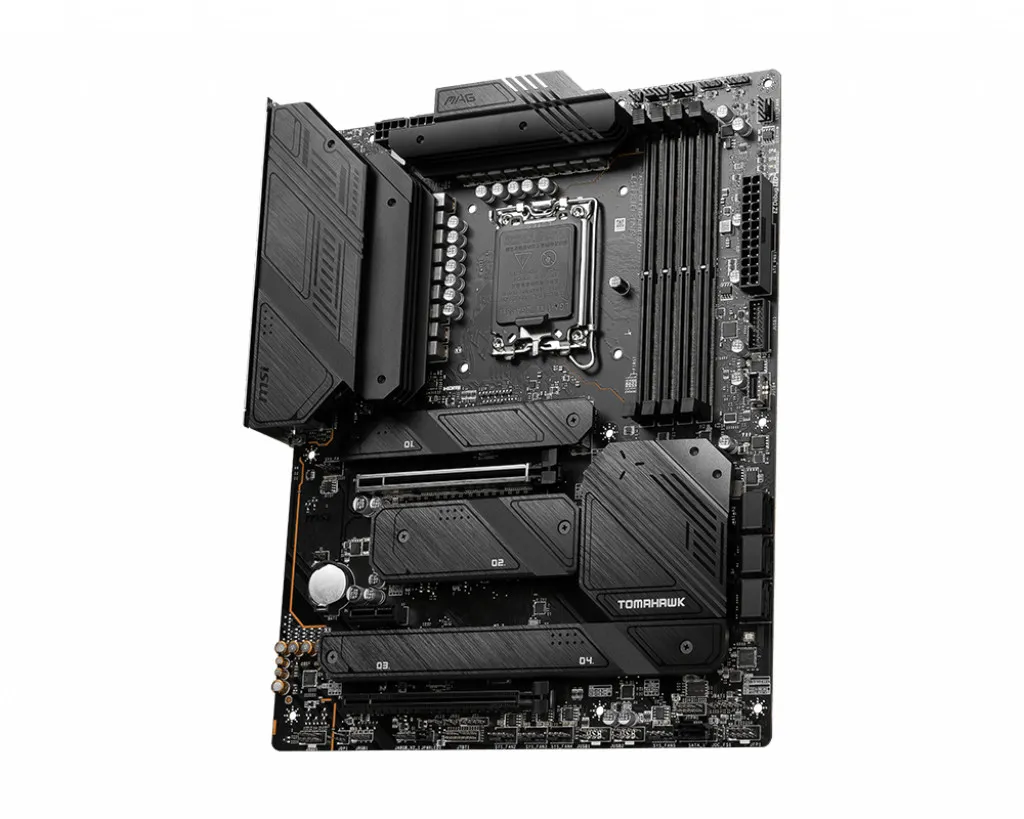

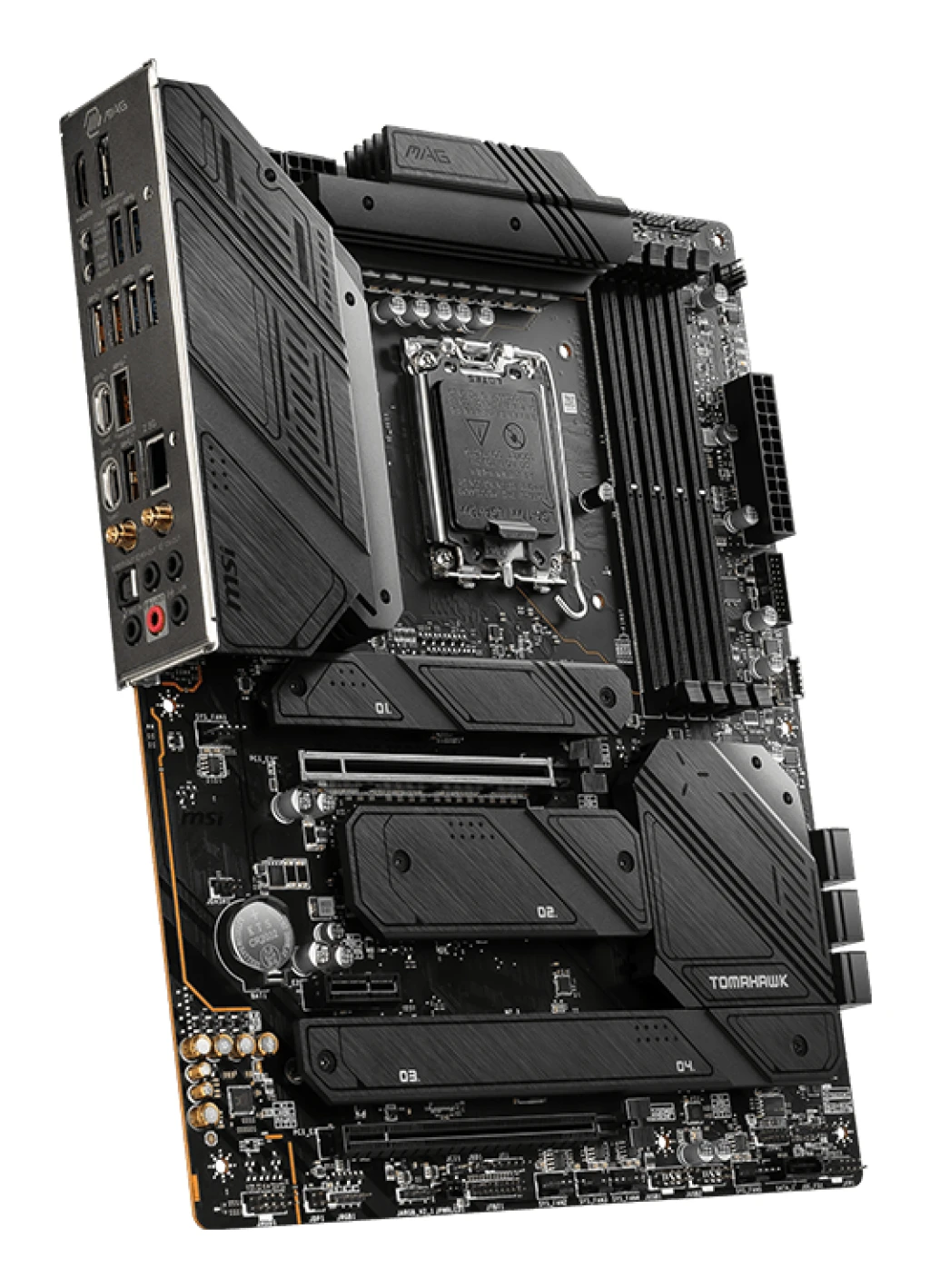

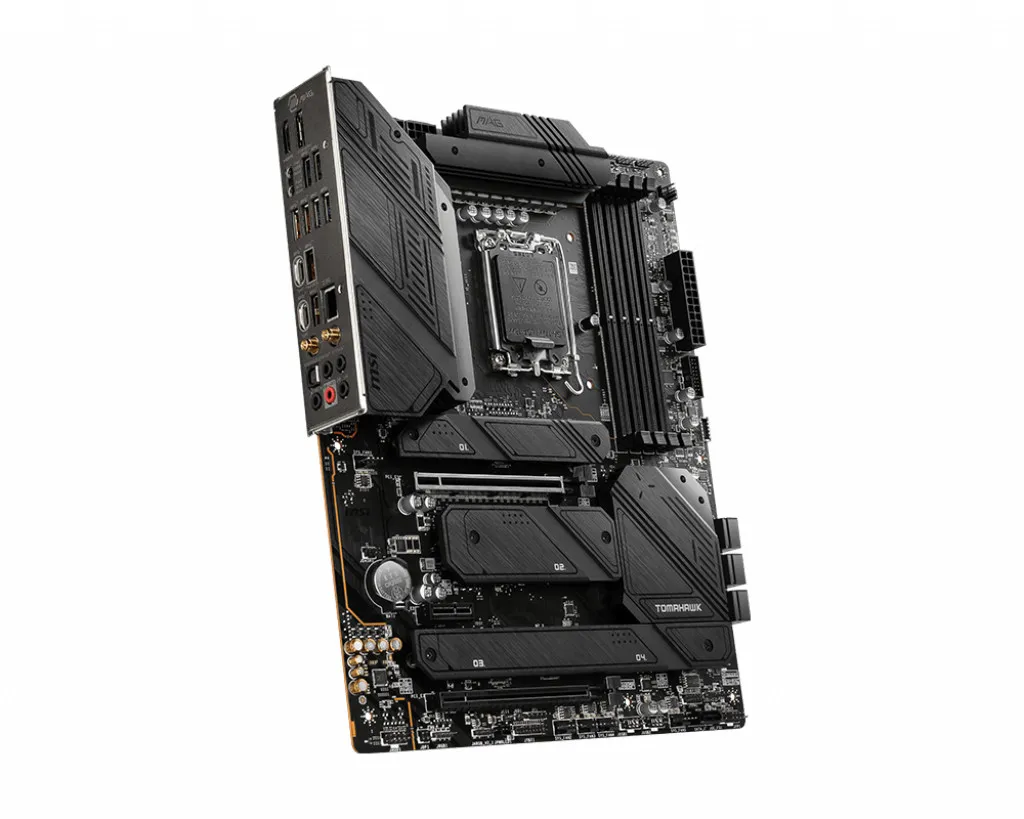

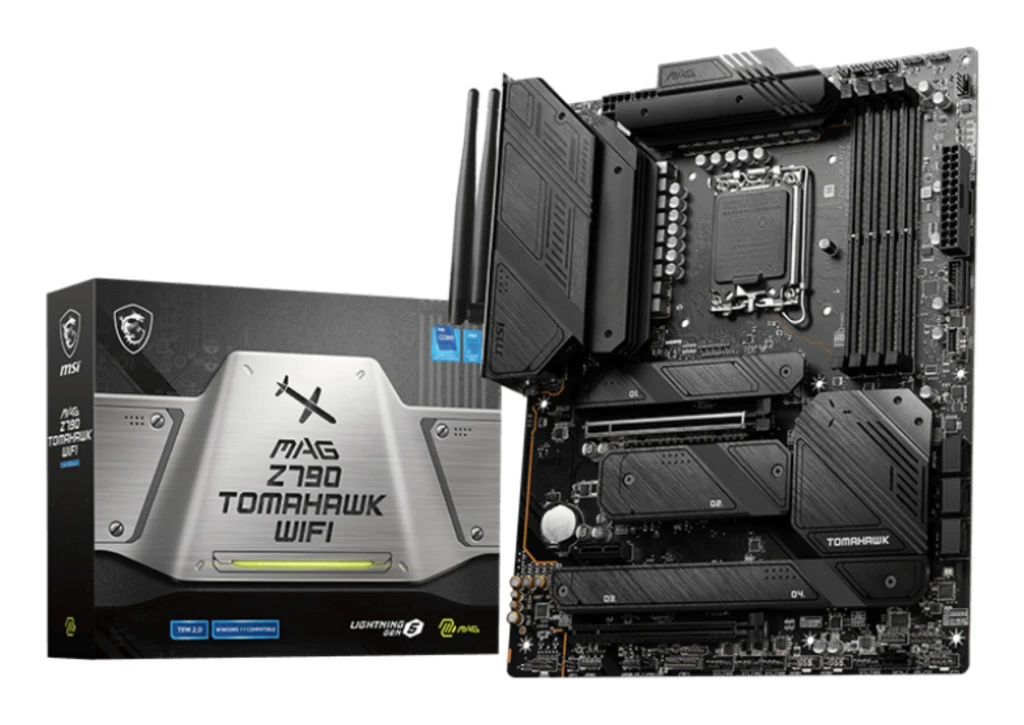

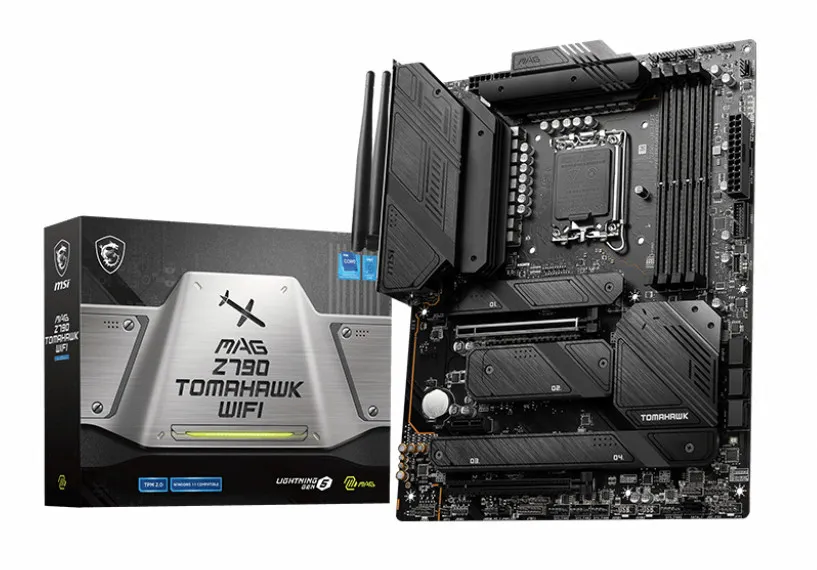

MSI MAG Z790 TOMAHAWK WIFI emaplaat Intel Z790 LGA 1700 ATX

Muud n?itajad

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Supported processor sockets

LGA 1700

BIOS type

UEFI AMI

Motherboard chipset family

Intel

Chassis intrusion connector

Jah

S/PDIF out port

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

7

Parallel processing technology support

Not supported

ACPI version

6.4

Number of M.2 (M) slots

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2,PCI Express

Processor manufacturer

Intel

System management BIOS (SMBIOS) version

3.5

RGB LED pin header

Jah

DisplayPort arv

1

DisplayPort versioon

1.4

RGB LED pin ots

Jah

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

4

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

1

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

2

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

1

USB 3.2 Gen 2x2 C-tüüpi portide arv

1

PCI Express x16 (Gen 5.x) slots

2

PCI Express x16 (Gen 5.x) slotid

2

Supported memory clock speed (max)

7200 MHz

Unit Box Height

0.075

Unit Box Length

0.345

Unit Box Width

0.275

CnCode

84733020

PCI Express x1 (Gen 4.x) pesad

1

Toetatud mälu taktsageduse kiirus (maks)

7200 MHz

ECC сompatibility

Non-ECC

ECC ühilduvus

Mitte-ECC

Unit Calculated Volume

0.007874 cubm

Unit Calculated Weight

1.54 kg

Summary

MSI MAG Z790 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Jah

PCI Express x1 (Gen 4.x) slots

1

DisplayPort versioon

1.4

Kogus transpordikasti kohta

5

Toote värv

Black

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

4

Component for

PC

Protsessori poolt toetatud maksimaalne operatiivmälu

192 GB

Toetatud ketaste tüübid

HDD & SSD

Sisemine mälumaht

10 GB

ECC

Ei

Tootja koduleht

https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI

HDMI-versioon

2.1

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Toote värv

Must

Motherboard chipset

Intel Z790

RAID support

Jah

Toetatud protsessoripesad

LGA 1700

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

BIOS memory size

256 Mbit

Maximum internal memory supported by processor

192 GB

Mudel

MAG Z790 TOMAHAWK WIFI

Number of memory slots

4

Processor Socket

LGA 1700

Raid Levels

0/10/5

Supported memory clock speeds

4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

USB 2.0 connectors

2
