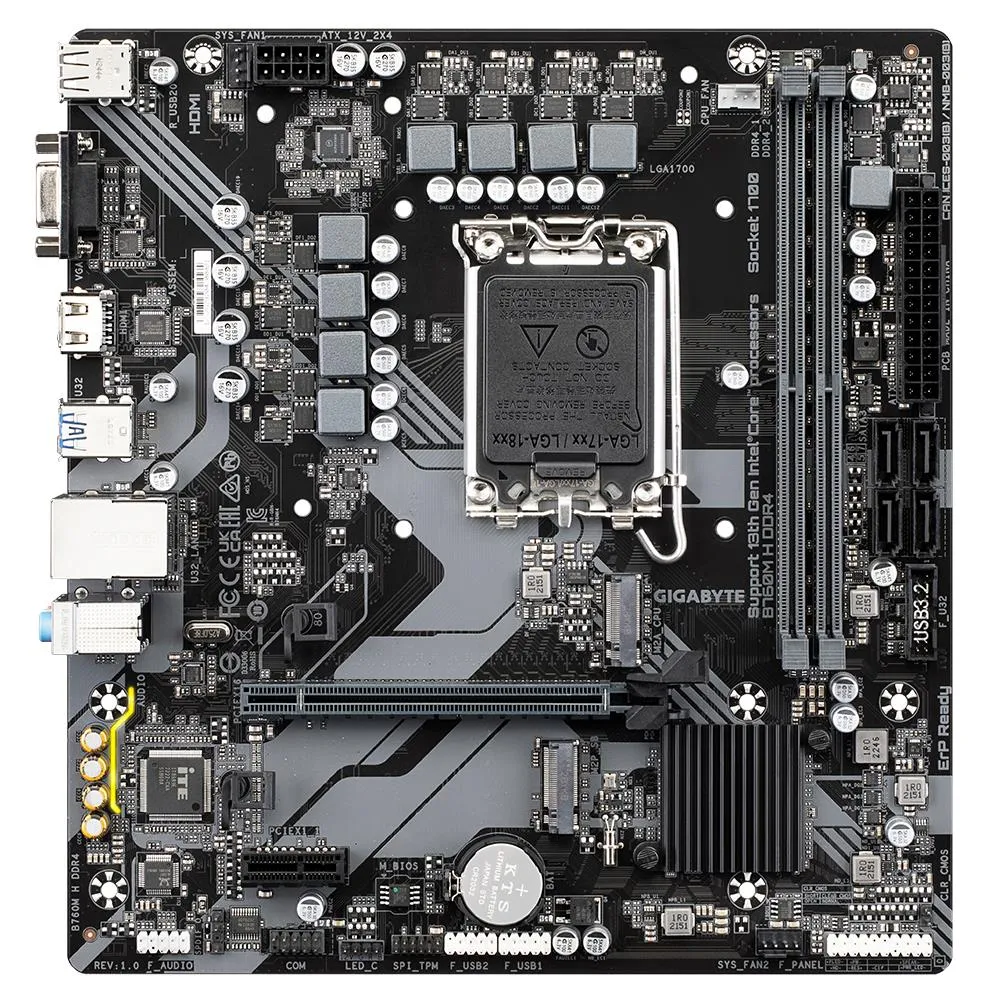

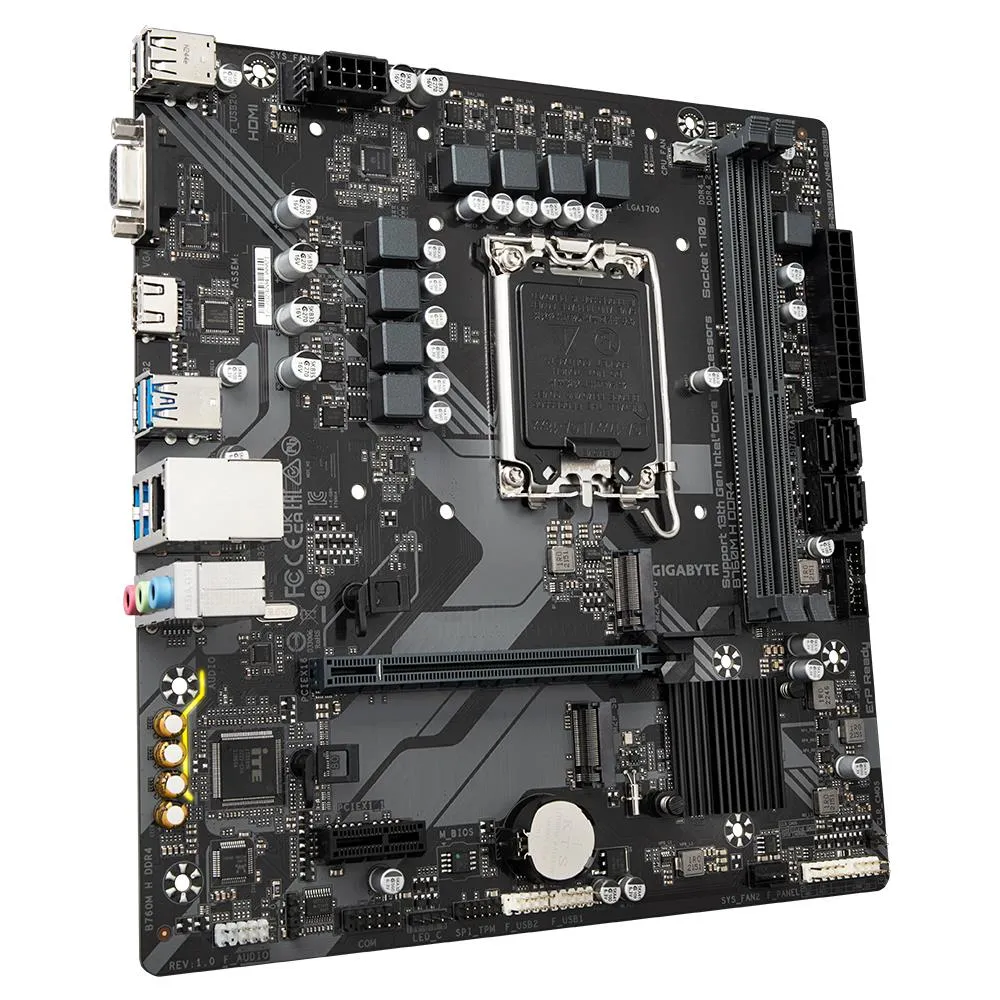

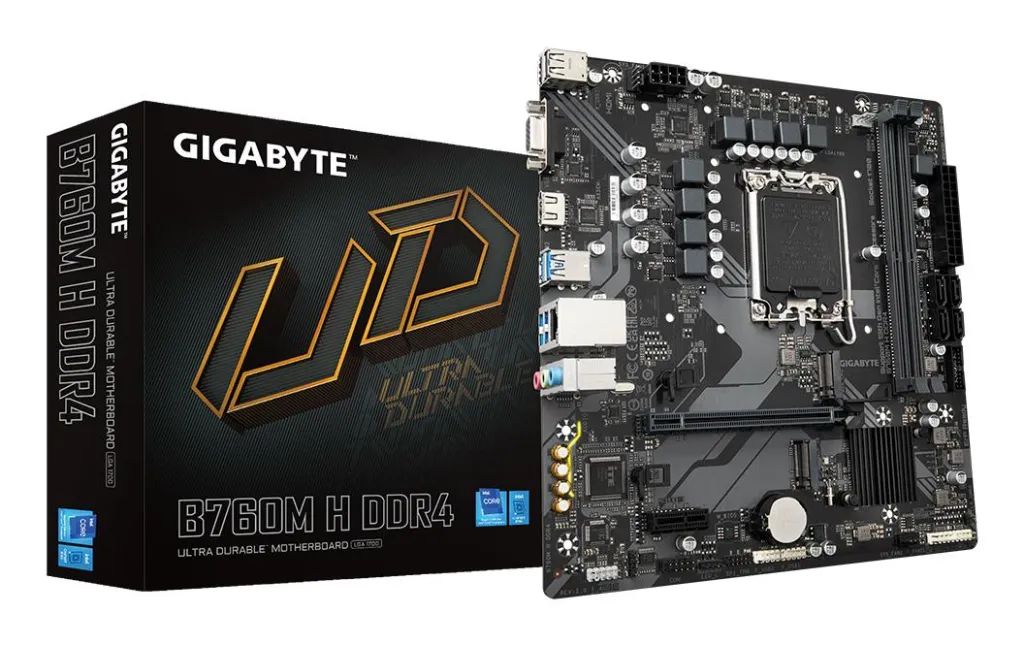

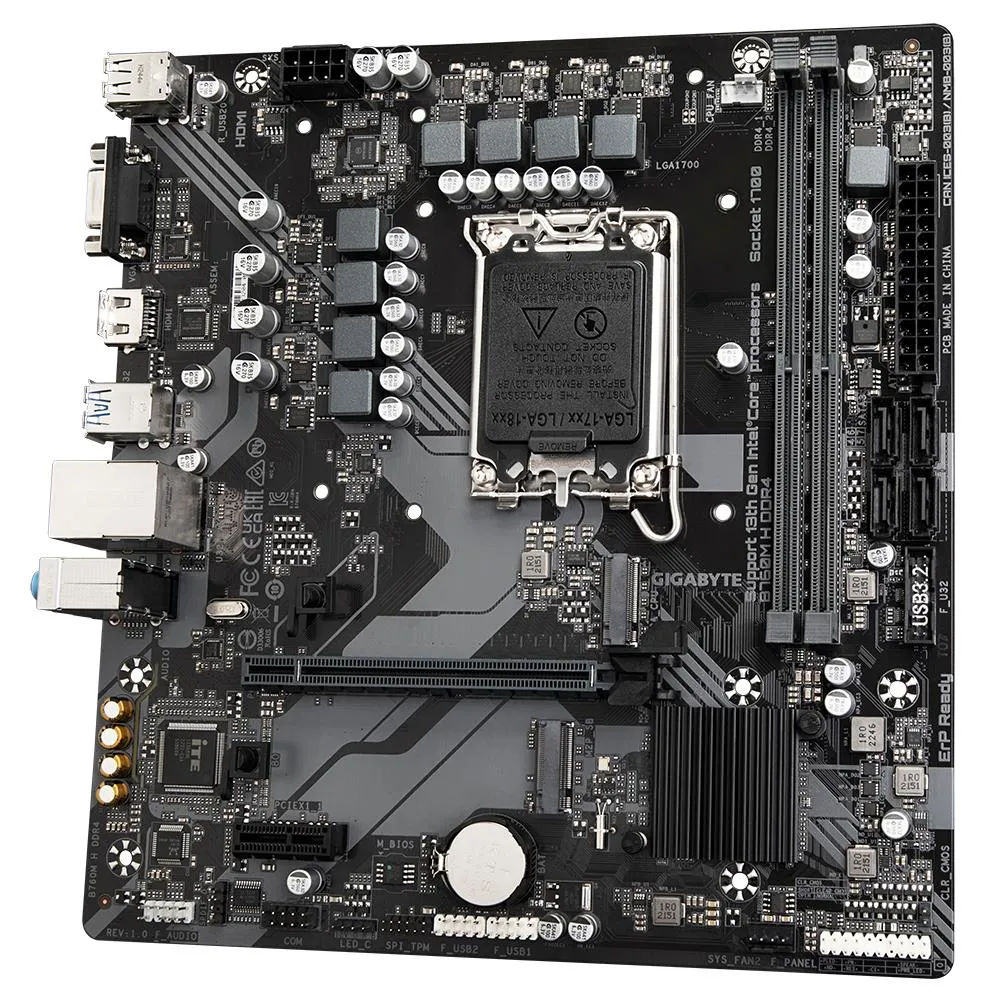

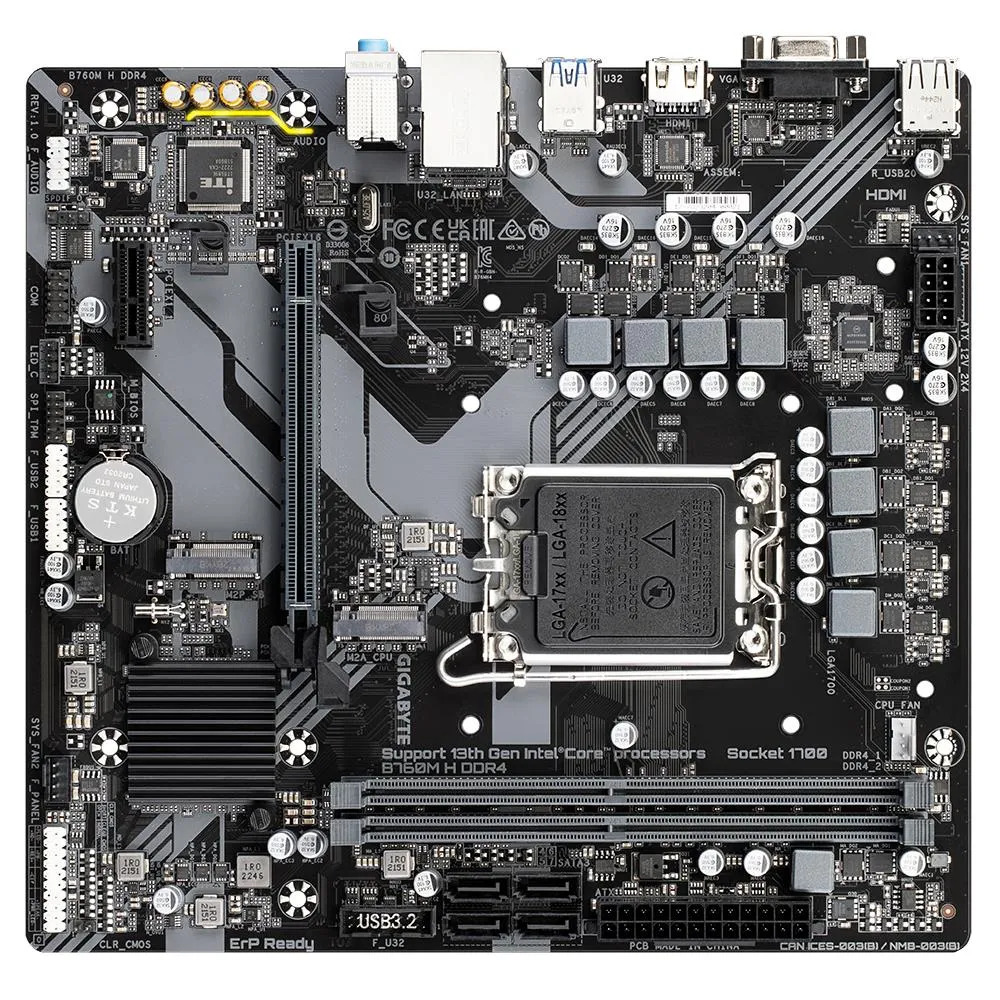

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|4xUSB 3.2|1xRJ45|B760MHDDR4
86.74€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2DIMMs XMP Memory Module Support
- Next Generation Storage：2PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 230 mm
- Sügavus
- 215 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel B760 Express
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3000/3200 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Jah
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 7.1 channels
- Sisseehitatud mikrofon
- 1
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

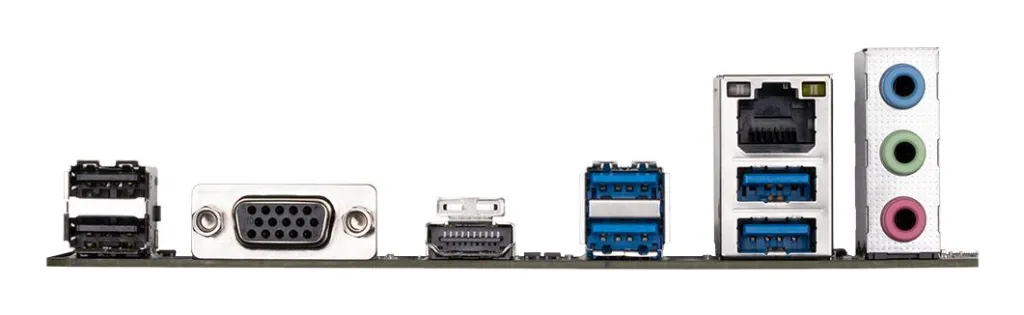

Tagapaneeli I/O pesad
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- Audioväljund
- 1
- Audio sisend
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.752 kg
- Netokaal
- 0.67 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.003935 cubm
Muud näitajad
- DisplayPort versioon
- 1.4
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Ei ole toetatud
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 2
- Number of storage drives supported
- 6
- Supported memory module capacities
- 12GB/16GB/1GB/2GB/32GB/4GB/8GB
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- Intel
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- 4
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Supported memory clock speed (max)
- 3200 MHz
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- CnKood
- 84733020
- Garantiiaeg
- 3 aasta(s)
- ECC сompatibility
- Non-ECC
- Üksuse kalkuleeritud maht
- 0.004506 cubm
- Üksuse kalkuleeritud kaal
- 0.832 kg
- Kokkuvõte
- GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Products per shipping (inner) case
- 1 tk
- Audio chip
- Realtek ALC897
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Desktop Management Interface (DMI) version
- 2.7
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- Tootja koduleht
- https://www.gigabyte.com
- HDMI versioon
- 1.4
- Mudel
- B760M H DDR4 (rev. 1.0)
- Pakendi laius
- 265 mm
- Pakendi kõrgus
- 54 mm
- Component for
- PC
- Transpordipakendi kaal
- 0.752 kg
- Transpordipakendi kõrgus
- 5.5 cm
- Transpordipakendi laius
- 26.5 cm
- Transpordipakendi sügavus
- 27 cm
- Kogus transpordikasti kohta
- 10
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Pakendi sügavus
- 265 mm
- Pakendi kaal
- 825 g
- Kõrgus
- 35 mm
- DirectX version
- 12.1
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Päritoluriik
- China
- Toote värv
- Pruun
- Motherboard chipset
- Intel B760 Express
- RAID support
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10/Windows 11
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- Maximum internal memory supported by processor
- 64 GB
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 2133/2400/2666/2933/3000/3200 MHz
- USB 2.0 connectors
- 2
