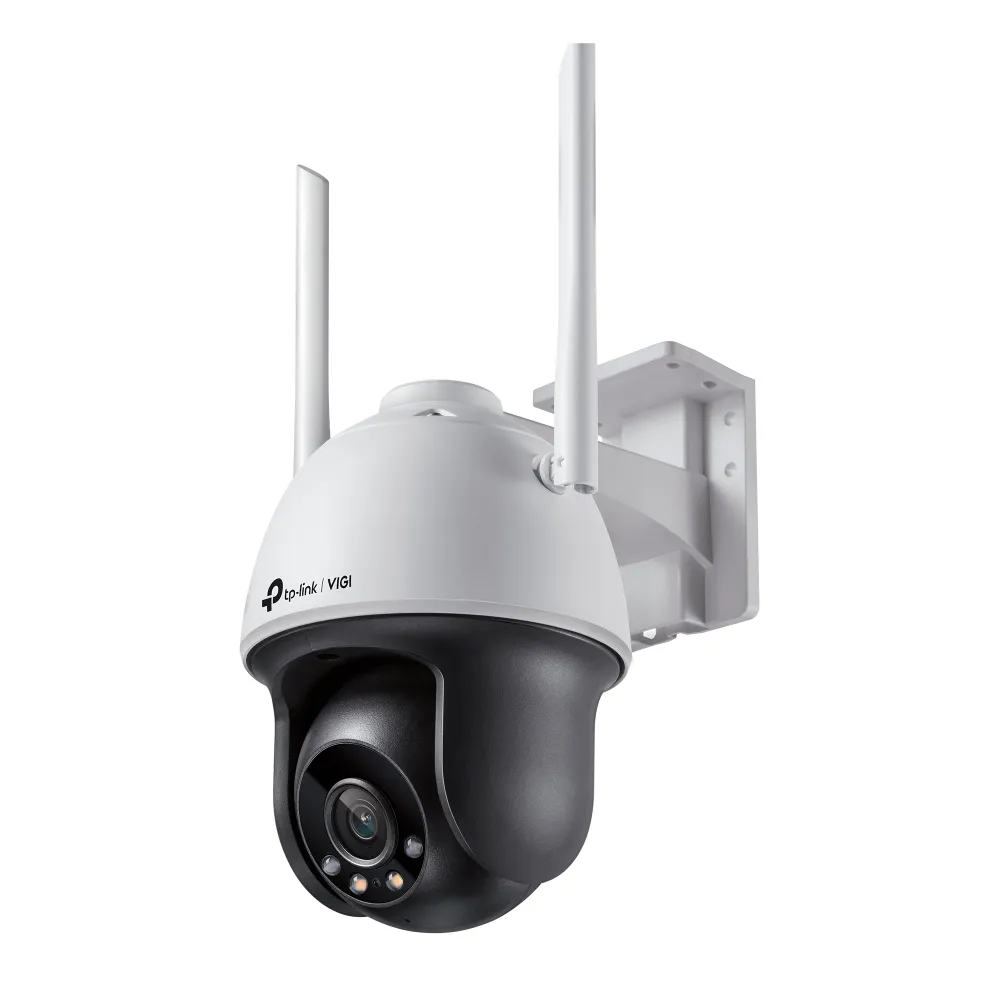

TP-Link VIGI C540-W V1 Torn IP süsteemiga turvakaamera Hoonesisene & hooneväline 2560 x 1440 pikslit Lagi/sein

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540-w/v1/#overview

.: Disain :.

Toote värv

Black/White

Kujutegur

Turret

.: Mälu :.

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Lens viewing angle, vertical

43 °

.: Võrgustumine :.

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC

Turvalisus

Turvaalgoritmid

WPA/WPA2-PSK

Juhtmevaba LAN-i omadused

IEEE 802.11 b/g

Jah

IEEE 802.11n

Jah

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Compliance certificates

CE/RoHS

Objektiivi süsteem

Lens viewing angle, diagonal

93 °

Lens viewing angle, horizontal

79 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12V DC/1A, 5.5mm Coaxial Power Plug

Ergonoomika

Lähtestusnupp

Jah

Funktsioonid

Mudeli originaalnimi

VIGI C540-W

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

.: Pakendi sisu :.

Paigalduskomplekt

Jah

Tarvikud kaasa arvatud

Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.009216 cubm

Transpordipakendi kaal

1.182 kg

Transpordipakendi kõrgus

24 cm

Transpordipakendi laius

16 cm

Transpordipakendi sügavus

24 cm

Pakendi sügavus

243 mm

Pakendi kõrgus

243 mm

Pakendi kaal

1210 g

Pakendi laius

163 mm

Tehnilised andmed

Password protection

Jah

Placement supported

Indoor & outdoor

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Number of cameras

1

IP address filtering

Jah

Image quality adjustment

Brightness/Contrast/Mirror/Saturation/Sharpness

Live view

Jah

LED type

IR

HTTPS encryption

Jah

Infra-red wavelength

850 nm

Supports card capacities up to

256GB

Unit Box Height

0.24

Unit Box Length

0.24

Unit Box Width

0.16

Unit Calculated Volume

0.009216 cubm

Unit Calculated Weight

1.18 kg

Summary

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Tilt angle range

0 - 120 °

Camera pan control

Jah

Camera tilt control

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Mirror

Jah

Number of lenses

1

Digest authentication

Jah

Basic event

Motion Detection, Camera Tampering Detection, Exception

Number of simultaneous live view channels

3 channels

Intelligent Video Surveillance (IVS) system features

Human detection

Behavior analysis

Intrusion detection,Line crossing detection

Detect distance

80 m

Identify distance

8 m

Observe distance

33 m

Recognize distance

16 m

Built-in speaker(s)

Jah

DC output voltage

12

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Mounting type

Ceiling/wall

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+

Zoom capability

Jah

Bit rate

256 Kbps - 4 Mbps

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

PT/PTZ

Certification

RCM, BSMI, VCCI, NCC, JRF, KC

Connectivity Technology

Wired & Wireless

Environment

Outdoor

Focal Length

3.6 - 4mm

Frame Rate

30 fps

Housing material

Plastic

IR Illumination

Jah

Lens data

4mm

Lens diameter

4 mm

Maximum memory card size

256 GB

MicroSD Card Slot

1

Night vision distance

30 m

Operating temperature range

-30–60 °C

Optical sensor size

1/3 "

Pan range

0 - 350 °

Pan speed

44 °/sec

Pixel Resolution

4 Mega Pixel

Power Options

12V

Resolution

4 Mega Pixel

Tilt speed

44 °/sec

Total megapixels

4 MP

Video streaming

Jah

Wireless connections

WLAN

Tehnilised andmed

Netokaal

0.62 kg

Netokaal

0.62 kg

Brutokaal

1.18 kg

Laius

120 mm

Sügavus

172 mm

Kõrgus

198 mm

Mõõtmed (l x s x k)

120 × 172 × 198 mm (excluding antennas)
