NET CAMERA 8MP BULLET/IPC-HFW2849S-S-IL-0280B DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2849S-S-IL

Mudel

IPC-HFW2849S-S-IL-0280B

Seadme tüüp

IP security camera

.: Disain :.

Kokkuvõte

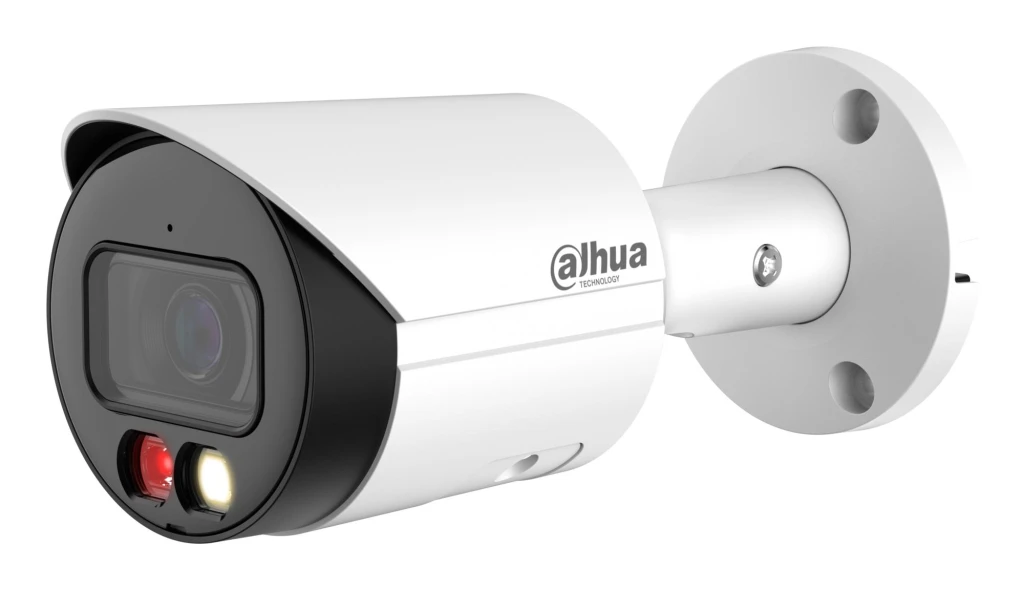

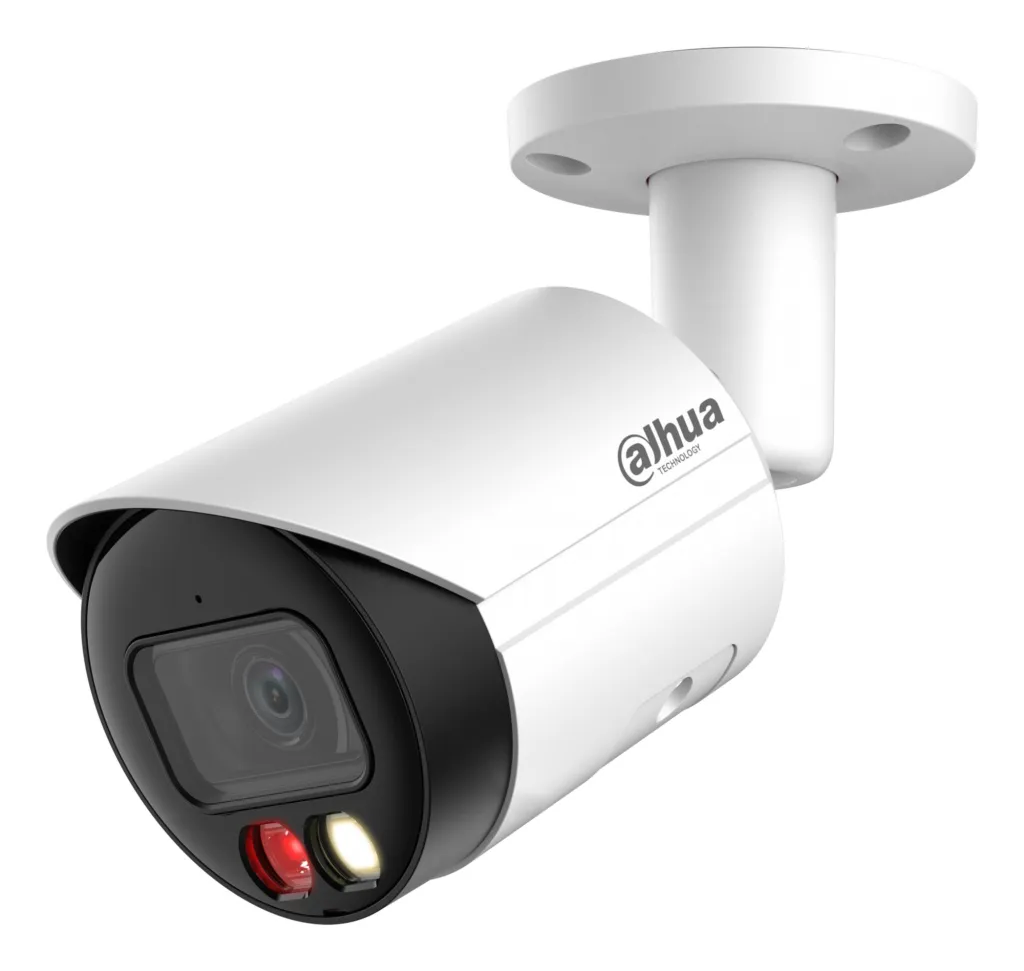

Dahua Technology WizSense IPC-HFW2849S-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 84.8 m, Observe distance: 33.9 m, Recognize distance: 17 m

Kujutegur

Bullet

Toote värv

Valge

.: Mälu :.

RAM capacity

256 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Sisseehitatud mikrofon

Sisseehitatud

.: Kaamera :.

Lens viewing angle, vertical

58 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor/Street lamp

.: Võrgustumine :.

Web browser

Jah

WiFi

Ei

Võrgustandardid

IEEE 802.3af

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

2.7 W

.: Salvestusruum :.

ROM capacity

128 MB

Pildisensor

Progressiivne skaneerimine

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

132 °

Lens viewing angle, horizontal

111 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12 VDC/PoE (802.3af)

Voolutarve

3.4 Watts

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

20

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 55 °C

Kasutamistemperatuur (T-T)

-40 - 55 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Max kogus transpordipakendis

1

Pakendi maht

0.002152 cubm

Transpordipakendi kaal

0.61 kg

Transpordipakendi kõrgus

10 cm

Transpordipakendi laius

10.5 cm

Transpordipakendi sügavus

20.5 cm

Kasutusjuhend

Jah

Pakendi kaal

590 g

Tehnilised andmed

Placement supported

Indoor & outdoor

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Number of cameras

2

Wide Dynamic Range (WDR)

Jah

Alarm input/output

Jah

Browser supported

IE: IE8, IE9, IE11 Chrome Firefox, Safari

Built-in light

Jah

Video motion detection

Jah

Number of illumination LEDs

2

LED type

IR/White

Supports card capacities up to

256GB

Unit Box Height

0.1

Unit Box Length

0.205

Unit Box Width

0.105

CnKood

85258900

Üksuse kalkuleeritud maht

0.002649 cubm

Tilt angle range

0 - 90 °

B/W night vision distance

30 m

Adjustment shutter speed

Automaatne/Manuaalne

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Smart IR

Jah

Mirror

Jah

Number of sensors

1

Number of lenses

1

Intelligent Video Surveillance (IVS) system features

Intrusion/Tripwire

Region of Interest (ROI) encoding

Jah

Detect distance

84.8 m

Identify distance

8.5 m

Observe distance

33.9 m

Recognize distance

17 m

Dynamic range

120 dB

Number of Privacy masking areas

4

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network access storage (NAS)

Jah

Power consumption (Power over Ethernet (PoE))

5.9 W

Client interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

Alarm input channels

1

Alarm output channels

1

Privacy protection

Jah

Gain control type

Automaatne/Manuaalne

Number of video streams

2

Rahvusvaheline Kaitsekood ( IP )

IP67

Camera shutter type

Elektrooniline

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Kiire Ethernet

Ethernet LAN (RJ-45) ports

1

Lens mount interface

M12

Management software

Smart PSS, DSS, DMSS

Maximum aperture number

1.6

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling/wall

Noise reduction

Jah

Protection features

Veekindel

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.264B/H.265/H.265+

Bit rate

12 Kbps - 8192 Kbps

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

1.5 m

Connectivity Technology

Juhtmega

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Automaatne/manuaalne 1/3 s–1/100, 000 s

Environment

Välitingimustesse

Fixed focal length

2.8 mm

Housing material

Metall

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

256 GB

Min. Illumination

0.0008 Lux

Network Camera Type

HDTV/Megapixel/Outdoor

Night vision distance

30 m

Number of users

20 user(s)

Operating temperature range

–40 °C to +55 °C

Optical sensor size

1/2.7 "

Pan range

0 - 360 °

Pixel Resolution

8 Mega Pixel

Power Options

12V/PoE

Resolution

8 Mega Pixel

Sensor size

1/2.7"

Signal-to-Noise Ratio (SNR)

56 dB

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

8 MP

Video streaming

Jah

Voice Codecs

G.711a/G.711Mu/G.726/PCM

Tehnilised andmed

Üksuse kalkuleeritud kaal

0.655 kg

Pikkus

166.2 mm

Netokaal

0.47 kg

Brutokaal

0.61 kg

Laius

70 mm

Kõrgus

70 mm

Mõõtmed (l x s x k)

166.2 × 70 × 70 mm

Toote kaal

470 g
