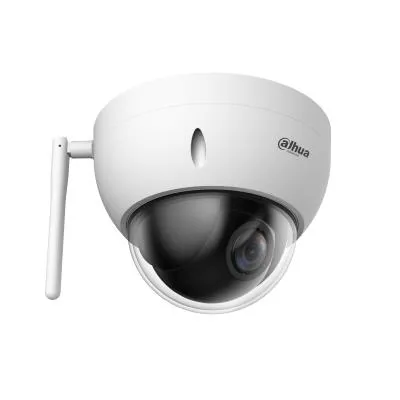

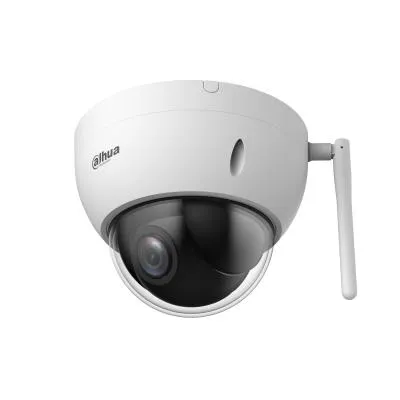

NET CAMERA 4MP PTZ DOME WIFI/SD22404DB-GNY-W DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 12.68 €. Taotle järelmaksu ostukorvis.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.
Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.
- 1/2.8" CMOS
- Powerful 4x optical zoom
- Max.25/30fps@4M/3M
- Max 100°/s pan speed
- Supports face detection
- Support Wi-Fi
- IP66, IK10
- SMD 3.0
- 6000V lightning-proof
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/Wireless-Series/Wi-Fi-Series/SD22404DB-GNY-W
.: Disain :.
- Toote värv
- White
- Kujutegur
- Dome
.: Mälu :.
- RAM capacity
- 512 MB
- Integreeritud kaardilugeja
- Jah
- Ühilduvad mälukaardid
- MicroSD (TransFlash)
.: Kaamera :.
- Automaatfookus
- Jah
- Lens viewing angle, vertical
- 48.5 - 16.6 °
- Valge tasakaalustus
- ATW/Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
.: Võrgustumine :.
- Web browser
- Jah
- WiFi
- Jah
- WiFi-standardid
- 802.11b/802.11g/Wi-Fi 4 (802.11n)
- Ethernet LAN
- Jah
- Bluetooth
- Ei
.: Pesad & liidesed :.
- Ethernet LAN (RJ-45) pordid
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC,PoE
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 2.7 W
.: Salvestusruum :.
- ROM capacity
- 128 MB
Pildisensor
- Progressiivne skaneerimine
- Jah
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Veebipõhine haldus
- Jah
Objektiivi süsteem
- Lens viewing angle, diagonal
- 105.7 - 33.6 °
- Lens viewing angle, horizontal
- 90.3 - 29.4 °
Öövaatluse funktsioon
- Öönägemine
- Jah
Toide
- Voolutarve
- 4.8 Watts
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -30 - 60 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
- Hoiustamistemperatuur (T-T)
- -30 - 60 °C
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.003472 cubm
- Transpordipakendi kaal
- 0.77 kg
- Transpordipakendi kõrgus
- 14 cm
- Transpordipakendi laius
- 15.5 cm
- Transpordipakendi sügavus
- 16 cm
- Pakendi kaal
- 700 g
Tehnilised andmed
- Placement supported
- Outdoor
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
- Number of cameras
- 1
- Active tampering alarm
- Jah
- Video motion detection
- Jah
- LED type
- IR
- DC output current
- 1 A
- Supports card capacities up to
- 512GB
- Unit Box Height
- 0.14
- Unit Box Length
- 0.16
- Unit Box Width
- 0.155
- CnCode
- 85258900
- Unit Calculated Volume
- 0.003472 cubm
- Unit Calculated Weight
- 0.77 kg
- Summary
- Dahua Technology WizSense SD22404DB-GNY-W. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
- Tilt angle range
- 0 - 90 °
- IK code
- IK10
- Camera pan control
- Jah
- Camera tilt control
- Jah
- Back Light Compensation (BLC)
- Jah
- Digital Wide Dynamic Range (DWDR)
- Jah
- Highlight Compensation (HLC)
- Jah
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Number of lenses
- 1
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Crossing line/Face detection/Intrusion/Missing object/Moving object/Tripwire/Vehicle detection
- Region of Interest (ROI) encoding
- Jah
- Detect distance
- 240 m
- Focal length range
- 2.8 - 12 mm
- Identify distance
- 24 m
- Observe distance
- 94.8 m
- Recognize distance
- 48 m
- Streaming method
- Multicast/Unicast
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Gain control type
- Auto/Manual
- PTZ control
- Jah
- Fog proof
- Jah
- PTZ modes
- 5 Pattern/8 Tour
- Pan manual speed
- 0.1 - 100 °/sec
- Pan preset speed
- 100 °/sec
- Tilt manual speed
- 0.1 - 60 °/sec
- Tilt preset speed
- 60 °/sec
- Preset points
- Jah
- PTZ protocols
- Pelco-P/D
- Tour recording
- Jah
- Day/night mode
- Jah
- DC output voltage
- 12
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Maximum aperture number
- 3
- Minimum aperture number
- 1.6
- Mounting type
- Ceiling/Wall/Pole
- Noise reduction
- Jah
- Sensor type
- CMOS
- Video compression formats
- H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
- Zoom capability
- Jah
- Bit rate
- H.264: 2816Kbps - 13056Kbps; H.265: 1024Kbps - 7936Kbps
- Built-in HDD
- Ei
- Camera design
- Dome
- Camera shutter speed
- 1 - 1/30000 s
- Closest focusing distance
- 1.5 m
- Connectivity Technology
- Wired & Wireless
- Diameter
- 122 mm
- Digital Zoom
- 16 x
- Electronic Shutter Speed
- 1/1 s–1/30,000 s
- Environment
- Outdoor
- Focal Length
- 2.8 mm–12 mm
- Image stabilizer
- Jah
- IR Illumination
- Jah
- Maximum memory card size
- 512 GB
- MicroSD Card Slot
- 1
- Min. Illumination
- 0.005 Lux
- Minimum Illumination
- 0.0005 lx
- Network Camera Type
- PTZ
- Number of users
- 20 user(s)
- Operating temperature range
- -30°C~+60°C
- Optical sensor size
- 1/2.8 "
- Optical Zoom
- 4 x
- Pan range
- 0 - 355 °
- Pixel Resolution
- 4 Mega Pixel
- Power Options
- 12V
- Resolution
- 4 Mega Pixel
- Sensor size
- 1/2.8 ” CMOS
- Signal-to-Noise Ratio (SNR)
- 55 dB
- Storage relative humidity (H-H)
- 0 - 95 %
- Total megapixels
- 4 MP
- Video streaming
- Jah
- Wi-Fi data rate (max)
- 150 Mbit/s
Tehnilised andmed
- Netokaal
- 0.5 kg
- Netokaal
- 0.5 kg
- Brutokaal
- 0.77 kg
- Kõrgus
- 89 mm
- Mõõtmed (l x s x k)
- 89 mm × Φ122 mm
- Toote kaal
- 500 g
