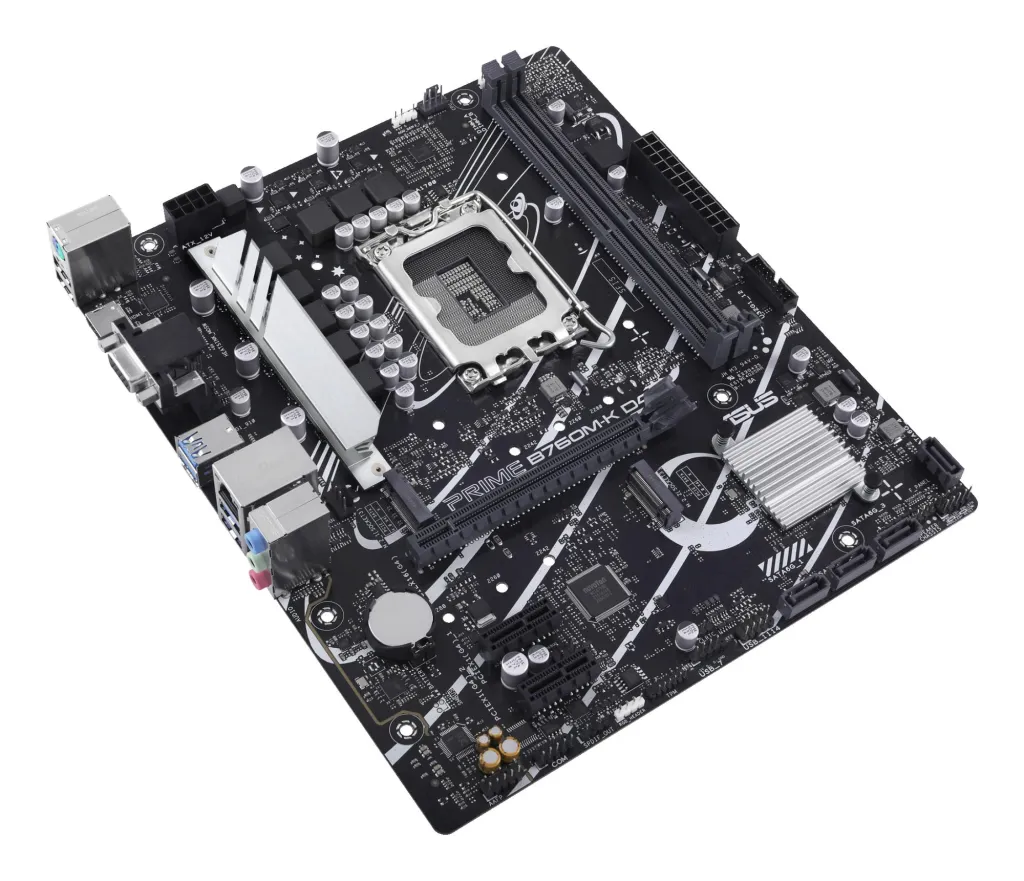

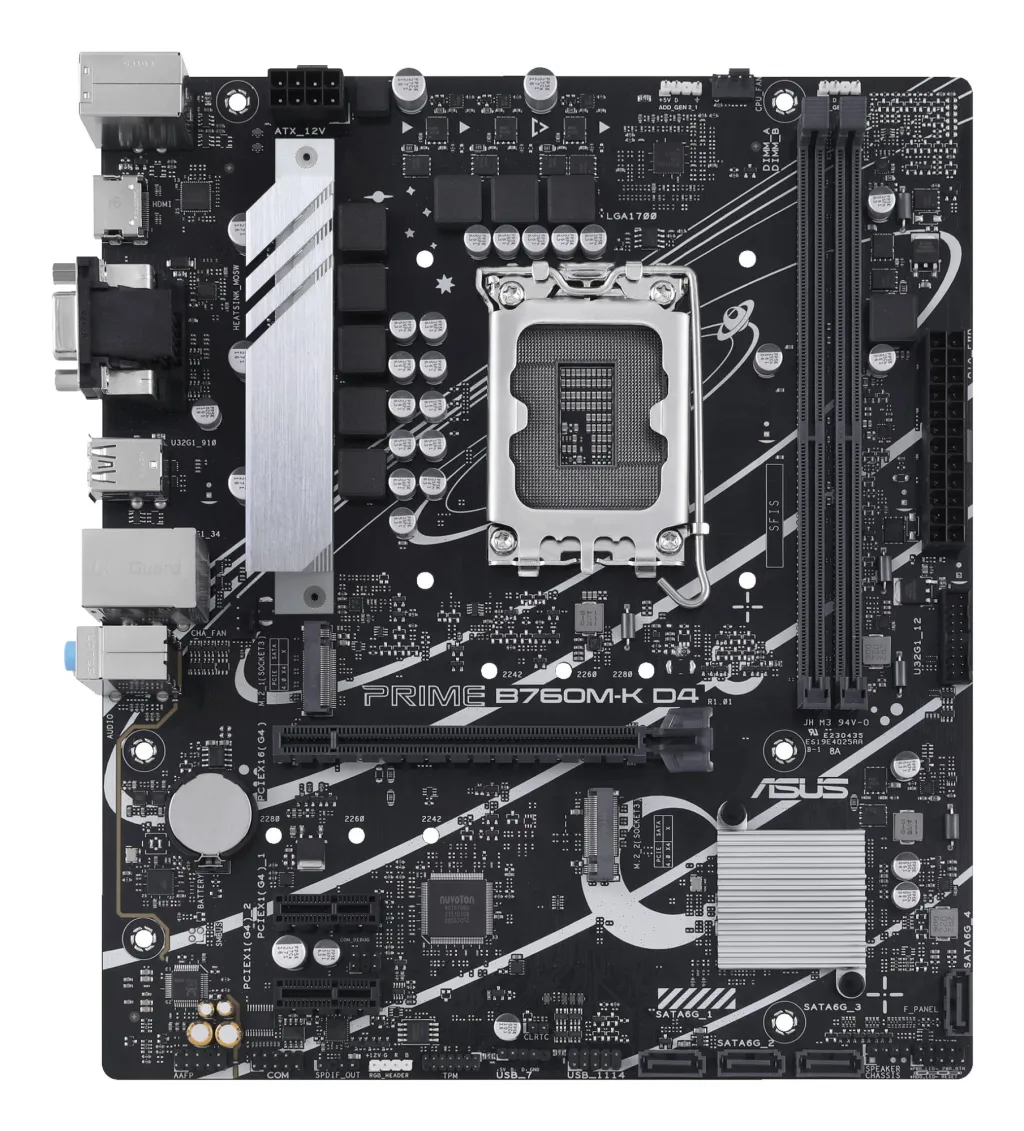

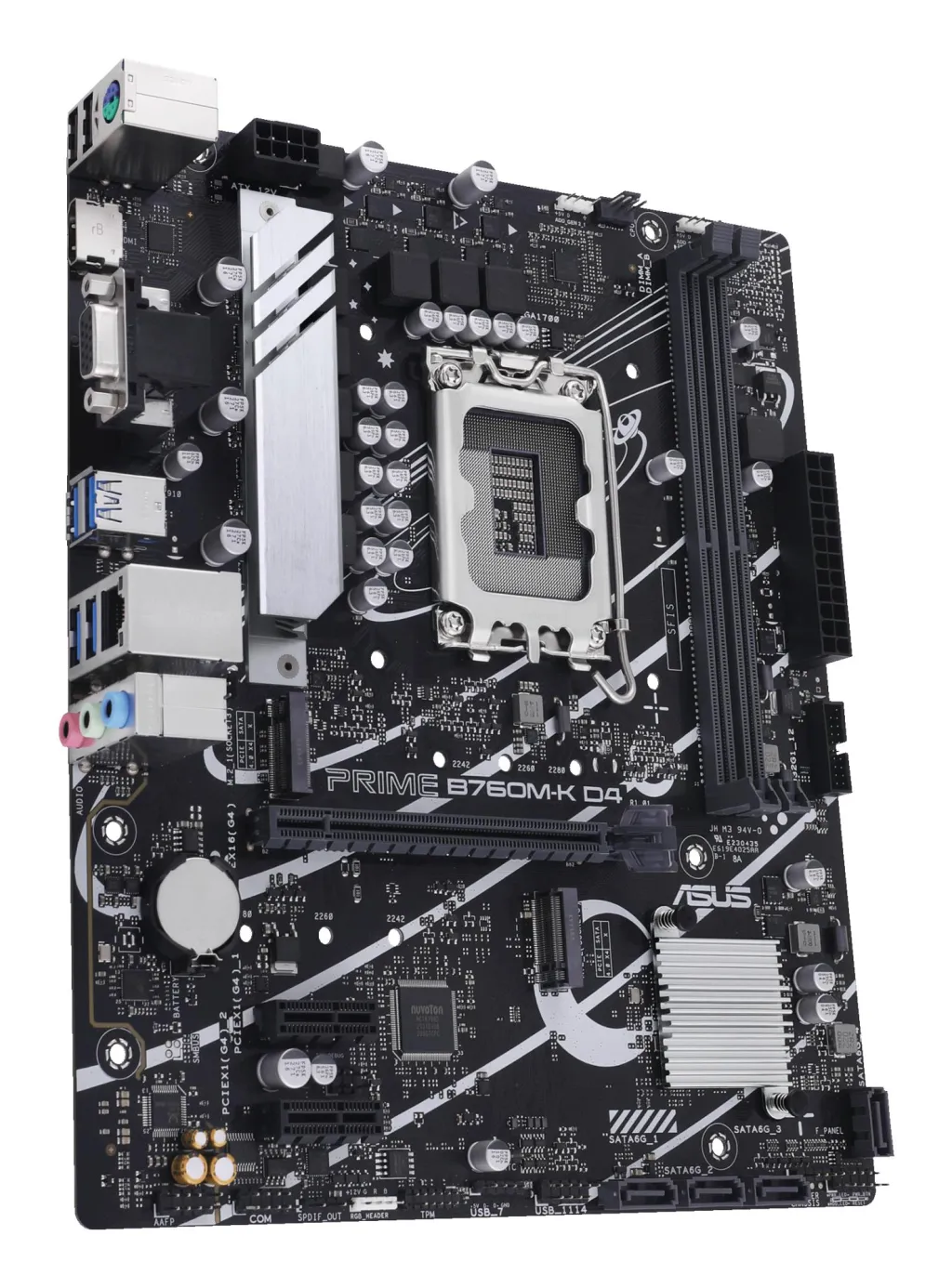

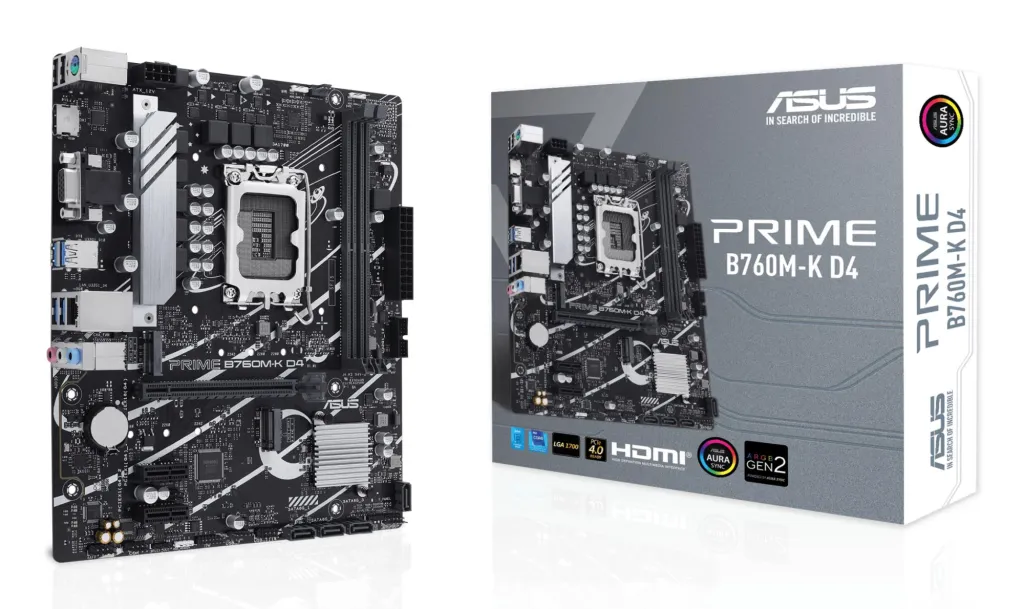

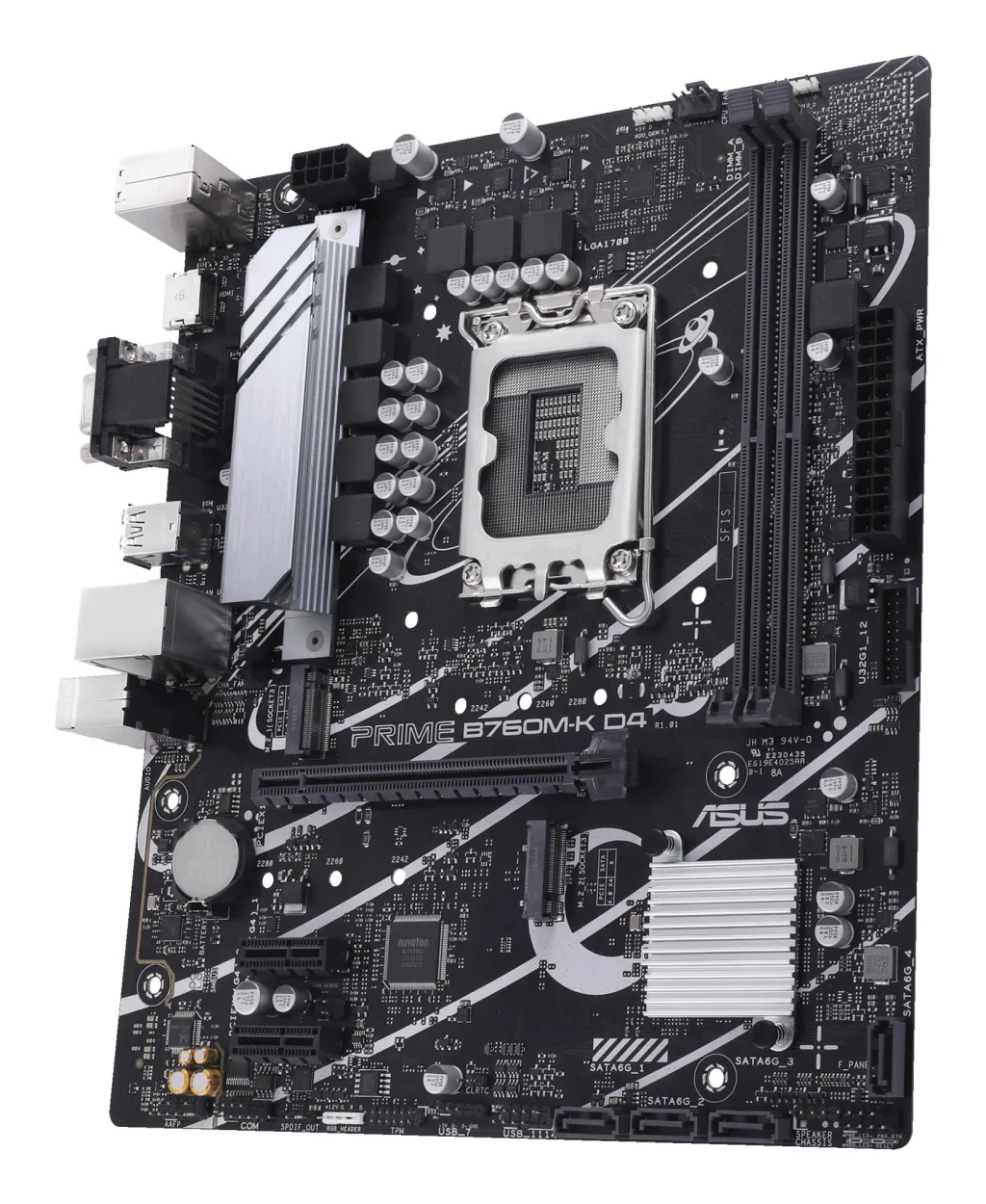

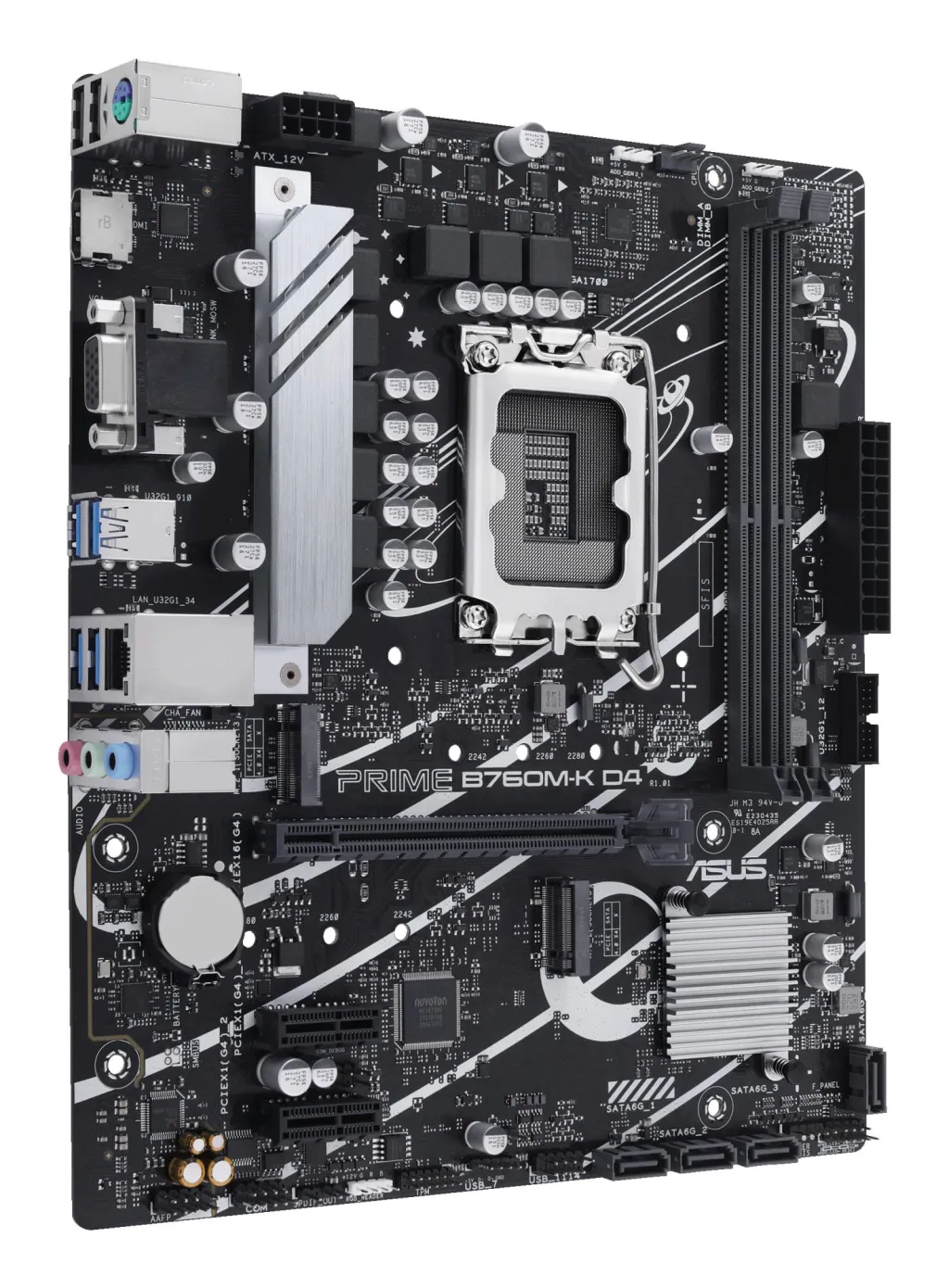

ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
| Tootja | ASUS |
| Tootekood | PRIMEB760M-KD4 |
| EAN | 4711387006917 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 211 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B760 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR4 |
| Taktsagedus | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4600/4800/5000/5066/5333 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 64 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

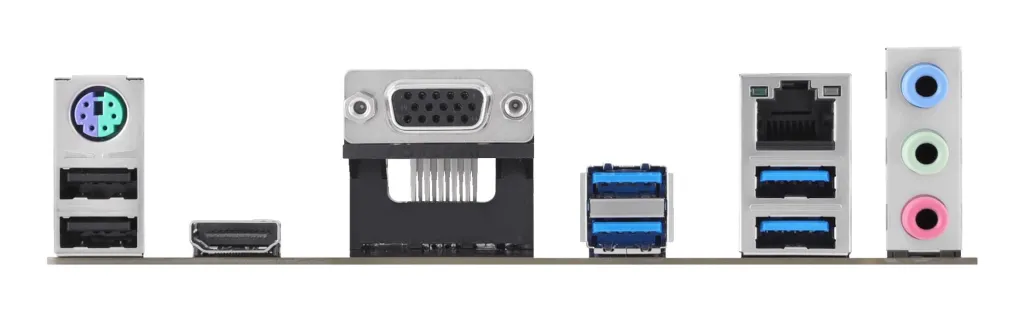

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| VGA (D-Sub) portide arv | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 0.998 kg |
| Netokaal | 0.7 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 10 |
| Pakendi maht | 0.004834 cubm |
| Muud näitajad | |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| Number of M.2 (M) slots | 2 |
| Number of storage drives supported | 6 |
| Wake-on-LAN ready | Jah |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Processor manufacturer | Intel |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 1x | 2 |
| Supported memory clock speed (max) | 5333 MHz |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| CnCode | 84733020 |
| ECC сompatibility | Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004834 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.998 kg |
| Summary | ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Jah |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Component for | PC |
| Tootja koduleht | www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k-d4/ |
| Transpordipakendi kaal | 9.98 kg |
| Transpordipakendi kõrgus | 29.5 cm |
| Transpordipakendi laius | 29 cm |
| Transpordipakendi sügavus | 56.5 cm |
| Kõrgus | 36 mm |
| Toote kaal | 528 g |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 128 Mbit |
| Mudel | PRIME B760M-K D4 |
| Number of memory slots | 2 |
| Package depth | 51.5 mm |
| Package height | 263 mm |
| Package weight | 926.3 g |
| Package width | 270 mm |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz |
| USB 2.0 connectors | 2 |
