Mainboard|ASUS|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEH610M-K
51.47€
71.63€
E1
71.63€
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
DDR5 Performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
M.2 slot (up to 32 Gbps)
PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0
Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers easily customized settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- 5X Protection III: Multiple hardware safeguards for all-round protection
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 234 mm
- Sügavus
- 203 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel H610
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5000/5200/5400/5600 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 96 GB
Graafikakaart
- Integreeritud graafikaadapter
- Jah
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

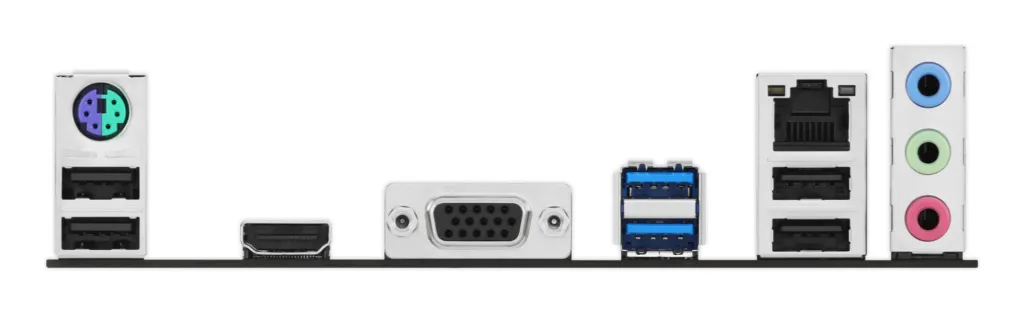

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1

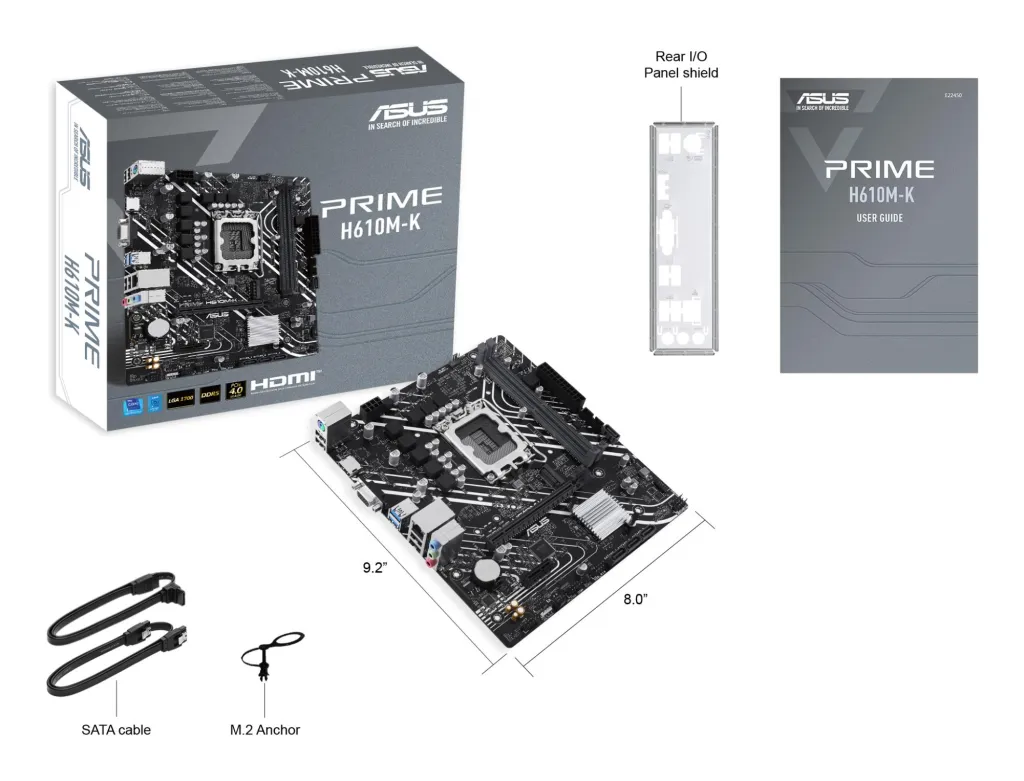

Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.95 kg
- Netokaal
- 0.62 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.004915 cubm
Muud näitajad
- Compatible processor series
- Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 1
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Clear CMOS jumper
- Jah
- Number of M.2 (M) slots
- 1
- Line-in
- Jah
- Number of storage drives supported
- 5
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- Intel
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Unit Box Height
- 0.05
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- CnKood
- 84733020
- ECC сompatibility
- Non-ECC
- Üksuse kalkuleeritud maht
- 0.004915 cubm
- Üksuse kalkuleeritud kaal
- 0.95 kg
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- 12V power connector
- Jah
- Kokkuvõte
- ASUS Prime H610M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet
- Tootja koduleht
- https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k/
- Mudel
- PRIME H610M-K
- Pakendi laius
- 270 mm
- Pakendi kõrgus
- 51.5 mm
- Component for
- PC
- Transpordipakendi kaal
- 9.5 kg
- Transpordipakendi kõrgus
- 30 cm
- Transpordipakendi laius
- 29 cm
- Transpordipakendi sügavus
- 56.5 cm
- Kogus transpordikasti kohta
- 10
- Pakendi sügavus
- 263 mm
- Pakendi kaal
- 820 g
- Kõrgus
- 36.5 mm
- Toote kaal
- 470 g
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Toote värv
- Multicolour
- Microphone in
- Jah
- Motherboard chipset
- Intel H610
- Unbuffered memory
- Jah
- USB connector type
- USB Type-A
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11
- BIOS memory size
- 128 Mbit
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- Supported memory clock speeds
- 4800/5000/5200/5400/5600 MHz
- USB 2.0 connectors
- 1
