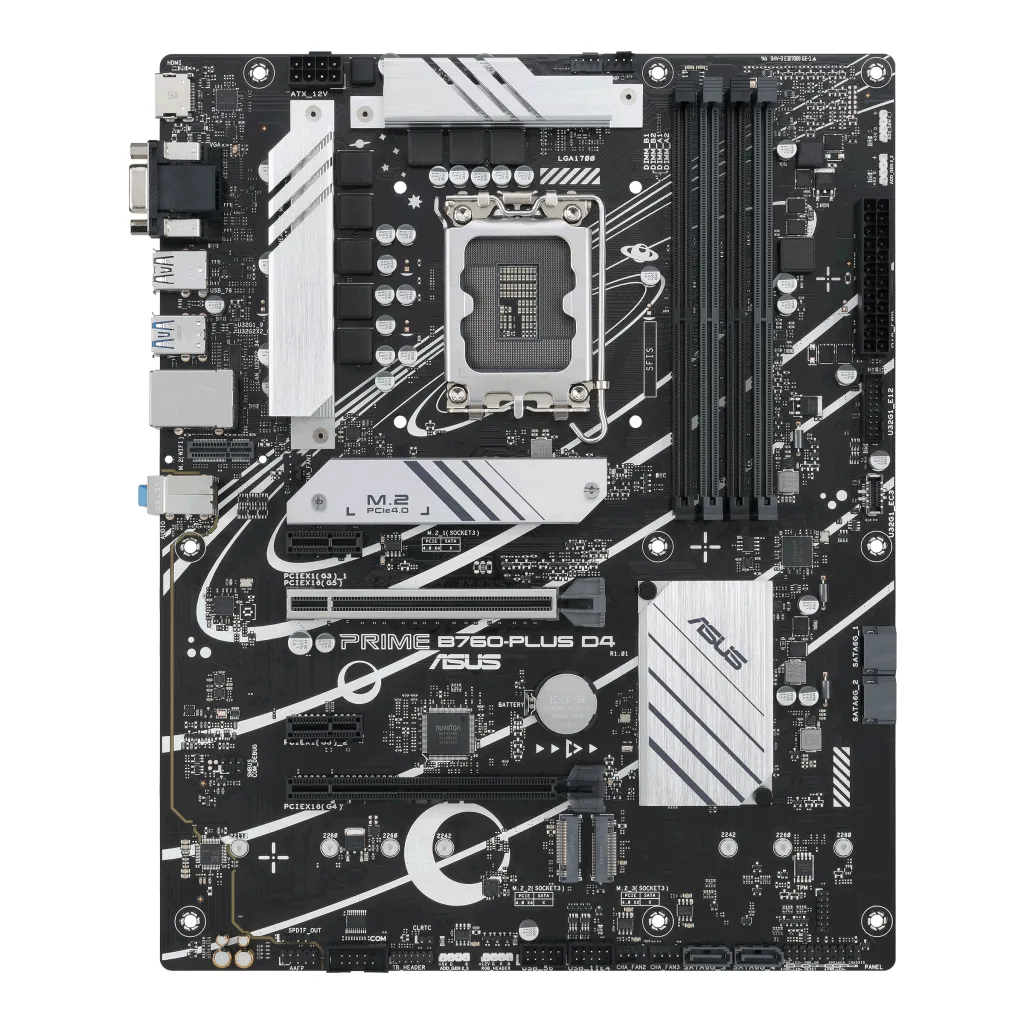

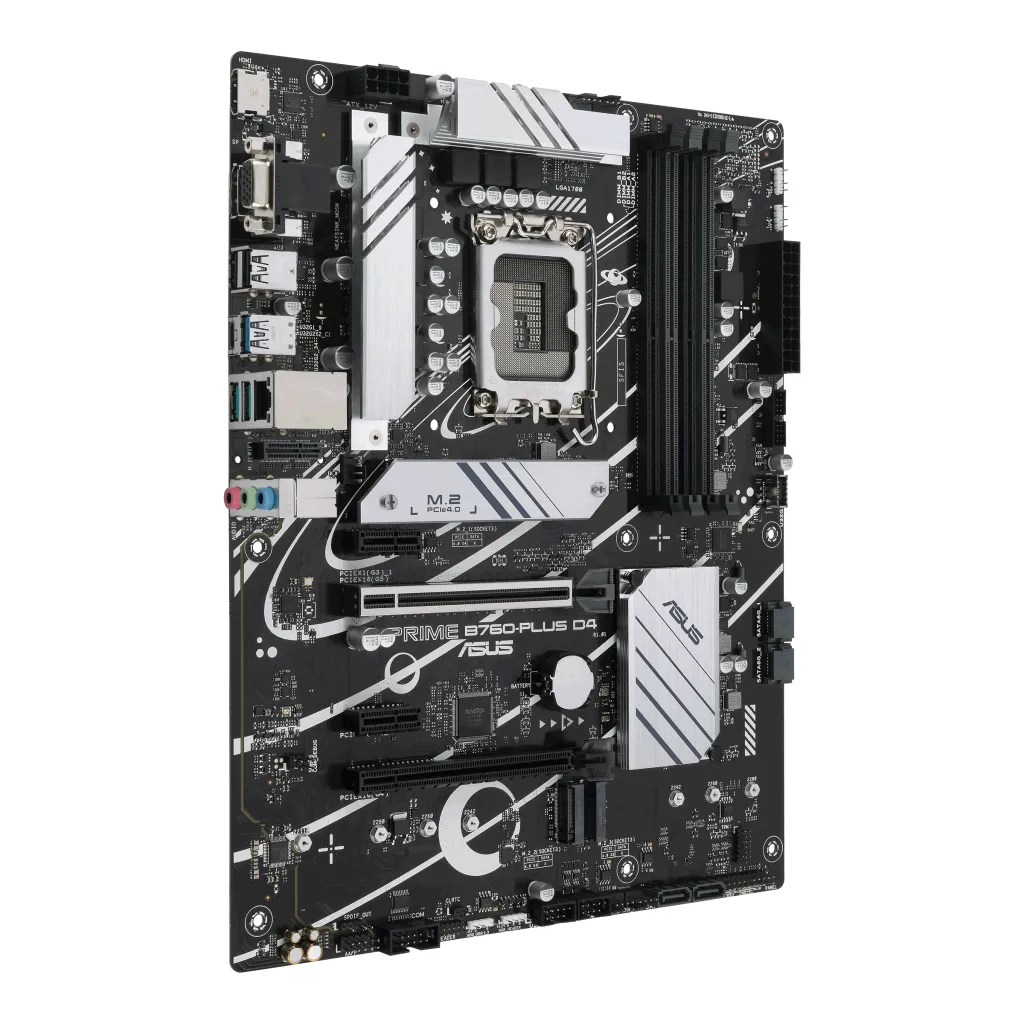

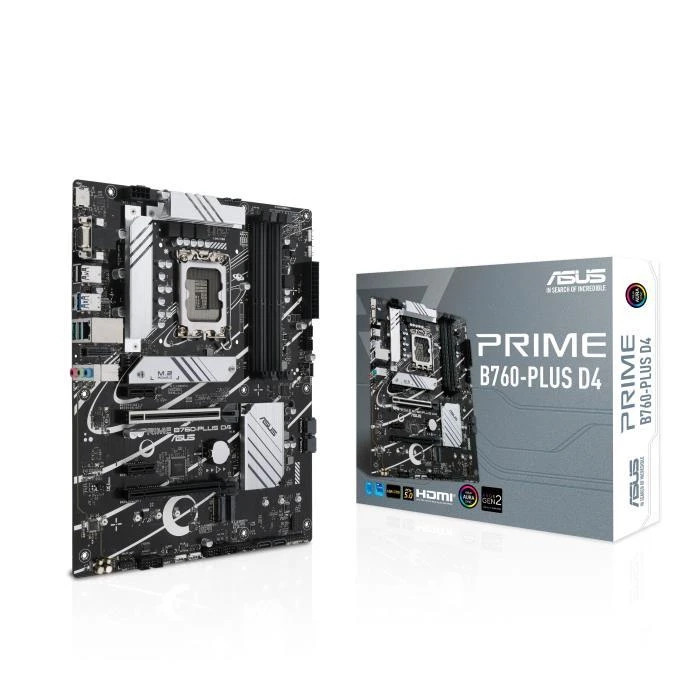

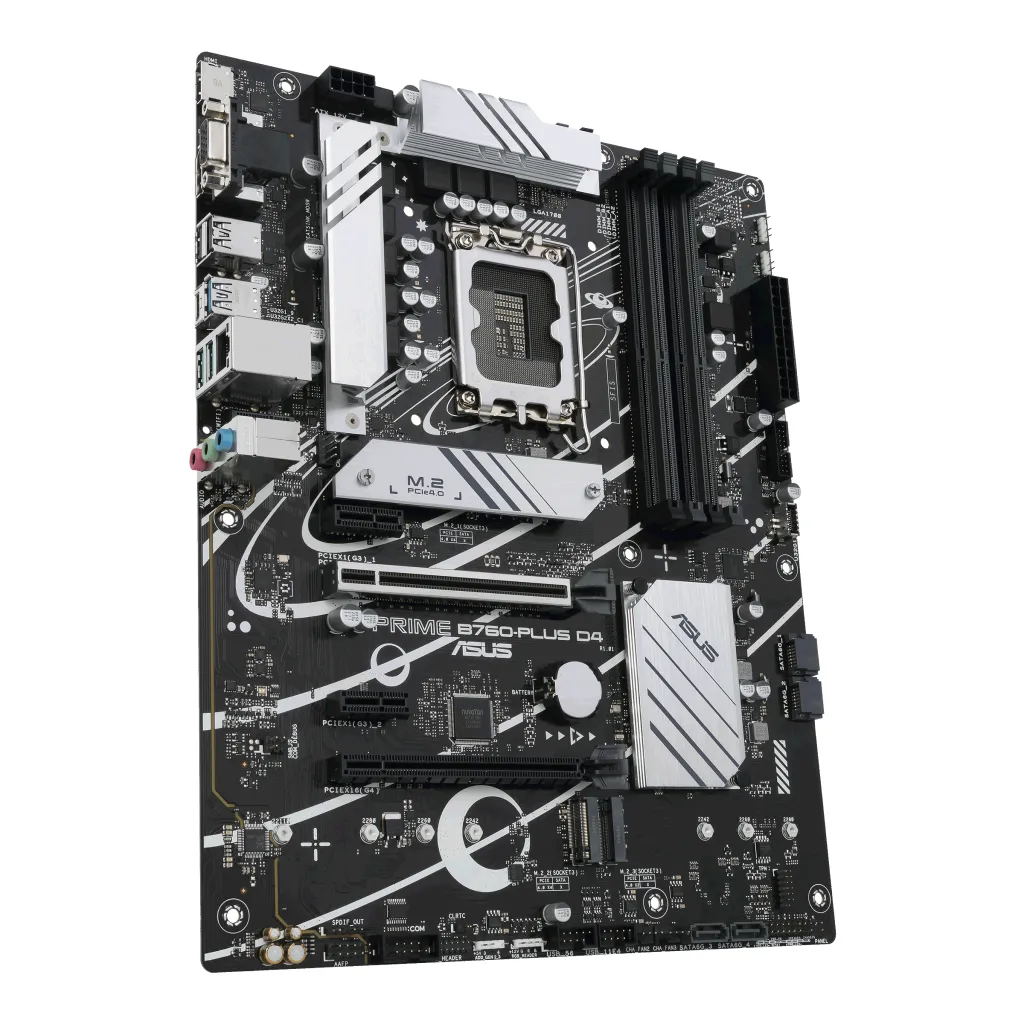

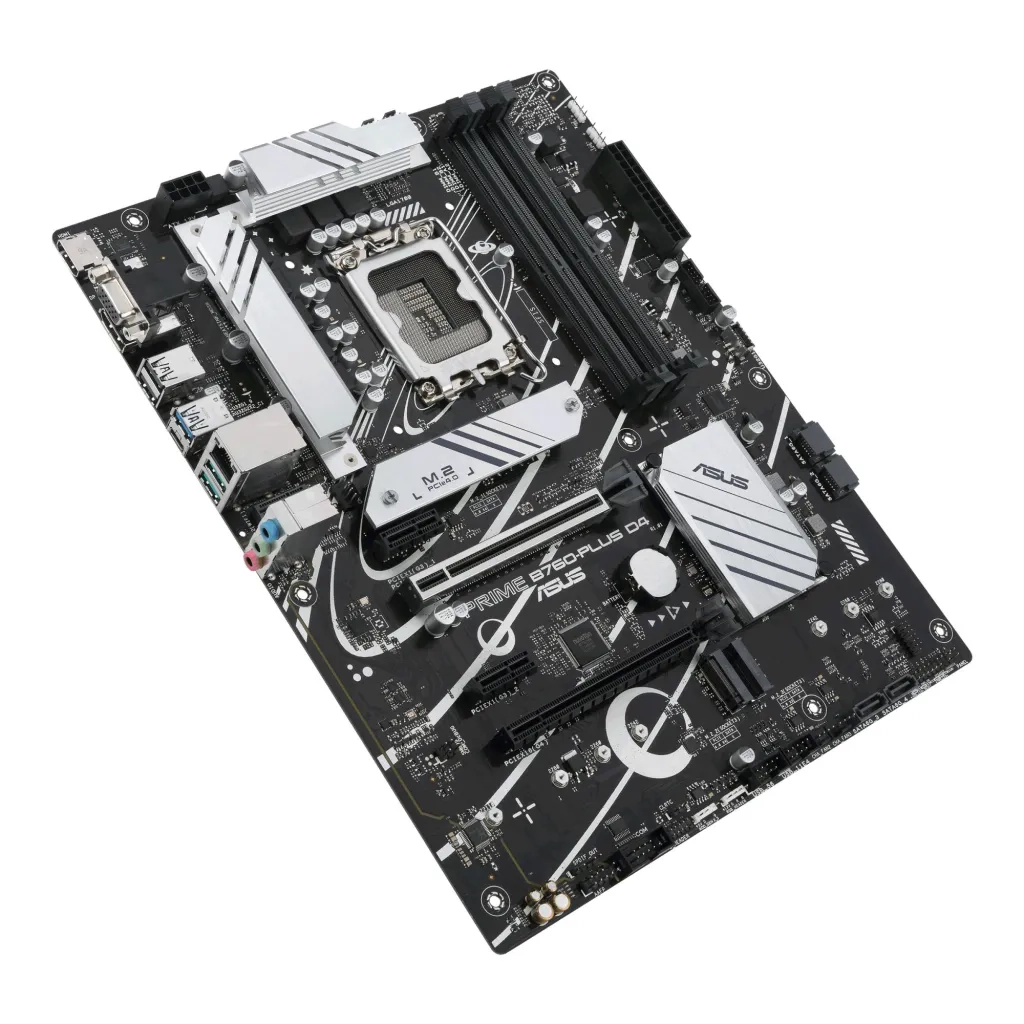

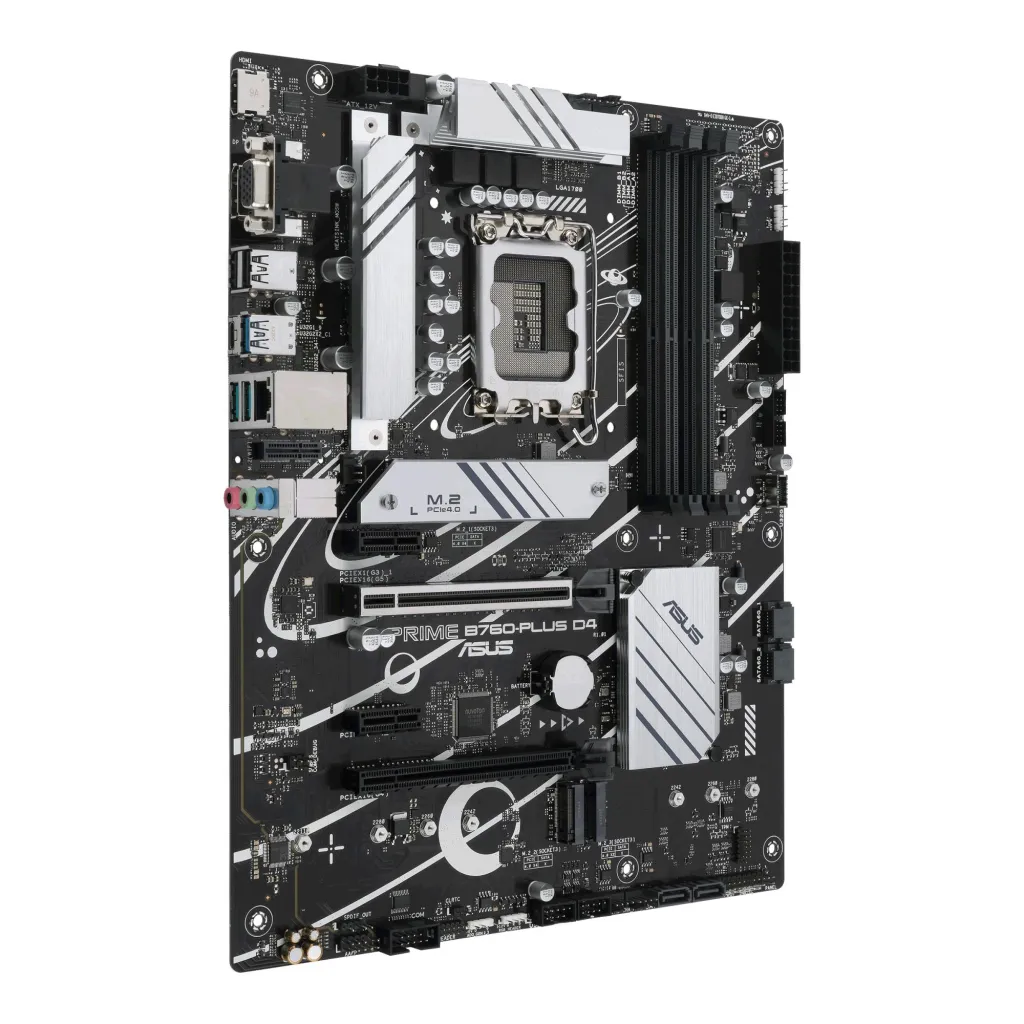

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

Muud näitajad

DisplayPort versioon

1.4

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Supported processor sockets

LGA 1700

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

Number of chassis fan connectors

3

Number of COM connectors

1

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

S/PDIF out connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Ei ole toetatud

Number of M.2 (M) slots

3

Line-in

Jah

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

PCI Express x1 (Gen 3.x) slots

2

Maximum number of SMP processors

1

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

Intel

M.2 (E) pesade arv

1

RGB LED pin header

Jah

DisplayPort arv

1

RGB LED pin ots

Jah

USB 3.2

Jah

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

1

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

0

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

2

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

0

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

USB 3.2 Gen 2x2 C-tüüpi portide arv

1

PCI Express x16 (Gen 5.x) slots

1

PCI-Express 5.0 16x

1

PCI Express x16 (Gen 5.x) slotid

1

Supported memory clock speed (max)

5066 MHz

Unit Box Height

0.055

Unit Box Length

0.335

Unit Box Width

0.27

CnKood

84733020

Toetatud mälu taktsageduse kiirus (maks)

5066 MHz

ECC сompatibility

Non-ECC

ECC ühilduvus

Mitte-ECC

Üksuse kalkuleeritud maht

0.006038 cubm

Üksuse kalkuleeritud kaal

1.27 kg

Kokkuvõte

ASUS PRIME B760-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

12V power connector

Jah

Number of M.2 (E) slots

1

Front panel connector

Jah

Toetatud Windows operatsioonisüsteemid

Windows 10, Windows 11

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus-d4/

HDMI versioon

2.1

Mudel

PRIME B760-PLUS D4

Pakendi laius

328 mm

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

2

Pakendi kõrgus

53 mm

Component for

PC

Transpordipakendi kaal

12.65 kg

Transpordipakendi kõrgus

30 cm

Transpordipakendi laius

35 cm

Transpordipakendi sügavus

57.5 cm

COM-pistmike arv

1

Kogus transpordikasti kohta

10

Toetatud kõvaketaste arv

4

Pakendi sügavus

266 mm

Pakendi laius ( mm )

328 mm

Pakendi kõrgus ( mm )

53 mm

Pakendi kaal

1160 g

Toetatud ketaste tüübid

HDD & SSD

Toetatud ketaste arv

7

HDMI-versioon

2.1

DisplayPorts quantity

1

Sisendkanal

Jah

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Jahutuse tüüp

Passiivne

Headphone outputs

1

Motherboard chipset

Intel B760

Peripheral (Molex) power connectors (4-pin)

1

RAID support

Jah

Toetatud protsessoripesad

LGA 1700

Unbuffered memory

Jah

VGA (D-Sub) ports quantity

1

Windows operating systems supported

Windows 10/Windows 11

BIOS memory size

128 Mbit

DisplayPort

1

Number of memory slots

4

Processor Socket

LGA 1700

Raid Levels

0/1/10/5

Supported memory clock speeds

2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066 MHz

USB 2.0 connectors

2

USB-C

1
