Access Point|UBIQUITI|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|1x2.5GbE|U7-PRO

.: Üldised andmed :.

Seadme tüüp

Wireless Access Point

Tootja koduleht

https://eu.store.ui.com/eu/en/pro/category/whats-new/products/u7-pro

.: Üldised omadused :.

5 GHz

Jah

.: Disain :.

Toote värv

White

Toote värv

White / Blue

LED-indikaatorid

Jah

.: Toimimine :.

Band Steering

Jah

MIMO

Jah

.: Võrgustumine :.

Võrgustandardid

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.1Q/IEEE 802.3at

VLAN-i tugi

Jah

Ethernet LAN-i andmeedastuskiirused

1000/2500 Mbit/s

.: Pesad & liidesed :.

WAN-ühendus

Ethernet (RJ-45)

Võimsus ja energiatarve

Power over Ethernet (PoE)

Jah

Turvalisus

Turvaalgoritmid

PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

WPA - Wi-Fi Protected Access

Jah

WPA2 - Wi-Fi Protected Access

Jah

Antenn

Antenni tüüp

Internal

Juhtmevaba LAN-i omadused

IEEE 802.11a/b/g

Jah

IEEE 802.11ac

Jah

IEEE 802.11n

Jah

.: Tehnilised andmed :.

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Sustainability compliance

Jah

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Toide

Toitenõuded

PoE+

Ergonoomika

Lähtestusnupp

Jah

Funktsioonid

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Fit AP mode features

Hotspot 2.0

6 GHz

Jah

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Mudeli originaalnimi

U7 Pro

Internet elektrivõrgu kaudu (PoE)

Power over Ethernet (PoE) type supported

PoE+

Logistika andmed

Kogus transpordikasti kohta

5

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

5 - 95 %

.: Pakendi sisu :.

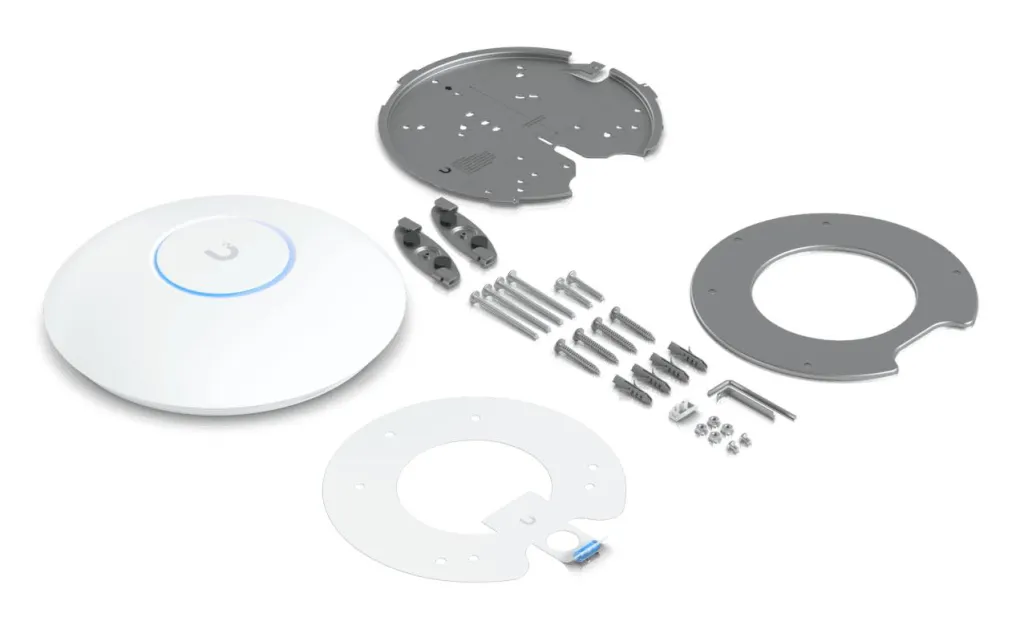

Paigalduskomplekt

Jah

.: Pakendi andmed :.

Max kogus transpordipakendis

5

Pakendi maht

0.01157 cubm

Transpordipakendi kaal

7.9 kg

Transpordipakendi kõrgus

32 cm

Transpordipakendi laius

32 cm

Transpordipakendi sügavus

56.5 cm

Tehnilised andmed

2.4 GHz

Jah

Rate limiting

Jah

IEEE 802.11ax

Jah

2.5GbE

1

Unit Box Height

0.245

Unit Box Length

0.246

Unit Box Width

0.096

CnCode

85176200

Quantity per pack

1 pc(s)

Unit Calculated Volume

0.01157 cubm

Unit Calculated Weight

1.58 kg

Summary

Ubiquiti U7 Pro. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W

Long Description

Ubiquiti U7 Pro. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W

Bullet Points

<ul><li>WiFi 7 tri-radio with 6 GHz</li><li>6 spatial streams</li><li>140 m² (1,500 ft²) coverage</li><li>300+ connected devices</li><li>Powered using PoE+</li><li>2.5 GbE uplink</li></ul>

MIMO type

Multi User MIMO

DC voltage range

44 - 57 V

Throughput data rate

5765 Mbit/s

Fast roaming

Jah

Coverage area

140 m²

Maximum Tx power (2.4 GHz)

22 dBmW

Maximum Tx power (5 GHz)

26 dBmW

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Maximum Tx power (6 GHz)

23 dBmW

Ethernet LAN (RJ-45) ports

1

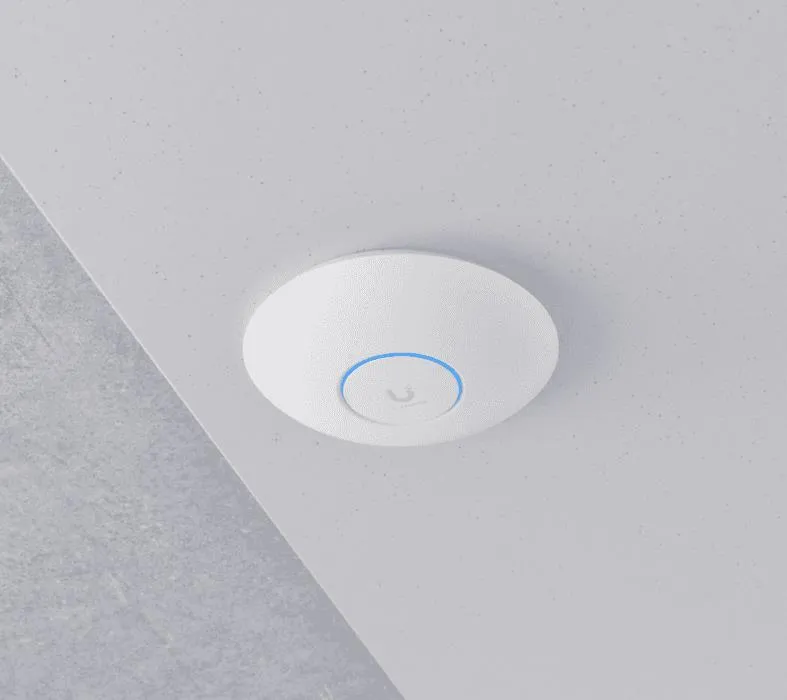

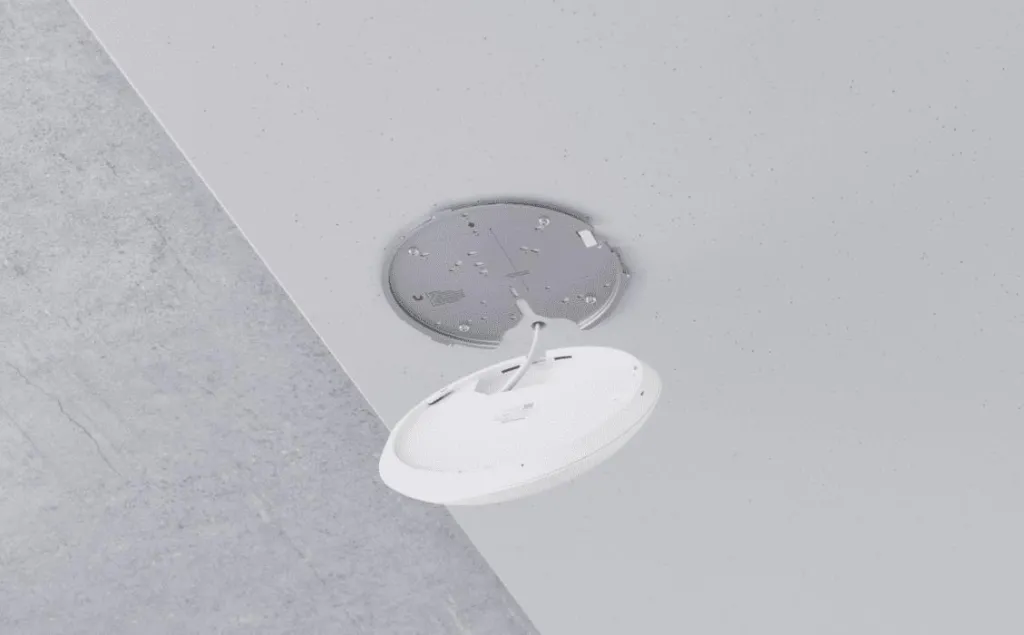

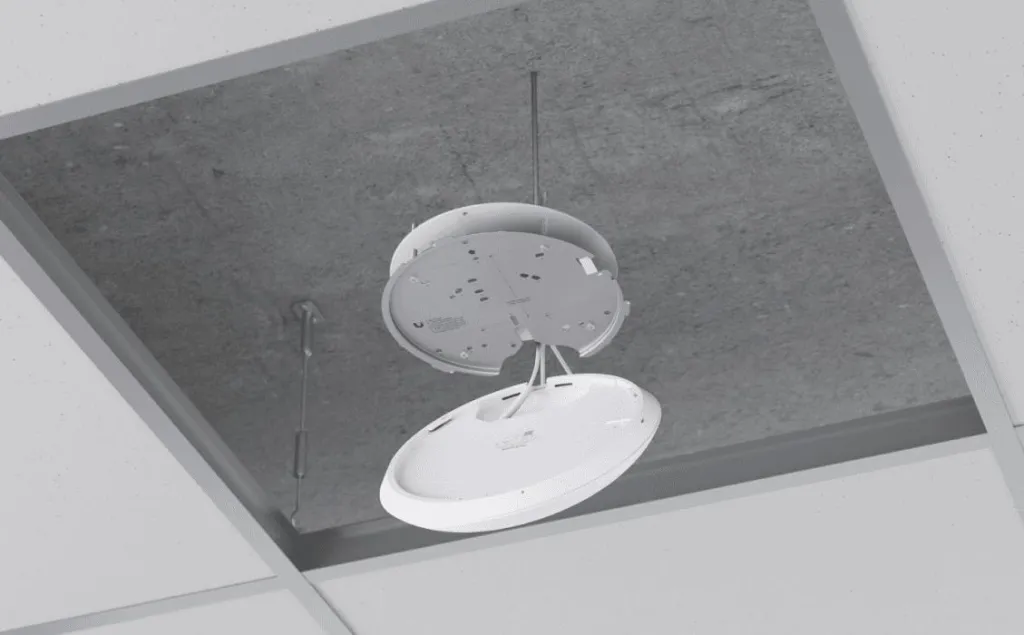

Placement

Ceiling,Wall

Antenna Gain

26 dB

Antenna gain level (max)

6 dBi

Frequency Band

2.4 - 6 GHz

Housing material

Metal,Polycarbonate (PC)

Maximum data transfer rate

5800 Mbit/s

Number of users

300 user(s)

Tehnilised andmed

Netokaal

0.68 kg

Netokaal

0.68 kg

Brutokaal

1.58 kg

Laius

206 mm

Sügavus

206 mm

Kõrgus

46 mm

Mõõtmed (l x s x k)

Ø206 x 46 mm

Toote kaal

680 g
