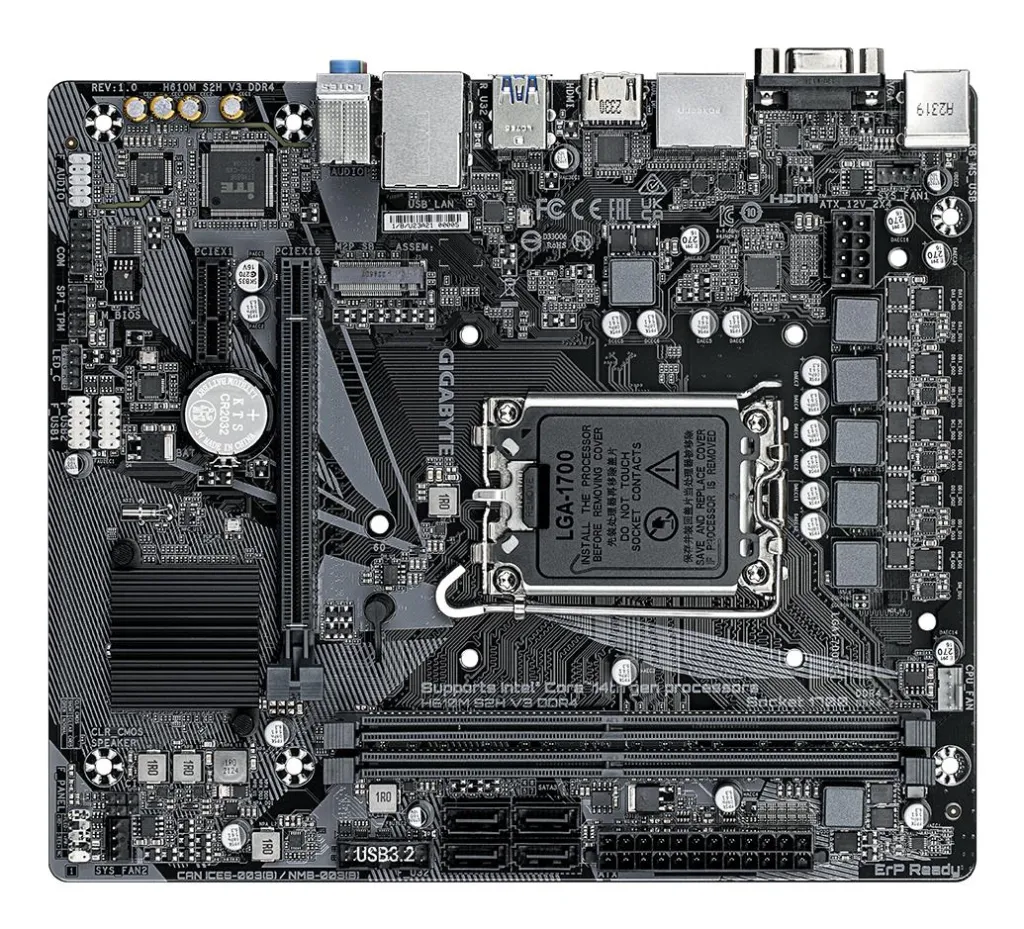

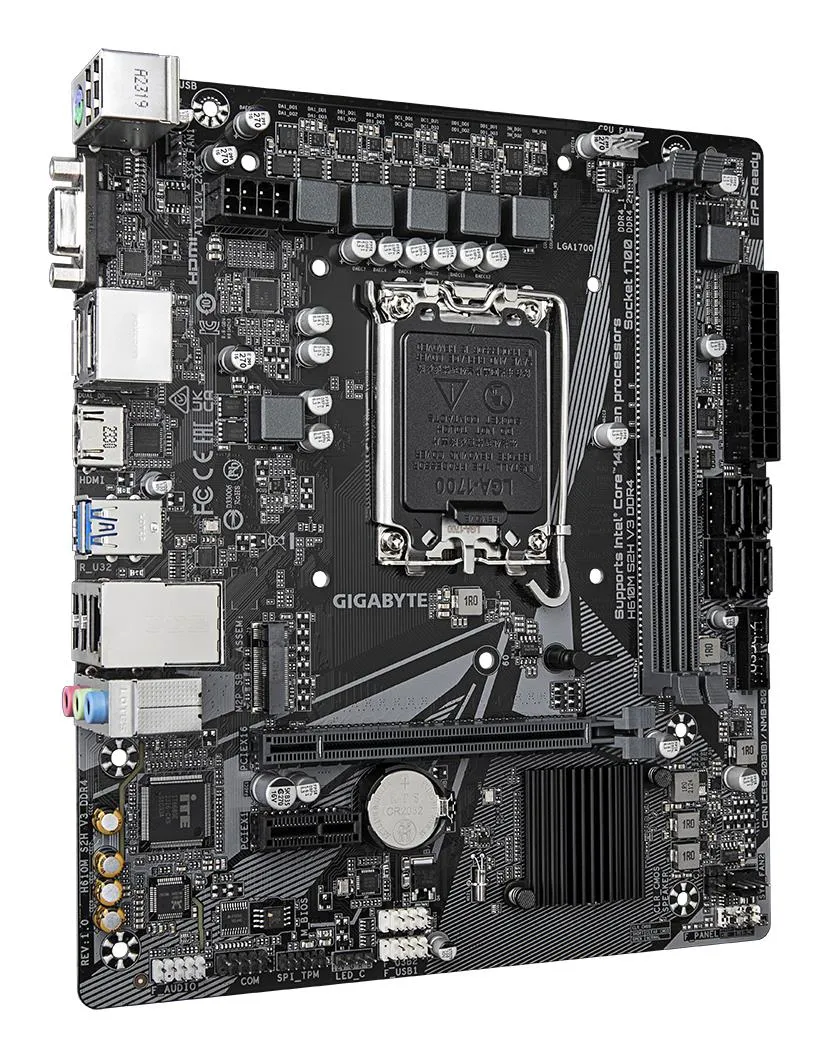

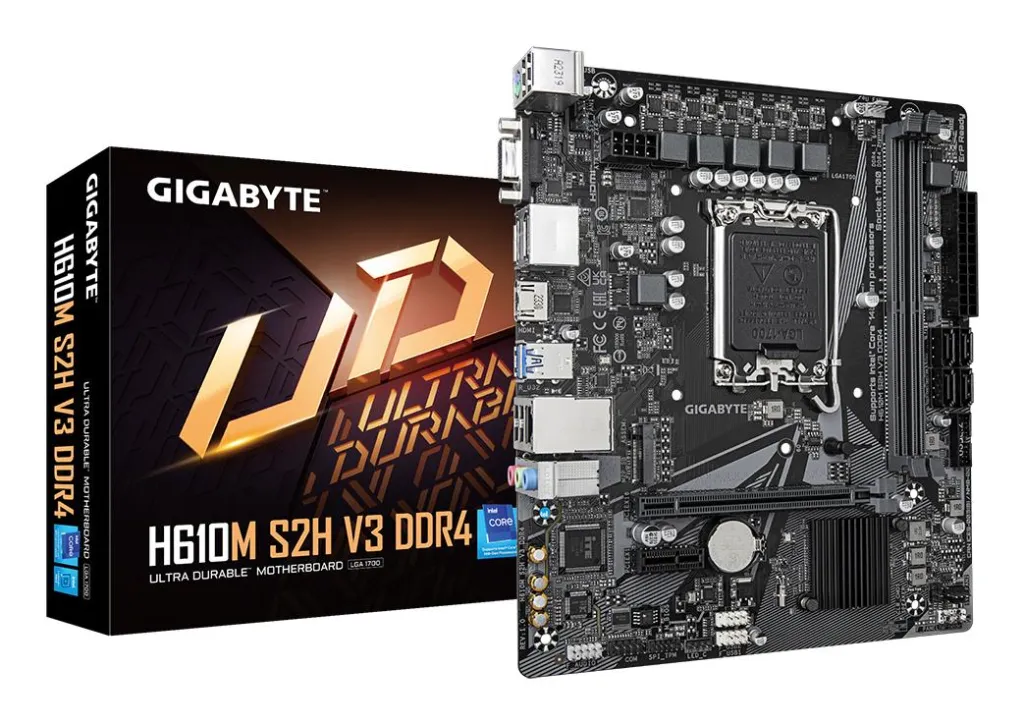

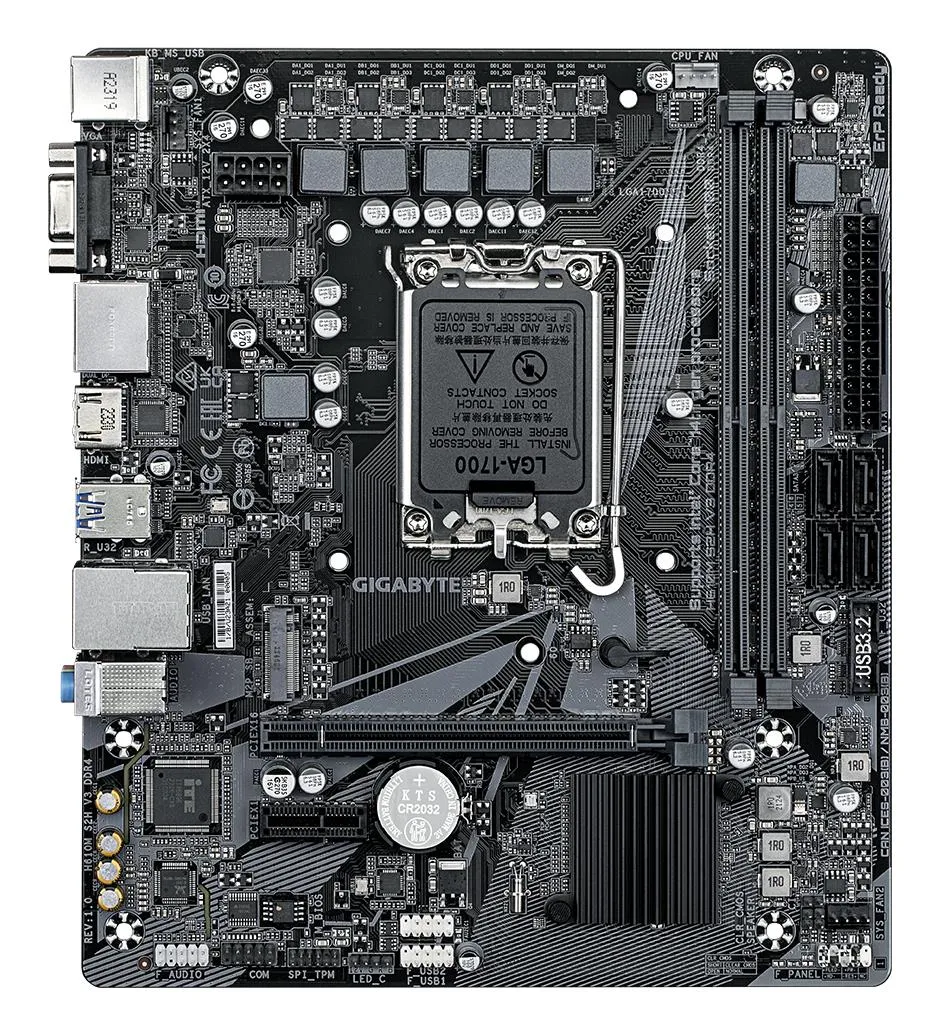

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MS2HV3DDR4
68.15€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 223 mm
- Sügavus
- 193 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel H610
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3000/3200 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

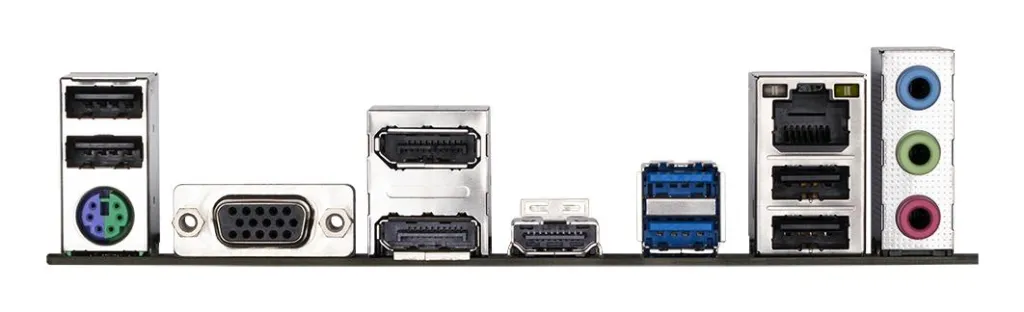

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- Serial
- Jah
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.5 kg
- Netokaal
- 0.3 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.00351 cubm
Muud näitajad
- DisplayPort versioon
- 1.2
- Compatible processor series
- Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Chassis intrusion connector
- Jah
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Ei ole toetatud
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 1
- Line-in
- Jah
- Number of storage drives supported
- 5
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- Intel
- Serial port headers
- 1
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Supported memory clock speed (max)
- 3200 MHz
- Unit Box Height
- 0.05
- Unit Box Length
- 0.27
- Unit Box Width
- 0.26
- CnKood
- 84733020
- Garantiiaeg
- 3 aasta(s)
- ECC сompatibility
- ECC & Non-ECC
- Üksuse kalkuleeritud maht
- 0.00399 cubm
- Üksuse kalkuleeritud kaal
- 0.756 kg
- Kokkuvõte
- GIGABYTE H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Products per shipping (inner) case
- 1 tk
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- Tootja koduleht
- https://www.gigabyte.com/
- HDMI versioon
- 2.1
- Mudel
- H610M S2H V3 DDR4
- Pakendi laius
- 265 mm
- Number of CPU fan connectors
- 1
- Pakendi kõrgus
- 52 mm
- Kaasas tarkvara
-
Norton Internet Security (OEM version)
LAN bandwidth management software - Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 1
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 3.0
- Component for
- PC
- Transpordipakendi kaal
- 7.55999994277954 kg
- Transpordipakendi kõrgus
- 25 cm
- Transpordipakendi laius
- 28.5 cm
- Transpordipakendi sügavus
- 56 cm
- Kogus transpordikasti kohta
- 10
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Pakendi sügavus
- 235 mm
- Maksimaalne resolutsioon
- 4096 x 2304 pixels
- Pakendi kaal
- 774 g
- HDCP
- Jah
- Kõrgus
- 35 mm
- DisplayPorts quantity
- 2
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Jahutuse tüüp
- Aktiivne
- Päritoluriik
- China
- Toote värv
- Must
- Microphone in
- Jah
- Motherboard chipset
- Intel H610 Express
- Unbuffered memory
- Jah
- USB connector type
- USB Type-A
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- DisplayPort
- 2
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- Supported memory clock speeds
- 2133/2400/2666/2933/3000/3200 MHz
- USB 2.0 connectors
- 2
