Tulen ise kaubale järele

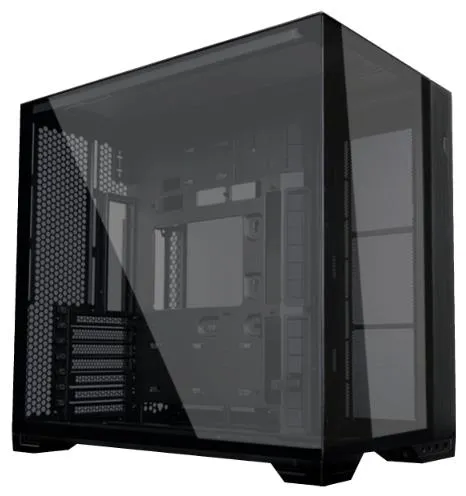

Case|LIAN LI|O11 VISION COMPACT|Tower|Case product features Transparent panel|ATX|EATX|MicroATX|MiniITX|Colour Black|G99.O11VPX.00
128.72€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.81 €. Taotle järelmaksu ostukorvis.
IN COLLABORATION WITH PCMR
The O11 VISION COMPACT is a collaboration with PC Master Race (PCMR), which is a smaller iteration of the original O11 VISION.
With a customizable mesh top panel and support for back-connect ATX motherboards, this case is designed for ultimate flexibility.
The main tenet of PCMR is freedom and customization, and the O11 VISION COMPACT enables it, by allowing the user to build the ultimate battlestation, tailored to their individual preferences.
Enjoy enhanced stability with the removable GPU bracket and experience concealing cable management for the cleanest look. The unobstructed view for the optimal showcasing of the components without clutter sets a new benchmark in DIY aesthetics.
The O11 VISION COMPACT embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.
SIZE COMPARISON
The size of the O11 VISION COMPACT is based on the original from the O11 Dynamic. Its volume has been reduced from 67.8 L (O11 Vision) to 57.4 L, (O11 Vision Compact) making it 10.4 L more compact.
UNOBSTRUCTED HARDWARE SHOWCASE
O11 VISION COMPACT enhances your setup with its unique swappable top panels and concealed AIO tubing design, giving your chassis a standout and elegant look.
TWO COLORS
This chassis comes in two colors: black and white. Black version features a tinted glass panel, while the white version comes with clear tempered glass panels along with matching grommets, thumb screws, and brackets.
Brushed aluminiun finish
Inner Corner Silkscreen
Swappable Mesh/Glass Panels
3mm Top Tempered Glass
4mm Tinted Side and Front Tempered Glass
Aluminum with White Powder Coating
Outer Corner White Silkscreen
Swappable Mesh/Glass Panels
3mm Top Tempered Glass
4mm Clear Side and Front Tempered Glass
EXTREME VERSATILITY – VISION OR MESH
O11 VISION COMPACT offers two different top panel options: a mesh panel designed for top AIO installation, and a tempered glass panel that allows for 270-degree side visibility, showcasing your components beautifully.
STURDY SUPPORT STRUCTURE
The glass panels meet at the top left corner at a mounting key that provides alignment and magnetic support to the glass panels. The mounting key is hidden behind a triangular silk screen, with the white version being an elegant gradient white and grey. The mounting key used is rated for 35 kg of force to ensure a strong support.
THREE-SIDED GLASS MODE: SHOWCASE YOUR STYLE
The space above the motherboard can be used to install monitor accessories. There’s also an opening at the back to allow the monitor’s cable to be easily routed to the motherboard’s back IO. Additionally, the AIO tubing can be concealed in the second chamber, while the support for back-connect motherboards ensures a clean and beautiful layout in the main chamber.
The chasis supports up to a maximum of 14 fans (mesh mode push-pull set up) and up to 360mm radiator, ensuring excellent ventilation and cooling while maintaining a tidy appearance even with loads of component.
Concealed Cables: Simple and Elegant
Beside the rear pass-through grommet, an ATX EPS cover provides a clean BTF look. Long vertical grommets run the right side of the motherboard. The large top grommet can pass a CPU pump block, and can be removed/re-inserted for maximum clearance. Detaching the cable cover, AIO tubes slide into provided channels for a cleaner look.
POWERFUL COOLING COMPATIBILITY
MESH MODE
Supports up to 11x120mm fans, or 2x140mm and 8x120mm fans
VISION MODE
Supports up to 8x120mm fans
IMPROVE INTAKE WITH REVERSIBLE BRACKET
The side radiator bracket can be removed for easy radiator and fan installation. Remove the thumbscrew on the right-side interior, and the bracket can be removed. The bracket can also be reversely installed for different setup configurations.
PRE-INSTALLED GPU ANTI-SAG BRACKET
The O11 Vision Compact features a built-in removable GPU anti-sag bracket that holds GPU ranging from 278mm to 408mm.The height is adjustable by turning the thumbscrew behind the motherboard tray to secure it.
EASY ACCESS FOR DUST FILTERS
The bottom of the O11 VISION COMPACT is equipped with a full-length dust filter that pull out from the left side. There are four magnets that attach the filter tight against the frame.
Front I/O
The power button features a white backlight to indicate the power status. The front I/O ports are located at the foot design, offering a variety of connections for convenience.
HIGH STORAGE CAPACITY
The removable cable management bar is secured by magnetic latches. Supports up to 2×2.5″ SSDs and can also accommodate a fan or ARGB hub.
DRIVE CAGE
2 x 2.5″ SSD or 2 x 3.5″ HDD. Each drive cage is independently removable, freeing up space for cable management.
EASY CABLE MANAGEMENT
Like the O11 VISION, the O11 VISION COMPACT also comes with 2 dual-layer cable clips that slide out of their SSD-style mounting points. The clip can hold the bulk of PSU cables, while the Velcro strap on top is ideal for fan cable management. 6 additional Velcro straps, 2 above and 4 below, tidy up cables to the motherboard and storage.
EXTENDED ROOM
The PSU mounting bracket, carrying over the design from the O11 VISION, protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.
- Two top panel options: mesh or tempered glass
- Vision mode with tempered glass for an uninterrupted view of components
- Mesh mode with fan bracket for additional radiator or fan support
- Supports up to 11 fans and a maximum of 360mm large radiator
- Compatible with back-connect ATX motherboards
- Hidden AIO tube design for a streamlined appearance
- Dual-chamber layout with cable management compartment and cable holders
.: Üldised andmed :.
- Tootja koduleht
- https://lian-li.com/product/o11-vision-compact/
- Mudel
- O11VPX Black
- Seadme tüüp
- PC
.: Disain :.
- Kokkuvõte
- Lian Li 011 Vision COMPACT. Form factor: Tower, Type: PC, Product colour: Black. Side fans diameters supported: 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 287.5 mm, Depth: 447.5 mm, Height: 446.4 mm
- Tempered glass panel(s)
- Jah
- Kujutegur
- Torn
- Laienduspesade arv
- 7
- Toote värv
- Must
.: Pesad & liidesed :.
- USB Type-C ports quantity
- 1
- USB 3.0
- 2
Ergonoomika
- Lähtestusnupp
- Jah
Funktsioonid
- Mudeli originaalnimi
- O11 VISION COMPACT
Logistika andmed
- Kogus transpordikasti kohta
- 1
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.1188 cubm
- Transpordipakendi kaal
- 14.5 kg
- Transpordipakendi kõrgus
- 55 cm
- Transpordipakendi laius
- 40 cm
- Transpordipakendi sügavus
- 54 cm
Tehnilised andmed
- Unit Box Length
- 0.54
- Supported HDD sizes
- 2.5/3.5 "
- Number of rear fans supported (max)
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Üksuse kalkuleeritud maht
- 0.1188 cubm
- Case width
- 287.5 mm
- CnKood
- 84733080
- Unit Box Width
- 0.4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Unit Box Height
- 0.55
- 2.5"/3.5" Internal
- 2
- Anti-dust filter
- Jah
- SSD form factor
- 2.5"
- Side fans diameters supported
- 120 mm
- Case product features
- Transparent panel
- Maximum PSU length
- 220 mm
- Number of bottom fans supported (max)
- 3
- Bottom radiator sizes supported
- 240/360 mm
- Side radiator sizes supported
- 240/360 mm
- Number of top fans supported (max)
- 3
- Number of side fans supported (max)
- 3
- Built-in display
- Ei
- Combo headphone/mic port
- Jah
- Maximum graphics card length
- 408 mm
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 2
- Power supply included
- Ei
- Supported motherboard form factors
- ATX/EATX/micro ATX/Mini-ITX
- 2.5" Internal
- 2
- ATX
- Jah
- Bottom fans diameters supported
- 120 mm
- Case Type
- Torn
- EATX
- Jah
- Material
- Aluminium/Steel/Tempered glass
- Maximum CPU cooler height
- 164 mm
- MicroATX
- Jah
- MiniITX
- Jah
- Rear fans diameters supported
- 120 mm
- Top fans diameters supported
- 120/140 mm
- Top radiator sizes supported
- 240/280/360 mm
- USB-C
- 1
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 14.5 kg
- Netokaal
- 10 kg
- Brutokaal
- 14.5 kg
- Laius
- 287.5 mm
- Sügavus
- 447.5 mm
- Kõrgus
- 446.4 mm
- Mõõtmed (l x s x k)
- (D)447.5mm x (W)287.5mm x (H)446.4mm
