Case|NZXT|H7 Flow|MidiTower|ATX|EATX|MicroATX|MiniITX|Colour White|CM-H72FW-01
133.25€
AL1
AL1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Toote on läbimüüdud kuid võimalik tellida, tellimiseks võta ühendust meie klienditoega info[at]digipood.eu

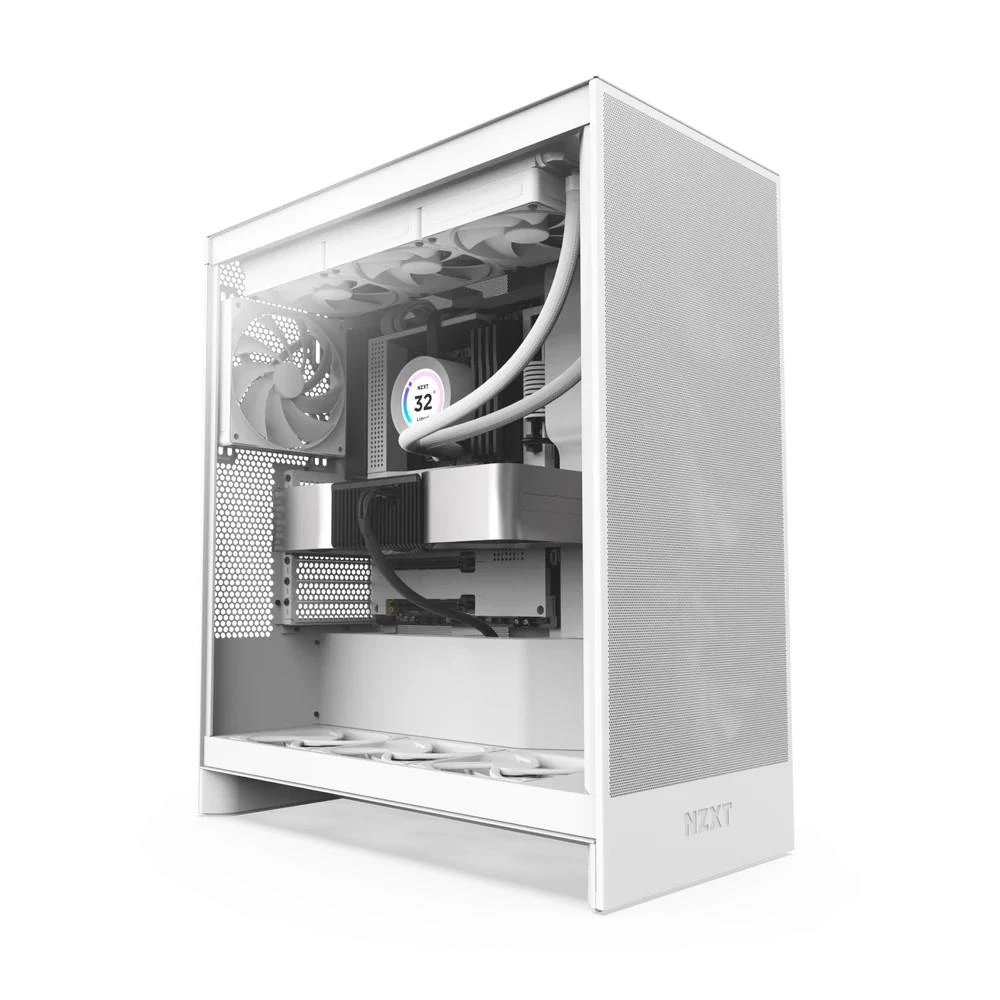

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

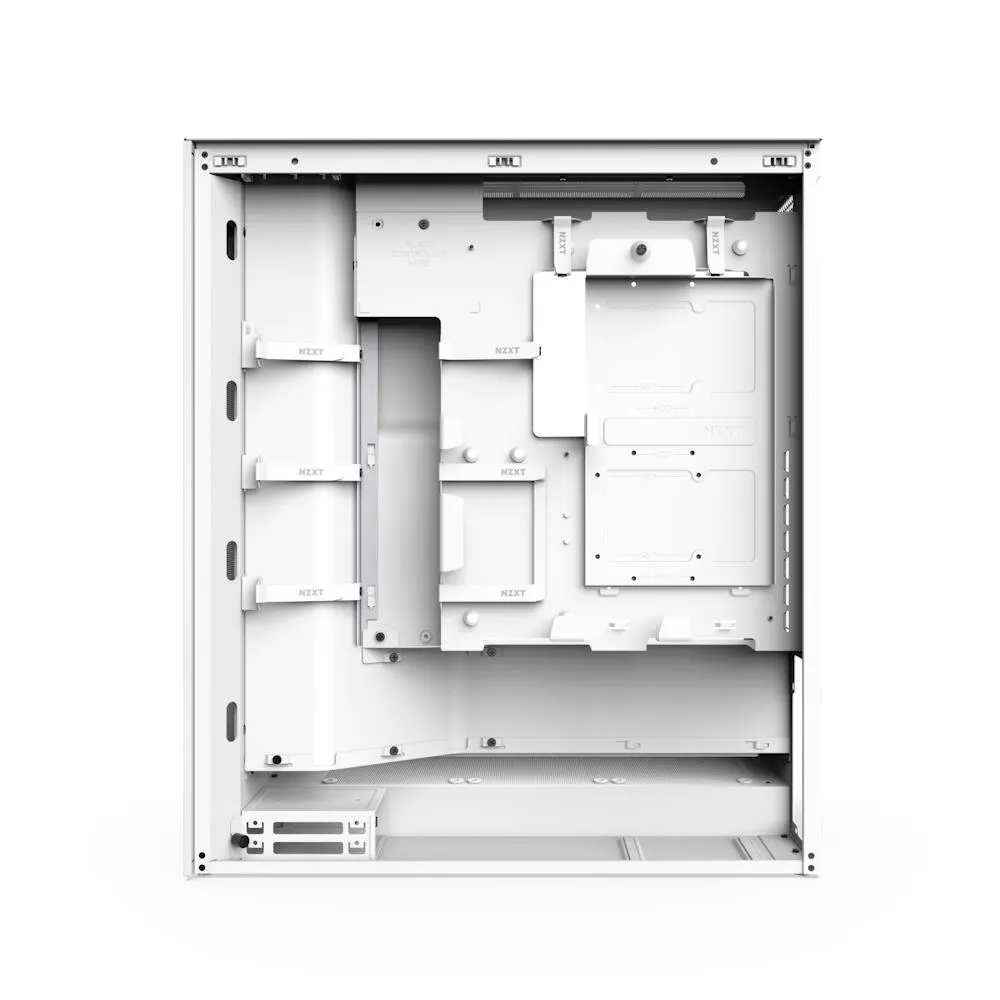

Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

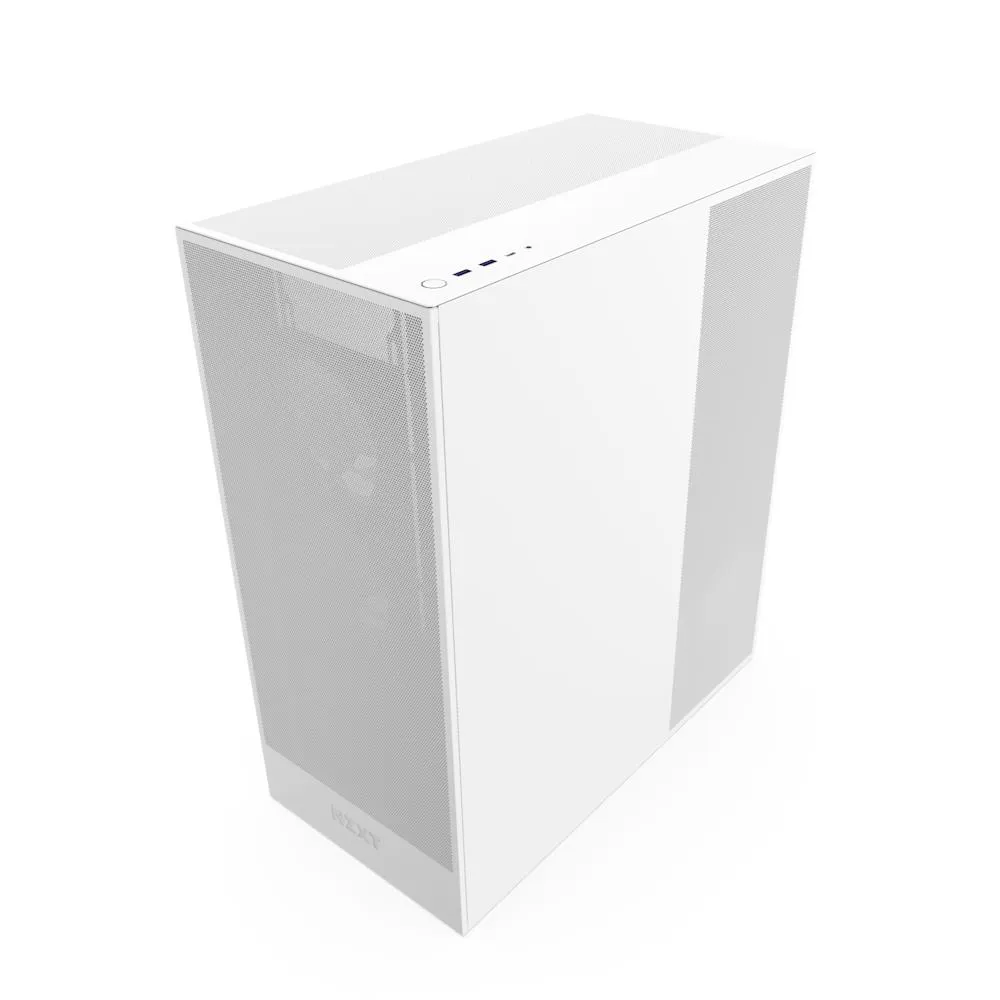

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

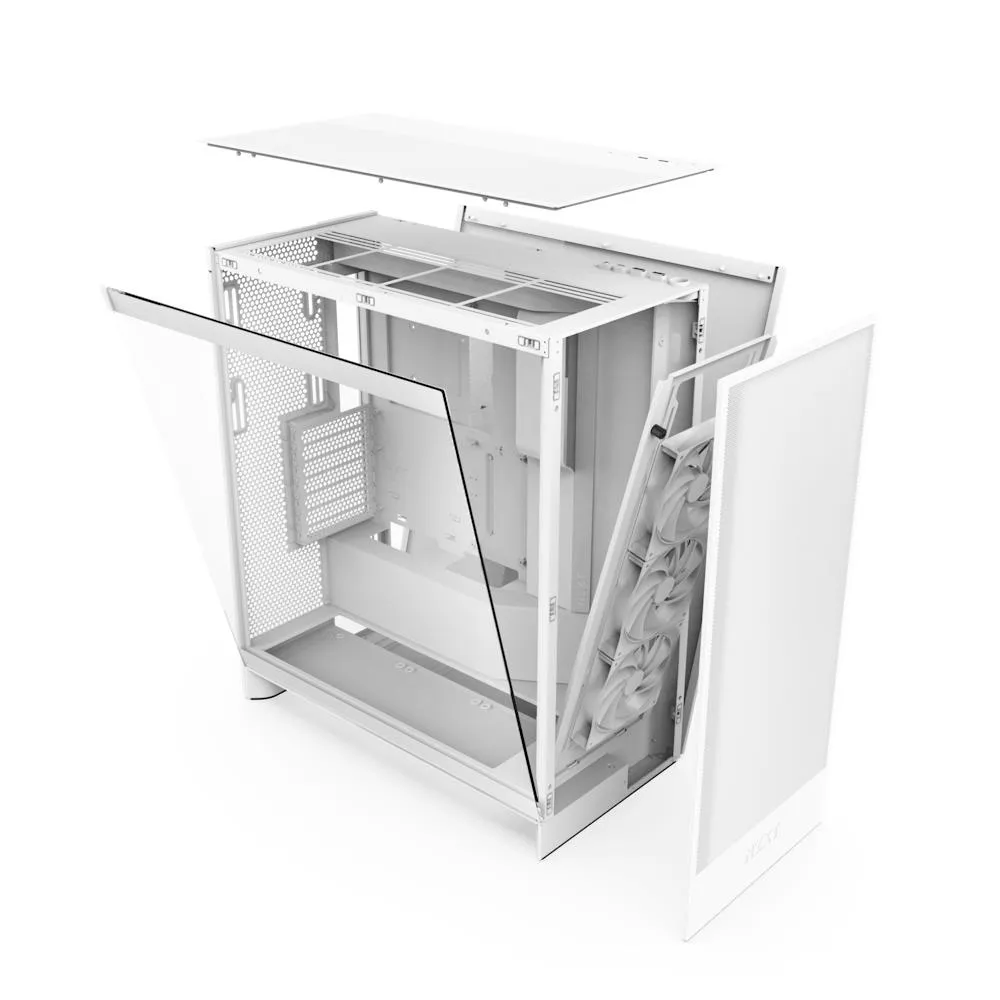

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze
.: Üldised andmed :.
- Tootja koduleht
- https://nzxt.com/product/h7-flow#
- Seadme tüüp
- PC
.: Disain :.
- Tempered glass panel(s)
- Jah
- Kujutegur
- Midi Tower
- Laienduspesade arv
- 7
- Toote värv
- White
.: Tehnilised andmed :.
- Garantiiaeg
- 2 year(s)
Ergonoomika
- Lähtestusnupp
- Ei
Funktsioonid
- Mudeli originaalnimi
- H7 Flow
Logistika andmed
- Kogus transpordikasti kohta
- 1
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.1167 cubm
- Transpordipakendi kaal
- 14 kg
- Transpordipakendi kõrgus
- 57 cm
- Transpordipakendi laius
- 32.5 cm
- Transpordipakendi sügavus
- 63 cm
Tehnilised andmed
- CnKood
- 84733080
- Number of rear fans supported (max)
- 1
- Number of front fans supported (max)
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Summary
- NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm
- Üksuse kalkuleeritud maht
- 0.1167 cubm
- On/off button
- Jah
- Unit Box Width
- 0.325
- Unit Box Length
- 0.63
- Unit Box Height
- 0.57
- USB 3.2
- 2
- Maximum air pressure
- 1.05 mmH2O
- Maximum PSU length
- 200 mm
- Cable management
- Jah
- Fan 2 maximum airflow
- 60.2 cfm
- Fan 2 maximum air pressure
- 1.05 mmH2O
- Fan speed control
- Ei
- Number of top fans supported (max)
- 3
- Supported HDD sizes
- 2.5/3.5 "
- Front fans installed
- 3x 120 mm
- Maximum graphics card length
- 410 mm
- Number of 2.5" bays
- 4
- Number of 3.5" bays
- 2
- Power supply included
- Ei
- Side window
- Jah
- Supported motherboard form factors
- ATX/EATX/micro ATX/Mini-ITX
- 2.5" Internal
- 4
- 3.5" External
- 2
- ATX
- Jah
- Audio Output
- Jah
- Case Type
- MidiTower
- EATX
- Jah
- Fan speed
- 1200 - 1500 RPM
- Front fans diameters supported
- 120/140 mm
- Front radiator sizes supported
- 360/420 mm
- Headphones jack
- 1
- Material
- SGCC/Tempered glass
- Maximum airflow
- 60.2 cfm
- Maximum CPU cooler height
- 185 mm
- MicroATX
- Jah
- MiniITX
- Jah
- Optional Accessories
-
F120Q Airflow Fan (pre-installed, case version)
Installation Accessories
Manual - Rear fans diameters supported
- 120/140 mm
- Rear radiator sizes supported
- 140 mm
- Top fans diameters supported
- 120/140 mm
- Top radiator sizes supported
- 360 mm
- USB-C
- 1
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 14 kg
- Netokaal
- 11.13 kg
- Brutokaal
- 14 kg
- Laius
- 244 mm
- Sügavus
- 468 mm
- Kõrgus
- 544 mm
- Mõõtmed (l x s x k)
- 544 x 244 x 468 mm
- Toote kaal
- 11130 g
