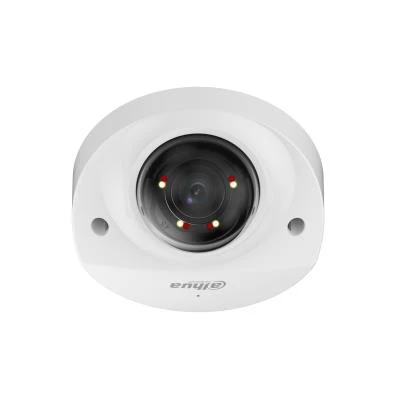

NET CAMERA 4MP DOME/IPC-HDBW2449F-AS-IL0280B DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 9.03 €. Taotle järelmaksu ostukorvis.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
- IP67 and IK10 protection
- SMD Plus
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2449F-AS-IL
.: Üldised omadused :.
- Audioväljundi kanalid
- 1.0 channels
.: Disain :.
- Toote värv
- White
- Kujutegur
- Dome
.: Mälu :.
- RAM capacity
- 128 MB
- Integreeritud kaardilugeja
- Jah
- Ühilduvad mälukaardid
- MicroSD (TransFlash)
.: Audio :.
- Sisseehitatud mikrofon
- Built-in
.: Kaamera :.
- Lens viewing angle, vertical
- 54 °
- Valge tasakaalustus
- Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
.: Võrgustumine :.
- WiFi
- Ei
- Ethernet LAN
- Jah
- Bluetooth
- Ei
.: Pesad & liidesed :.
- Audioväljund
- 1
- Ethernet LAN (RJ-45) pordid
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC,PoE
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 2.3 W
.: Salvestusruum :.
- ROM capacity
- 128 MB
Pildisensor
- Progressiivne skaneerimine
- Jah
Juhtimisfunktsioonid
- Veebipõhine haldus
- Jah
Objektiivi süsteem
- Lens viewing angle, diagonal
- 120 °
- Lens viewing angle, horizontal
- 101 °
Öövaatluse funktsioon
- Öönägemine
- Jah
Toide
- Toitenõuded
- Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
- Voolutarve
- 2.3 Watts
Ergonoomika
- Pöördenurga ulatus
- 360 °
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 60 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.001607 cubm
- Transpordipakendi kaal
- 0.54 kg
- Transpordipakendi kõrgus
- 8.5 cm
- Transpordipakendi laius
- 13.5 cm
- Transpordipakendi sügavus
- 14 cm
- Pakendi kaal
- 550 g
Tehnilised andmed
- Placement supported
- Outdoor
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Number of cameras
- 1
- Active tampering alarm
- Jah
- Wide Dynamic Range (WDR)
- Jah
- Alarm input/output
- Jah
- Built-in light
- Jah
- Video motion detection
- Jah
- Number of illumination LEDs
- 4
- LED type
- IR/White
- Unit Box Height
- 0.085
- Unit Box Length
- 0.14
- Unit Box Width
- 0.135
- CnCode
- 85258900
- Unit Calculated Volume
- 0.001607 cubm
- Unit Calculated Weight
- 0.54 kg
- Summary
- Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m
- Tilt angle range
- 0 - 80 °
- IK code
- IK10
- Back Light Compensation (BLC)
- Jah
- Highlight Compensation (HLC)
- Jah
- Noise reduction technology
- 3D noise reduction
- Number of lenses
- 1
- Intelligent Video Surveillance (IVS) system features
- Human detection/Intrusion/Tripwire/Vehicle detection
- Infrared (IR) cut-off filter
- Jah
- Region of Interest (ROI) encoding
- Jah
- Detect distance
- 63.6 m
- Identify distance
- 6.4 m
- Observe distance
- 25.4 m
- Recognize distance
- 12.7 m
- Number of Privacy masking areas
- 4
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Audio input channels
- 1.0 channels
- Power consumption (Power over Ethernet (PoE))
- 3.8 W
- Fixed focus
- Jah
- Alarm input channels
- 1
- Alarm output channels
- 1
- Privacy protection
- Jah
- Flip & mirror
- Jah
- Gain control type
- Auto/Manual
- DC output voltage
- 12
- Ethernet LAN (RJ-45) ports
- 1
- Mounting type
- Ceiling/Wall/Pole
- Noise reduction
- Jah
- Sensor type
- CMOS
- Video compression formats
- H.264/H.264B/H.264H/H.265/M-JPEG
- Alarm In
- 1
- Alarm Out
- 1
- Bit rate
- H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
- Built-in HDD
- Ei
- Built-in microphone
- Jah
- Camera design
- Dome
- Camera shutter speed
- 1/3 - 1/100000 s
- Closest focusing distance
- 1.7 m
- Connectivity Technology
- Wired
- Diameter
- 108.9 mm
- Electronic Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- Fixed focal length
- 2.8 mm
- Focal Length
- 2.8 mm; 3.6 mm
- Housing material
- Metal
- IR Illumination
- Jah
- Lens Mount
- M12
- Maximum memory card size
- 256 GB
- Min. Illumination
- 0.006 Lux
- Minimum Illumination
- 0.0006 lx
- Network Camera Type
- Fixed/Outdoor
- Night vision distance
- 30 m
- Number of users
- 6 user(s)
- Operating temperature range
- –40 °C to +60 °C
- Optical sensor size
- 1/2.9 "
- Pan range
- -30 - 30 °
- Pixel Resolution
- 4 Mega Pixel
- Power Options
- 12V/PoE
- Resolution
- 4 Mega Pixel
- Sensor size
- 1/2.9" CMOS
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Storage relative humidity (H-H)
- 0 - 95 %
- Total megapixels
- 4 MP
- Video streaming
- Jah
- Voice Codecs
- G.711a/G.711Mu/G.726/PCM
Tehnilised andmed
- Netokaal
- 0.41 kg
- Netokaal
- 0.41 kg
- Brutokaal
- 0.54 kg
- Kõrgus
- 55 mm
- Mõõtmed (l x s x k)
- 55.0 mm × Φ108.9 mm
- Toote kaal
- 410 g
