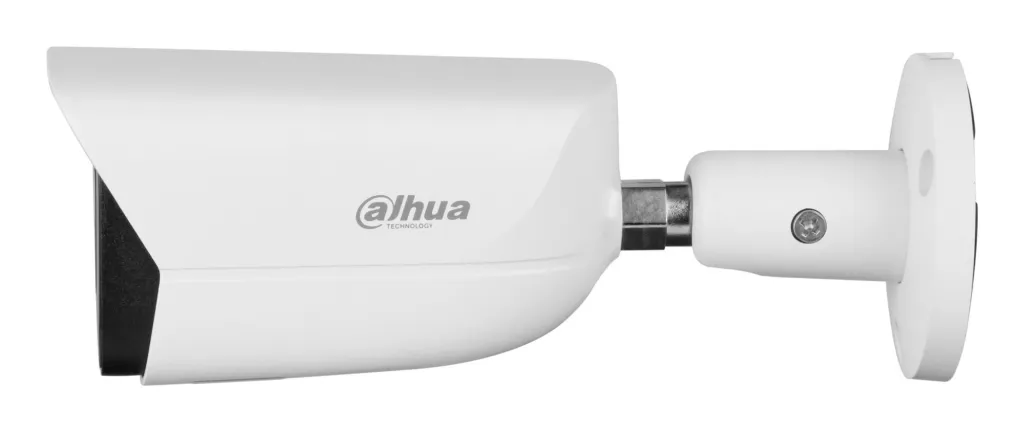

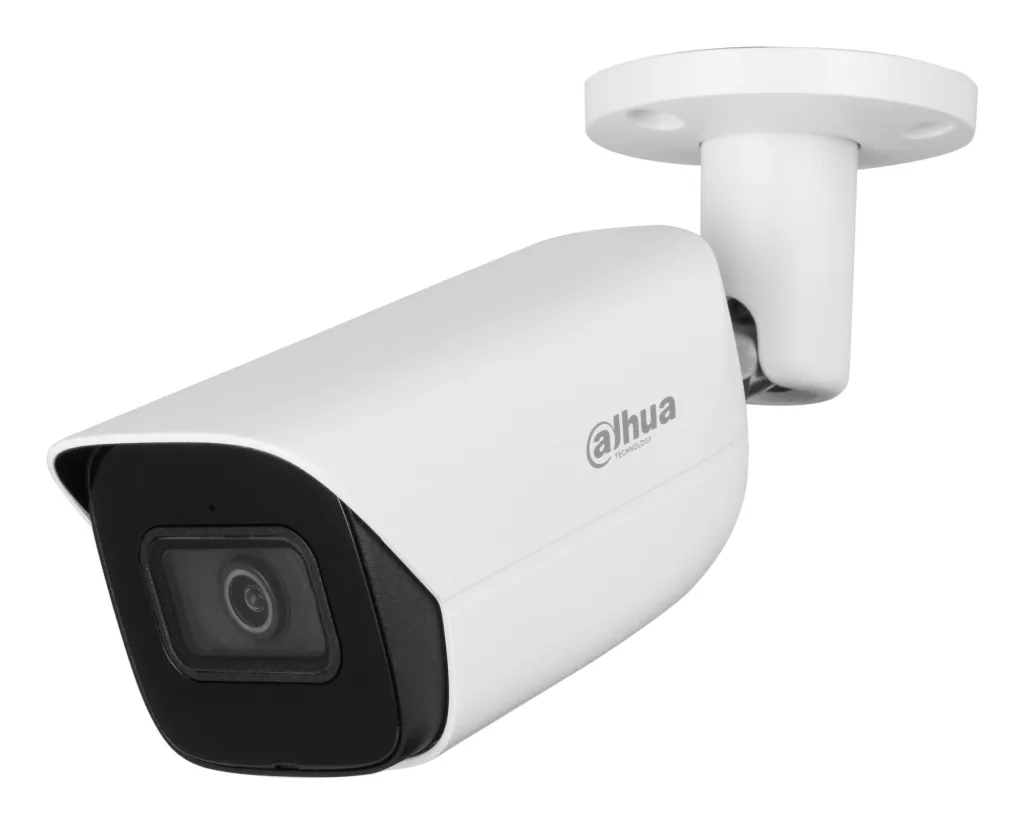

NET CAMERA 8MP IR BULLET/IPCHFW5842E-ASE-0280B-S3 DAHUA

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/8MP/IPC-HFW5842E-ASE=S3

.: Disain :.

Toote värv

White

Kujutegur

Bullet

Toote värv

White

.: Mälu :.

RAM capacity

2048 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.723/G.726/PCM

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Lens viewing angle, vertical

57 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

.: Võrgustumine :.

Võrgustandardid

IEEE 802.1x/IEEE 802.3af

WiFi

Ei

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

Audioväljund

1

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

4 W

.: Salvestusruum :.

ROM capacity

4096 MB

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Compliance certificates

CE/Federal Communications Commission (FCC)/UL

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

134 °

Lens viewing angle, horizontal

110 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12 VDC/PoE (802.3af)/ePoE

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

-40 - 60 °C

Hoiustamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Max kogus transpordipakendis

1

Pakendi maht

0.00253 cubm

Transpordipakendi kaal

0.765 kg

Transpordipakendi kõrgus

11.5 cm

Transpordipakendi laius

10 cm

Transpordipakendi sügavus

22 cm

Pakendi kaal

780 g

Tehnilised andmed

Placement supported

Indoor

Supported network protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Number of cameras

1

IP address filtering

Jah

Wide Dynamic Range (WDR)

Jah

Alarm input/output

Jah

Video motion detection

Jah

Number of illumination LEDs

1

LED type

IR

Supports card capacities up to

1TB

Unit Box Height

0.115

Unit Box Length

0.22

Unit Box Width

0.1

CnCode

85258900

Unit Calculated Volume

0.00253 cubm

Unit Calculated Weight

0.765 kg

Summary

Dahua Technology WizMind IPC-HFW5842E-ASE-0280B-S3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 89.2 m, Observe distance: 35.7 m, Recognize distance: 17.8 m

Tilt angle range

0 - 90 °

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Mirror

Jah

Number of sensors

1

Intelligent Video Surveillance (IVS) system features

Intrusion/Tripwire

Human and vehicle targets classification

Jah

Region of Interest (ROI) encoding

Jah

Detect distance

89.2 m

Identify distance

8.9 m

Observe distance

35.7 m

Recognize distance

17.8 m

Streaming method

Multicast

Dynamic range

120 dB

Number of Privacy masking areas

8

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network access storage (NAS)

Jah

Fixed focus

Jah

Alarm input channels

1

Alarm output channels

1

Gain control type

Auto

People counting function

Jah

Digital watermark

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Fast Ethernet

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mobile operating systems supported

Android/iOS

Mounting type

Pole clamp

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Video recording

Jah

Alarm In

1

Alarm Out

1

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

1.9 m

Connectivity Technology

Wired

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Environment

Outdoor

Fixed focal length

2.8 mm

Focal Length

2.8 mm; 3.6 mm; 6 mm

Frame Rate

30 fps

Housing material

Metal

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

1000 GB

MicroSD Card Slot

1

Min. Illumination

0.0004 Lux

Minimum Illumination

0.0004 lx

Network Camera Type

HDTV/Megapixel/Outdoor

Night vision distance

50 m

Operating temperature range

–40 °C to +60 °C

Optical sensor size

1/1.8 "

Pan range

0 - 360 °

Pixel Resolution

8 Mega Pixel

Power Options

12V/PoE

Resolution

8 Mega Pixel

Sensor size

1/1.8" CMOS

Storage relative humidity (H-H)

10 - 95 %

Total megapixels

8 MP

Video streaming

Jah

Tehnilised andmed

Netokaal

0.59 kg

Netokaal

0.59 kg

Brutokaal

0.765 kg

Laius

70.5 mm

Kõrgus

66.4 mm

Mõõtmed (l x s x k)

192.7 mm × 70.5 mm × 66.4 mm

Toote kaal

590 g

Pikkus

192.7 mm
