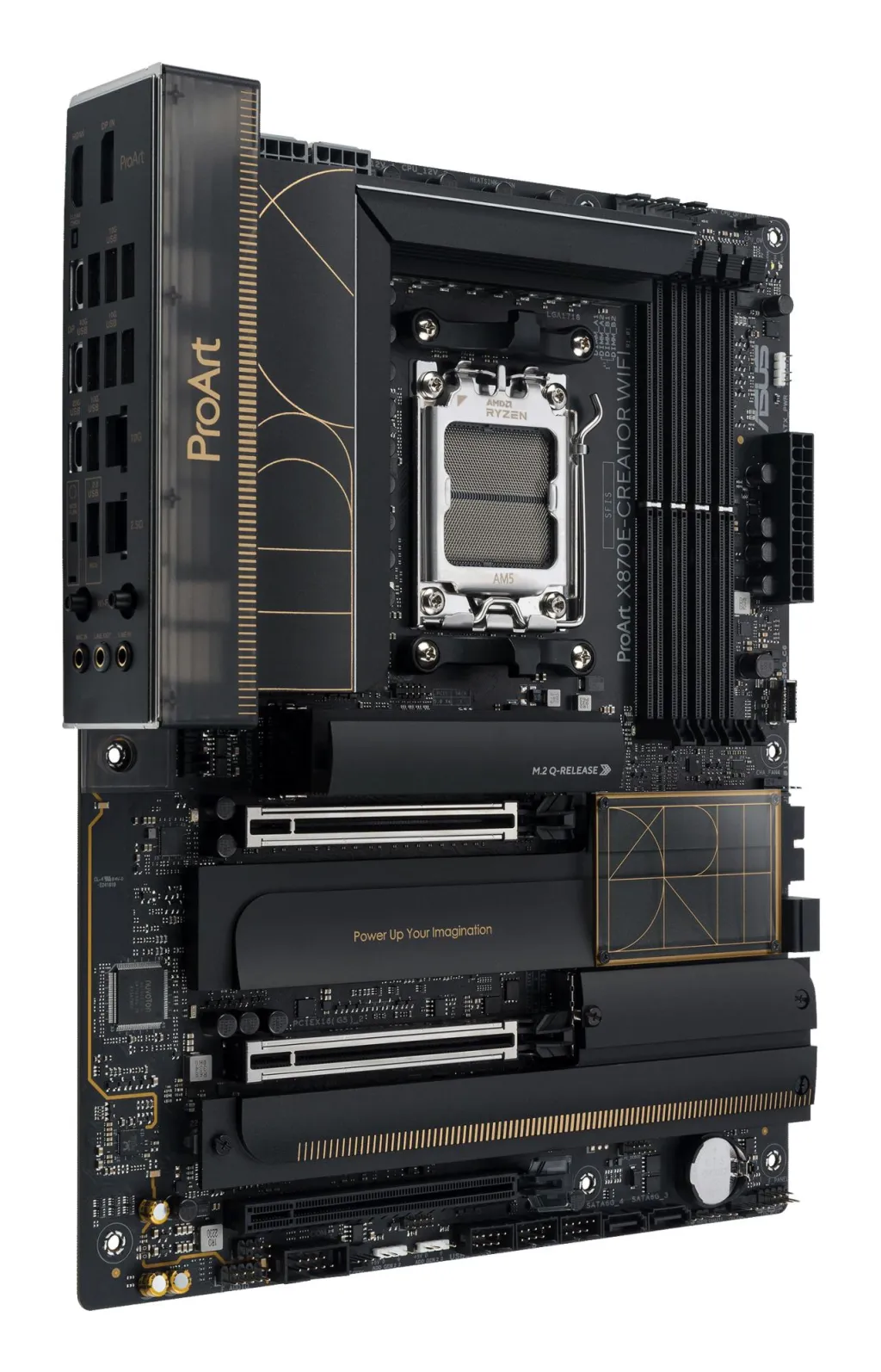

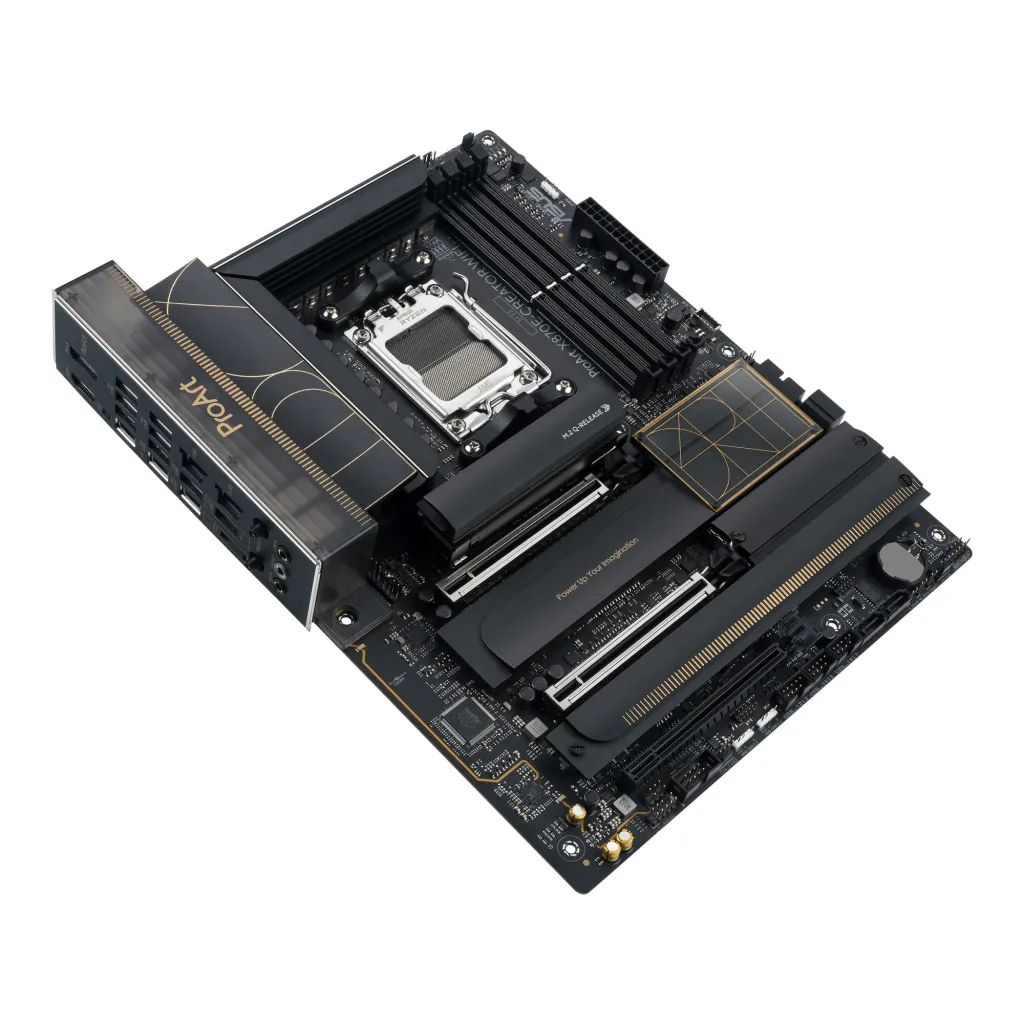

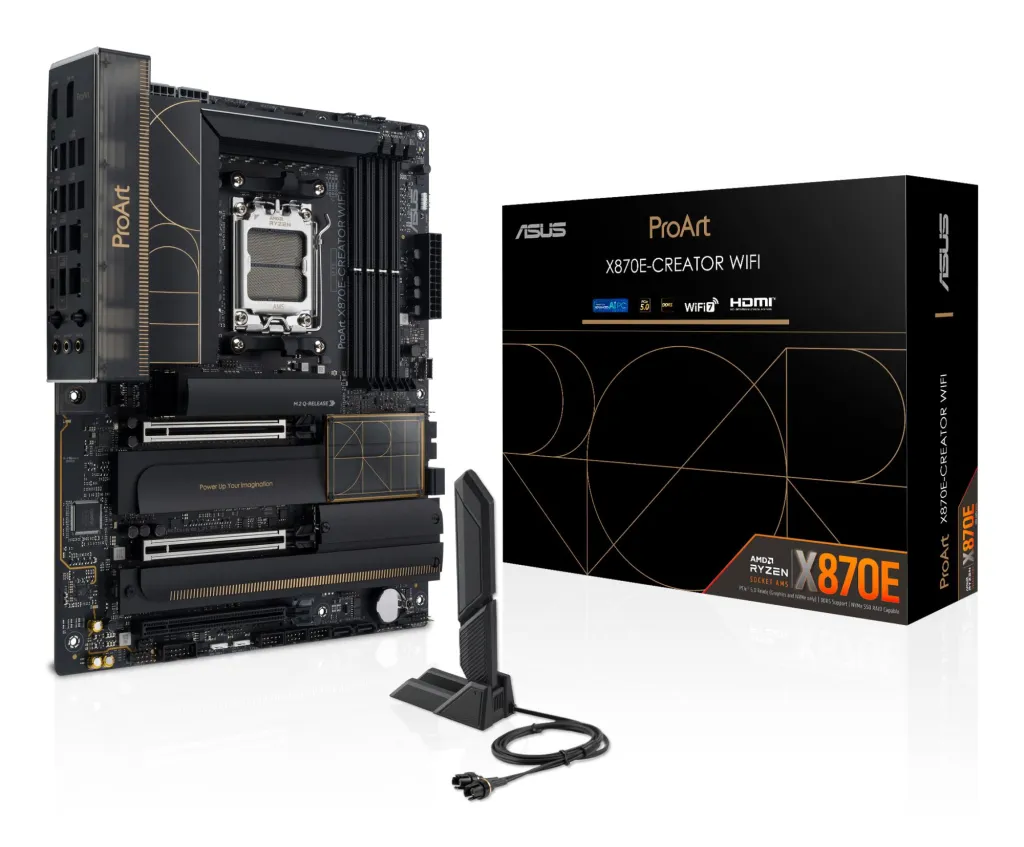

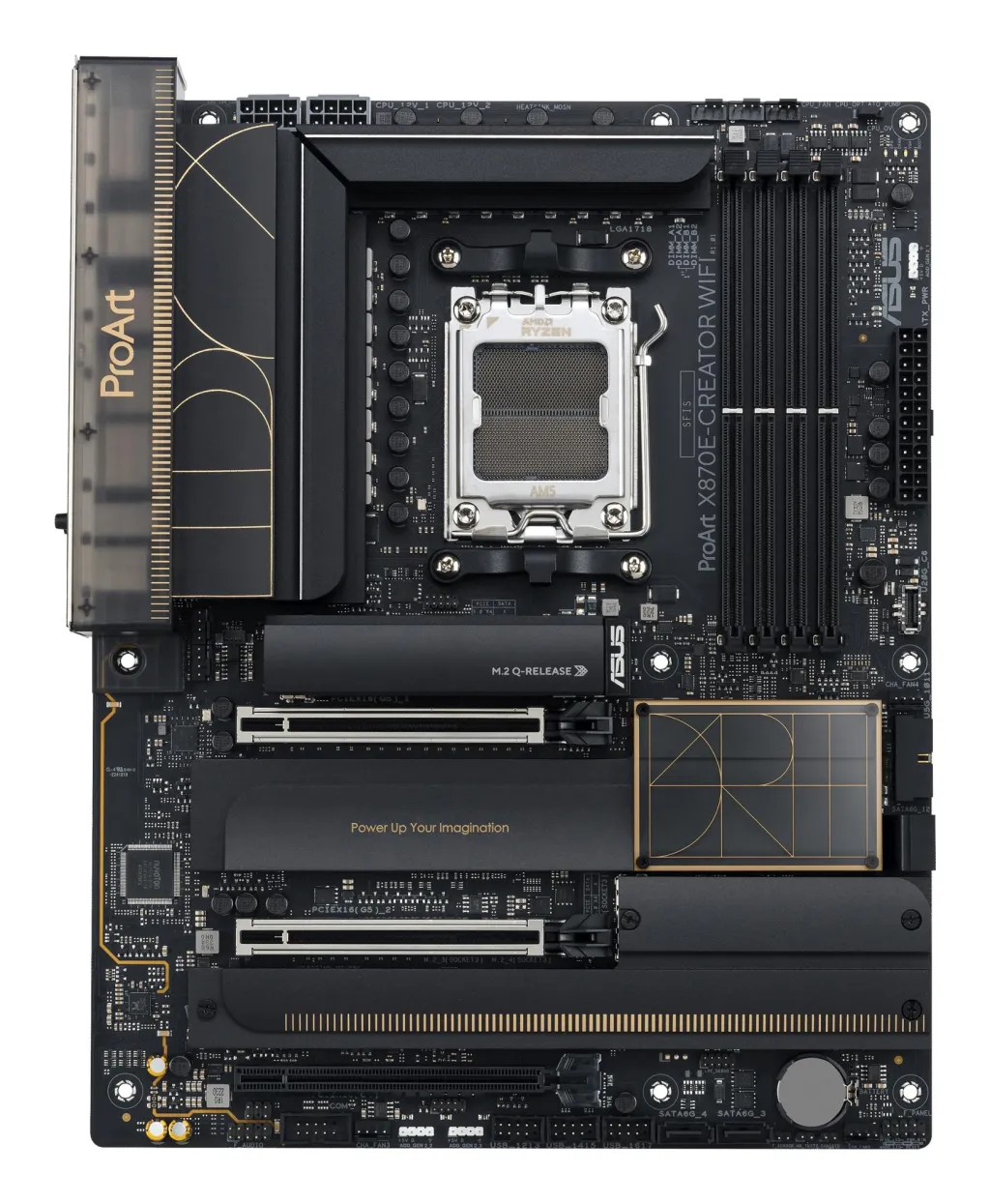

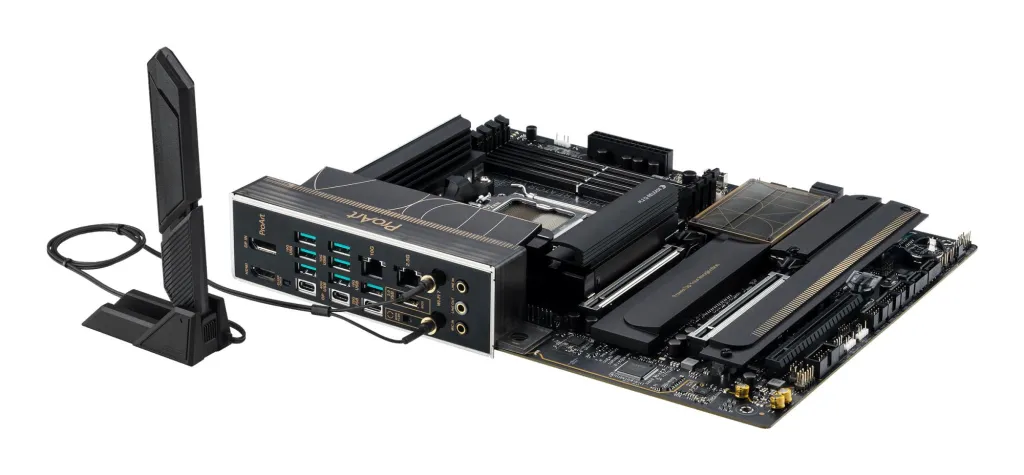

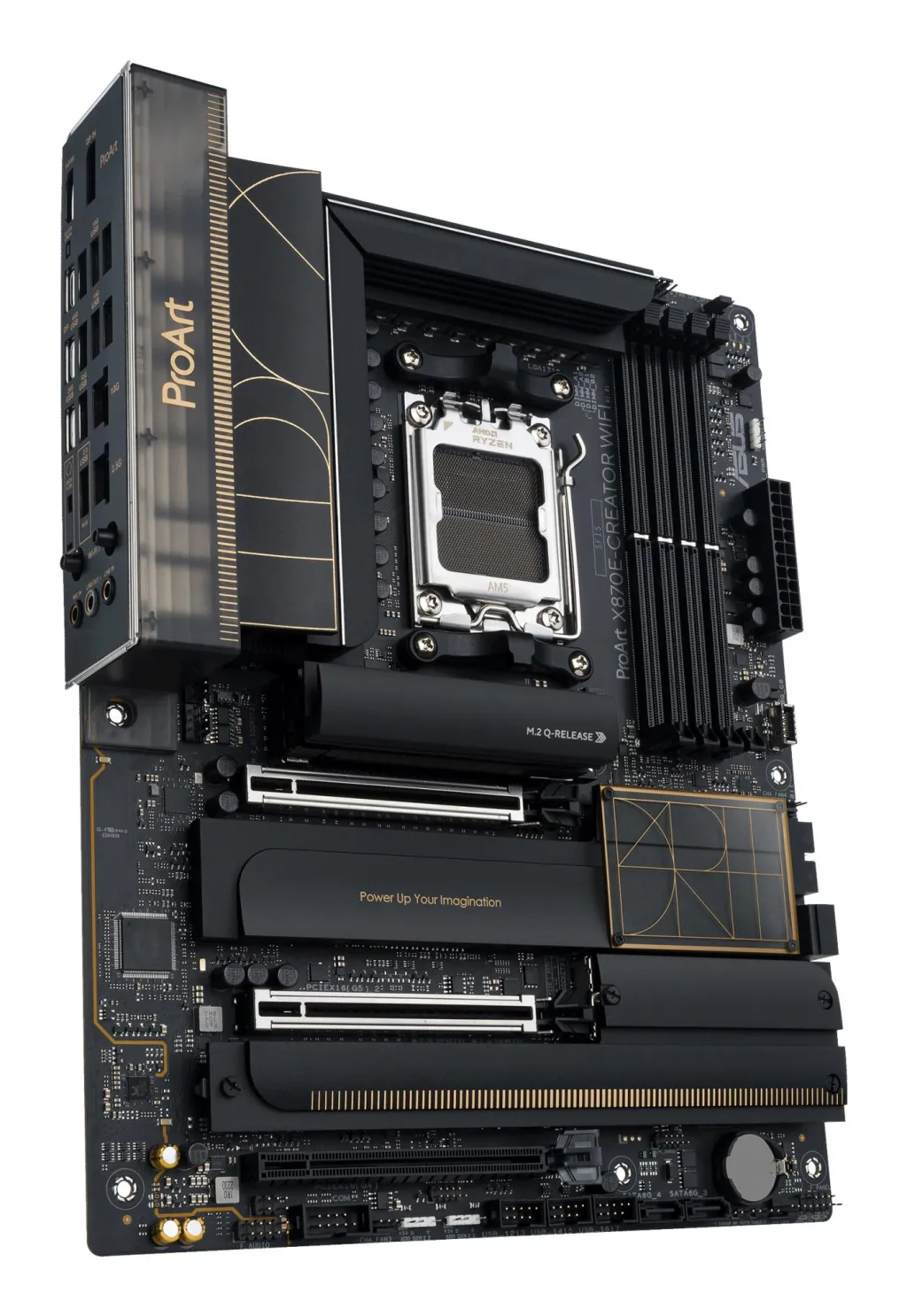

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|7xUSB 3.2|3xUSB-C|1xRJ45|3xAudio port|PROARTX870E-CREATORWIFI
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 17.54 €. Taotle järelmaksu ostukorvis.

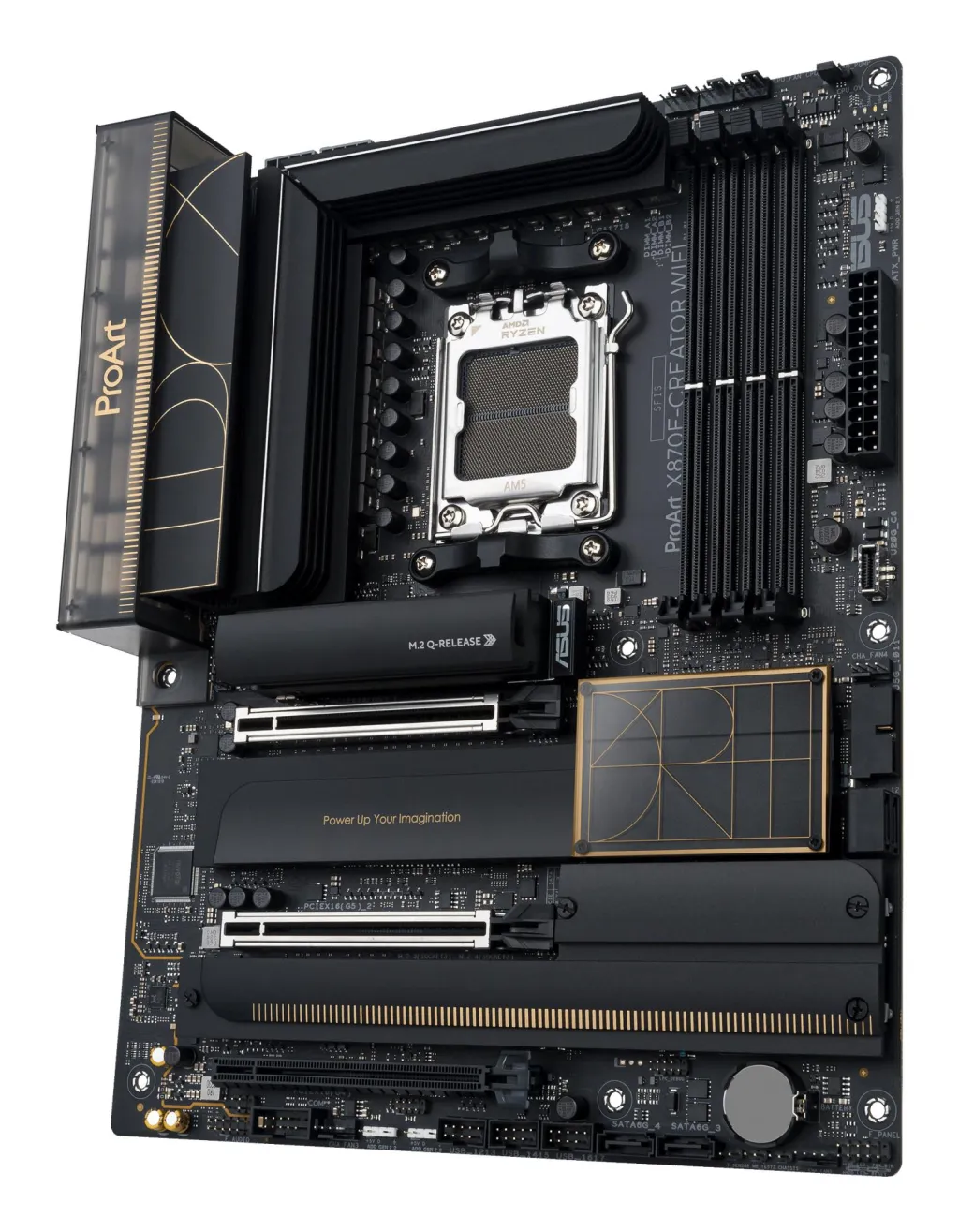

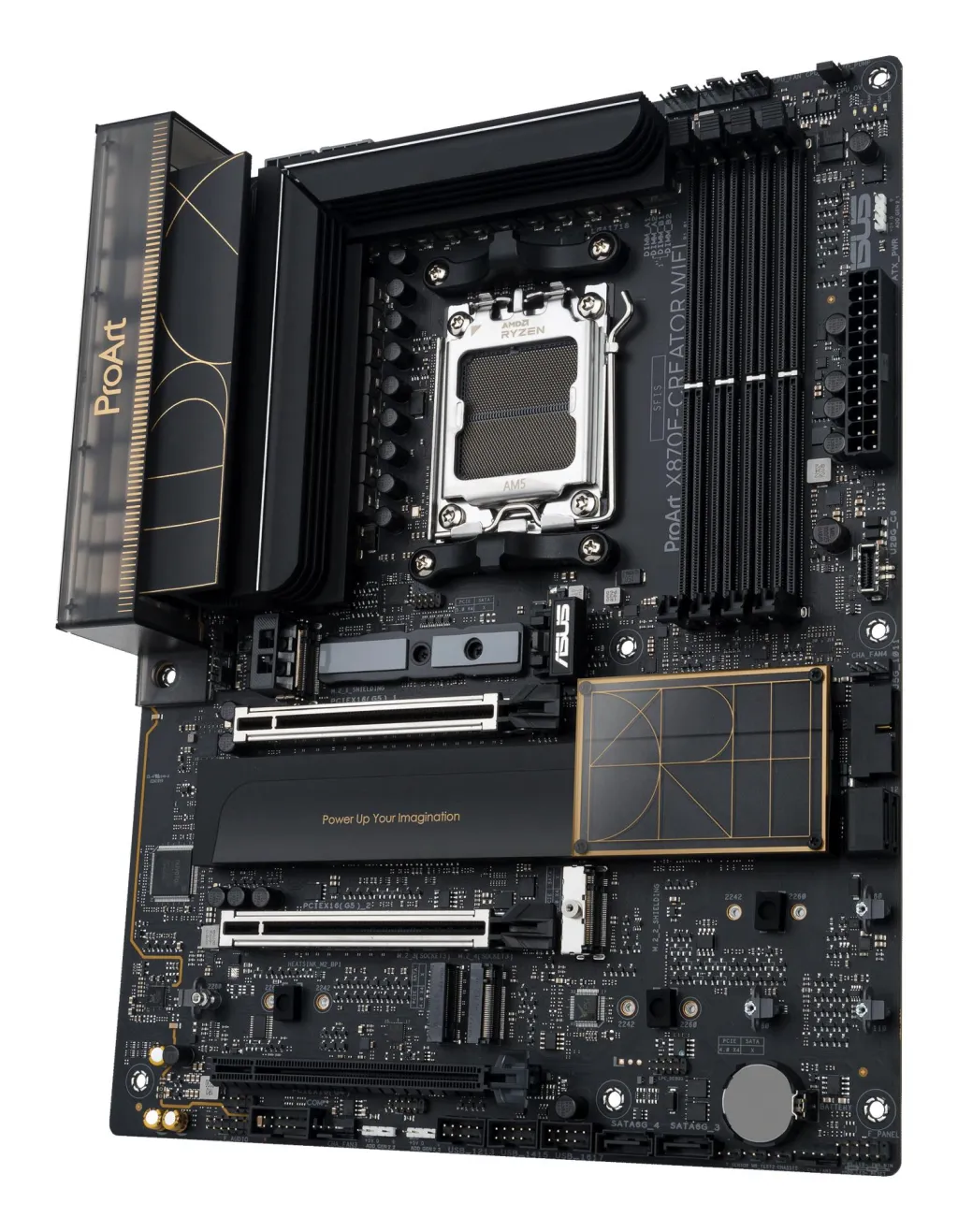

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

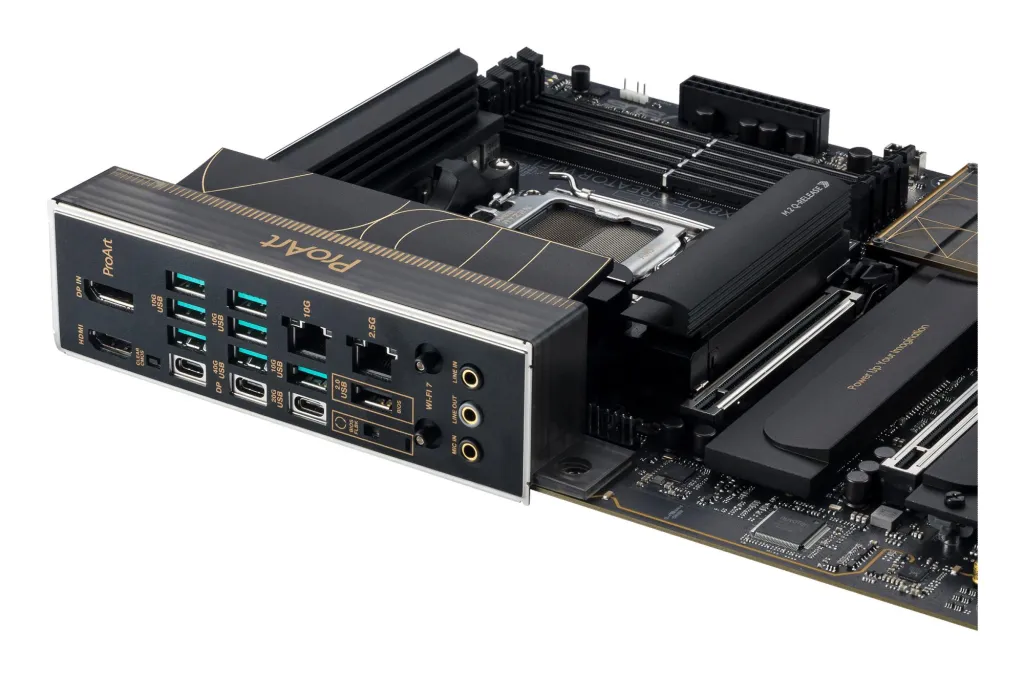

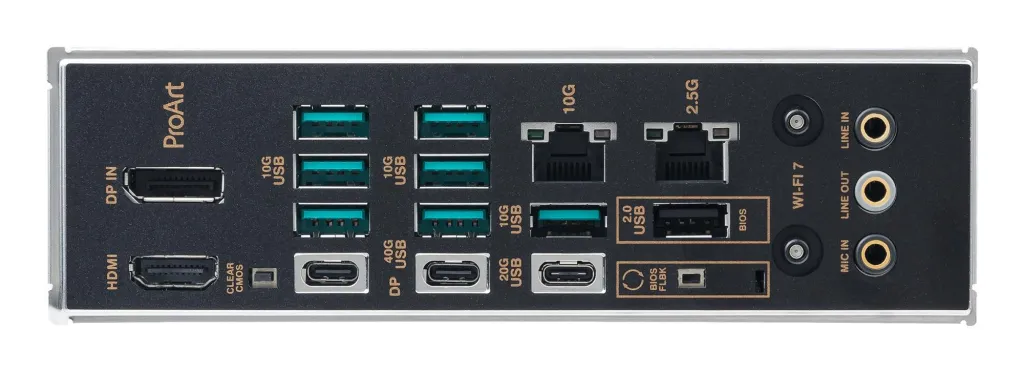

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD X870E
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 192 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC1220P
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 4
Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 1
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- Serial
- Jah

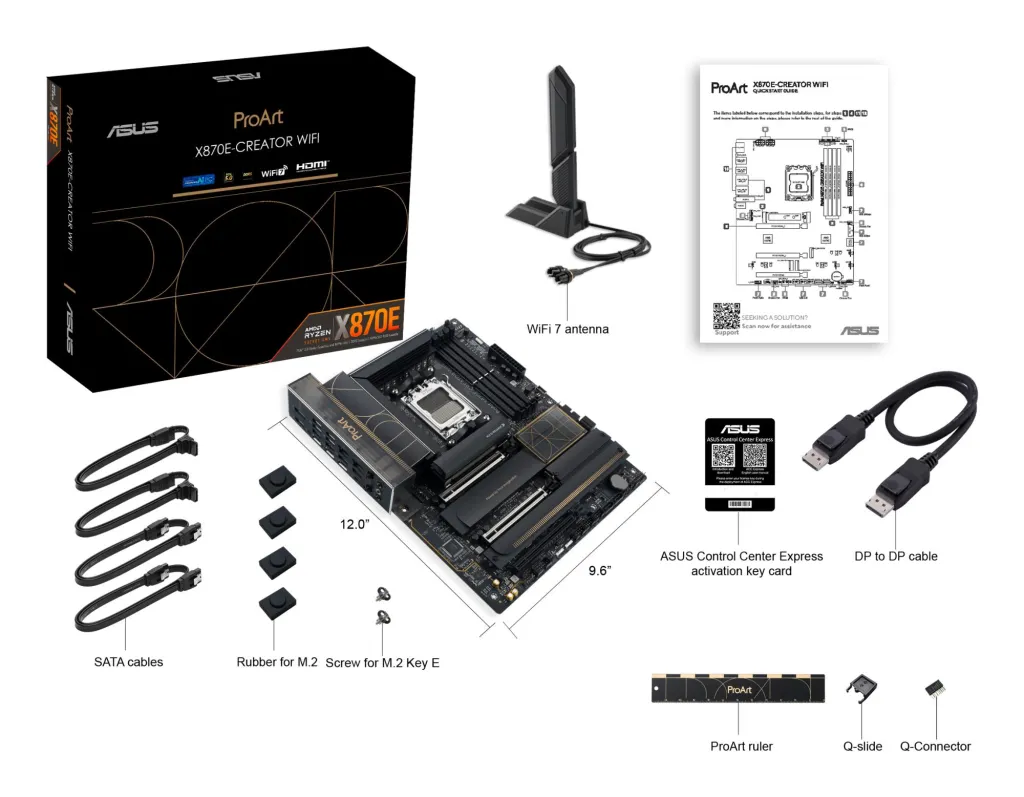

Lisad
- Kaablid kaasa arvatud
- DisplayPort,SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 2.82 kg
- Netokaal
- 2 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 5
- Pakendi maht
- 0.01093 cubm
Muud näitajad
- Clear CMOS button
- Jah
- CnCode
- 84733020
- Unit Box Width
- 0.285
- Unit Box Length
- 0.36
- Unit Box Height
- 0.09
- PCI-Express 5.0 16x
- 2
- PCI Express x16 (Gen 5.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 16x
- 3
- USB 3.2
- Jah
- Processor manufacturer
- AMD
- Supported storage drive interfaces
- M.2,SATA III
- WiFi-AP antenna jack
- 1
- Supported storage drive types
- HDD & SSD
- Number of storage drives supported
- 8
- Number of M.2 (M) slots
- 4
- ECC сompatibility
- ECC & Non-ECC
- Parallel processing technology support
- Not supported
- Number of SATA III connectors
- 4
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 5
- Number of COM connectors
- 1
- Chassis intrusion connector
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Unit Calculated Volume
- 0.01093 cubm
- USB 3.2 Gen 2x2 connectors
- 1
- 12V power connector
- Jah
- Unit Calculated Weight
- 2.82 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB4 Gen 2x2 ports quantity
- 2
- Summary
- ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Audio chip
- Realtek S1220A
- Number of HDDs supported
- 4
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 7
- Kogus transpordikasti kohta
- 5
- Component for
- PC
- Tootja koduleht
- https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
- Transpordipakendi kaal
- 14.1 kg
- Transpordipakendi kõrgus
- 31 cm
- Transpordipakendi laius
- 37.5 cm
- Transpordipakendi sügavus
- 47 cm
- DisplayPorts quantity
- 1
- Ethernet interface type
- 10 Gigabit Ethernet/2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Microphone in
- Jah
- Motherboard chipset
- AMD X870E
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- Mudel
- PROART X870E-CREATOR WIFI
- Number of memory slots
- 4
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10/5
- USB 2.0 connectors
- 3
- USB-C
- Jah
