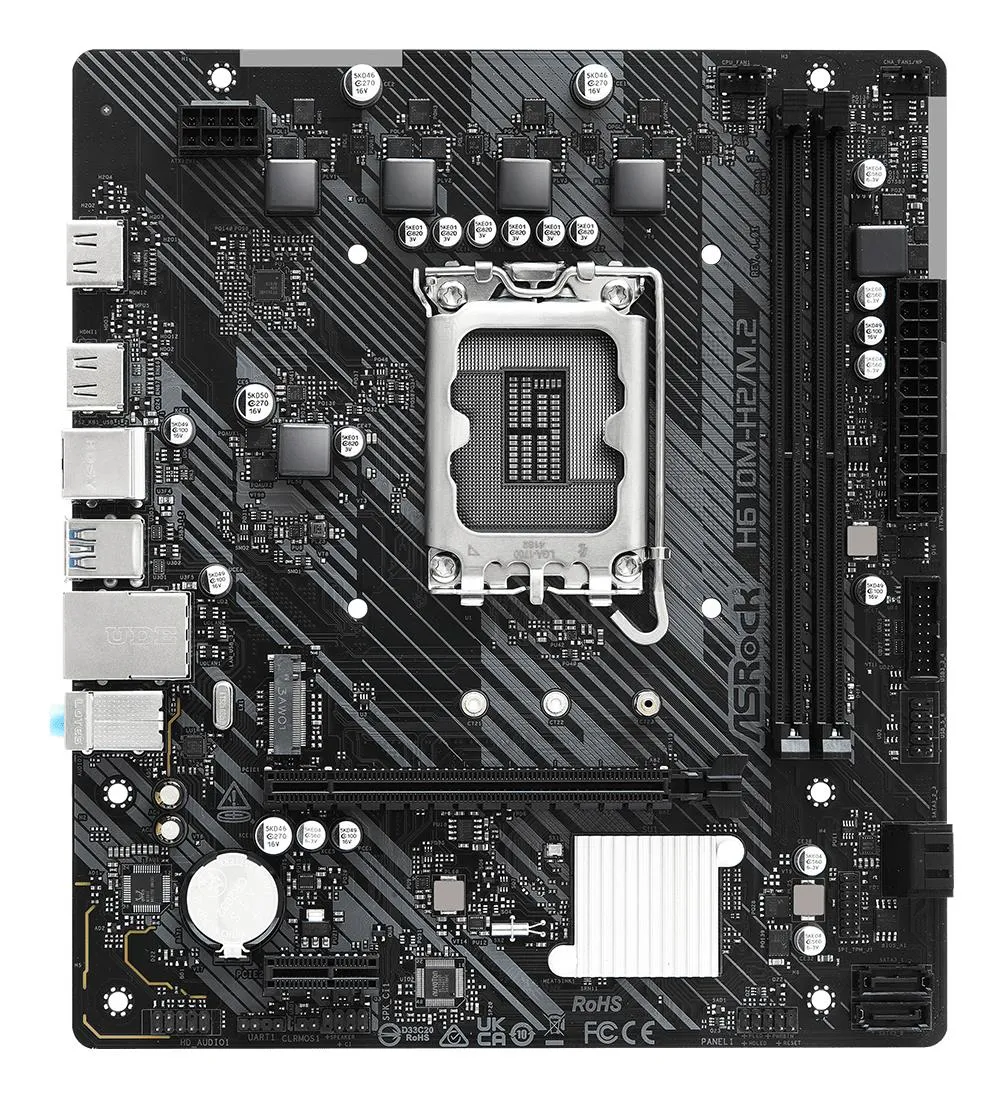

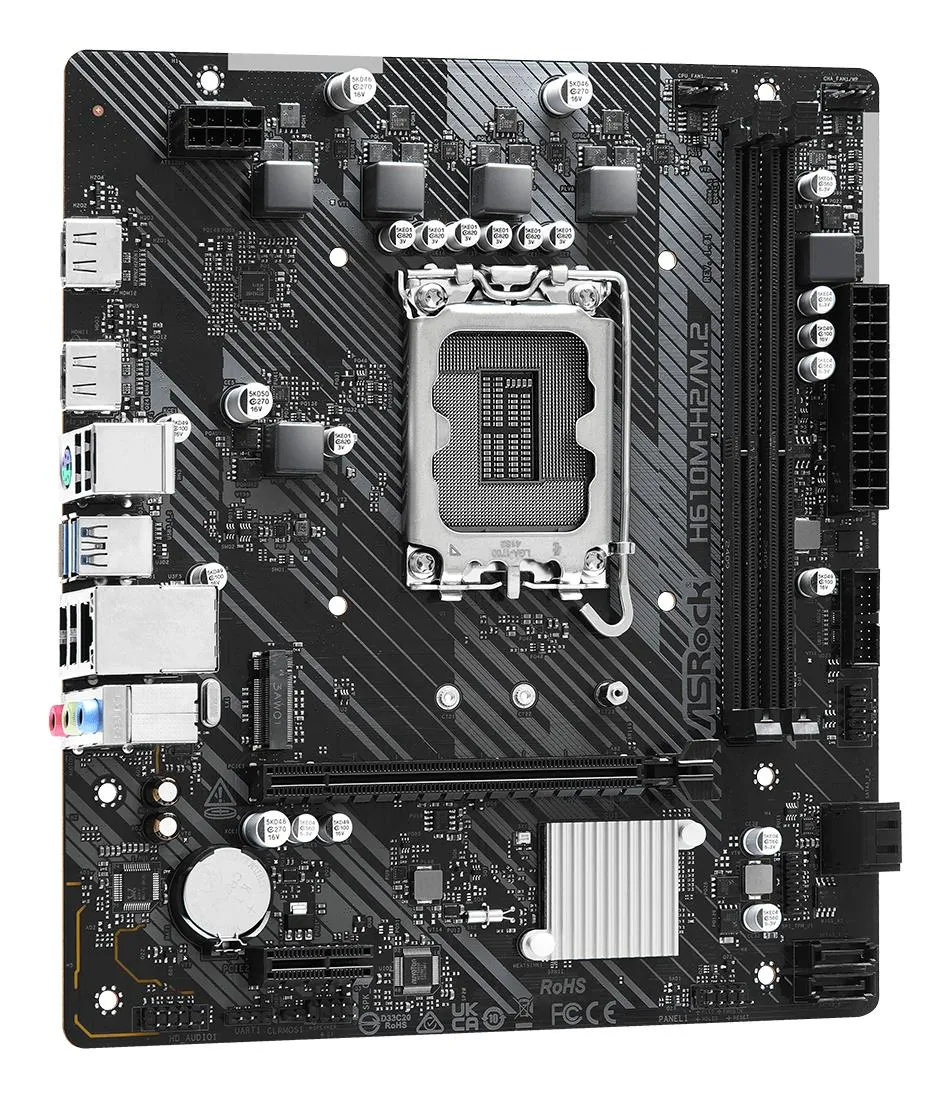

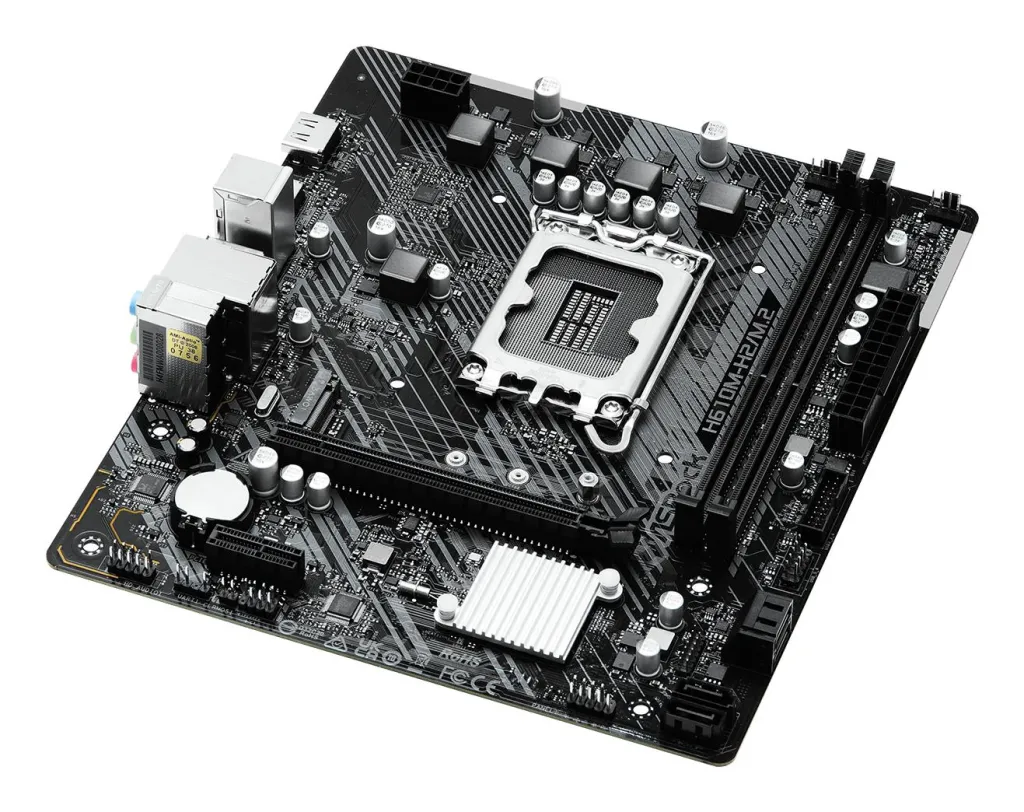

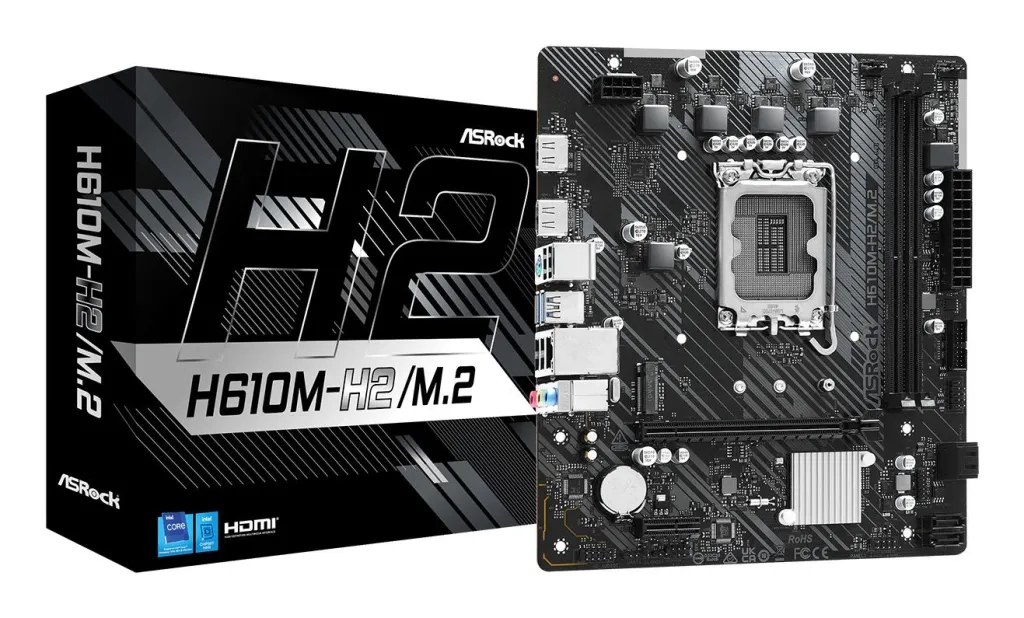

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|2xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610M-H2/M.2
64.61€
AL1
AL1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Toote on läbimüüdud kuid võimalik tellida, tellimiseks võta ühendust meie klienditoega info[at]digipood.eu
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- 2 x DDR4 DIMMs
- Supports Dual Channel, up to 3200
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 220 mm
- Sügavus
- 193 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel H610
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 1
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

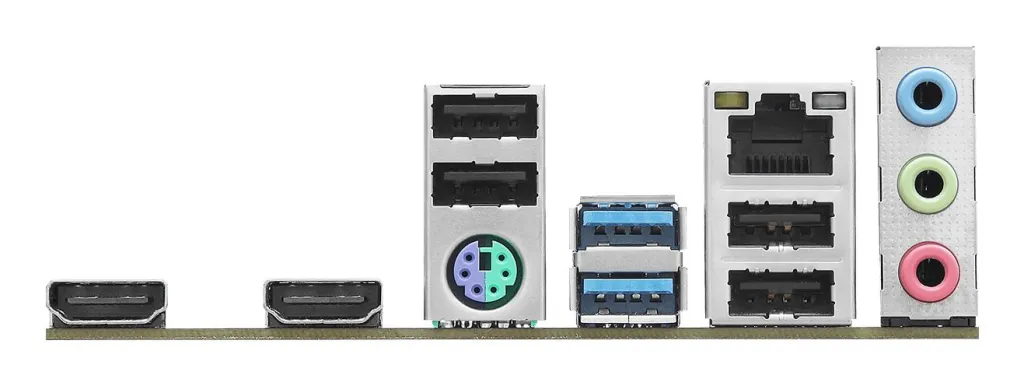

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 2
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.758 kg
- Netokaal
- 0.5 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 20
- Pakendi maht
- 0.004511 cubm
Muud näitajad
- Supported memory types
- DDR4-SDRAM
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported storage drive types
- HDD & SSD
- Line-in
- Jah
- Number of M.2 (M) slots
- 1
- Number of SATA III connectors
- 4
- CPU fan connector
- Jah
- Front panel audio connector
- Jah
- Memory channels
- Dual-channel
- Supported storage drive interfaces
- M.2,SATA III
- Chassis intrusion connector
- Jah
- Number of chassis fan connectors
- 1
- Motherboard chipset family
- Intel
- Memory slots type
- DIMM
- EPS power connector (8-pin)
- Jah
- ATX Power connector (24-pin)
- Jah
- BIOS type
- UEFI AMI
- Compatible processor series
- in/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen
- Unit Box Width
- 0.24
- 12V power connector
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Üksuse kalkuleeritud kaal
- 0.758 kg
- Üksuse kalkuleeritud maht
- 0.004511 cubm
- ECC сompatibility
- ECC & Non-ECC
- CnKood
- 84733020
- Processor manufacturer
- Intel
- Unit Box Length
- 0.28
- Unit Box Height
- 0.06
- Supported memory clock speed (max)
- 3200 MHz
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 16x
- 1
- USB 3.2
- Jah
- Kokkuvõte
- Asrock H610M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- Tootja koduleht
- https://www.asrock.com/mb/Intel/H610M-H2M.2/index.asp
- Mudel
- H610M-H2/M.2
- Number of CPU fan connectors
- 1
- Component for
- PC
- Transpordipakendi kaal
- 15.15 kg
- Transpordipakendi kõrgus
- 51 cm
- Transpordipakendi laius
- 29 cm
- Transpordipakendi sügavus
- 61 cm
- Kogus transpordikasti kohta
- 20
- HDCP
- Jah
- Ethernet interface type
- Fast Ethernet/Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Toote värv
- Multicolour
- Microphone in
- Jah
- Motherboard chipset
- Intel H610
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 128 Mbit
- Certification
-
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required) - LAN controller
- Realtek RTL8111H
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- USB 2.0 connectors
- 1
