Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|6xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 3.0|4xUSB 3.1|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|ROGMAXIMUSZ890HERO

Muud näitajad

Compatible processor series

Intel Core Ultra (Series 2)

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

Number of chassis fan connectors

4

S/PDIF out port

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Ei ole toetatud

Clear CMOS button

Jah

Number of M.2 (M) slots

6

Number of storage drives supported

10

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

Supported storage drive interfaces

M.2,SATA III

Thunderbolt ports quantity

2

Processor manufacturer

Intel

USB-C w/Thunderbolt

2

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

4

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

1

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

2

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

1

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

PCI-Express 4.0 1x

1

PCI Express x16 (Gen 5.x) slots

1

PCI-Express 5.0 16x

1

PCI Express x16 (Gen 5.x) slotid

1

Supported memory clock speed (max)

8800 MHz

Unit Box Height

0.31

Unit Box Length

0.37

Unit Box Width

0.11

CnKood

84733020

PCI Express x1 (Gen 4.x) pesad

1

Toetatud mälu taktsageduse kiirus (maks)

8800 MHz

USB 3.2 Gen 2x2 ühendused

1

ECC сompatibility

Non-ECC

ECC ühilduvus

Mitte-ECC

Üksuse kalkuleeritud maht

0.01486 cubm

Üksuse kalkuleeritud kaal

3.42 kg

Kokkuvõte

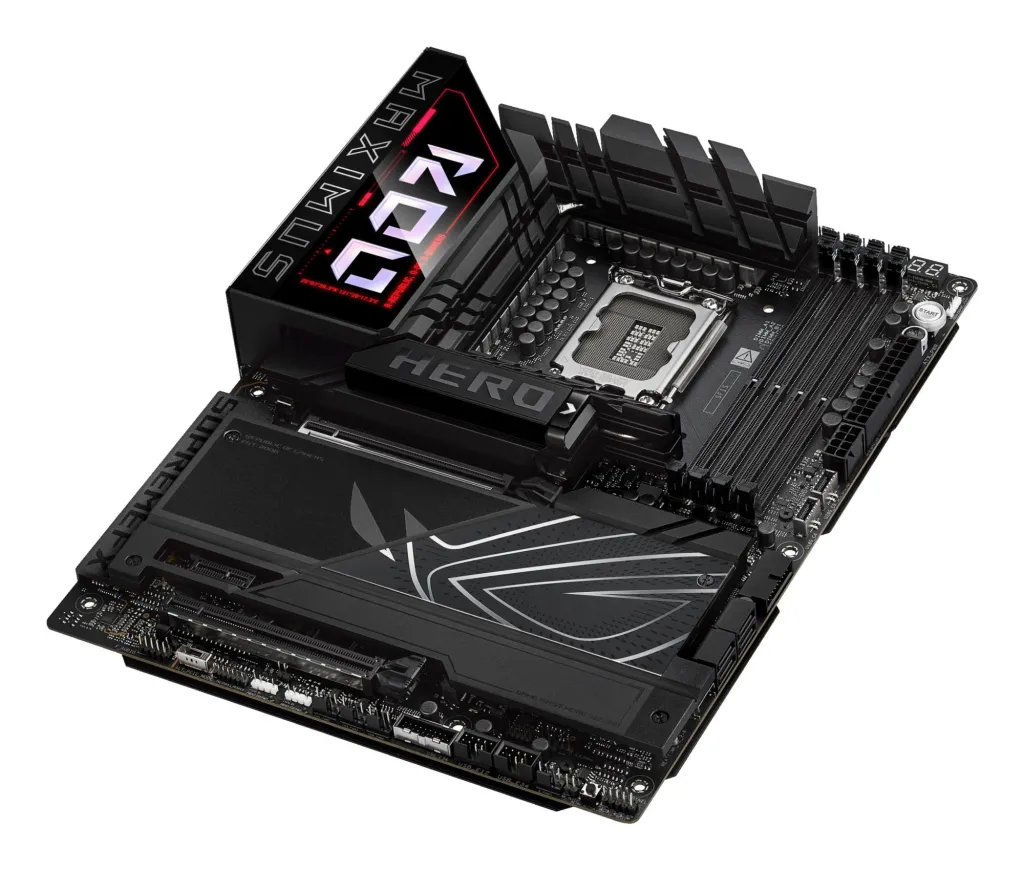

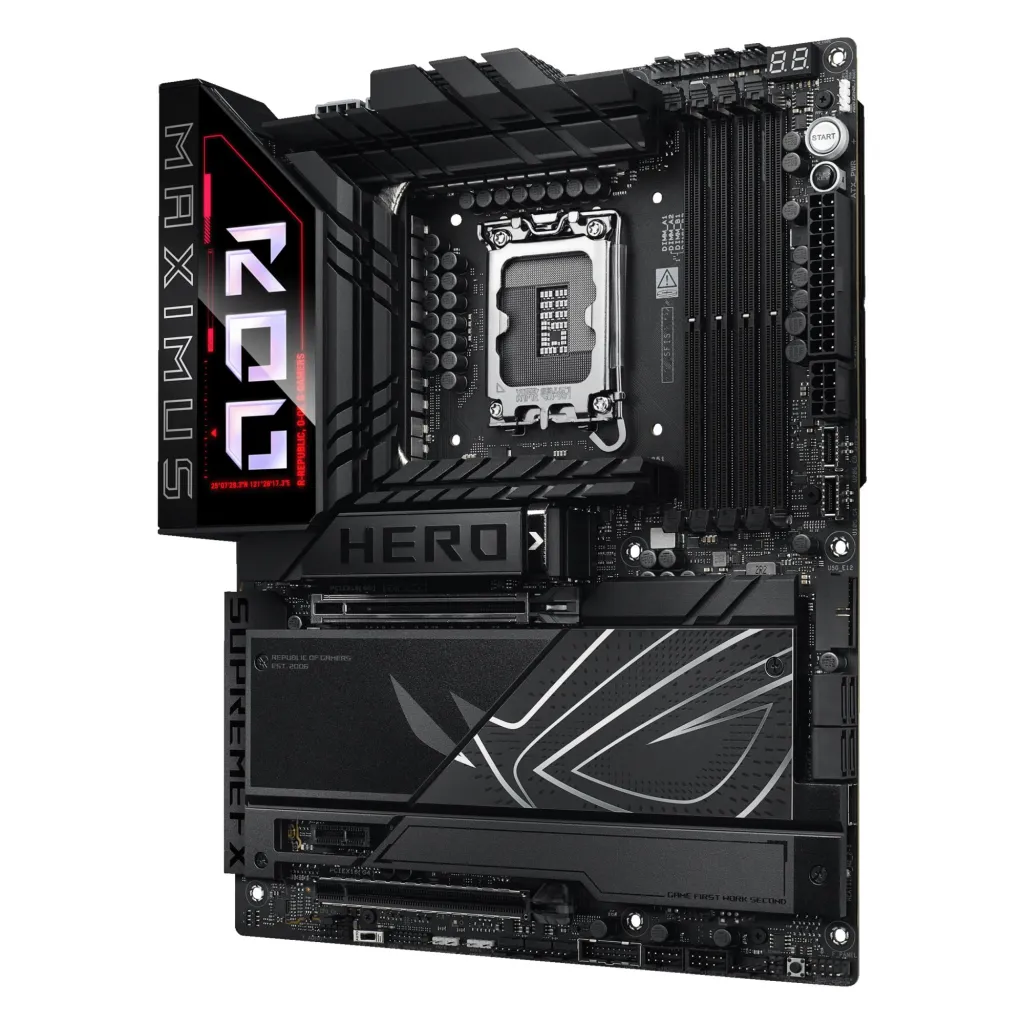

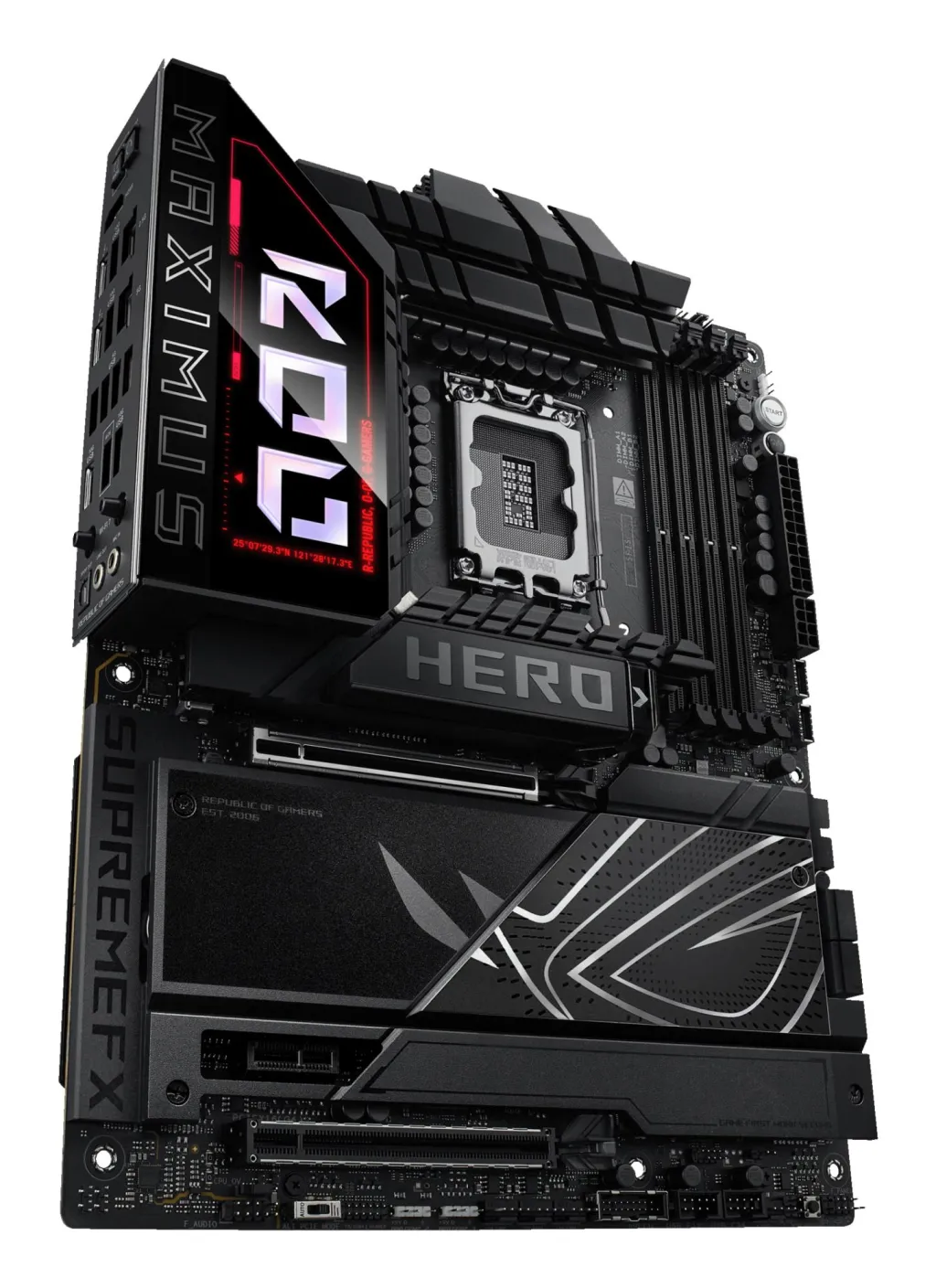

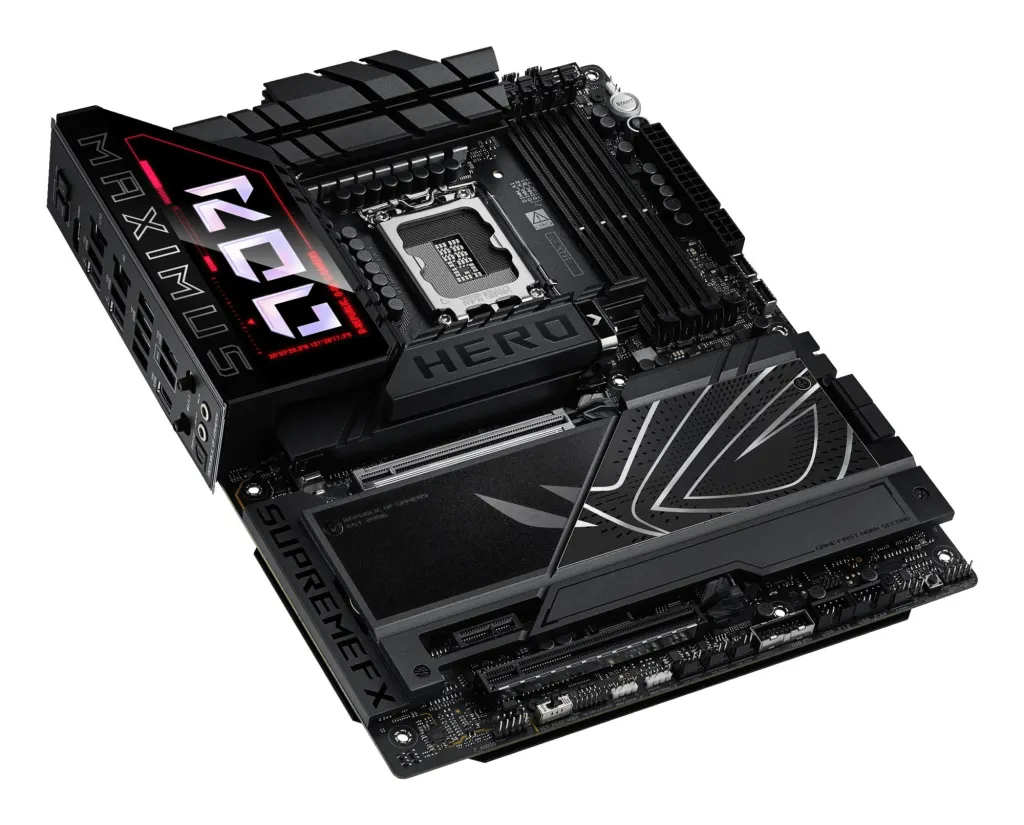

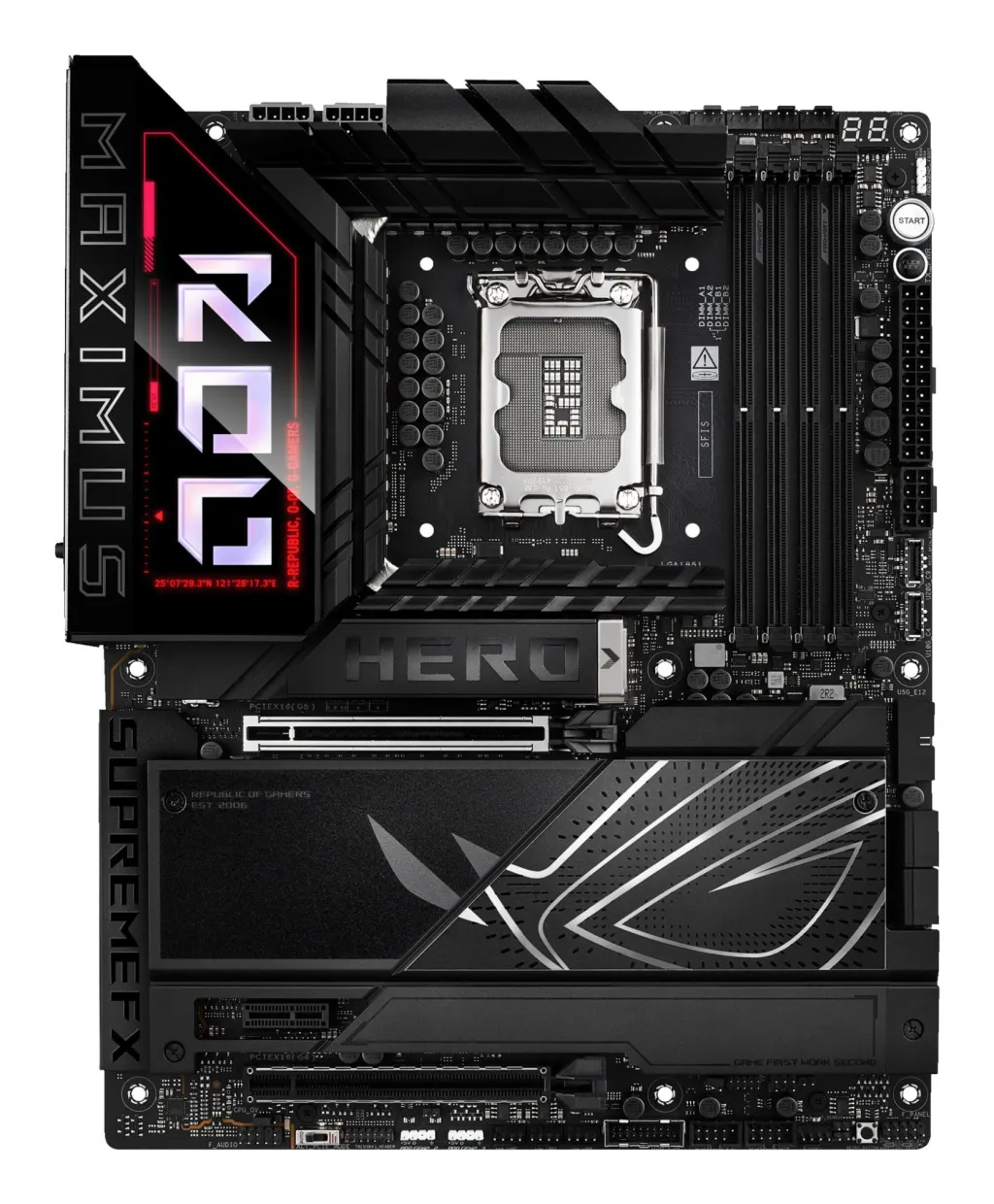

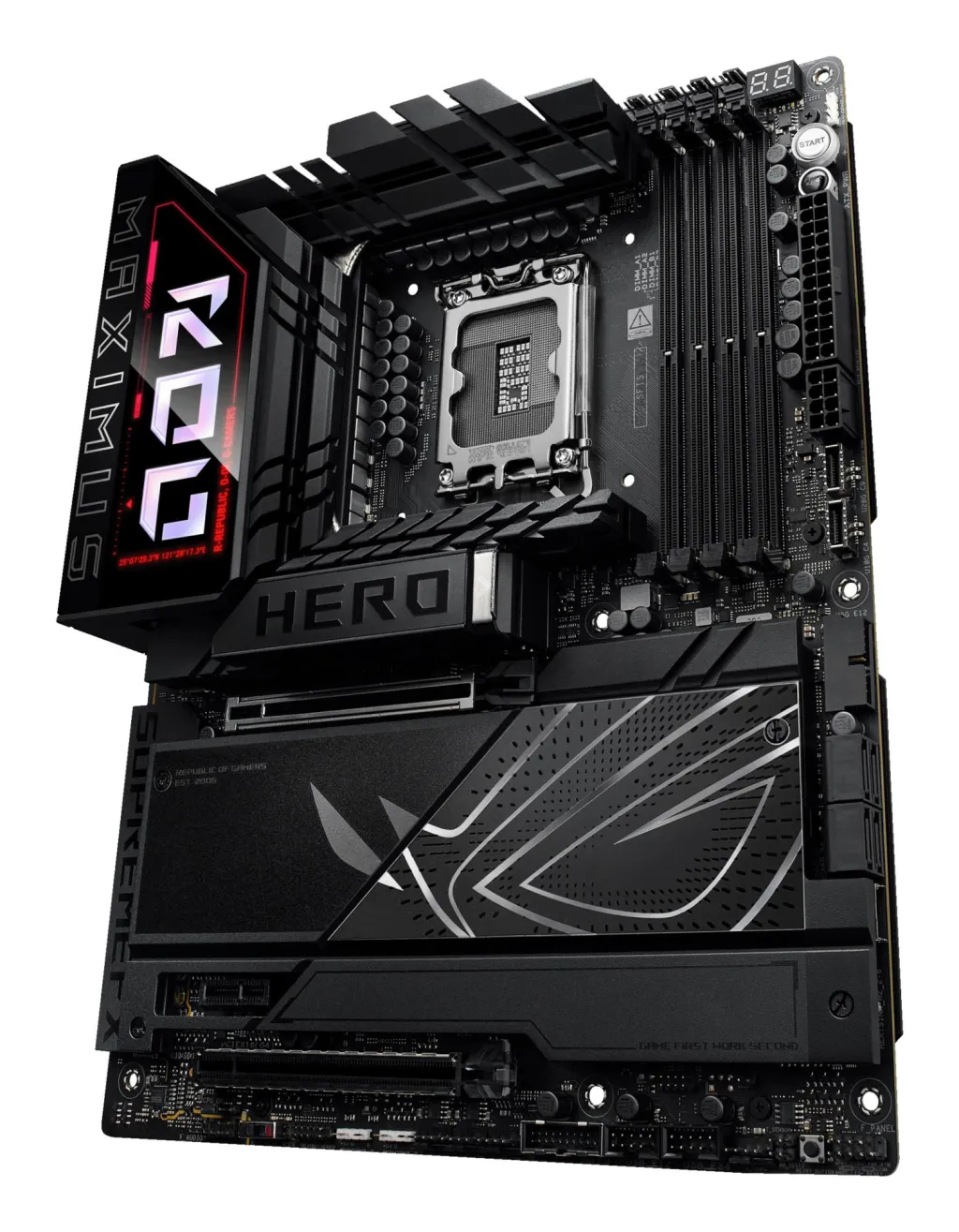

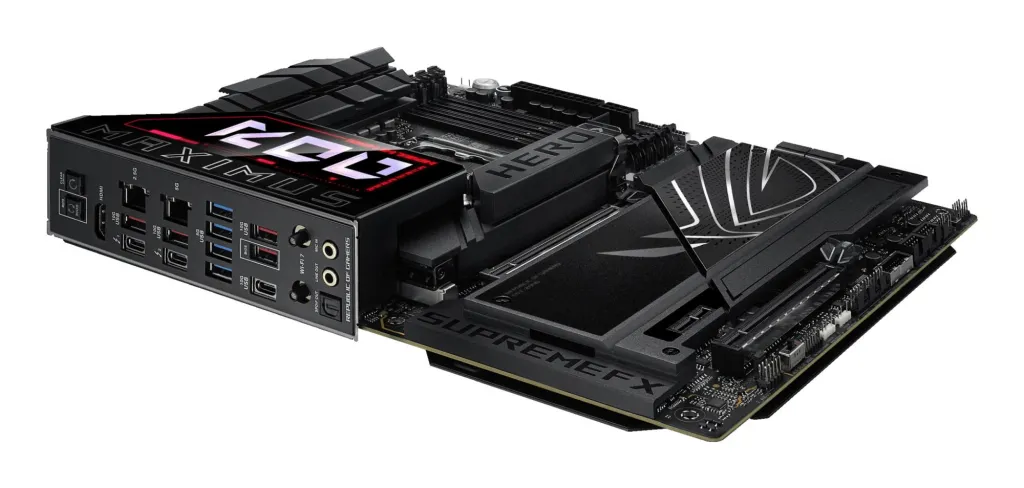

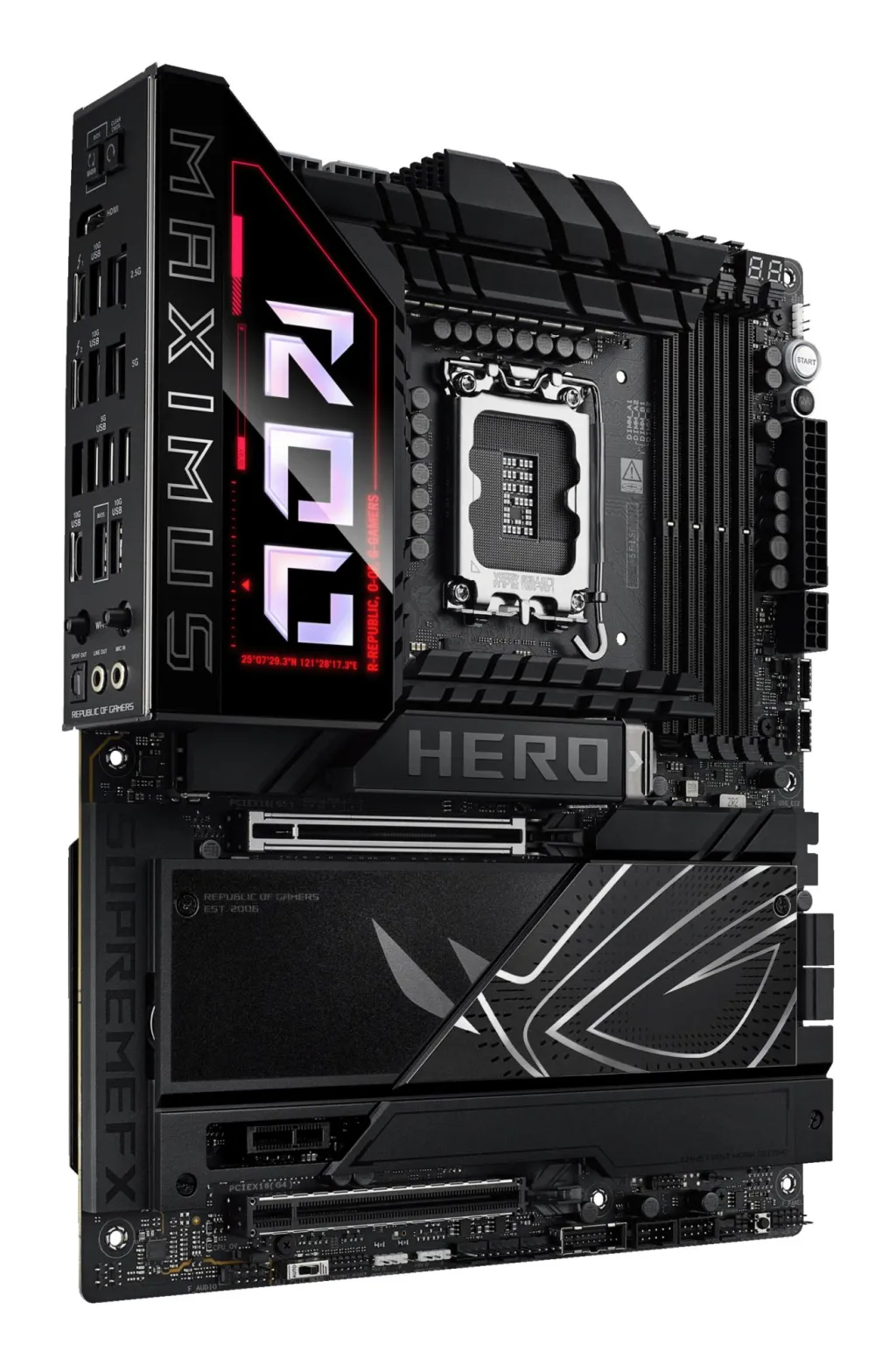

ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC4082

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

12V power connector

Jah

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

USB 3.2 Gen 2x2 connectors

1

Toetatud Windows operatsioonisüsteemid

Windows 11

Tootja koduleht

https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/

Mudel

ROG MAXIMUS Z890 HERO

Pakendi laius

370 mm

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

4

Pakendi kõrgus

108 mm

Thunderbolt-portide arv

2

Component for

PC

Transpordipakendi kaal

13.7 kg

Transpordipakendi kõrgus

34 cm

Transpordipakendi laius

38 cm

mSATA-pesade arv

0

Transpordipakendi sügavus

46 cm

Kogus transpordikasti kohta

4

Toetatud kõvaketaste arv

4

Pakendi sügavus

312 mm

Pakendi laius ( mm )

370 mm

Pakendi kõrgus ( mm )

108 mm

Toetatud ketaste tüübid

HDD & SSD

Toetatud ketaste arv

10

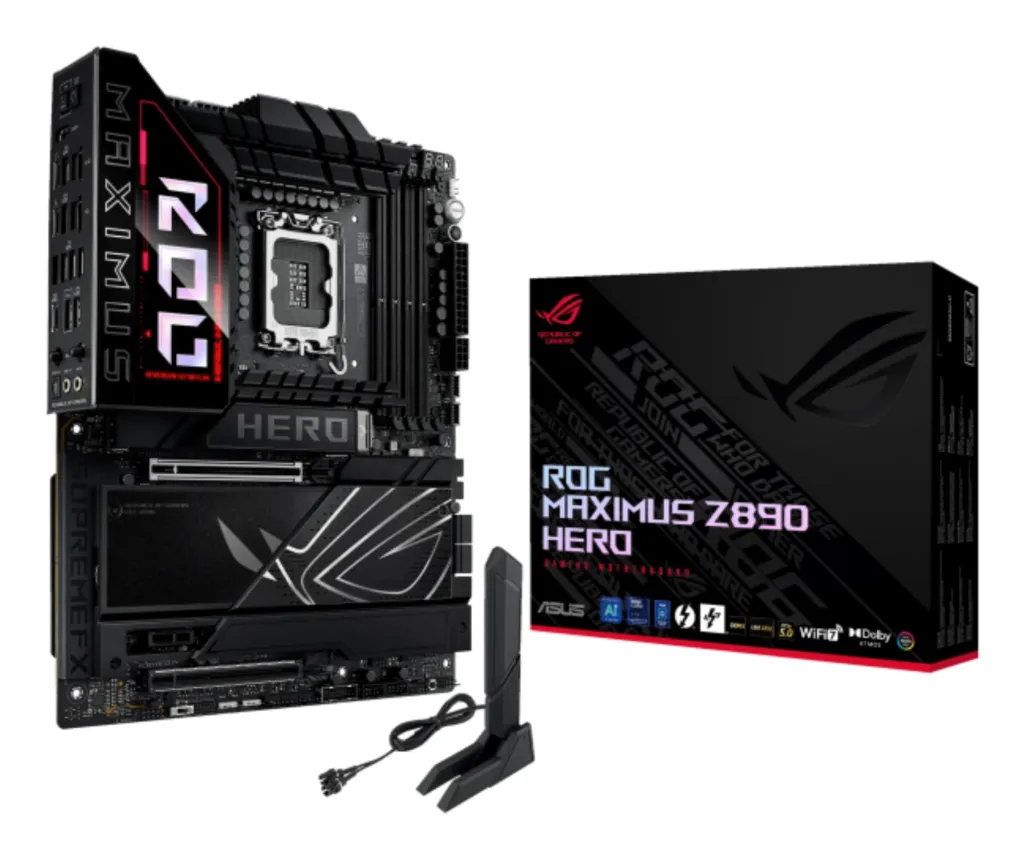

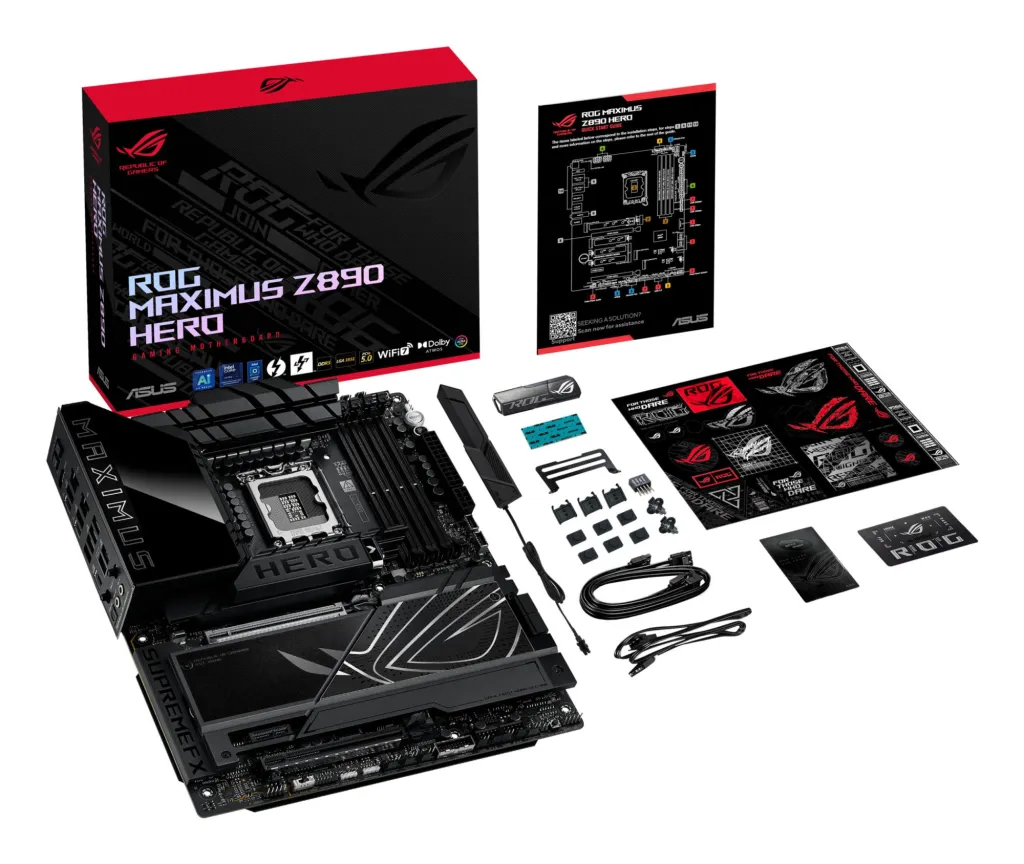

Tarvikud kaasa arvatud

Cables:
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit:
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous:

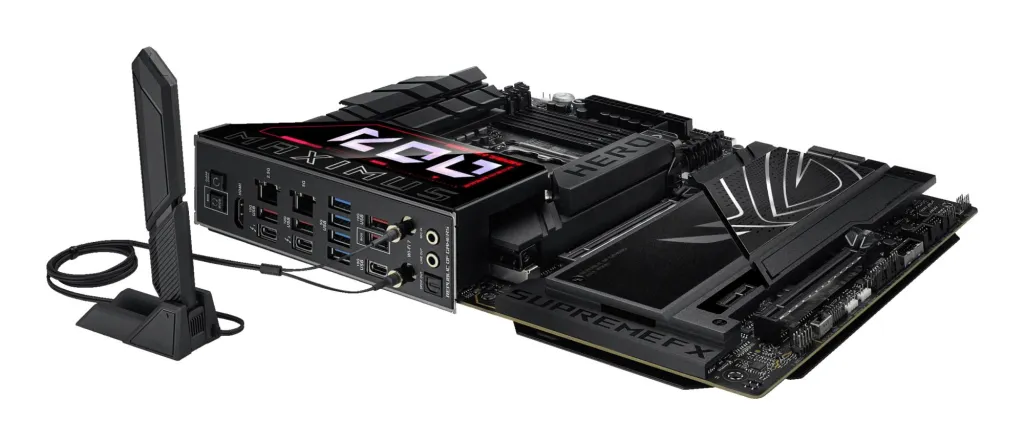

1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media:
1 x USB drive with utilities and drivers
Documentation:
1 x Quick start guide

USB 3.0

Jah

Ethernet interface type

2.5 Gigabit Ethernet/5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

2

USB-pistmiku tüüp

USB tüüp A, USB tüüp-C

Toote värv

Must

Microphone in

Jah

Motherboard chipset

Intel Z890

RAID support

Jah

Unbuffered memory

Jah

USB connector type

USB tüüp-/USB tüüp-C

Windows operating systems supported

Windows 11

BIOS memory size

256 Mbit

Number of memory slots

4

Optical S/PDIF

1

Processor Socket

LGA 1851 (Socket V1)

Raid Levels

0/1/5

USB 2.0 connectors

2

USB-C

Jah
