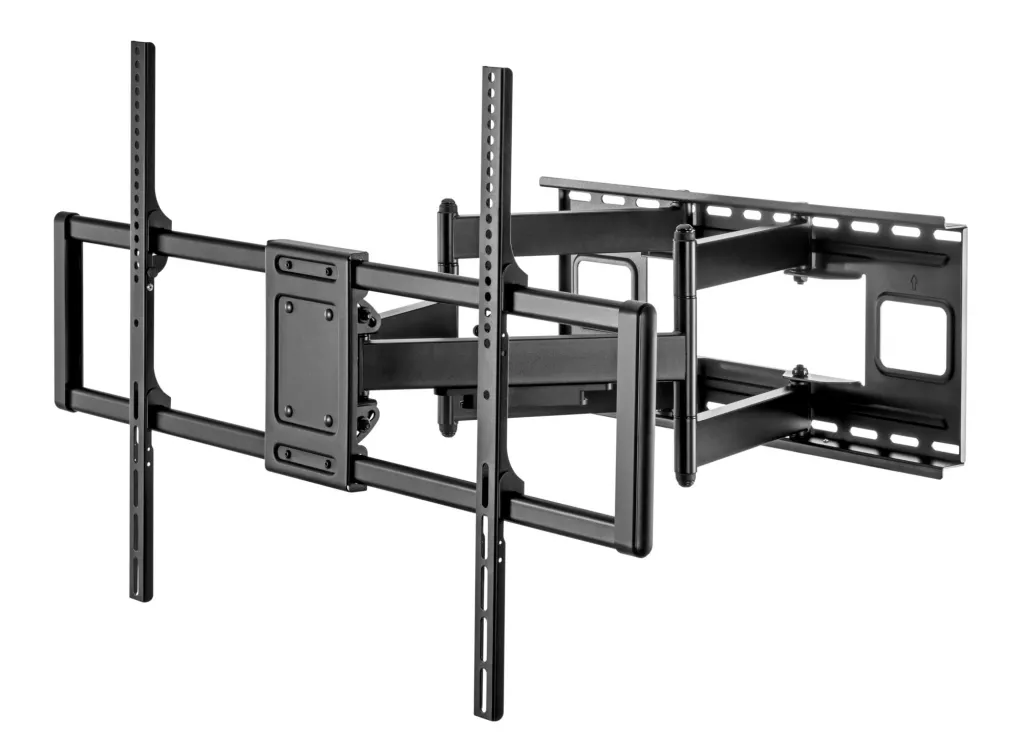

TV SET ACC WALL MOUNT 60-120"/WM-120ST-01 GEMBIRD

.: Üldised andmed :.

Tootja koduleht

https://gembird.nl/item.aspx?id=13041

.: Disain :.

Kokkuvõte

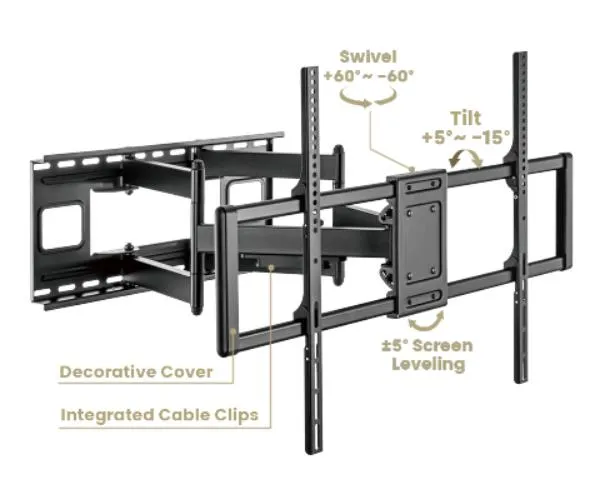

Gembird WM-120ST-01. Maximum weight capacity: 120 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 900 x 600 mm. Tilt angle range: -15 - 5°, Swivel angle range: -60 - 60°, Distance to the wall (min): 7.5 cm, Distance to the wall (max): 70.3 cm. Product colour: Black

Toote värv

Must

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

337 mm

Pakendi kõrgus

75 mm

Max kogus transpordipakendis

1

Pakendi maht

0.03887 cubm

Transpordipakendi kaal

17.8 kg

Transpordipakendi kõrgus

10 cm

Transpordipakendi laius

36.5 cm

Transpordipakendi sügavus

106.5 cm

Pakendi sügavus

1037 mm

Pakendi kaal

17970 g

Tehnilised andmed

900 mm x 600 mm

Jah

Tilt adjustment

Jah

Number of displays supported

1

Cable management

Jah

Swivelling

Jah

800 mm x 400 mm

Jah

Distance to the wall (max)

703 mm

Fits screens sized

60-120"

Number of screens

1

Maximum Weight Capacity

120 kg

400 mm x 300 mm

Jah

Unit Box Height

0.1

Unit Box Length

1.065

Unit Box Width

0.365

Maximum screen size

120 "

Depth (max)

1010 mm

Minimum VESA mount

200 x 200 mm

Minimum screen size

60 "

Maximum VESA mount

900 x 600 mm

Üksuse kalkuleeritud maht

0.03887 cubm

Panel mounting interface

200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400 mm

Tilt angle range

-15 - 5 °

800 mm x 600 mm

Jah

Mounting type

Sein

200 mm x 200 mm

Jah

300 mm x 200 mm

Jah

300 mm x 300 mm

Jah

400 mm x 200 mm

Jah

400 mm x 400 mm

Jah

600 mm x 400 mm

Jah

Distance to the wall (min)

75 mm

Housing material

Teras

Max. weight

120 kg

Swivel angle range

-60 - 60 °

Tehnilised andmed

Üksuse kalkuleeritud kaal

17.8 kg

Netokaal

16.2 kg

Brutokaal

17.8 kg

Laius

1010 mm

Kõrgus

630 mm

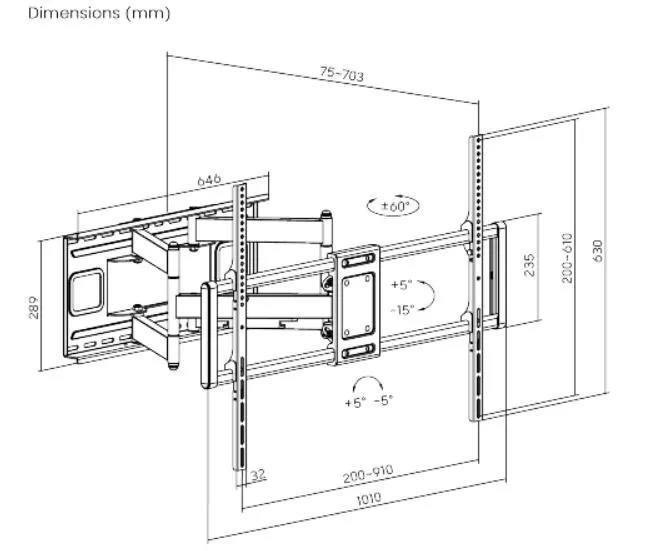

Mõõtmed (l x s x k)

703 x 1010 x 630 mm

Toote kaal

16190 g
