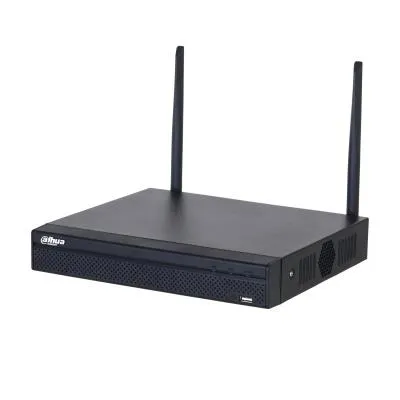

NET VIDEO RECORDER 4CH WIFI/NVR1104HS-W-S2-CE DAHUA
162.69€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 8.03 €. Taotle järelmaksu ostukorvis.
With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
- New 4.0 user interface
- One-click wireless pairing to IPCs
- Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions
- Automatic cascading of IPCs for long-distance surveillance
- 4–ch@1080P (25FPS), self-adaptive decoding capability
- Supports mainstream cameras of ONVIF protocol
- Smart H.265/Smart H.264

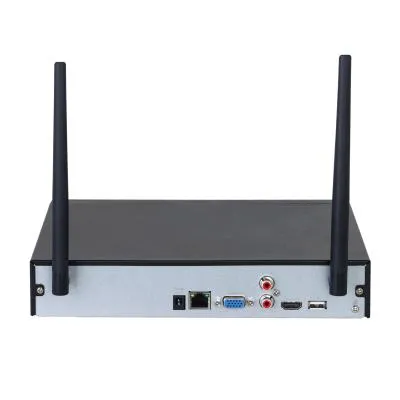

- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
- Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
- DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext
- TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/
- Mudel
- NVR1104HS-W-S2-CE
.: Disain :.
- LED-indikaatorid
- HDD/Network/Power
- Toote värv
- Must
.: Protsessor :.
- Sisseehitatud protsessor
- Jah
.: Kaamera :.
- Videosalvestusrežiimid
- 1080p/720p
.: Võrgustumine :.
- Ethernet LAN
- 10/100
- Ethernet LAN-i andmeedastuskiirused
- 10/100 Mbit/s
.: Pesad & liidesed :.
- DC-pistik
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- VGA (D-Sub) portide arv
- 1
.: Tarkvara :.
- Installitud operatsioonisüsteem
- Embedded LINUX
Toide
- Toitenõuded
- 12 VDC, 1.5 A
Funktsioonid
- Mudeli originaalnimi
- NVR1104HS-W-S2-CE
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Kasutamistemperatuur (T-T)
- -10 - 45 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 93 %
.: Pakendi andmed :.
- Pakendi laius
- 372 mm
- Pakendi kõrgus
- 308 mm
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.01298 cubm
- Transpordipakendi kaal
- 1.6 kg
- Transpordipakendi kõrgus
- 11.5 cm
- Transpordipakendi laius
- 30.5 cm
- Transpordipakendi sügavus
- 37 cm
- Pakendi sügavus
- 117 mm
- Pakendi kaal
- 1560 g
Tehnilised andmed
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P
- VGA (D-Sub) output ports
- 1
- Rack mounting
- Jah
- Backup function
- Jah
- Browser supported
- Chrome; IE 9 or later; Firefox
- Video input channels
- 4 channels
- Video motion detection
- Jah
- Audio codecs
- PCM; G711A; G711U; G726
- Rack capacity
- 1U
- Number of HDDs installed
- 1
- Unit Box Height
- 0.115
- Unit Box Length
- 0.37
- Unit Box Width
- 0.305
- CnKood
- 85219000
- Üksuse kalkuleeritud maht
- 0.01298 cubm
- HDD interface
- SATA
- Input bandwidth
- 40 Mbit/s
- Output bandwidth
- 20 Mbit/s
- Audio RCA inputs
- 1
- Audio RCA outputs
- 1
- HDMI output
- Jah
- Video codecs
- Smart H.265; H.265; Smart H.264; H.264; MJPEG
- Ethernet LAN (RJ-45) ports
- 1
- Mobile operating systems supported
- Android/iOS
- AV-In
- 1
- AV-out
- 1
- Certification
-
CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-
3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-
RED: EN301489-1; EN 301489-17; EN300328; EN300328;
EN62311; FCC ID: 47 CFR PART 15 SUBPART C - Desktop/pedestal
- Jah
- Maximum frame rate
- 25 fps
- Maximum storage capacity
- 16 TB
- Number of channels
- 4
- Operating temperature range
- –10 °C to + 45 °C
- Output current
- 1.5 A
- Output Voltage
- 12 V
- Recording Modes
- Manuaalne
- USB 2.0
- 2
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 1.6 kg
- Netokaal
- 0.824 kg
- Brutokaal
- 1.6 kg
- Laius
- 260.3 mm
- Sügavus
- 247.3 mm
- Kõrgus
- 44.7 mm
- Mõõtmed (l x s x k)
- 260.3 × 247.3 × 44.7 mm
- Toote kaal
- 824 g
